Highline project

I decided I wanted to do a highline on my new(to me) jeep. I was originally going to do a highline with the stock fenders, but I've wanted tube fenders so I decided to go ahead and do both at the same time. I had the jeep torn apart fixing the exhaust so it seemed like as good a time as any to start. I had pulled the fender off to get better access to the manifold so I was already one step ahead.

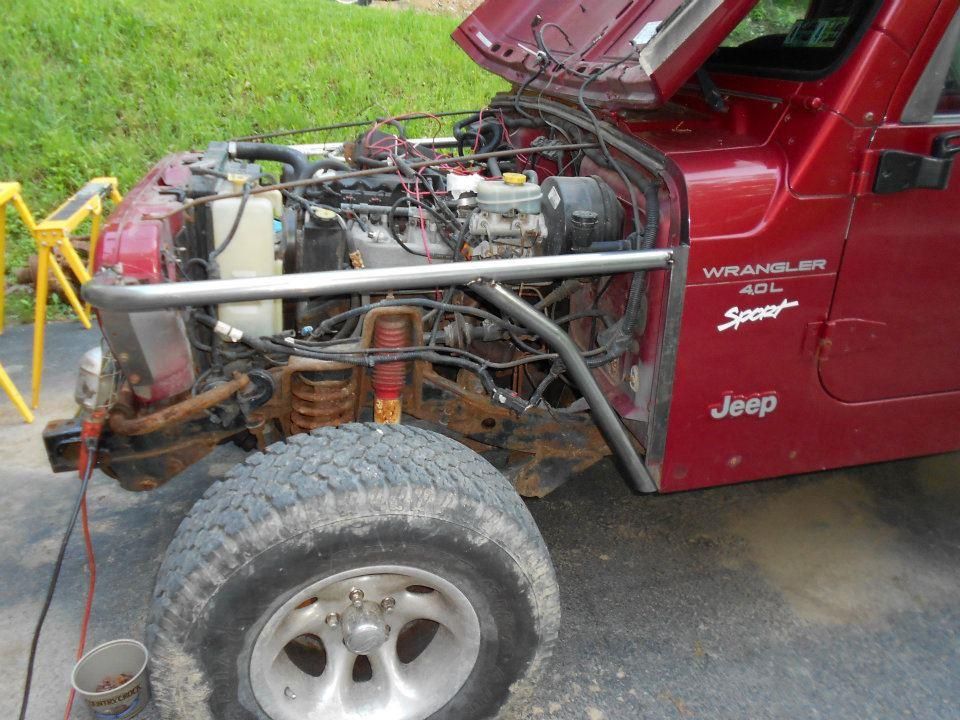

Passenger side off


I ordered tubes from Jeeptubes.com. They are very nice pieces. Well bent and accurate. They were well packaged and arrived in perfect condition. They require a little work to fit well, but I paid a fraction of what highlines cost built and I wanted to get more fab experience.


I ordered front tubes and flares as well as rear flares.

Next it was time to actually cut the hood. I taped along the body line and cut just below it. I figure I can always cut a little more off, but I think I might leave the line as it is. I saw a thread on jeepforum where someone had rewelded the lower lip back on for rigidity so I may try that down the line.




Point of no return





Next I started on some brackets to attach the tubes. I used some angle iron and flat stock.







I sliced and re-welded the top of the angle so it matches the body line a little better

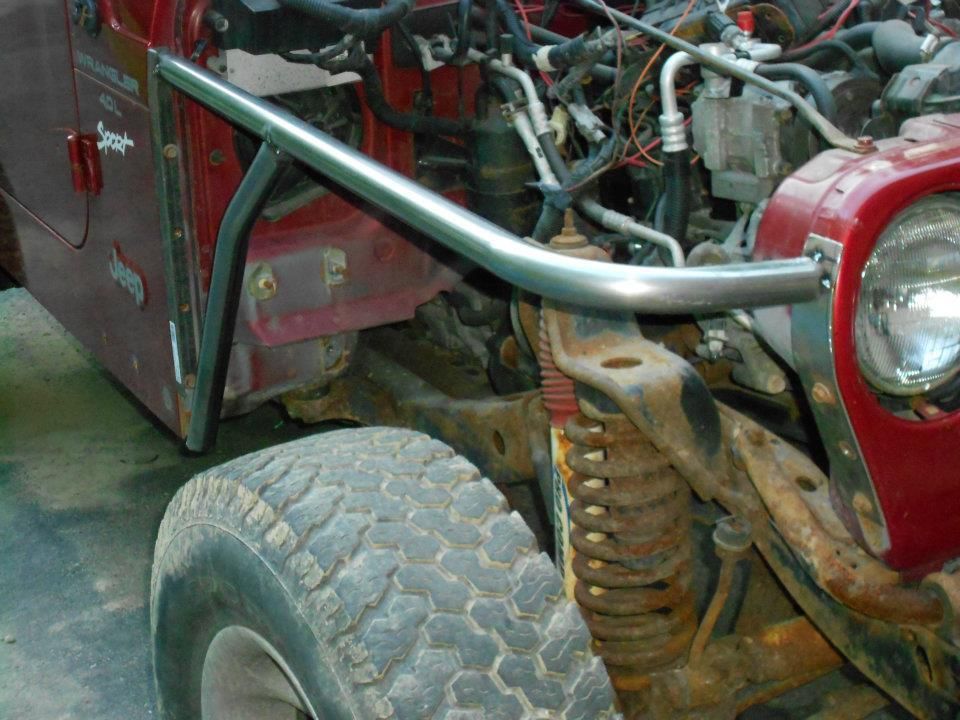

Drivers side tube tacked into place. I may have to do a little adjusting, but I think its in a pretty good spot.



Head on shot



The hood is sitting a little high, it pulls down pretty lcose to the top of the tube so I'm not woried about that gap right now. The latches should keep it close.

So far Im pretty happy with the progress considering I've not done anything this in depth before.
More to come.

abeckert is offline   Reply With Quote Quick reply to this message
Unread 05-06-2012, 04:37 PM   #2
Tenshots1
Registered User
2005 TJ Wrangler

Join Date: Dec 2009
Location: San Diego, CA
Posts: 926
Looks good. Are you going to be able to fit the latches on the side of the hood? are you going to use the stock inner fenders or fab some up?
__________________
2005 Jeep Sport 4" lift With plenty of goodies
My Build Thread: http://www.jeepforum.com/forum/f22/budget-jeep-1151796/
Tenshots1 is offline   Reply With Quote Quick reply to this message
Unread 05-06-2012, 04:41 PM   #3
mcjeepin1996
Registered User
2002 TJ Wrangler

Join Date: Apr 2012
Location: Evans (Augusta), Georgia
Posts: 88
Very cool. Always wondered how people did them themselves.
mcjeepin1996 is offline   Reply With Quote Quick reply to this message
Unread 05-06-2012, 05:29 PM   #4
G Beasley
Registered User
2005 LJ Wrangler

Join Date: Nov 2001
Location: Eden, NC
Posts: 5,509
The rewelded lip thread is from Hendrix http://www.jeepforum.com/forum/f9/ro...style-1012297/
It really sets his high line apart from many others . Nice work so far , still have a lot of fitting and welding to go !
__________________
Free stickers and picture hosting at Jeep-Owner.com
G Beasley is online now   Reply With Quote Quick reply to this message
Unread 05-07-2012, 06:56 AM   #5
abeckert
Registered User
1998 TJ Wrangler

Join Date: Feb 2012
Location: Hookstown, PA
Posts: 8
Quote:
Originally Posted by Tenshots1 View Post
Looks good. Are you going to be able to fit the latches on the side of the hood? are you going to use the stock inner fenders or fab some up?
I've seen a couple people reuse the stock latches, but I may end up using some hood pins anyway. I'll have to wait and see if it works out.

As for the inner fender, I'd like to reuse the stock fender to keep costs down. I had thought about using some marine aluminum too cus I think that would look cool on the underside.

It'll be a fairly slow process as I'm learning along with this, but I'm having a good time doing it.
abeckert is offline   Reply With Quote Quick reply to this message
Unread 05-11-2012, 07:47 PM   #6
abeckert
Registered User
1998 TJ Wrangler

Join Date: Feb 2012
Location: Hookstown, PA
Posts: 8
Got a little more done today.

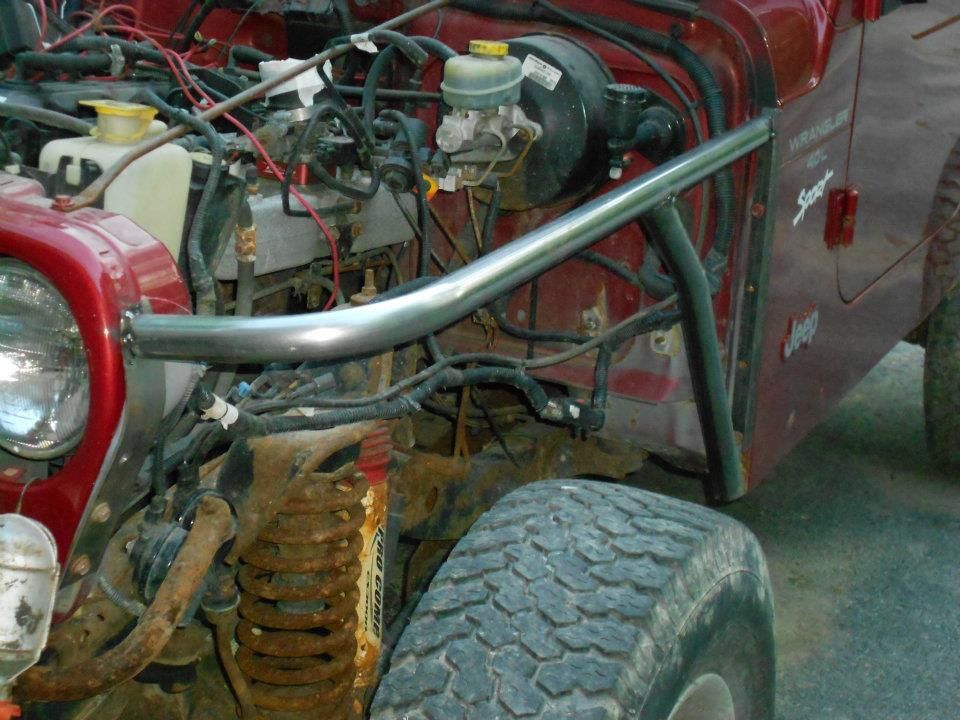

I got both main tubes welded and the down tubes in. next i'll be plating the top and sides, then I'll get started on the flare.







abeckert is offline   Reply With Quote Quick reply to this message
Unread 12-16-2012, 12:49 PM   #7
abeckert
Registered User
1998 TJ Wrangler

Join Date: Feb 2012
Location: Hookstown, PA
Posts: 8

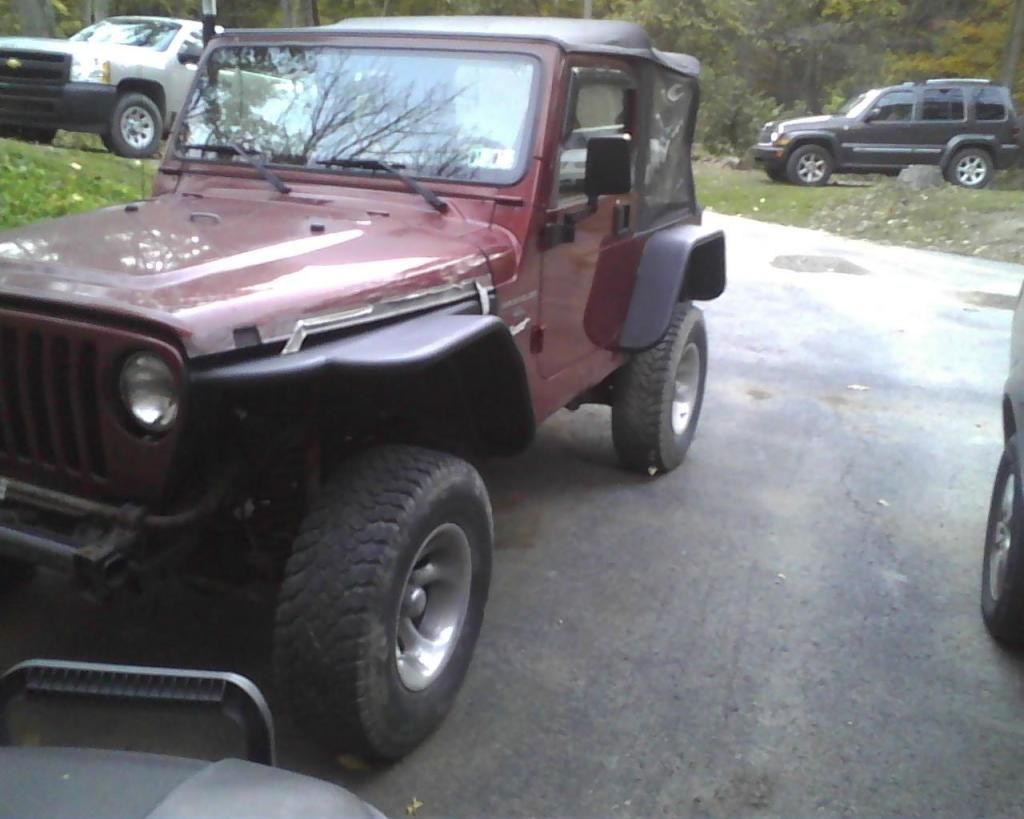

Its been a long time since i started this project and a lot of time since I posted any progress. Time and funds dictated when I could work on this but, ive finally got most of this done.

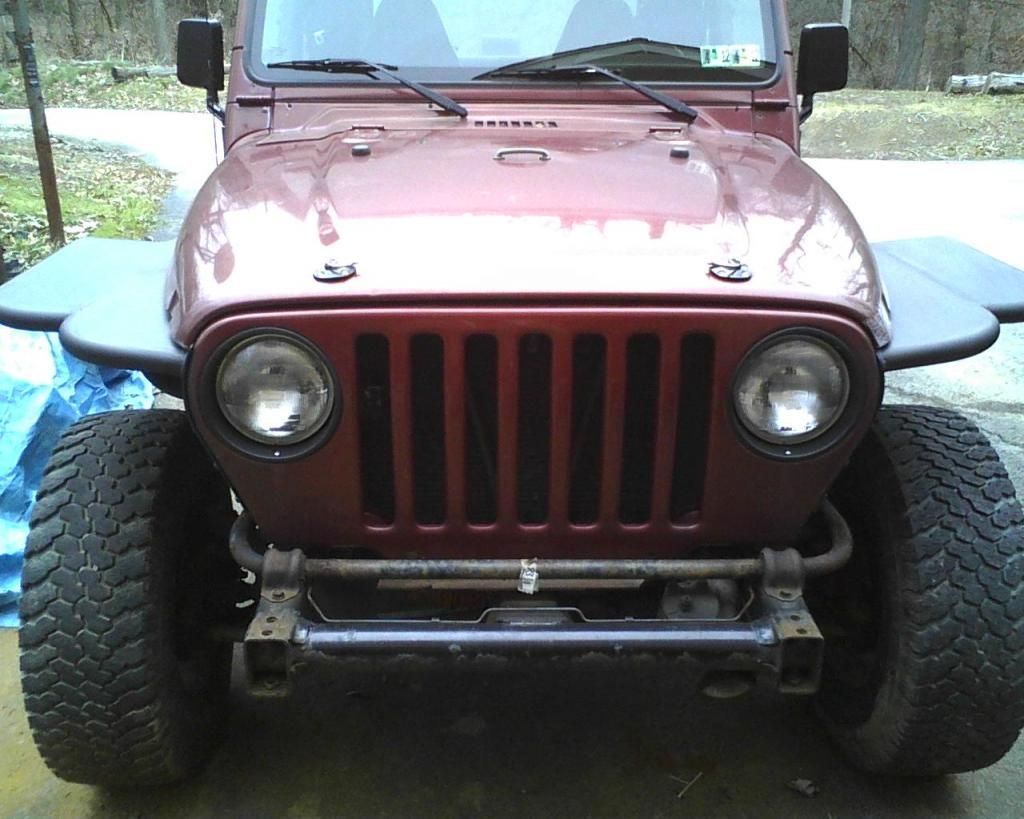

I decided to go with hood pins rather than the stock latches

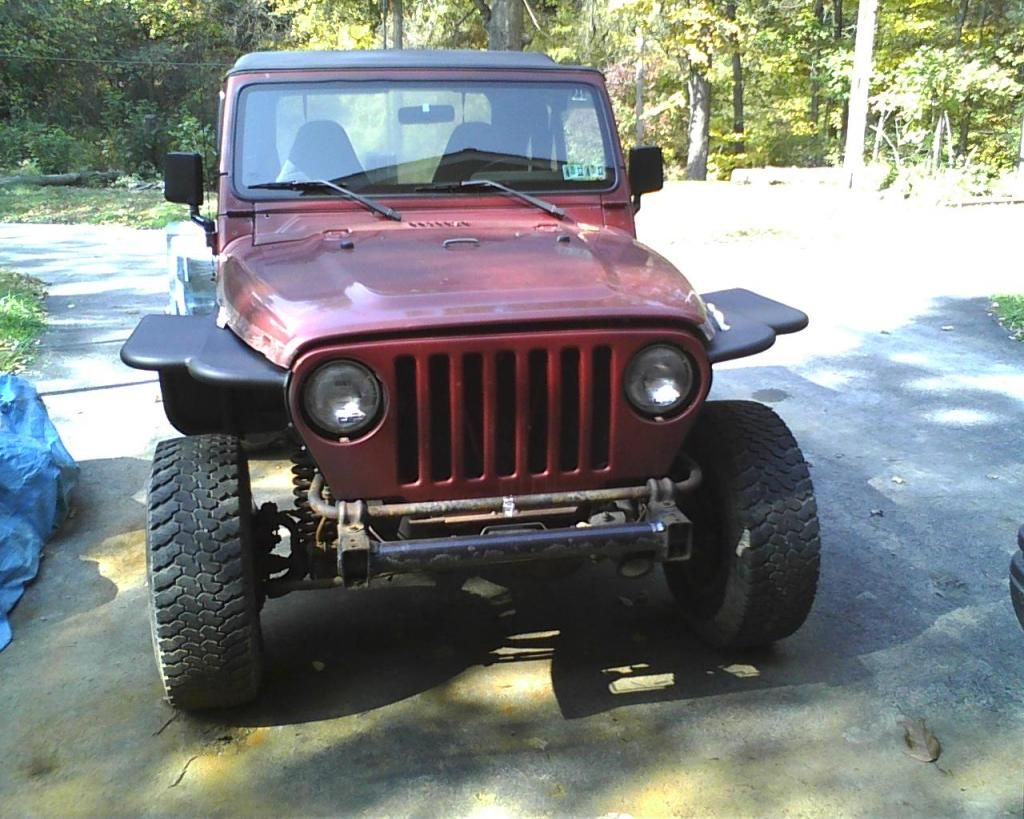

I wanted to use round JK turn signals for a CJ look, but in the interest of saving money I decided to reuse the stock rectangle lamps. I actually kind of like the look so it worked out.
