Told the stock brackets to take a hike. Each one took about 10 minutes with grinder, hammer, and plasma cutter.

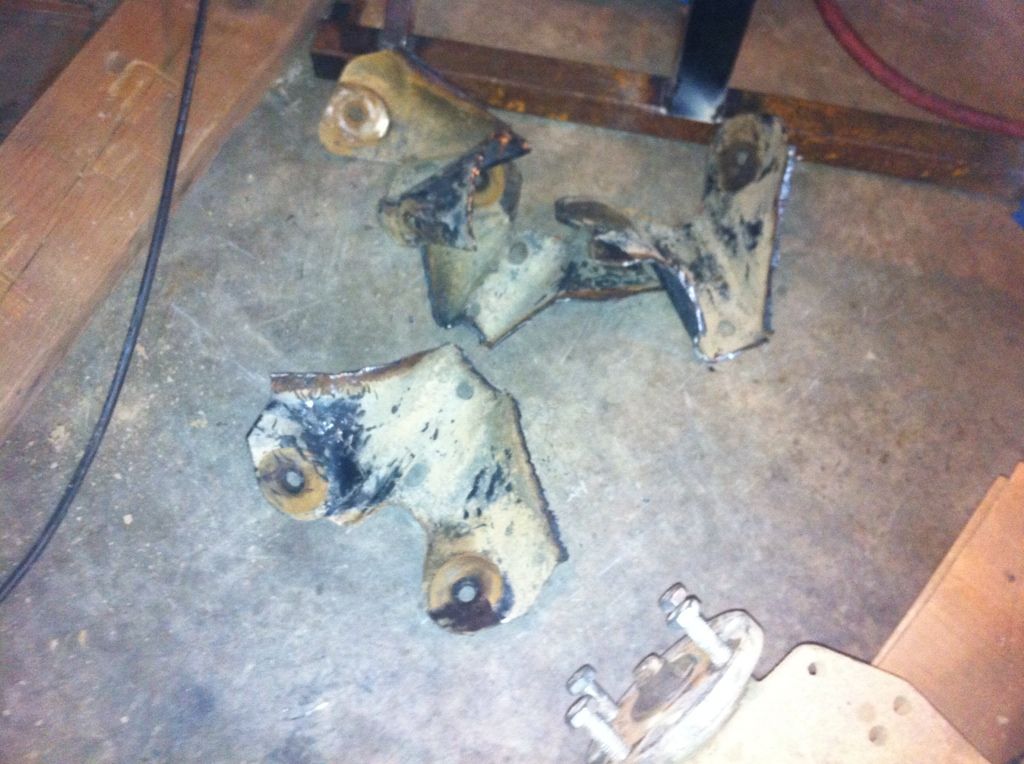

Glad I cut them off

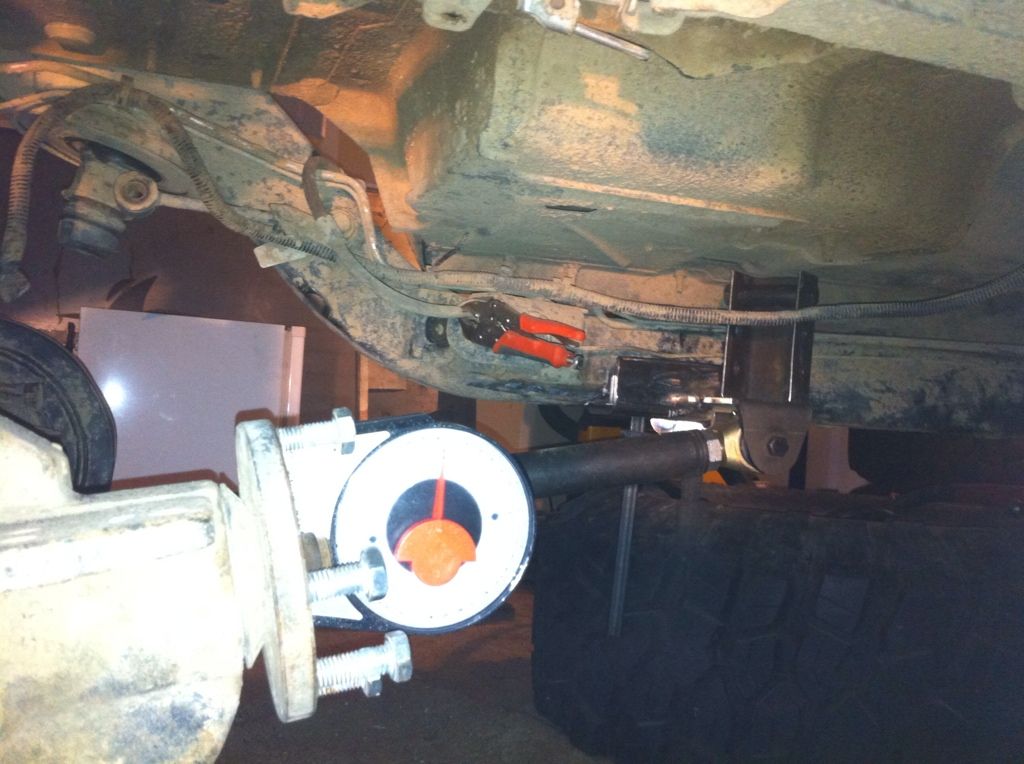

Then I mocked up the tank skid and slid the axle in place. It will be difficult to get 5" out of this tank without cutting more out of it and getting into the "bubble" underneath. I will still try to squeeze every inch out of the rear end to make the front stretch easier, ie., no box move. I might rotate it anyway but we'll see.

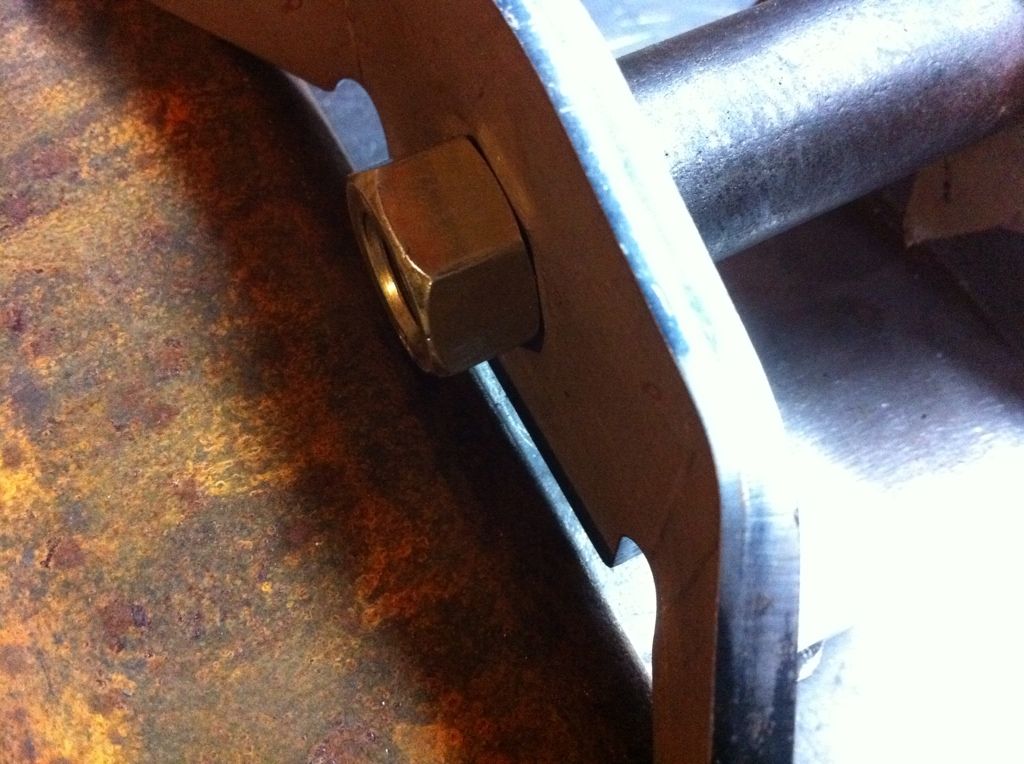

For anyone looking on how to assemble the high clearance poly performance lower control arm mounts...this is how they're mocked up

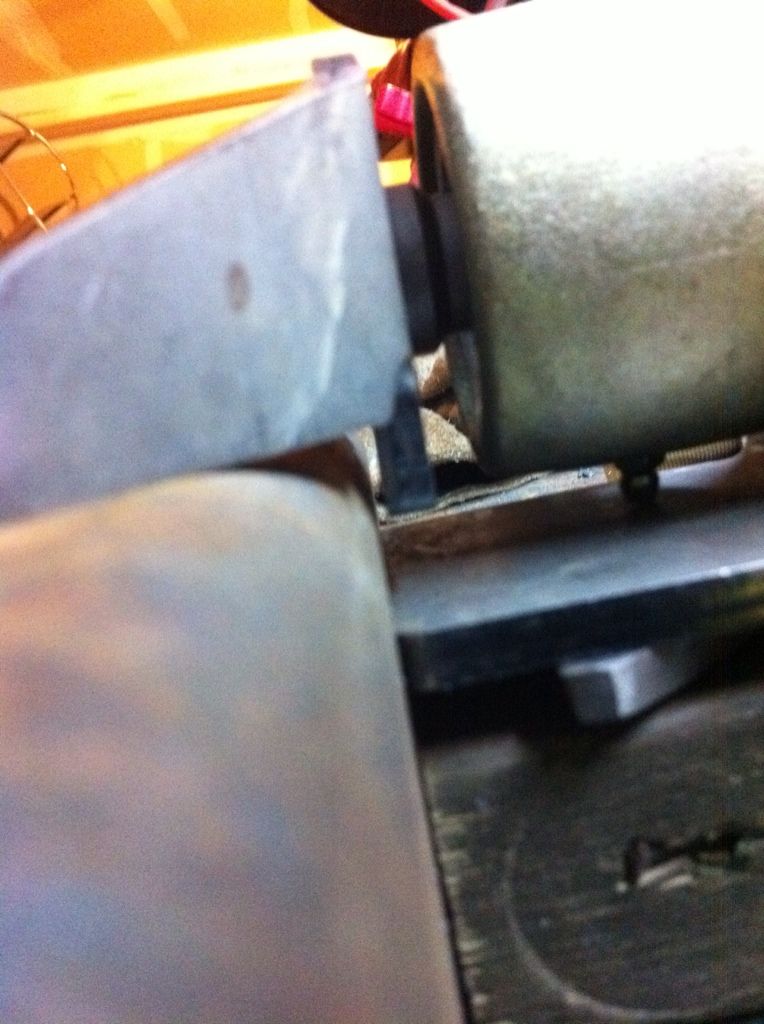

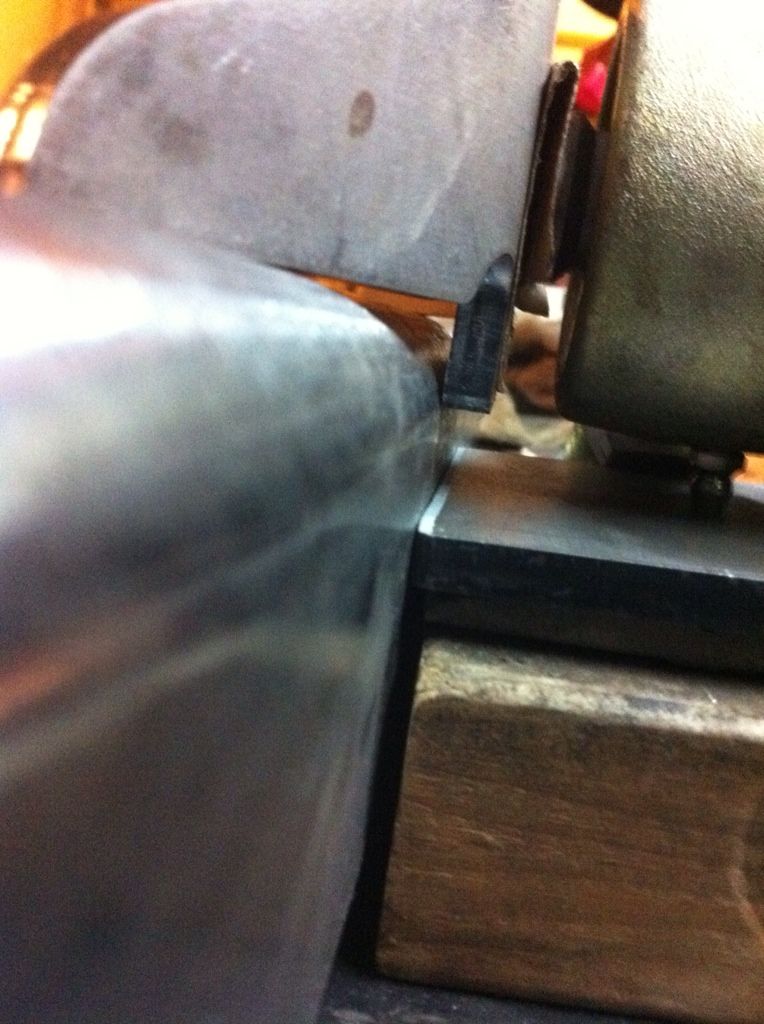

Not too happy about the gap left...it's about 1.5-2mm.



Finally was able to accurately measure what my separation will be. Just like I predicted, 6.5". I'm glad I didn't drill a 4th hole in the link towers...the cut line is right in the center of where it would have been drilled.


Tomorrow....suspension mockup begins.

gtxracer is offline
Sponsored Links
Advertisement

post #197 of 676 Old 01-06-2012, 05:06 AM
nibstools
Registered User
1995 YJ Wrangler

Join Date: Apr 2010
Location: Bridgeport NY
Posts: 1,062
Sohow are you making the dimples in the steel plate? i think you may have said already deep in this thread somewhere but I can't find it!

Check out "my little YJ" in the Jeep builds section.

http://www.jeepforum.com/forum/f22/my-little-yj-1127802/
nibstools is offline
post #198 of 676 Old 01-06-2012, 01:51 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
No worries, they're called dimple dies. I didn't want to spend close to $400 for my set when I knew I only needed a few sizes so I bought these:

http://www.straightlineinnovations.com/index.html

He makes his from 4140 and they are very good quality. It's just a guy in his shop making them but if you let him know you really want a set he will make them right away. He usually has a few sets already made but it's good to know he's prompt. I've had them for almost 6 months and love them.

Here's another place if you want individual sizes or specific sizes:

http://www.pacificcustoms.com/dimple-dies.html
gtxracer is offline
post #199 of 676 Old 01-06-2012, 02:22 PM
nibstools
Registered User
1995 YJ Wrangler

Join Date: Apr 2010
Location: Bridgeport NY
Posts: 1,062
Thank you sir! do you use a press to mash them together?

Check out "my little YJ" in the Jeep builds section.

http://www.jeepforum.com/forum/f22/my-little-yj-1127802/
nibstools is offline
post #200 of 676 Old 01-06-2012, 02:56 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
No problem nibs. I use a Harbor Freight 20 ton press, but there are many ways to do it. If you find the dimple dies with a hole in the center you can use a fine thread bolt and an impact gun to dimple the plate.
gtxracer is offline
post #201 of 676 Old 01-06-2012, 11:37 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427

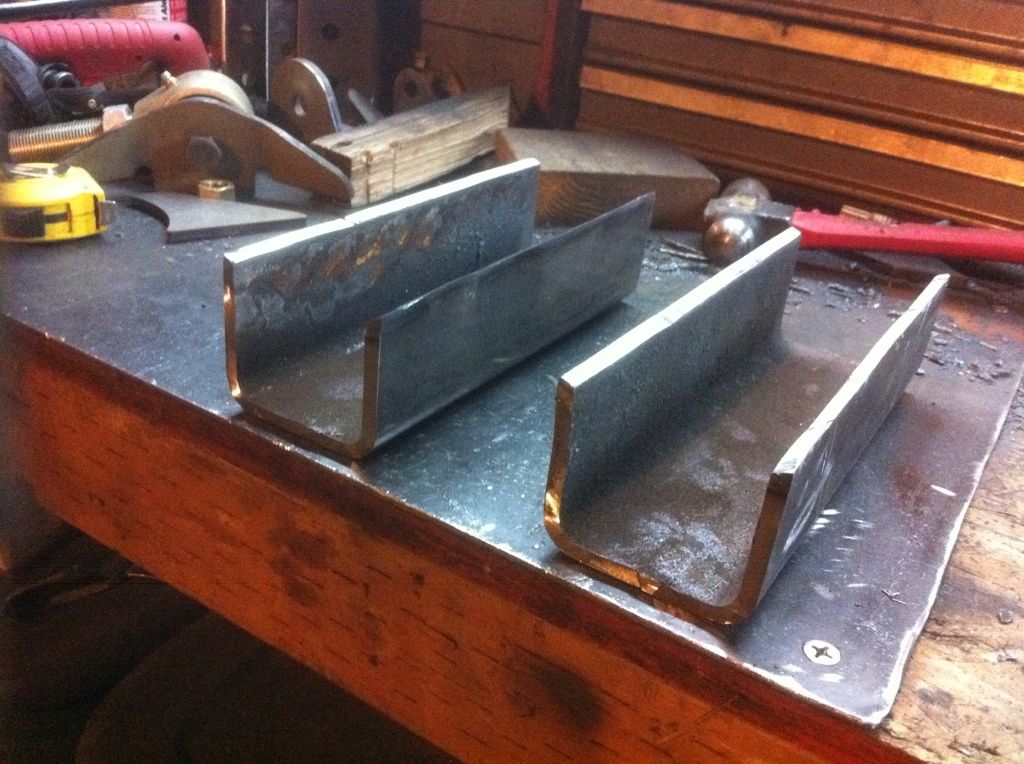

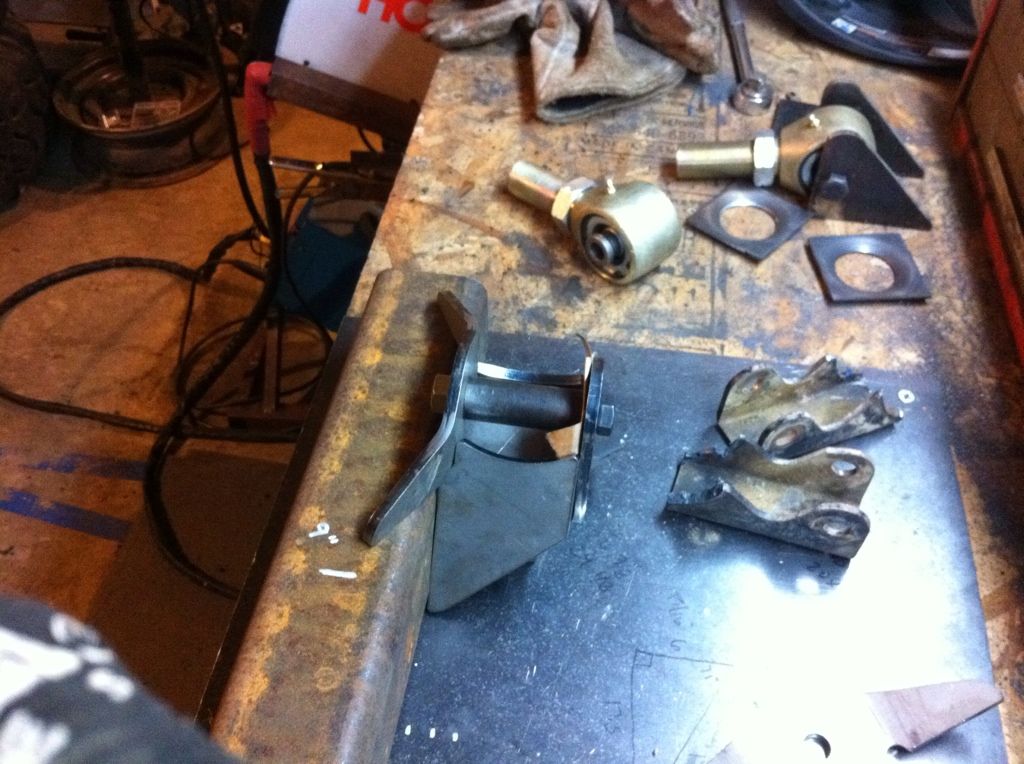

How the brackets are supposed to be for 2.63" joints...I have a feeling these were cut for 3.00


Had the plasma doin work for me...

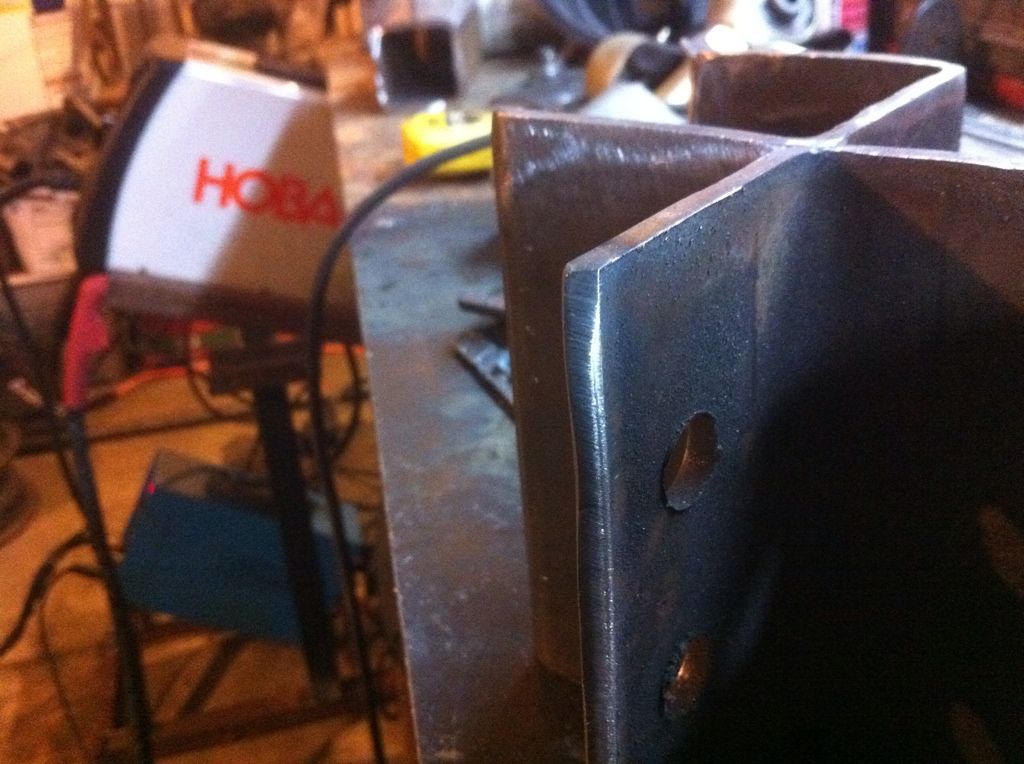

link towers

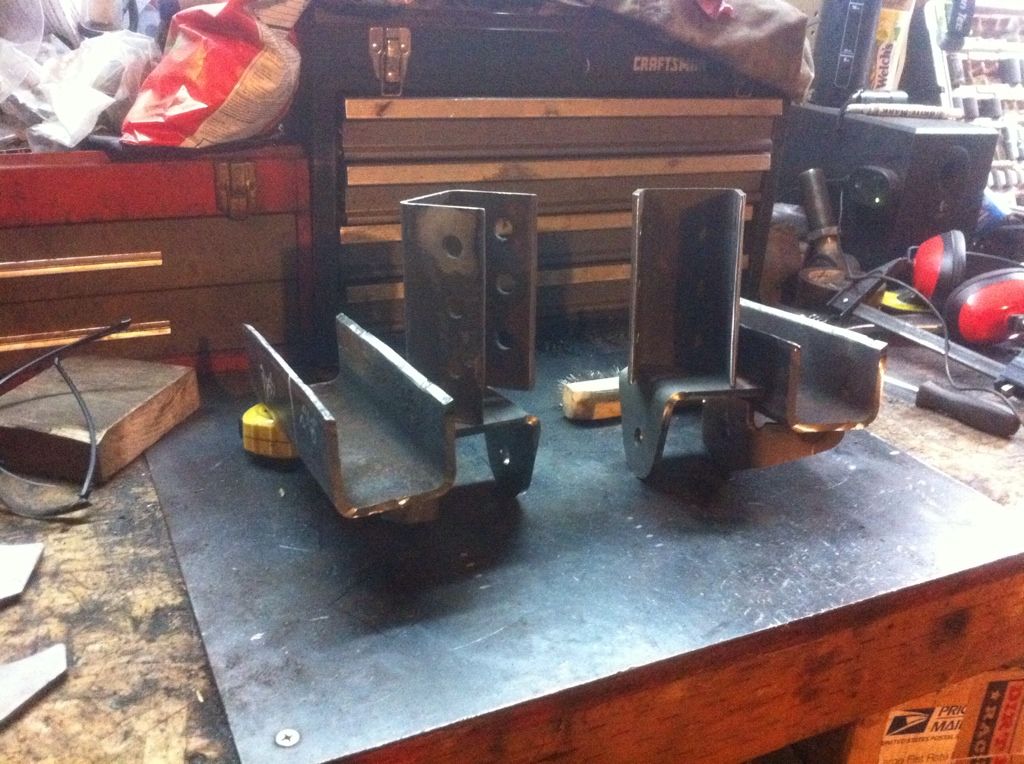

frame brackets

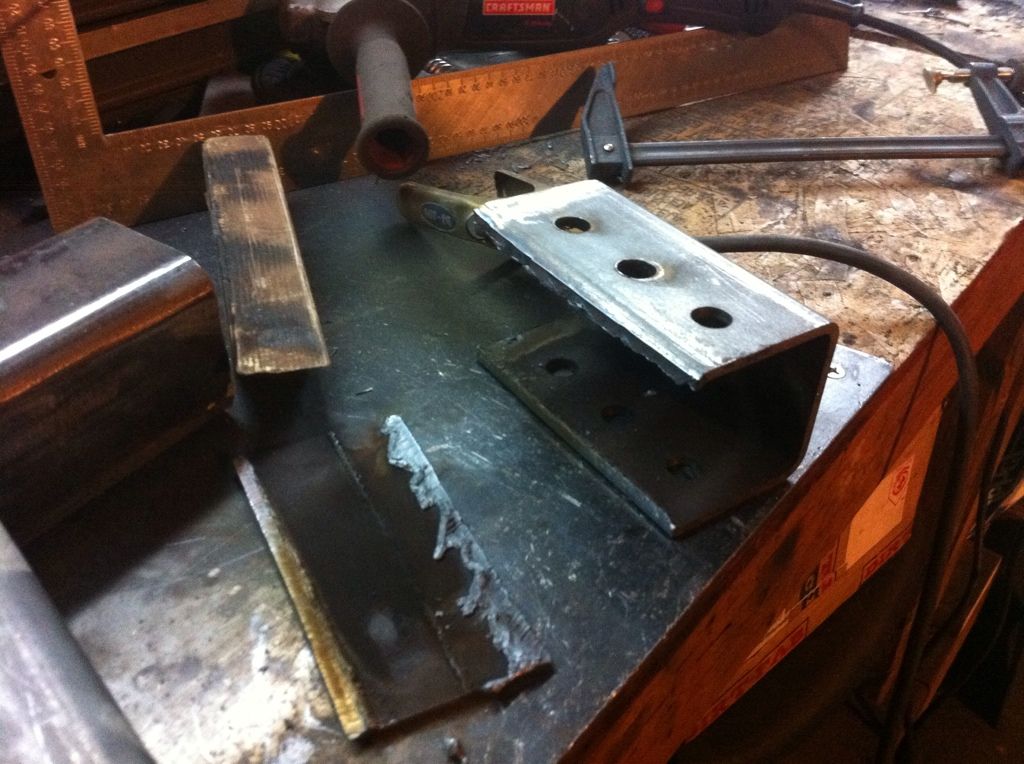

cleaned up

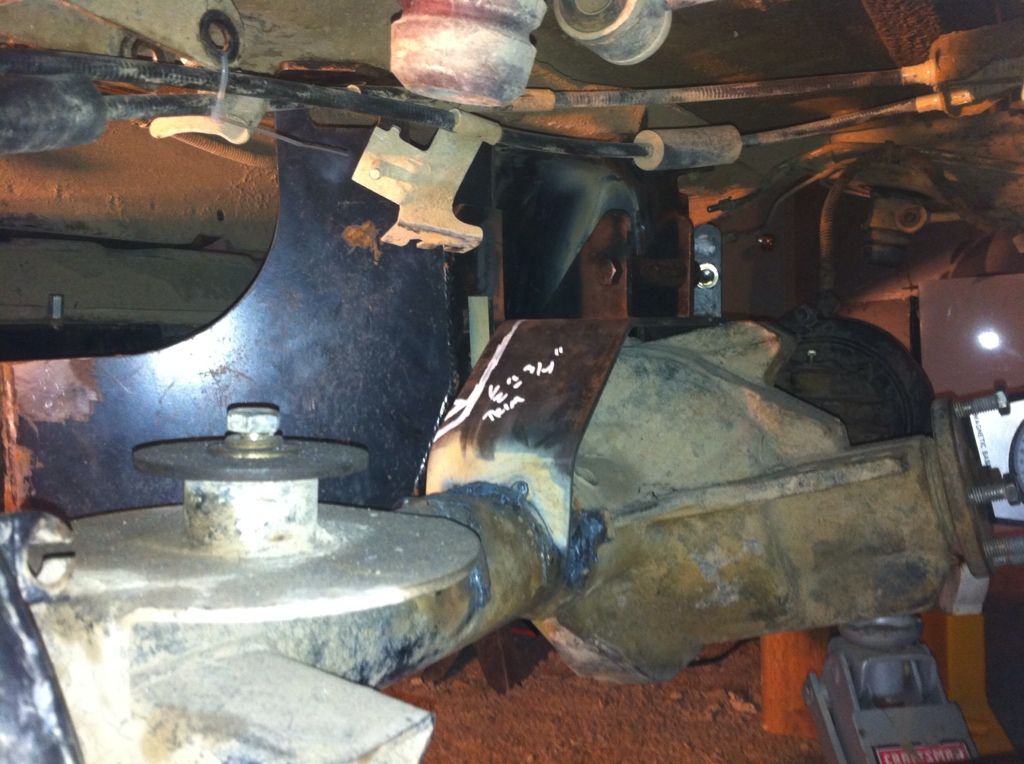

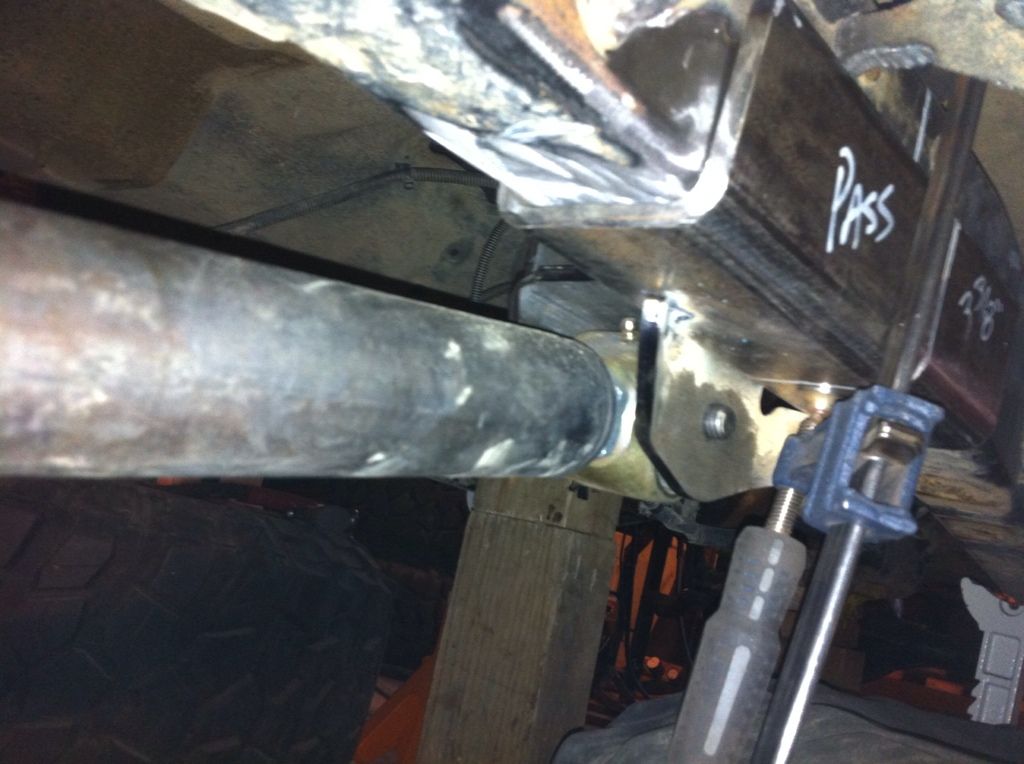

Today's work paid off....lowers tacked in place

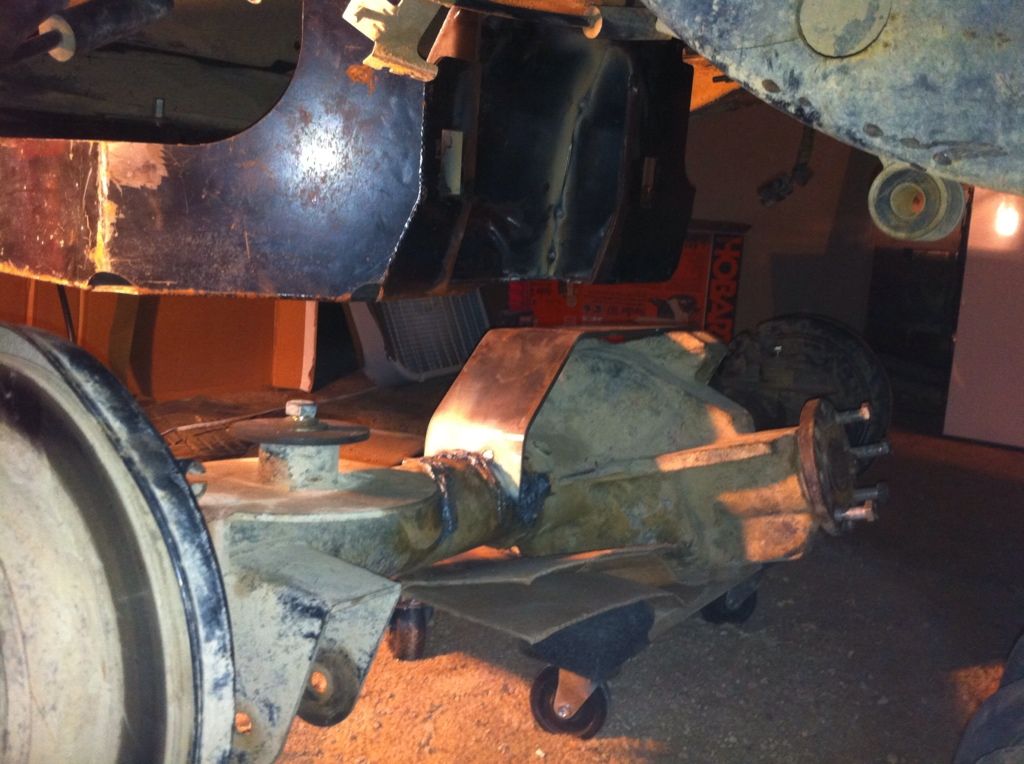

With the lower mounts tacked in place I can finally do a mockup of the rear suspension. I had to clearance a small part of the body mounts where the frame brackets mount and clean up the frame from the stock bracket carcasses. I'll clean it up completely later on but for now I just want to get it on all fours. I still have to *cleanly* take off the coil buckets...but I might just hastily cut them off and fab some new mounts from bent 10g sheet. I don't exactly like the factory mounting position anyway and I might have to cut into it to set it into the curve of the frame.
gtxracer is offline
post #202 of 676 Old 01-07-2012, 12:35 PM
nibstools
Registered User
1995 YJ Wrangler

Join Date: Apr 2010
Location: Bridgeport NY
Posts: 1,062
I like the pacific customs because you can buy them individually. Gonna be making some sliders with side steps for a fellow jeeper ans want to dimple some plate to go on top of the step for a tread.

Check out "my little YJ" in the Jeep builds section.

http://www.jeepforum.com/forum/f22/my-little-yj-1127802/
nibstools is offline
post #203 of 676 Old 01-07-2012, 01:05 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
That's a good idea, I see that a lot. 1.5 and 1.0 are popular sizes and would probably work well for that application.
gtxracer is offline
post #204 of 676 Old 01-08-2012, 07:33 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Pictures from the mockup, looks like 4" is easiest with a possible 5" if I trim the back of the link bridge. I'll trim it but I want to stick with a 4" rear stretch and take the rest out front. See for yourself...


**sorry for the crappy pics, the lighting isn't the best under the rig**










decent uptravel clearance

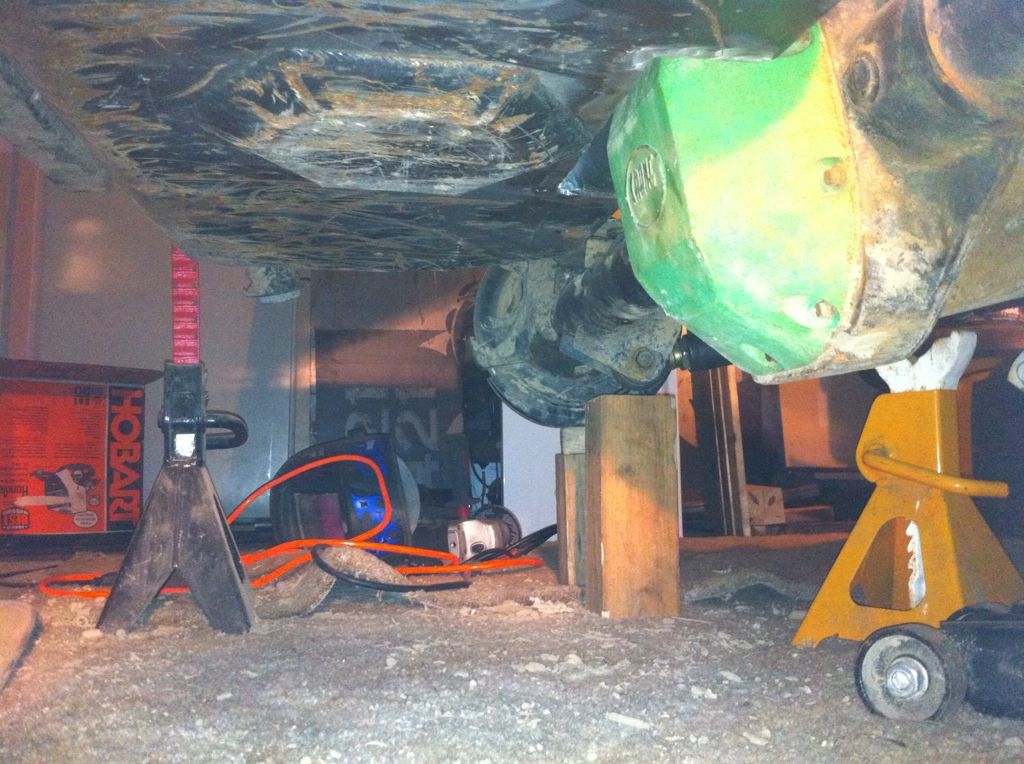

tank clearance looks good

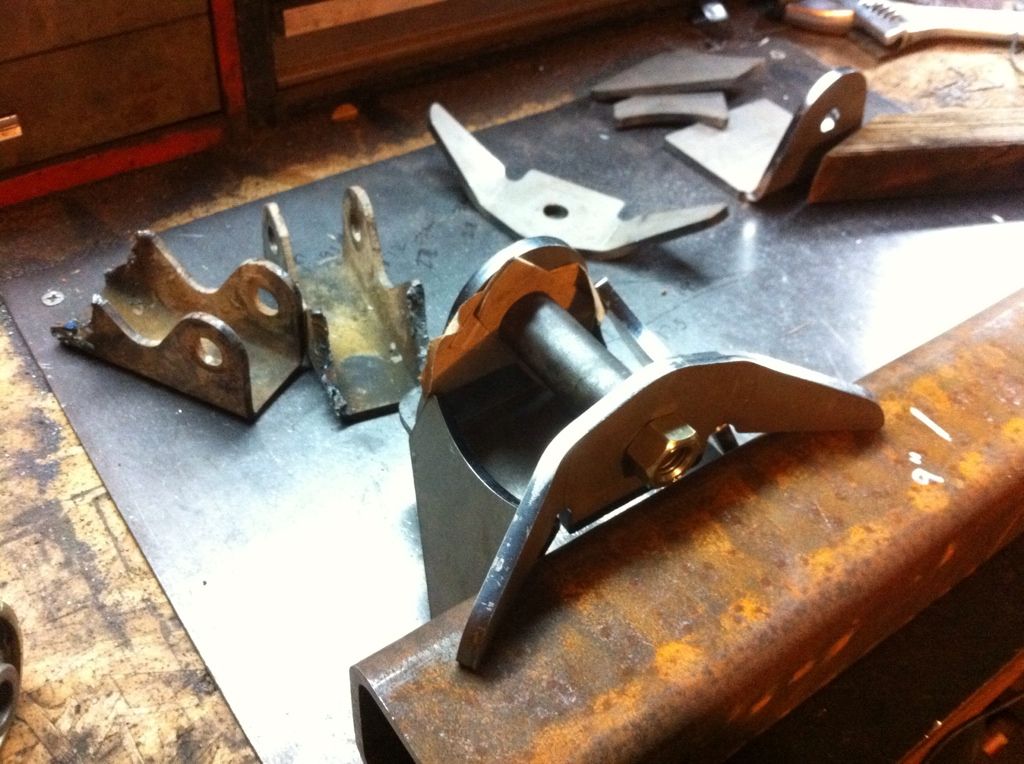

I really like how these mounts came out


gtxracer is offline
post #205 of 676 Old 01-08-2012, 07:49 PM
Sgt.Fuzz
Registered User
2001 TJ Wrangler

Join Date: Oct 2009
Location: North Texas
Posts: 4,481
Nice job on the brackets.
Sgt.Fuzz is offline
post #206 of 676 Old 01-08-2012, 08:27 PM
kyle_craig
Registered User
1998 TJ Wrangler

Join Date: Jan 2009
Location: White Bear Laaake, Minnesooota
Posts: 2,745
Garage
Looking damn good. What are your plans for fenders?
kyle_craig is offline
post #207 of 676 Old 01-08-2012, 09:26 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Quote:
Originally Posted by DaFuzz View Post
Nice job on the brackets.
Thank you

Quote:
Originally Posted by kyle_craig View Post
Looking damn good. What are your plans for fenders?
Keeping the stock flat fenders for now. I have some ideas for tube fenders when I get a bender.
gtxracer is offline
post #208 of 676 Old 01-09-2012, 11:40 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Arms From Dirt Fab came in...glad I ordered them versus building...saved me at least two days fab time


Cut out the final link tower



Cut the frame brackets for the front


I forgot to take pics of the tacked in Poly mounts on the frame brackets. I used the 10 degree mounts on the front since the arms were shorter and it has more triangulation than the rear for the lowers.

Here's everything mocked up. Again, sorry for the crappy pics

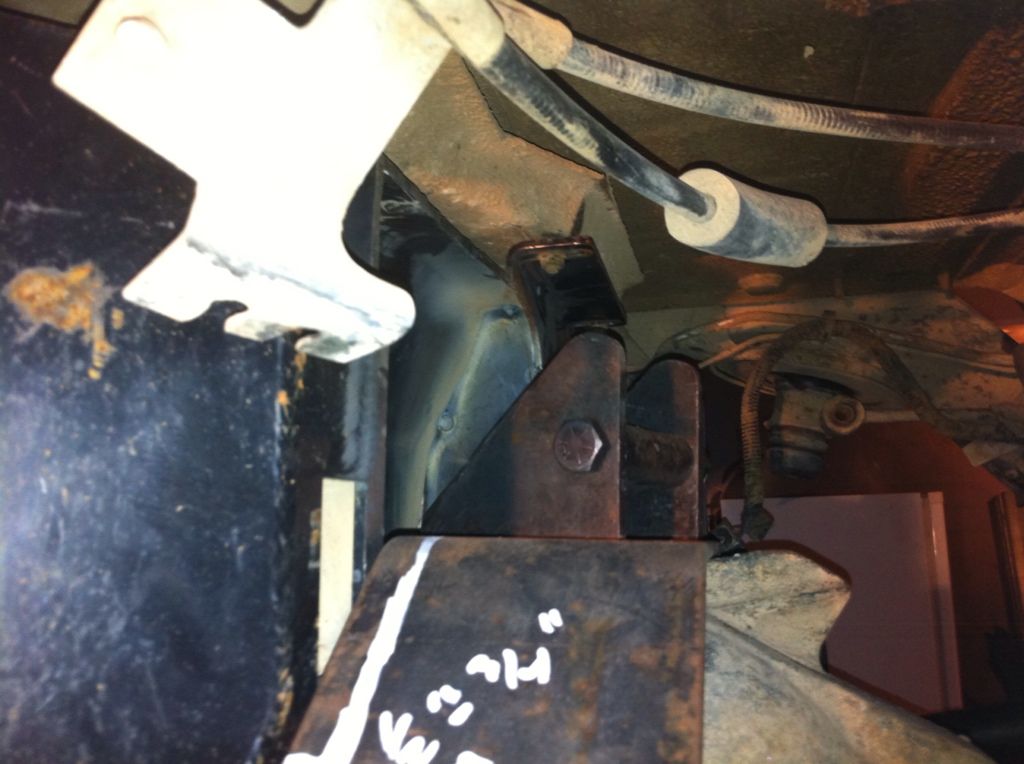

Link tower, lots of lines and cables in the way but they're easy to manage
