post #166 of 676 Old 11-01-2011, 08:04 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
I opened my door this afternoon to find this on my doorstep. UPS guy didn't even ring my doorbell.




I had to download the instructions so I didn't get it hooked up today. Hopefully tomorrow I'll have it up and running. I started on my press brake today. Wish I would have known my plasma cutter was upstairs on my porch since I was doing nothing but cutting all morning.

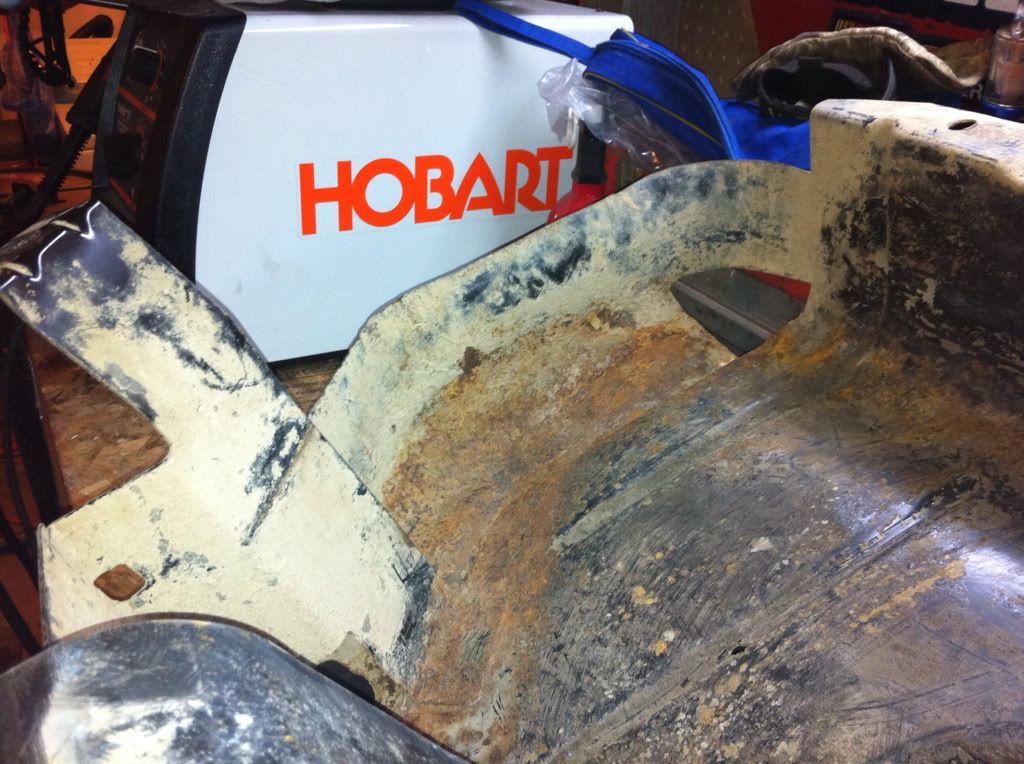

Then I took the tank out of the skid and scraped all the gunk off of it. Wow.

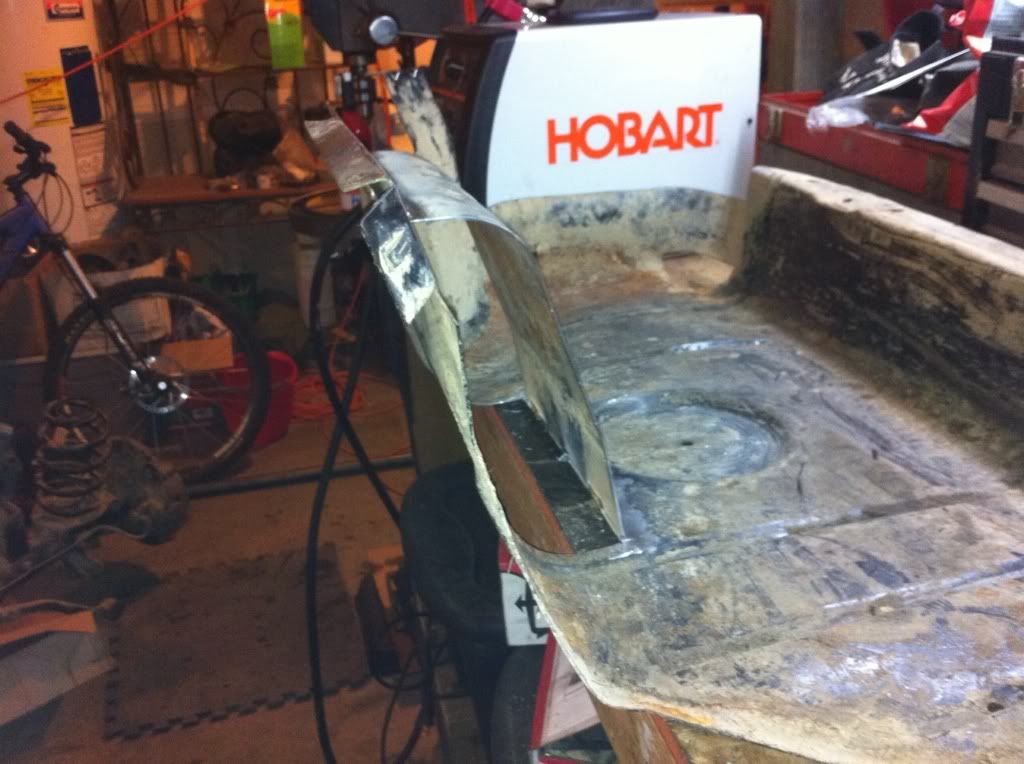

Made some cuts to clear the pumpkin. 8.8 cover is only about 3" deep so there was no point in making it more than 4" clearance. Need to grind out the welds and redo it tomorrow.


gtxracer is offline
Sponsored Links
Advertisement

post #167 of 676 Old 11-01-2011, 08:50 PM
Imped
Registered User
2004 TJ Wrangler

Join Date: Feb 2008
Location: Indianapolis
Posts: 20,301
Really? You're actually gonna re-use that piece of cardboard ****? I hope you're at least plating the bottom or something.

OlllllllO
Float Test Build
IndyORV
Imped is offline
post #168 of 676 Old 11-01-2011, 08:53 PM
IEcrawlerTJ01
Registered User
2000 TJ Wrangler

Join Date: Sep 2010
Location: lake elsinore
Posts: 1,215
Quote:
Originally Posted by Imped
Really? You're actually gonna re-use that piece of cardboard ****? I hope you're at least plating the bottom or something.
Atleast get an 03 and up skid

SAVVY,CURRIE,GOODYEAR

Nuff said...
IEcrawlerTJ01 is offline
post #169 of 676 Old 11-01-2011, 09:12 PM
TJRHD
Registered User
2005 TJ Wrangler

Join Date: May 2011
Location: Eastern
Posts: 3,623
nice build, do you find that the mig is better for you? I too have the lincoln stick for now..

NOT A HATER
TJRHD is offline
post #170 of 676 Old 11-01-2011, 11:58 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Quote:
Originally Posted by Imped View Post
Really? You're actually gonna re-use that piece of cardboard ****? I hope you're at least plating the bottom or something.
Probably I have some 10g I can plate the bottom. I might raise it 1" and put some plastic on the bottom if I wanna get crazy.

Quote:
Originally Posted by IEcrawlerTJ01 View Post
Atleast get an 03 and up skid
Meh. Considering I'm probably going to have a fuel cell down the road I'm not going to put that much effort into it right now. If I find one for cheap I'll snag it.

Quote:
Originally Posted by TJRHD View Post
nice build, do you find that the mig is better for you? I too have the lincoln stick for now..
Thanks, I like MIG a lot! Selling my Lincoln now, no need for it with this machine. I need the space and the cash could buy more steel.
gtxracer is offline
post #171 of 676 Old 11-02-2011, 05:06 AM
nibstools
Registered User
1995 YJ Wrangler

Join Date: Apr 2010
Location: Bridgeport NY
Posts: 1,062
Keep us posted on that plasma. Been looking at one of their 3 in 1 units. Really want the plasma and TIG features!

Check out "my little YJ" in the Jeep builds section.

http://www.jeepforum.com/forum/f22/my-little-yj-1127802/
nibstools is offline
post #172 of 676 Old 11-02-2011, 06:48 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
So far it has not been a good experience. They forgot to include a crucial part to the torch.
gtxracer is offline
post #173 of 676 Old 11-02-2011, 11:23 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
This skid is trashed. I'm not going to try to salvage it, I'll just upgrade. A local guy, about 3.5 hrs away, has a warn skid for cheap but I don't wan to drive 7 hrs. We'll see if I can get it somehow.


My plasma cutter didn't come with a swirl ring...not too happy about that but they're saying they'll send me one tomorrow. I kept working anyway using cut off discs and finished my press brake. Works great!



gtxracer is offline
post #174 of 676 Old 11-02-2011, 11:33 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
I also made my cardboard mockups for the 8.8 truss and link mounts. Pinion is at 14 degrees, truss at 0. They will be boxed and dimpled. 1/4" for everything except the dimple stuff which is 10g. Welding the short side tube and truss is going to be tricky but I'm going to tie it into the sway bar mount.



gtxracer is offline
post #175 of 676 Old 11-03-2011, 05:51 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Dropped 5lbs of dry ice in the tank for anyone that wants to get rid of the fumes and excess gas easily.

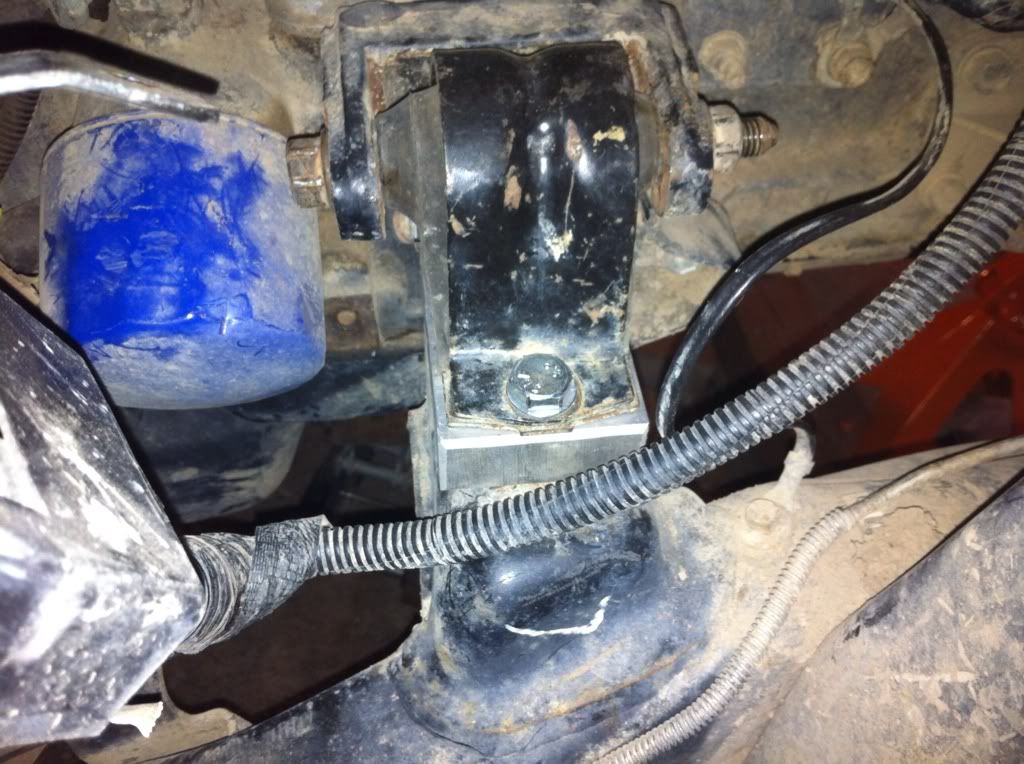

Got the motor mount lift installed, it's from Rough Country. Not a bad piece of machined aluminum, the finish was great, everything lined up well, and the instructions were well written. Very happy with these right now.


Started removing the stock brackets too. I hated these on my first jeep...and I hate them even more now that I smacked my hand with a hammer. Ouch.


I took a break, I have a game soon. Tomorrow I'll have a little time start the crossmember. With the MML in place, I have the np435 flat and there's a little more clearance. I'll check it tomorrow and make sure it will work. Crossmember will be ~1.75 square tube, .250 wall.
gtxracer is offline
post #176 of 676 Old 11-04-2011, 05:44 AM
Redcrazzy
Registered User
2004 TJ Wrangler

Join Date: Jul 2011
Location: Huntsville
Posts: 121
Awesome work man, you look like you know what you're doing (even if you didn't I wouldn't be able to tell lol). Impressive to say the least. Keep at it
Redcrazzy is offline
post #177 of 676 Old 11-04-2011, 04:32 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Thanks, I'm stalled right now because of longevity's screw up.
gtxracer is offline
post #178 of 676 Old 11-06-2011, 10:52 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Got my swirl ring finally and couldn't resist putting it in the torch and making some test cuts. One thing led to another, the girlfriend had homework to do, which meant she was currently disabled from giving me....let's just call it "attention". Yeah, that's what we'll call it. So I dove into the deep end of plasma cutting utopia.

First up were the axle tube ends of the truss plate. Tried a hole saw but 20 minutes of holding down the drill press handles only to get 1/2 way through caused me to give up and focus on other things until today:

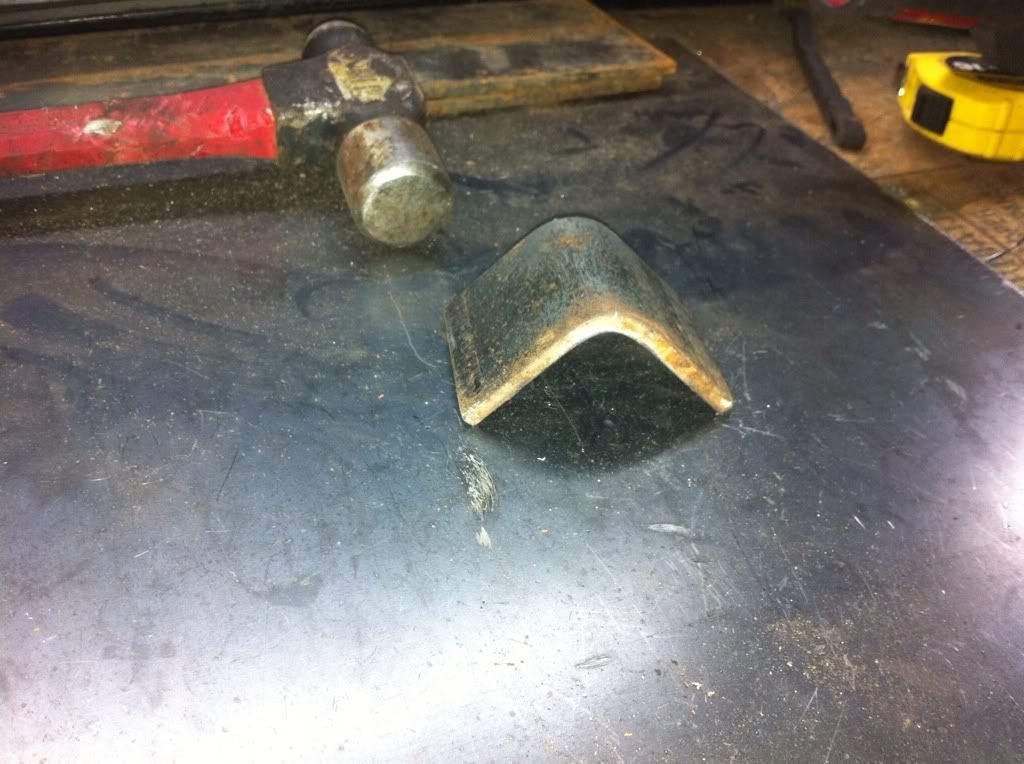

Marked it for the bends

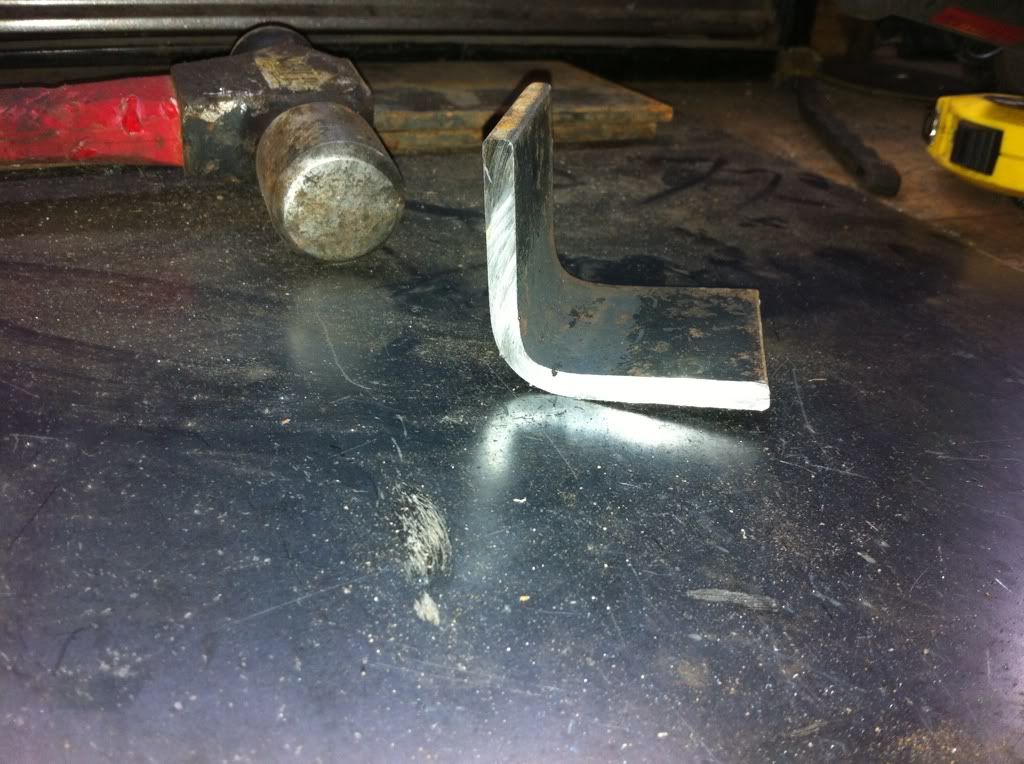

Still needs some minor trimming and clean up but damn it came out good


Next up were the upper link towers for the stock brackets. Normally this would be easy, but East Coast Gear Supply has beefy brackets that are welded inside and out...I didn't even want to take these off, but they're in the way and I want a clean look. I think the track bar mount would have hit the tub before the links anyway.


Finally, after 15 minutes I got it off. If I had to use cutoff discs this would have taken forever as I don't have a sawzall right now.


other side was much easier, 5 minutes max


Ahhh, that's what I like to see!


Mocked up. Turned out pretty good, I'll have great separation but it's still high clearance. There's a 1/4" gap between the pumpkin and the link bridge. Looks like my design works well, I might have to market these. What do you guys think?


gtxracer is offline
post #179 of 676 Old 11-07-2011, 05:06 AM
TJRHD
Registered User
2005 TJ Wrangler

Join Date: May 2011
Location: Eastern
Posts: 3,623
Looks good, who need a 4x4 shop???

NOT A HATER
TJRHD is offline
post #180 of 676 Old 11-07-2011, 12:39 PM Thread Starter
gtxracer
Registered User

Join Date: Nov 2009
Location: olyWA
Posts: 427
Thanks TJRHD, I plan to do everything I can myself. I might start a small business to offer these small items for at home builders.
gtxracer is offline
