did the shock mounts yesteday...


Quote:
Originally Posted by Joe Dillard View Post


New Bling-steins:



We plasma'd the lower mounts off the axle:



Added a piece of HREW tube to the lower control arm mount which allows access to the control arm bolt with a deep socket.




Clamped things in place & added a gusset:



Then made sure the spacing was correct for the shock tabs & did the welding:





We also fabricated up these upper shock conversion mounts from angle iron & some bar stock I had laying around:



Driver shock mounted:




Rinse & repeat for the passenger side.
I may go back and change a couple things. I might re-build the upper mounts to space the body of the shock down slightly. the shock has about 1.5" of up-stroke left when I hit the bumpstops, and I can't really go up any further without re-working the steering box and trackbar, but I could easily use that extra inch on the downstroke....

time will tell...

Climbit is offline
Sponsored Links
Advertisement

post #47 of 212 Old 01-29-2012, 02:56 PM
TJRHD
Registered User
2005 TJ Wrangler

Join Date: May 2011
Location: Eastern
Posts: 3,623
Awesome work.

NOT A HATER
TJRHD is offline
post #48 of 212 Old 01-29-2012, 03:00 PM Thread Starter
Climbit
Registered User
1999 XJ Cherokee

Join Date: Dec 2009
Location: San Diego
Posts: 6,415
Quote:
Originally Posted by TJRHD View Post
Awesome work.
thanks man.

Joe Dillard is the master fabricator... I just bring the jeep over and then we figure out how to get into trouble
Climbit is offline
post #49 of 212 Old 01-29-2012, 03:04 PM
TJRHD
Registered User
2005 TJ Wrangler

Join Date: May 2011
Location: Eastern
Posts: 3,623
Quote:
Originally Posted by Climbit View Post
thanks man.

Joe Dillard is the master fabricator... I just bring the jeep over and then we figure out how to get into trouble
It is nice to have friends like that.

NOT A HATER
TJRHD is offline
post #50 of 212 Old 02-03-2012, 04:14 PM Thread Starter
Climbit
Registered User
1999 XJ Cherokee

Join Date: Dec 2009
Location: San Diego
Posts: 6,415
did a little work on the transfercase skid.

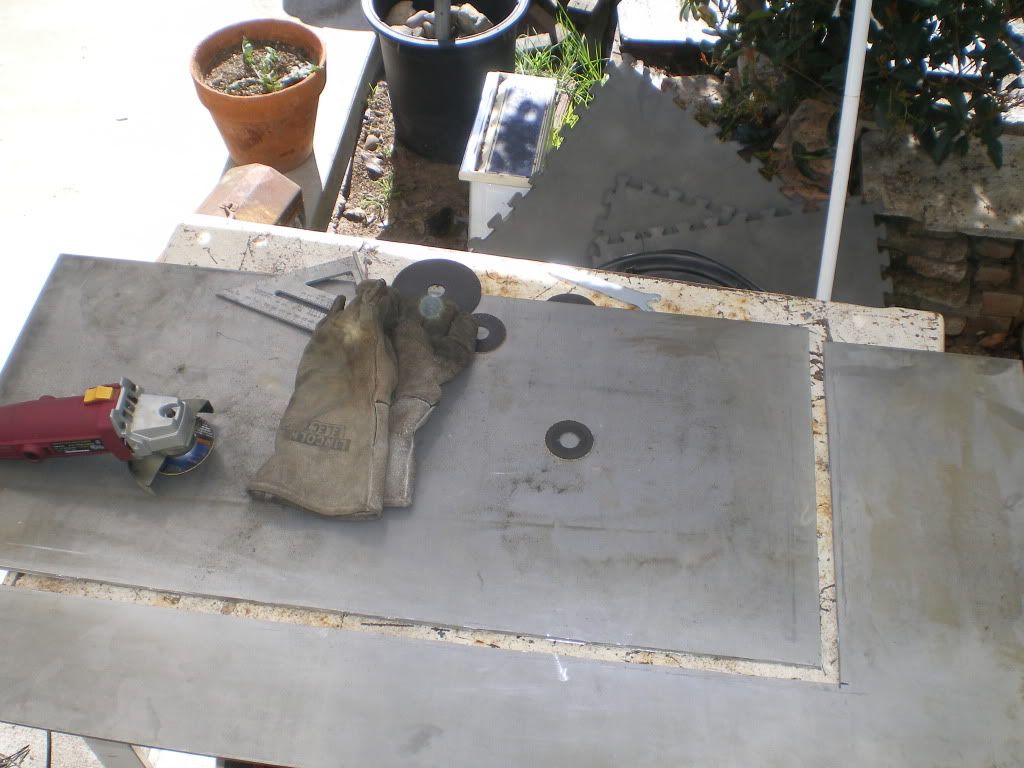

started with a 2'x4' piece of HR 1/4" and a cardboard template.

cut the piece I need 18"x38.5"

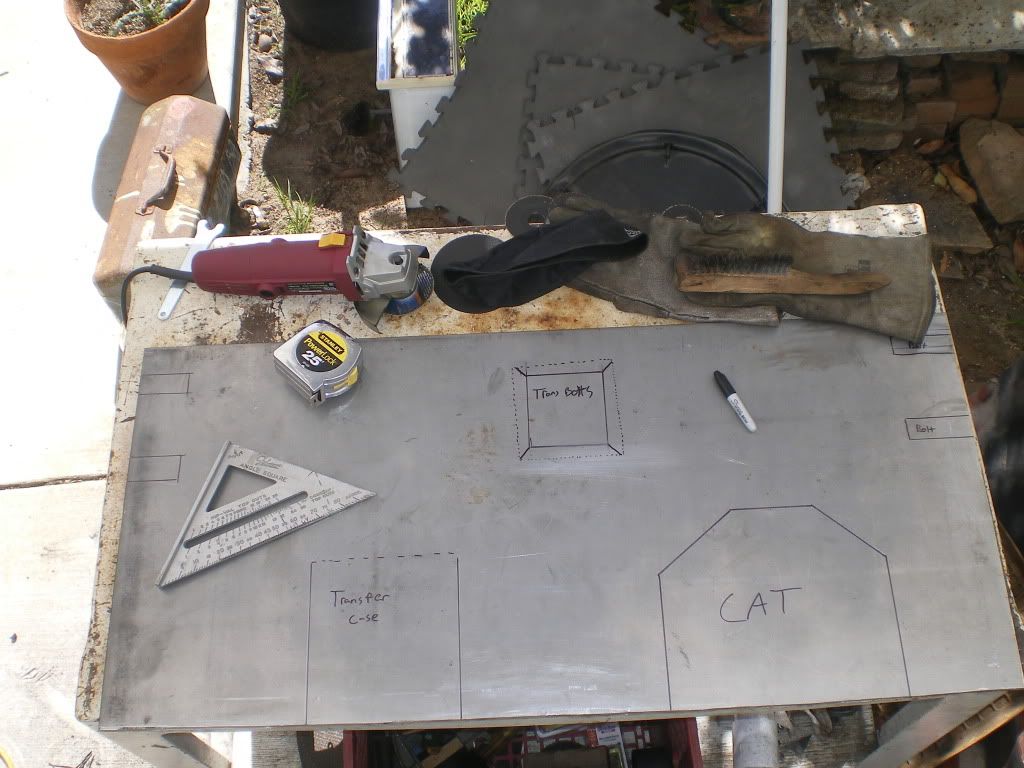

marked out where to cut reliefs and notches

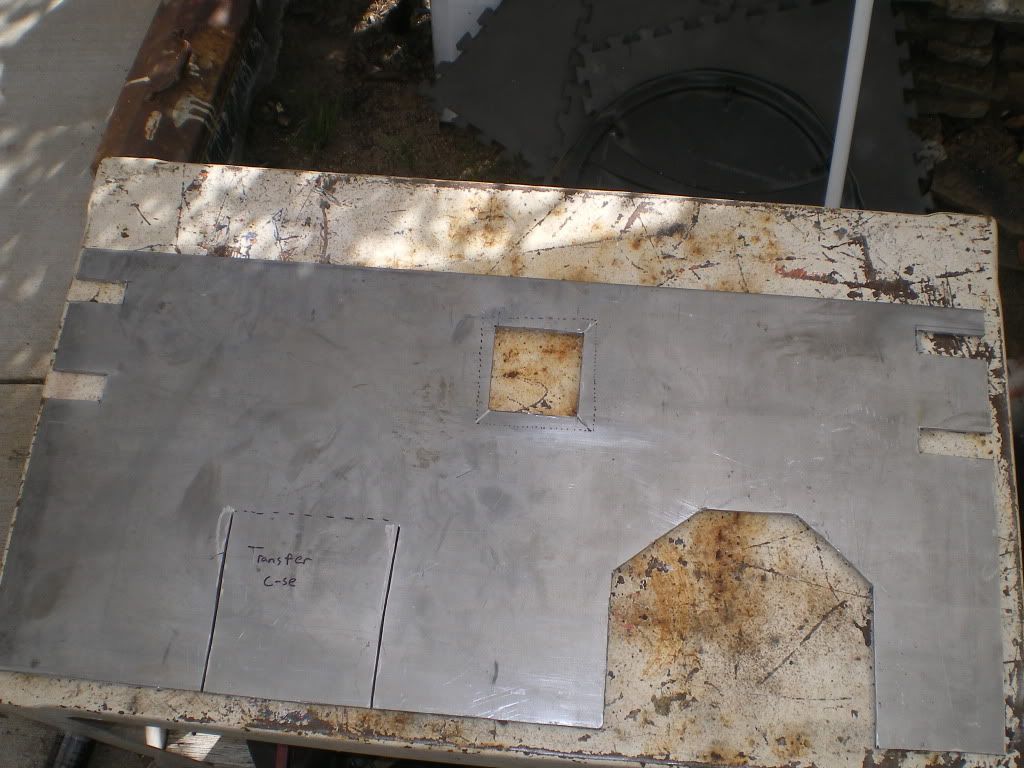

cut said reliefs and notches.

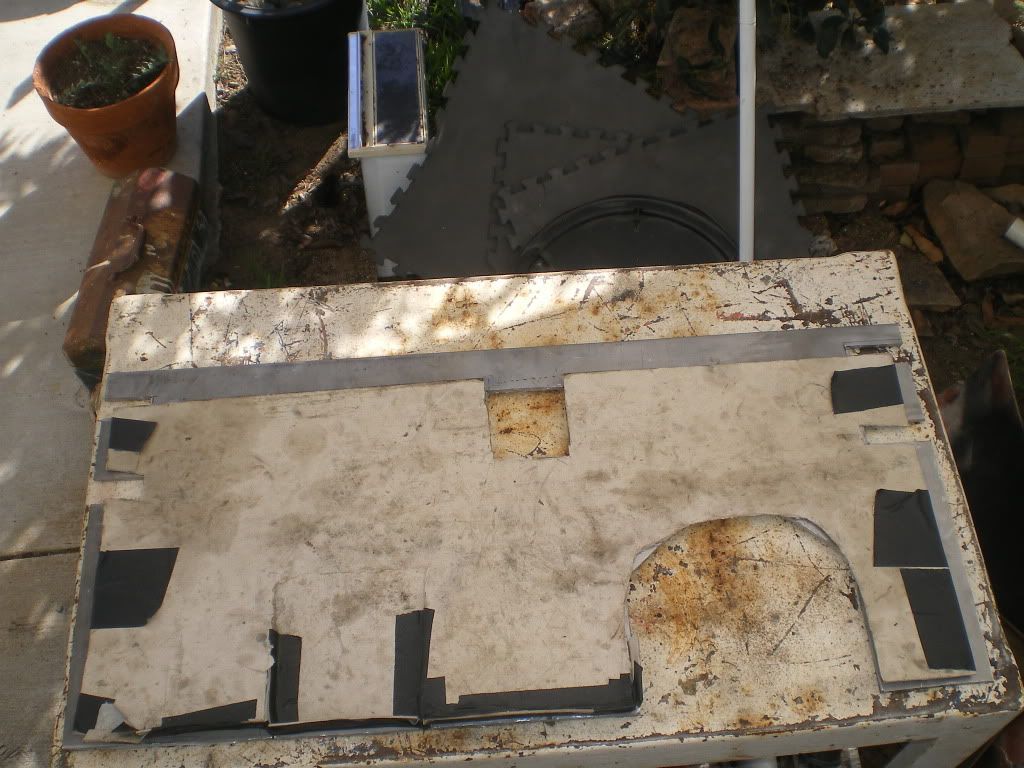

a shot with the cardboard template I made.
