Well if any of you followed or read through my first build thread, you saw my dad and i build this 46 2a over the summer months. we've decided to build our little jeep in stages. First stage, as you may have seen, consisted of getting the jeep built and up and running/wheeling. Stage two will consist of improving our jeep off road capabilities.

Stage one specs:

Engine/Drive train:
F-Head 134 4 cyl (from cj5, bored 80 over)
T-90/D18
10 spline D44/D25 5.38 gears (D44 from early cj5)

Steering/Suspension:
Stock Ross steering
Stock leafs
1 inch lift shackles

Wheels/Tires
33/12.5/15 BFG A/T (dry cracked and worn uneven)
90's wagon wheel. (Very offset)

Misc/Acc
Jaz plastic racing seats
Cj5 roll bar
Cb radio
12 gallon plastic fuel cell
push button ignition
CJ7 bikini top
Flush mount tail lights
3B windshield

Link to Stage 1 thread:
http://www.jeepforum.com/forum/f22/cj2a-build-frame-up-1244521/
----------------------------------------------------------

Stage 2 built list:

Engine/Drive train:
Lincoln lock axles (Until axle swap)-----------Trash Bin
----Axle swap (CJ7 D30 front with disk brakes)---- Done
30 spline CJ d44 rear
Steering/Suspension:
Saginaw Power steering swap. (XJ tilt column, CJ PS box)-------- Done
6 cyl YJ spring swap------------ DONE
Long travel shocks/extended shock mounts

Wheels/Tires:
35/12.5/15 BFG Mud terrain KM1------DONE
Same wheels

Frame/Body:
Semi frame boxing
Frame truss
----Rock sliders---- DONE
tranny/t-case skid-----Done
Finish and tie roll cage into frame/floor-------Done
-----Front bumper (front stinger/hood bar)----- DONE

Misc:
Sink fuel cell into frame to make room for YJ rear seat
CD player
KC Daylighter (windshield mount)
-------------------------------------------------------------------------------
Current

--------------------------------------------------------------------

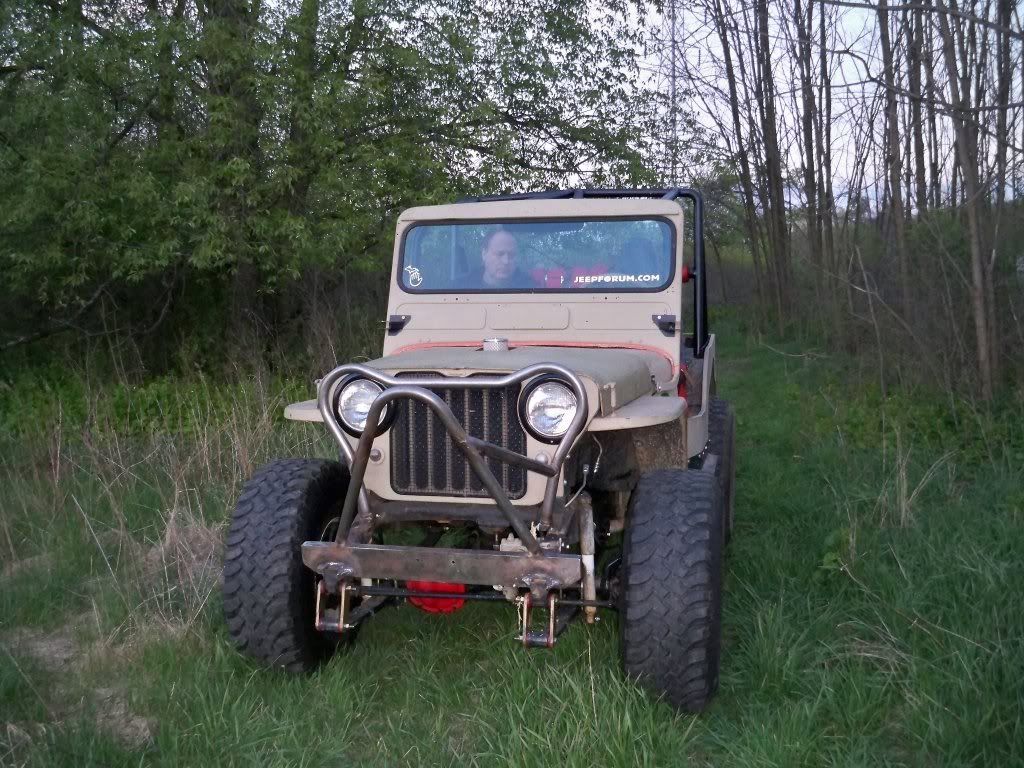

Here's a few current pictures







Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
Sponsored Links
Advertisement

post #2 of 165 Old 01-09-2012, 07:16 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Started on the sliders today. Ran out of stock so i'll have to get some more..

Here's the Pass side slider unfinished and in bare forum.



Mocked up


Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #3 of 165 Old 01-09-2012, 07:38 PM
Machinist
Registered User
1995 YJ Wrangler

Join Date: Jul 2010
Location: Fulton,NY
Posts: 696
lookin good!
Machinist is offline
post #4 of 165 Old 01-10-2012, 03:39 AM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Quote:
Originally Posted by Machinist
lookin good!
Thanks!

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #5 of 165 Old 01-10-2012, 04:39 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
More work on the sliders.
Blending the seems and welds.




Closing up the open ends.


Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #6 of 165 Old 01-10-2012, 06:19 PM
berettajeep
Registered User
1947 CJ2A

Join Date: May 2008
Location: Astoria, OR
Posts: 198
Watching.

'47 CJ2A
'74 Cherokee 401
berettajeep is offline
post #7 of 165 Old 01-13-2012, 08:03 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Passenger side slider is painted and mounted up.



Built the drivers side in about three hours or so. Not painted or drilled yet but fab is done.




Will be ordering these soon
http://extremecustomparts.com/i-3653...j2-cj3-mb.html
Extreme custom fab full family roll cage with frame tie ins.

http://extremecustomparts.com/i-3615...tj-bronco.html
Stinger kit.

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #8 of 165 Old 01-14-2012, 07:27 AM
hotrod351
Registered User
1955 M-38

Join Date: Oct 2006
Location: arizona
Posts: 463
looks good. youll get some good protection form them.
hotrod351 is offline
post #9 of 165 Old 01-14-2012, 08:35 AM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Quote:
Originally Posted by hotrod351
looks good. youll get some good protection form them.
I hope so, they weight a good 30 pounds a piece :/

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #10 of 165 Old 01-15-2012, 07:22 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Drivers side is done and installed. 10 bolts on each slider holding them in. held up to me 175 pounds jumping on them and they didn't fall off yet lol



I'll be ordering the roll cage kit this week along with the stinger kit to go with the front bumper i am working on.

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #11 of 165 Old 01-17-2012, 07:22 AM
JEEP_Nut1218
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Houghton
Posts: 797
Just found your second thread. Looking good man. Let me know when that stinger comes in, I'd like to see it before you put it on.

'90 YJ with some stuff
Build
I'm a pic whore, get over it.
JEEP_Nut1218 is offline
post #12 of 165 Old 01-18-2012, 07:13 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Quote:
Originally Posted by JEEP_Nut1218
Just found your second thread. Looking good man. Let me know when that stinger comes in, I'd like to see it before you put it on.
Thanks man. I'm having second thoughts on the stinger. I don't know if I'm quite down with the look yet, I would like the functionality of it though. What do you guys think?

Here's some pics of the bumper progress. Mounts are done, will be working on shaping the bumper now and adding tow points.

Two bolts will go through bumper then through 1/4" plate welded here.

And here

Also will be mounted directly to the frame using a couple pieces of angle.

Here's the mock up. It will be box and have the classic angled cut ups at the ends.

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #13 of 165 Old 01-20-2012, 04:35 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Just ordered these up!

TrailTubes.com New Mexico Grille guard and stinger DIY kit.


Extreme Custom Fabrication Cj/Willys Roll cage add on kit.


Should be here next week some time!

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #14 of 165 Old 01-22-2012, 04:03 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Got the bumper shaped how i wanted it, boxed it and blended the welds. Im loving the small crawler style bumper! Can't wait for the stinger to get here so i can burn it all togather.

Making the cuts



Welds befor any blending



After blending




Mocked up

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
post #15 of 165 Old 01-22-2012, 04:09 PM Thread Starter
CDW_327
Registered User
1993 YJ Wrangler

Join Date: Aug 2010
Location: Commerce MI/Traverse city MI
Posts: 1,992
Oh, BTW the holes in the bumper will be gone, there just there so i can weld studs into the bumper

Getting Redemption: 93 YJ Build
http://www.jeepforum.com/forum/f22/yj-redemption-93-wrangler-build-1368262/
CDW_327 is offline
