Unread 06-03-2014, 03:40 PM   #46
d1backwoods
Registered User
2010 JK Wrangler

Join Date: Sep 2010
Location: Beaumont, Texas
Posts: 101
love this jeep. It's not stock by any means, but still has that facotry-esque look. Kuddos to you

__________________
JK 2 Door : Ramona : Adventure Rig
jeep-owner.com
d1backwoods is offline   Reply With Quote Quick reply to this message
Unread 06-03-2014, 04:00 PM   #47
87warrior
Registered User
2003 TJ Wrangler

Join Date: Sep 2004
Location: Junction City, Kansas
Posts: 1,605
Quote:
Originally Posted by d1backwoods View Post
love this jeep. It's not stock by any means, but still has that facotry-esque look. Kuddos to you
Thanks! That has been my goal all along!

Two of the last three trips I took to Colorado in this rig resulted in the rear trackbar/control arm bracket becoming separated from the axle. This isn't a lot of fun when camping on vacation. I have had a guy in Gunnison weld it, then a fellow in South Fork.

I decided enough was enough and backed the Rubicon in the garage to pull the rear axle to weld on some real brackets. I picked up the Mad4x4 TJ bracket kit several years ago to do this repair, but never got around to it. I also bought the Clayton shock relocation brackets.

I wont be needing these anymore:


Since the Mad4x4 brackets were designed for an 8.8 swap, the radii were too large to fit snugly around the D44 tubes. I had to cut a smaller radius into the brackets. Even after cutting the smaller radius into the UCA brackets, I was still able to achieve almost 8" of vertical separate between the UCA and LCA mounts. I also hacked up the trackbar mount so it would fit over the control arm mount so it would have no interference with the gas tank skid with the pinion angled up. I also media blasted and painted my old RE springs since rust had taken over.




While I had lots of room under the rear end, I FINALLY did the Rokmen fuel tank skid install. I have had this sitting on the shelf for 4+ years!!!!!! The rear cross member was all bent up so it had to be straightened. A transmission jack made the skid install a breeze even with 2/3 tank of gas....after I figured out how to disconnect the fuel line fittings.


Test fit and check for clearances:




My old JKS rear trackbar decided it was done being 'adjustable' as it was rusted together. After trying to break it free, I ended up bending the bar. Installed a Currie CE-9120RS trackbar and the Rubi back on the ground! I also ditched the RE springs for some new in box AEV LJ springs. I opted for the LJ springs since I often carry a lot of gear in the back and.pull trailers.
__________________
03 Rubicon(Rubicon build)
92 Comanche (92/99 Comanche Project)
86 Comanche (Heavy Four)
87warrior is offline   Reply With Quote Quick reply to this message
Unread 06-11-2014, 09:32 PM   #48
87warrior
Registered User
2003 TJ Wrangler

Join Date: Sep 2004
Location: Junction City, Kansas
Posts: 1,605
I replaced the RE 3.5" rear coil springs with 110k miles on them with new Nth LJ 3" coils.


Getting it all put back together. Someday I would like to re-position the upper coil spring mount so the coils sit plumb.


The Jeep rides great and runs down the road better than it has in years. This picture was taken after I spent 3 hours on the Interstate at 75mph.


To follow up the rear suspension work, I would like to replace the front coils with Nth springs and ditch the OME shocks that have 110K miles on them with new Bilsteins.
__________________
03 Rubicon(Rubicon build)
92 Comanche (92/99 Comanche Project)
86 Comanche (Heavy Four)
87warrior is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 02:38 PM   #49
87warrior
Registered User
2003 TJ Wrangler

Join Date: Sep 2004
Location: Junction City, Kansas
Posts: 1,605
I couldn't leave well enough alone. I had to replace the front RE springs and OME shocks. It's a good deal I did, one OME shock had lost its fluid and did nothing.

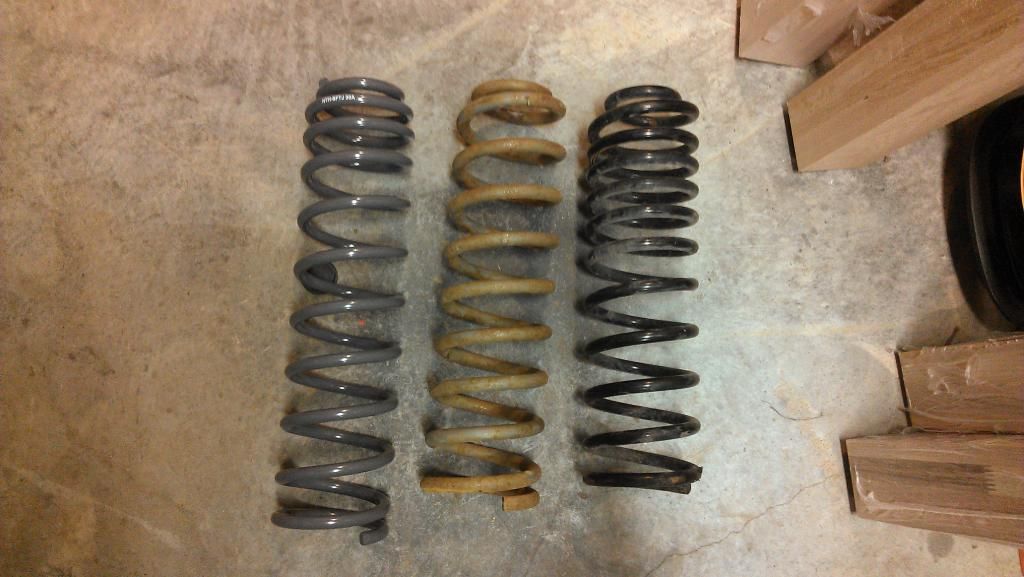

I find this picture interesting. On the left we have the new 3" Nth spring followed by my old 100k mile RE 3.5" spring. The spring on the end is a Moog V8 ZJ spring.

The new coils only lifted the front 1/4".

The new front shocks are Bilstein 5150 with 10" of travel with the Bilstein stem conversion.


Everything back under the Jeep. Looks like it is about time for replacement brake lines.


And the obligatory glam shot during the test drive.


All I can say at this point is, 'WOW'. It drives like a completely different rig. I guess good shocks and springs DO make a big difference in ride quality.
__________________
03 Rubicon(Rubicon build)
92 Comanche (92/99 Comanche Project)
86 Comanche (Heavy Four)
87warrior is offline   Reply With Quote Quick reply to this message
Unread 08-01-2014, 02:07 PM   #50
87warrior
Registered User
2003 TJ Wrangler

Join Date: Sep 2004
Location: Junction City, Kansas
Posts: 1,605
I ordered and installed a new Tom Woods shaft up front. The slip joint in my 125K mile stocker was just too loose for my liking. This also cured a 60-70mph vibration I had been having.

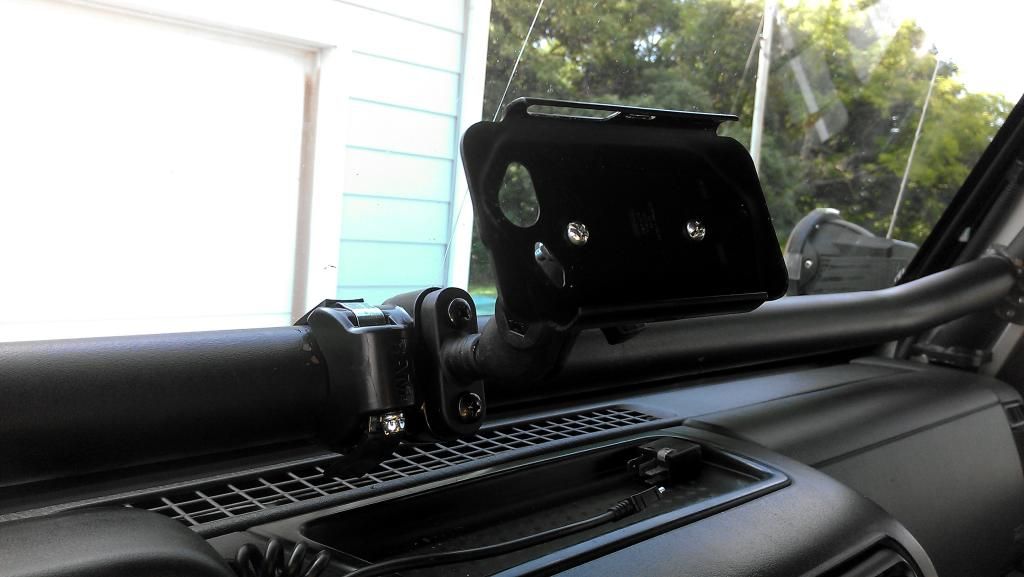

I also fabbed together a mount for my HTC smartphone. To be used as a GPS routing tool off road AND as a video recording device. I am trying to prepare my self for a future overland trip. GPS routing is just one of those things I have never used.

I used RAM mounts to build this since they appear to be the bees-knees in vehicle accessory mounts and an extra hard shell cover for my HTC phone.
- RAM Rail Base
- RAM Short Double Socket Arm
- Ram Diamond Base
- Ballistic hard/soft phone case (I already own this case, but got another to leave the hard shell mounted in the Jeep)

I mounted the diamond base to the backside of the hard case of the phone and checked to make sure it would still clip around the soft case on the phone. Then attached it to the arm and RAM rail mount. I was disappointed with the rail mount. The mount simply uses a large hose clamp with rubber sheathing to hold unit to the rollbar. This didn't bother me but I did expect the hose clamp to be high quality. Nope this is the same cheap hose clamp you find at Autozone for less than a dollar, equipped with poorly engaging worm gear and the clamp fitting that bends once it start to get tight. I hope it is tight enough for trail use.

(Never mind the fog light relay. My multifunction switch likes to randomly turn on the fogs when parked. Needs a replacement. Another project for another day)

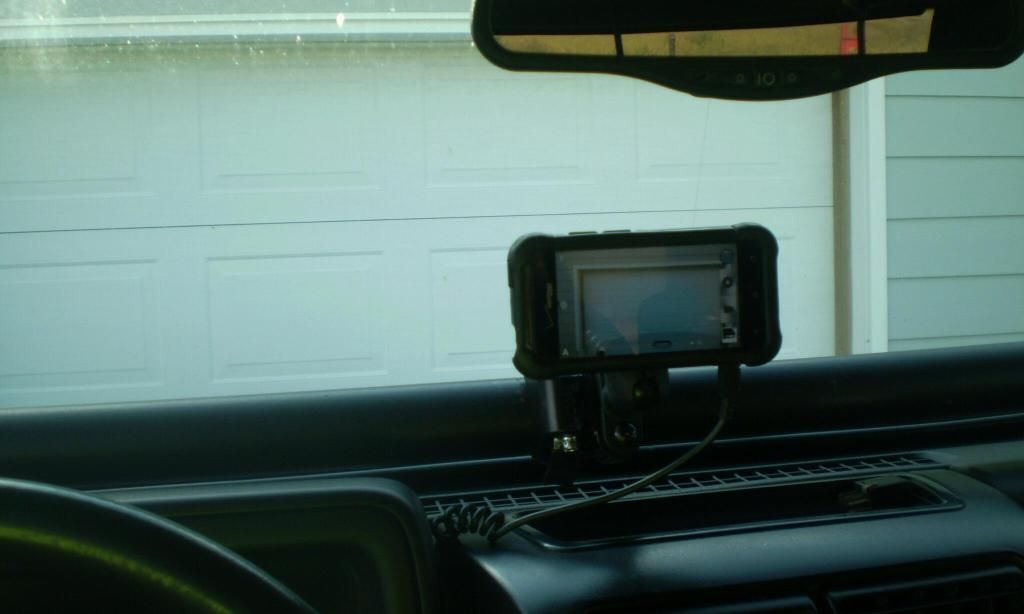

Ready to navigate with routes and downloaded topo data to Back Country Pro:


And it is even set up to record a day on the trail with 10+ hours of storage available:
__________________
03 Rubicon(Rubicon build)
92 Comanche (92/99 Comanche Project)
86 Comanche (Heavy Four)
87warrior is offline   Reply With Quote Quick reply to this message
Unread 09-25-2014, 11:24 AM   #51
20jeepster10
Registered User
2004 TJ Wrangler

Join Date: Jul 2010
Location: Lapeer, Michigan
Posts: 204
Great Job! glad to see that your still using and enjoying your rubicon!
love all the pictures of colorado too.
20jeepster10 is offline   Reply With Quote Quick reply to this message
Unread 09-25-2014, 12:22 PM   #52
87warrior
Registered User
2003 TJ Wrangler

Join Date: Sep 2004
Location: Junction City, Kansas
Posts: 1,605
Oh yeah, still loving thr Rubi. I did take it to the San Juans this last August.

Day 1 Corkscrew, Hurricane, California, Animas Forks

Resting at the worst smelling forest service restroom on Corkscrew


View of Lake Como at the base of Hurricane and California


Coming down California to Animas Forks. The Alpine Tundra is spectacular



The restored Bay Window House at Animas Forks


Day 2 Black Bear, Telluride and Imogene

The starting point. Cue C.W. McCall.


Stopped at a lookout partway up. We could hear sheep, but couldnt see them


The Black Bear Pass summit



Making our way down the trail towards the ever famous shelf road


At the bottom enjoying the mist of Bridal Veil Falls


After enjoying lunch in the Telluride Town Park, our journey continued up Imogene


At the Imogene Pass lookout point


Due to the soggy conditions, we skipped out on Governors and Yankee Boy this trip. The sun was shining in Silverton though! Peaceful camp.


at least for a while
__________________
03 Rubicon(Rubicon build)
92 Comanche (92/99 Comanche Project)
86 Comanche (Heavy Four)
87warrior is offline   Reply With Quote Quick reply to this message
Unread 09-25-2014, 12:24 PM   #53
87warrior
Registered User
2003 TJ Wrangler

Join Date: Sep 2004
Location: Junction City, Kansas
Posts: 1,605
Day 3 Animas Forks side of Engineer, Lake City, Cinnamon

A rainy start up Engineer from Animas Forks


Looking down valley towards Animas Forks



More Alpine Tundra


Jeep wave!


Right turn a head. To the Engineer Pass summit


Rounding a bend as we approach the summit


On the Lake City side of Engineer Pass, Sheep Days were just kicking off. It was still a bit early for mutton stew so we kept on going.



Continuing down Engineer towards Lake City


Lunch, followed by a chocolate malt, at the Lake City Park


Cinnamon Pass is a real easy drive


The little rig on Cinnamon Pass. Runs as well at 12,000ft as it does at 1,100ft



Stopped at the base of Cinnamon near Animas Forks looking towards Silverton



Day 4 Silverton Ski area to Corkscrew, Ouray side of Engineer, Poughkeepsie, and Hurricane

When going down Corkscrew I saw a dreaded constipated frog KL


Starting up Poughkeepsie


Take a right to go up the wall


The wall. Little rig had no issues. Rubi was ready to winch if needed


The stock rubi did need a tug to get over the wall (slight newbie behind the wheel). Some of the fun lines past the wall


The end of Poughkeepsie at Lake Como


Heading up Hurricane


Day 5 - Stony Pass, Pole Creek, then drive to Woodland Park, CO-Home

Starting up the pass, more Alpine tundra


Overlooking the Creede side of the Stony Pass summit


Crossing Pole Creek, headwaters to the Rio Grande


Starting back up the pass from Pole Creek


Dropping back down towards Silverton


Passing some fellow Jeepers on Highway 50 headed towards Gunnison
