Unread 02-01-2014, 09:33 PM   #76
jherrington
Registered User
1998 TJ Wrangler

Join Date: Jan 2012
Location: Brusly, Louisiana
Posts: 28
Quote:
Originally Posted by theGiantPanda
thanks.... those look spray tinted?
Light coat of plasti dip. Cheap, I know I know.. I just wanted to see how it would look.

jherrington is offline   Reply With Quote Quick reply to this message
Unread 02-02-2014, 04:12 AM   #77
theGiantPanda
Swap This...

theGiantPanda's Avatar
2006 LJ Wrangler

Join Date: May 2009
Location: SE Michigan
Posts: 1,550
Well it Worked!

I used the stock lights from Betty in the Hemi build so it's down to clear or smoked... 51% smoked
__________________
Quote:
Originally Posted by CCJ View Post
Jesus. This is what heaven on 4 wheels looks like.
Quote:
Originally Posted by Deacon View Post
Hospital? What, are you suffering from Overextended Jeepaphelia or something? :)
I've never been poor, only broke. Poor is a state of mind. Broke is a condition brought on by Jeep ownership and a heavy right foot.

2006 Unlimited Redicon Panda Edition
RRI Long Arm...14" Fox CO's Front and Rear...D60 KP Front and D60 FF Rear... 5.38s spooled...40" Maxxis Trepadors...
6.1 HEMI...Atlas 5.1

5.7 HEMI 400 hp TJ Build http://www.jeepforum.com/forum/f9/ye...17/?highlight=
6.1 HEMI Ultimate LJ Rubicon Build http://www.jeepforum.com/forum/f9/6-...ayhem-1013800/
2.5 to 4.0L swap and build up http://www.jeepforum.com/forum/f9/he.../#post14946167
4.0 to 2008 5.3L GM LS in the Taco'd TJ [frame off build].....http://www.jeepforum.com/forum/f9/5-...28/?highlight=
My new DD Build, lift, 4.0 motor swap, done in 6 days?....http://www.jeepforum.com/forum/f22/6.../#post15716292

the new shop... http://redrockwiring.com/ conversion, parts and wiring systems
shop email.... info@redrockindustries.net
LIKE US on facebook..... https://www.facebook.com/redrockindustriesinc adding more daily
redrockindustries.net
theGiantPanda is offline   Reply With Quote Quick reply to this message
Unread 02-02-2014, 08:23 PM   #78
jherrington
Registered User
1998 TJ Wrangler

Join Date: Jan 2012
Location: Brusly, Louisiana
Posts: 28
Is cruise control a capable option with the 5.3 swaps?
jherrington is offline   Reply With Quote Quick reply to this message
Unread 02-03-2014, 12:22 AM   #79
theGiantPanda
Swap This...

theGiantPanda's Avatar
2006 LJ Wrangler

Join Date: May 2009
Location: SE Michigan
Posts: 1,550
Yeah but I haven't dealt with that yet. None of the swap jeeps I used as donors had it. Lol
__________________
Quote:
Originally Posted by CCJ View Post
Jesus. This is what heaven on 4 wheels looks like.
Quote:
Originally Posted by Deacon View Post
Hospital? What, are you suffering from Overextended Jeepaphelia or something? :)
I've never been poor, only broke. Poor is a state of mind. Broke is a condition brought on by Jeep ownership and a heavy right foot.

2006 Unlimited Redicon Panda Edition
RRI Long Arm...14" Fox CO's Front and Rear...D60 KP Front and D60 FF Rear... 5.38s spooled...40" Maxxis Trepadors...
6.1 HEMI...Atlas 5.1

5.7 HEMI 400 hp TJ Build http://www.jeepforum.com/forum/f9/ye...17/?highlight=
6.1 HEMI Ultimate LJ Rubicon Build http://www.jeepforum.com/forum/f9/6-...ayhem-1013800/
2.5 to 4.0L swap and build up http://www.jeepforum.com/forum/f9/he.../#post14946167
4.0 to 2008 5.3L GM LS in the Taco'd TJ [frame off build].....http://www.jeepforum.com/forum/f9/5-...28/?highlight=
My new DD Build, lift, 4.0 motor swap, done in 6 days?....http://www.jeepforum.com/forum/f22/6.../#post15716292

the new shop... http://redrockwiring.com/ conversion, parts and wiring systems
shop email.... info@redrockindustries.net
LIKE US on facebook..... https://www.facebook.com/redrockindustriesinc adding more daily
redrockindustries.net
theGiantPanda is offline   Reply With Quote Quick reply to this message
Unread 02-04-2014, 11:20 PM   #80
theGiantPanda
Swap This...

theGiantPanda's Avatar
2006 LJ Wrangler

Join Date: May 2009
Location: SE Michigan
Posts: 1,550
ok so I ordered a set of clear fender lights, they were 20$ cheaper than a set of smoked. My buddy has a can of the spray tint stuff from doing his TJ. I am going to hit the [2] fender lights with that and go with it.


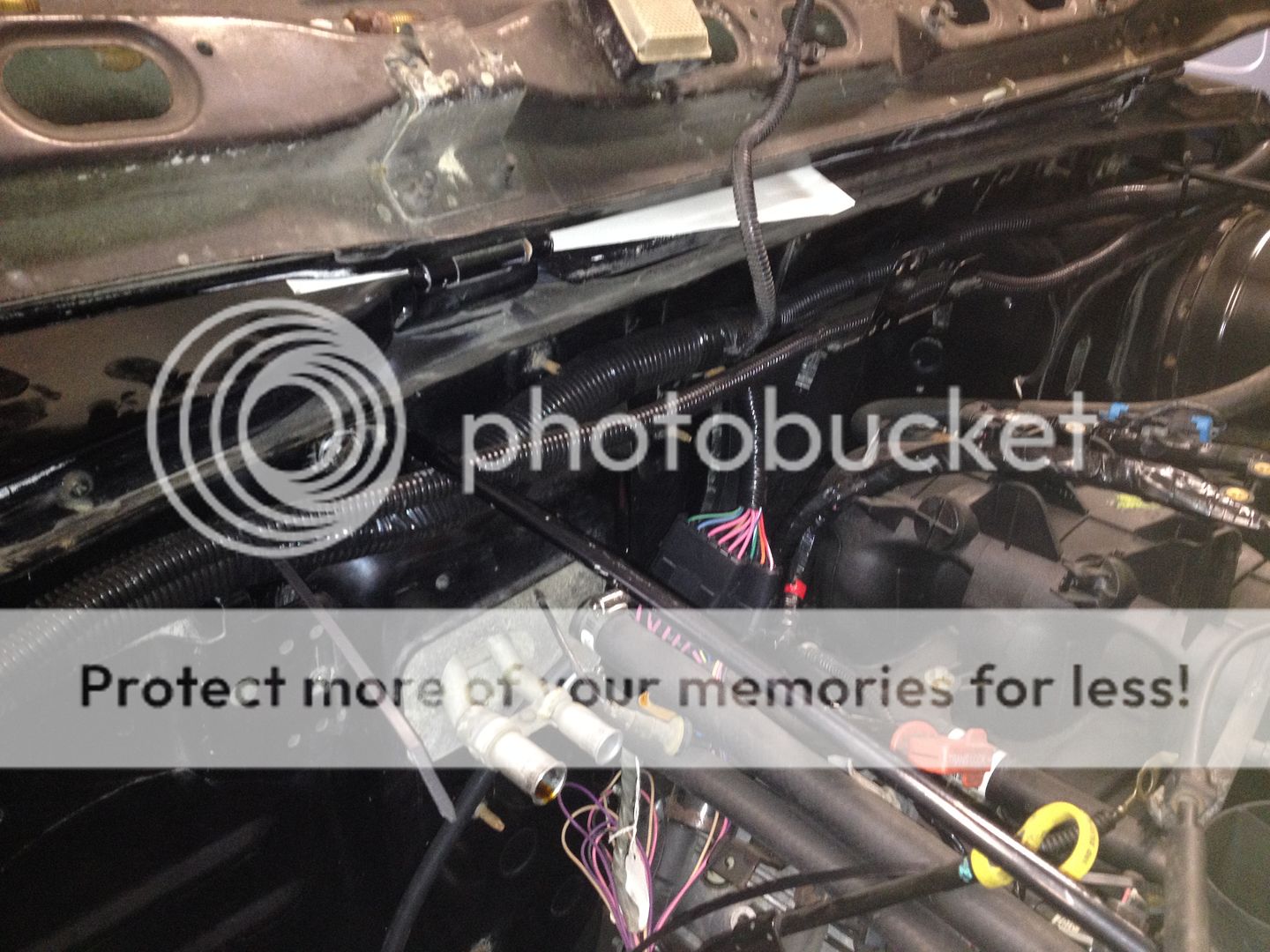

did a little more clean up wiring work today regarding the battery and pdc area. I need to order a spool of 6g cause it appears that I am out LOL.


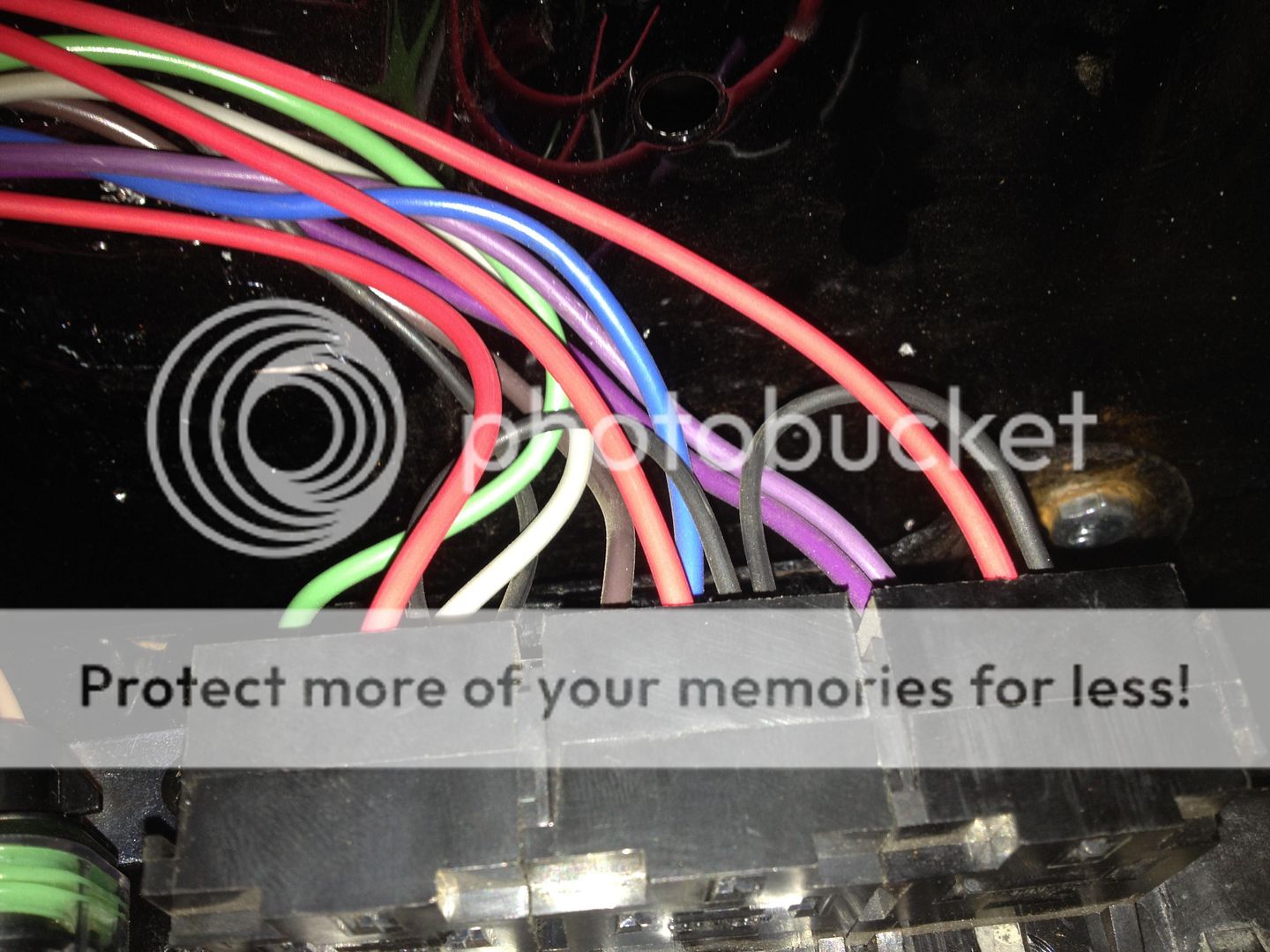

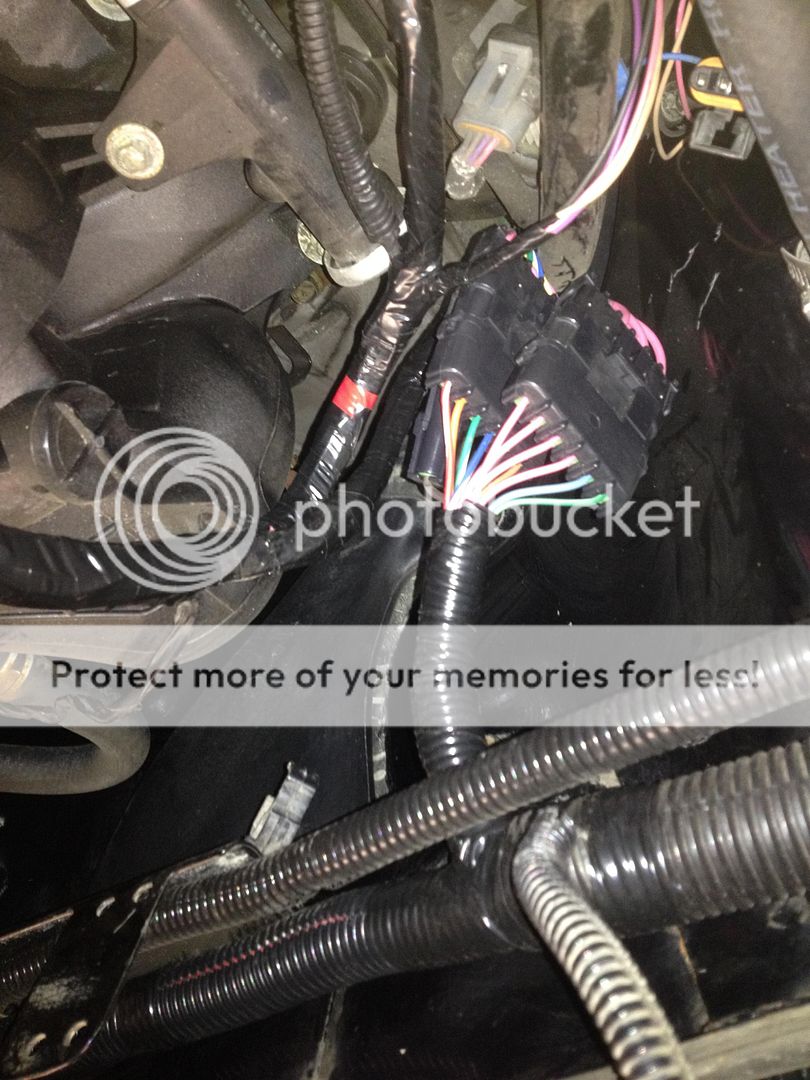

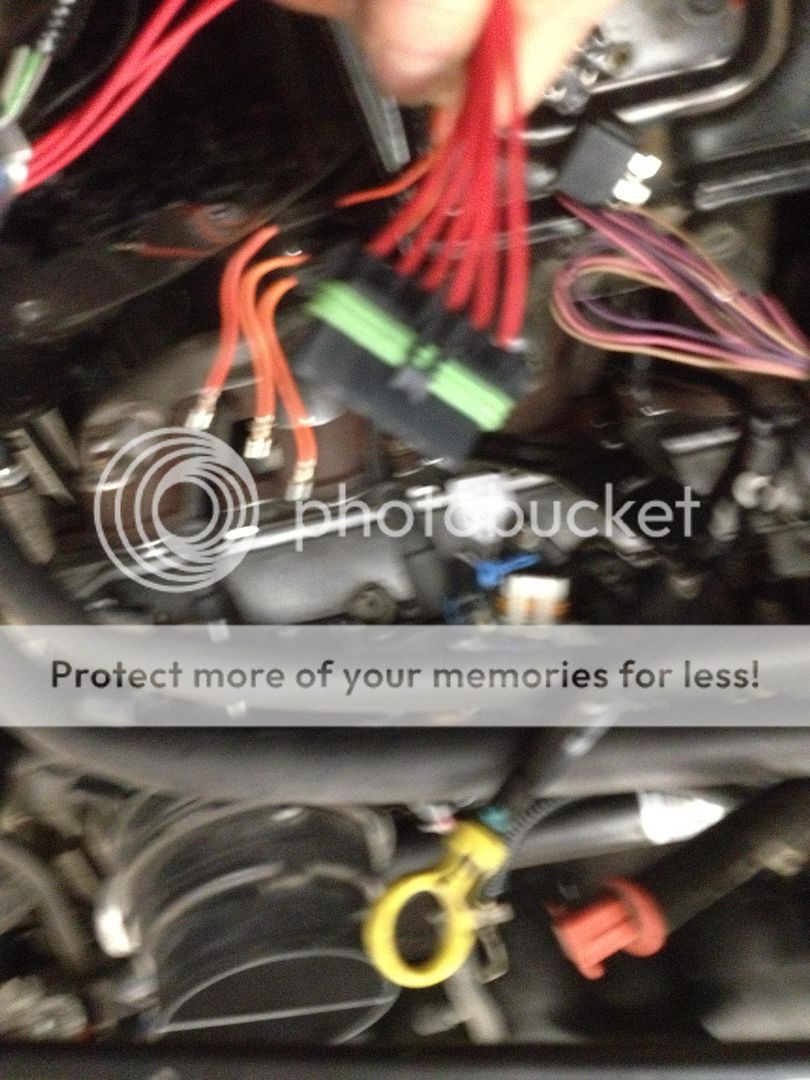

heres where I made most of my connections to the gm harness, passenger side at the firewall.






then I swapped power supply wires out of the quick relay pack I threw together over the summer to run all the aux lights. streamlined it a bit.
got rid of this



for this, with a remote fuse pod



'crappy cell pic-sorry- but you get the idea



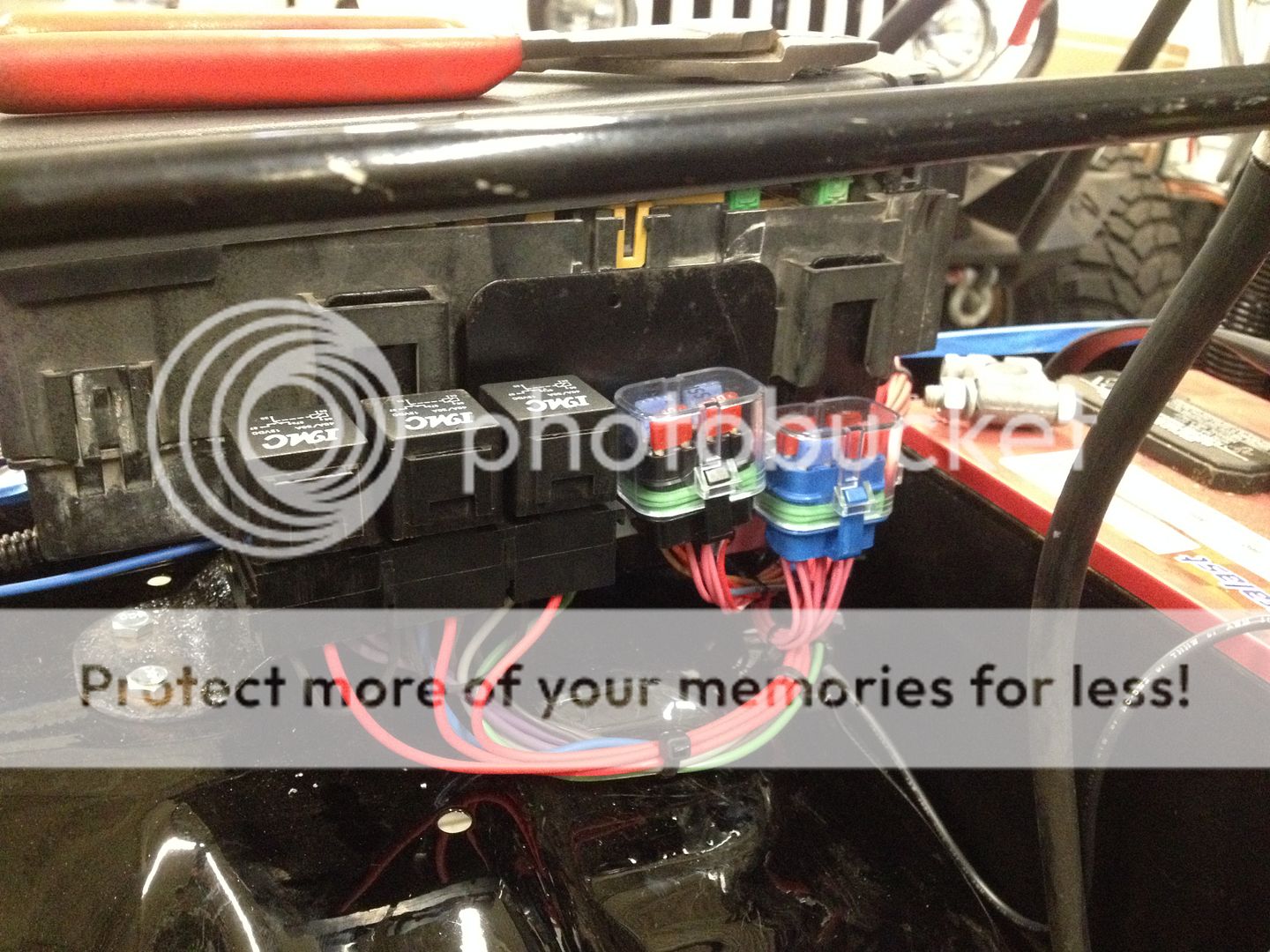

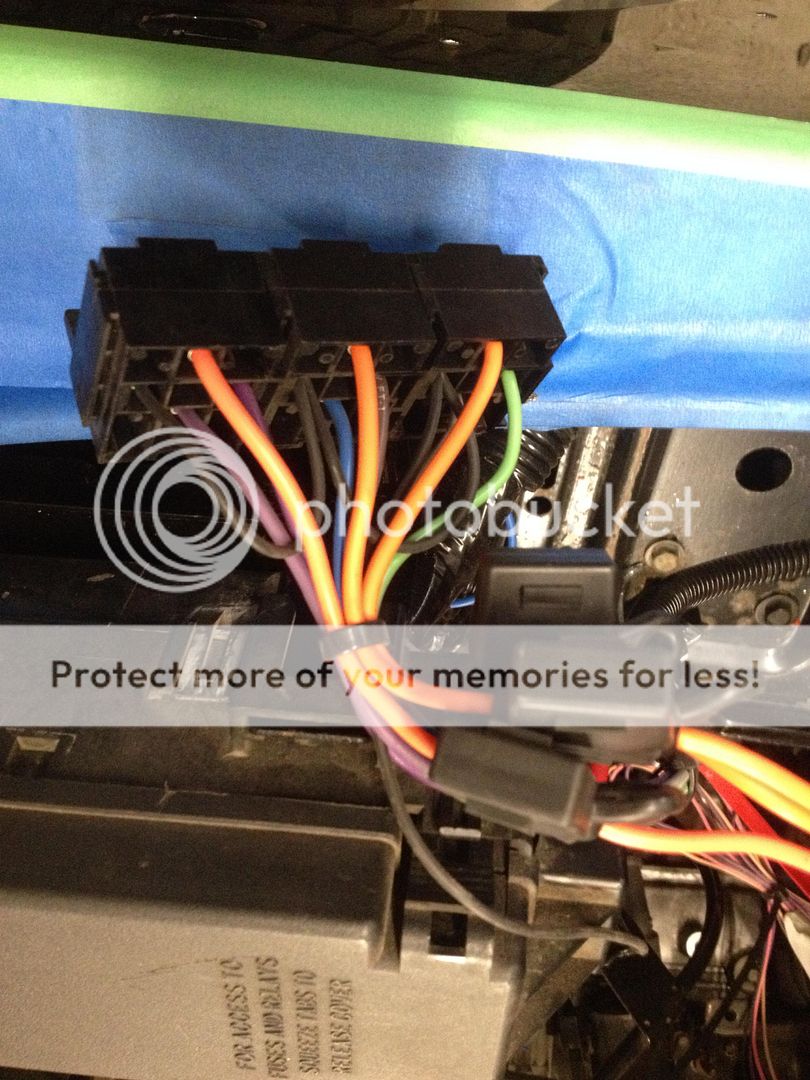

remounted the relay pack and the [2] fuse pods that supply all the power needs for the LS systems


the np231c mega short SYE kit with GM VSS port is on the way. hopefully it shows in the next few days here. I would like to get it installed in the tcase and have it installed up under the jeep, so i can knock out more of the little stuff like 4wd linkage etc and then I can get the rear DS made and the front modified.
__________________
Quote:
Originally Posted by CCJ View Post
Jesus. This is what heaven on 4 wheels looks like.
Quote:
Originally Posted by Deacon View Post
Hospital? What, are you suffering from Overextended Jeepaphelia or something? :)
I've never been poor, only broke. Poor is a state of mind. Broke is a condition brought on by Jeep ownership and a heavy right foot.

2006 Unlimited Redicon Panda Edition
RRI Long Arm...14" Fox CO's Front and Rear...D60 KP Front and D60 FF Rear... 5.38s spooled...40" Maxxis Trepadors...
6.1 HEMI...Atlas 5.1

5.7 HEMI 400 hp TJ Build http://www.jeepforum.com/forum/f9/ye...17/?highlight=
6.1 HEMI Ultimate LJ Rubicon Build http://www.jeepforum.com/forum/f9/6-...ayhem-1013800/
2.5 to 4.0L swap and build up http://www.jeepforum.com/forum/f9/he.../#post14946167
4.0 to 2008 5.3L GM LS in the Taco'd TJ [frame off build].....http://www.jeepforum.com/forum/f9/5-...28/?highlight=
My new DD Build, lift, 4.0 motor swap, done in 6 days?....http://www.jeepforum.com/forum/f22/6.../#post15716292

the new shop... http://redrockwiring.com/ conversion, parts and wiring systems
shop email.... info@redrockindustries.net
LIKE US on facebook..... https://www.facebook.com/redrockindustriesinc adding more daily
redrockindustries.net
theGiantPanda is offline   Reply With Quote Quick reply to this message
Unread 02-05-2014, 12:47 AM   #81
zerocool1
Registered User

Join Date: Jan 2014
Location: L.I.C, New York
Posts: 26
That's a very clean relay assembly
__________________
When all else fails... Hit it with a hammer!
zerocool1 is offline   Reply With Quote Quick reply to this message
Unread 02-05-2014, 03:22 AM   #82
theGiantPanda
Swap This...

theGiantPanda's Avatar
2006 LJ Wrangler

Join Date: May 2009
Location: SE Michigan
Posts: 1,550
Thanks. And for the record after I saw the pic I went back and straightened up the black fuse pod lol... OCD ehhh !
__________________
Quote:
Originally Posted by CCJ View Post
Jesus. This is what heaven on 4 wheels looks like.
Quote:
Originally Posted by Deacon View Post
Hospital? What, are you suffering from Overextended Jeepaphelia or something? :)
I've never been poor, only broke. Poor is a state of mind. Broke is a condition brought on by Jeep ownership and a heavy right foot.

2006 Unlimited Redicon Panda Edition
RRI Long Arm...14" Fox CO's Front and Rear...D60 KP Front and D60 FF Rear... 5.38s spooled...40" Maxxis Trepadors...
6.1 HEMI...Atlas 5.1

5.7 HEMI 400 hp TJ Build http://www.jeepforum.com/forum/f9/ye...17/?highlight=
6.1 HEMI Ultimate LJ Rubicon Build http://www.jeepforum.com/forum/f9/6-...ayhem-1013800/
2.5 to 4.0L swap and build up http://www.jeepforum.com/forum/f9/he.../#post14946167
4.0 to 2008 5.3L GM LS in the Taco'd TJ [frame off build].....http://www.jeepforum.com/forum/f9/5-...28/?highlight=
My new DD Build, lift, 4.0 motor swap, done in 6 days?....http://www.jeepforum.com/forum/f22/6.../#post15716292

the new shop... http://redrockwiring.com/ conversion, parts and wiring systems
shop email.... info@redrockindustries.net
LIKE US on facebook..... https://www.facebook.com/redrockindustriesinc adding more daily
redrockindustries.net
theGiantPanda is offline   Reply With Quote Quick reply to this message
Unread 02-06-2014, 11:44 AM   #83
theGiantPanda
Swap This...

theGiantPanda's Avatar
2006 LJ Wrangler

Join Date: May 2009
Location: SE Michigan
Posts: 1,550
this is the part I have always disliked. I pretty much have it squared away now, but still daunting...



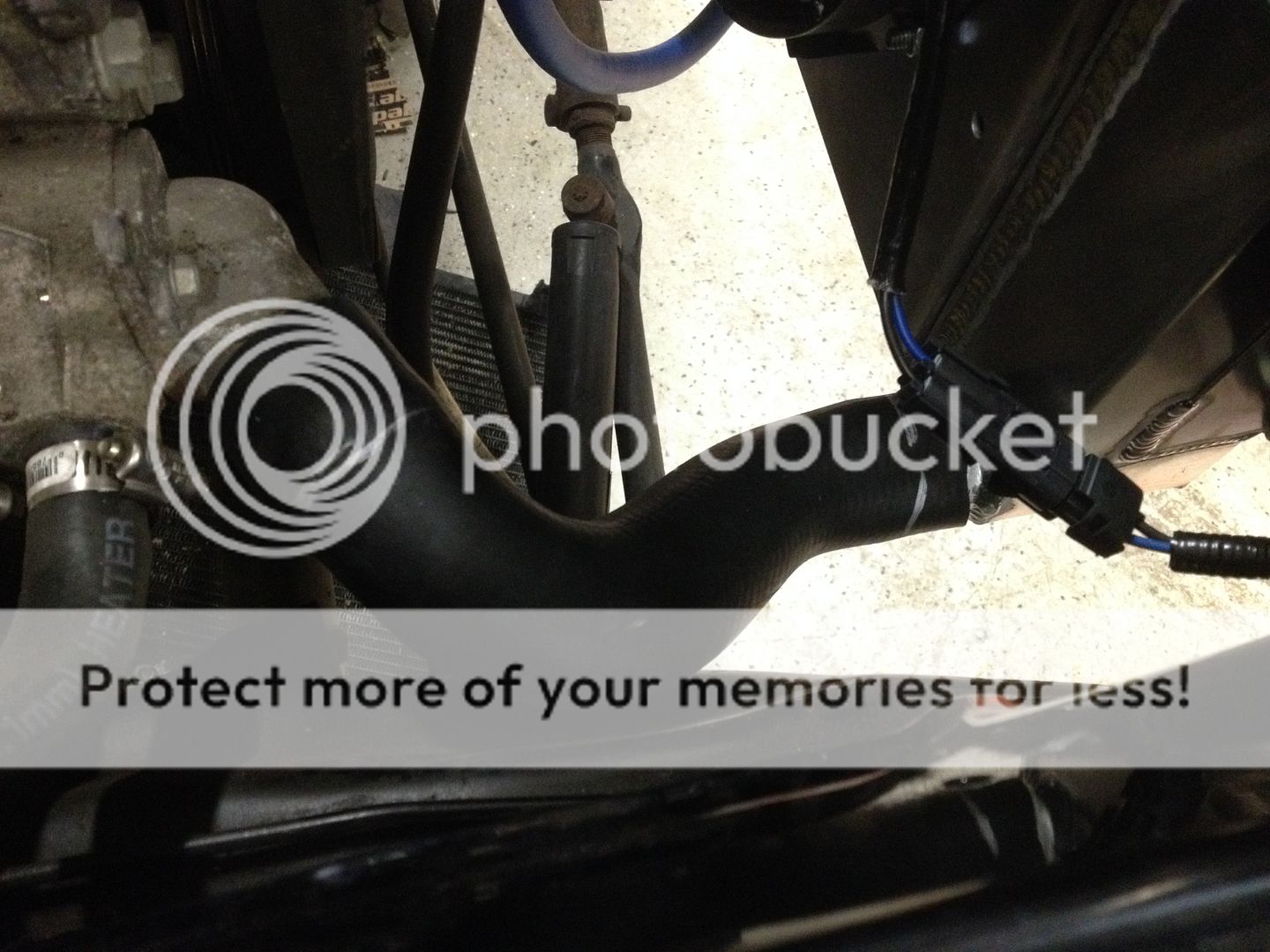

new lower done. the uppers is done as well but appears I didn't snap that.
__________________
Quote:
Originally Posted by CCJ View Post
Jesus. This is what heaven on 4 wheels looks like.
Quote:
Originally Posted by Deacon View Post
Hospital? What, are you suffering from Overextended Jeepaphelia or something? :)
I've never been poor, only broke. Poor is a state of mind. Broke is a condition brought on by Jeep ownership and a heavy right foot.

2006 Unlimited Redicon Panda Edition
RRI Long Arm...14" Fox CO's Front and Rear...D60 KP Front and D60 FF Rear... 5.38s spooled...40" Maxxis Trepadors...
6.1 HEMI...Atlas 5.1

5.7 HEMI 400 hp TJ Build http://www.jeepforum.com/forum/f9/ye...17/?highlight=
6.1 HEMI Ultimate LJ Rubicon Build http://www.jeepforum.com/forum/f9/6-...ayhem-1013800/
2.5 to 4.0L swap and build up http://www.jeepforum.com/forum/f9/he.../#post14946167
4.0 to 2008 5.3L GM LS in the Taco'd TJ [frame off build].....http://www.jeepforum.com/forum/f9/5-...28/?highlight=
My new DD Build, lift, 4.0 motor swap, done in 6 days?....http://www.jeepforum.com/forum/f22/6.../#post15716292

the new shop... http://redrockwiring.com/ conversion, parts and wiring systems
shop email.... info@redrockindustries.net
LIKE US on facebook..... https://www.facebook.com/redrockindustriesinc adding more daily
redrockindustries.net
theGiantPanda is offline   Reply With Quote Quick reply to this message
Unread 02-08-2014, 09:52 PM   #84
theGiantPanda
Swap This...

theGiantPanda's Avatar
2006 LJ Wrangler

Join Date: May 2009
Location: SE Michigan
Posts: 1,550
well it started with my buddy dropping off a piece of aluminum tube, couple left overs tig'd together. then I got to making the intake. I needed to get 'up and over' the waterneck/upper radiator hose on this LS motor. the orientation is different and makes it a slight more bit of a challenge. no quick shot over to the fender and done in this case.


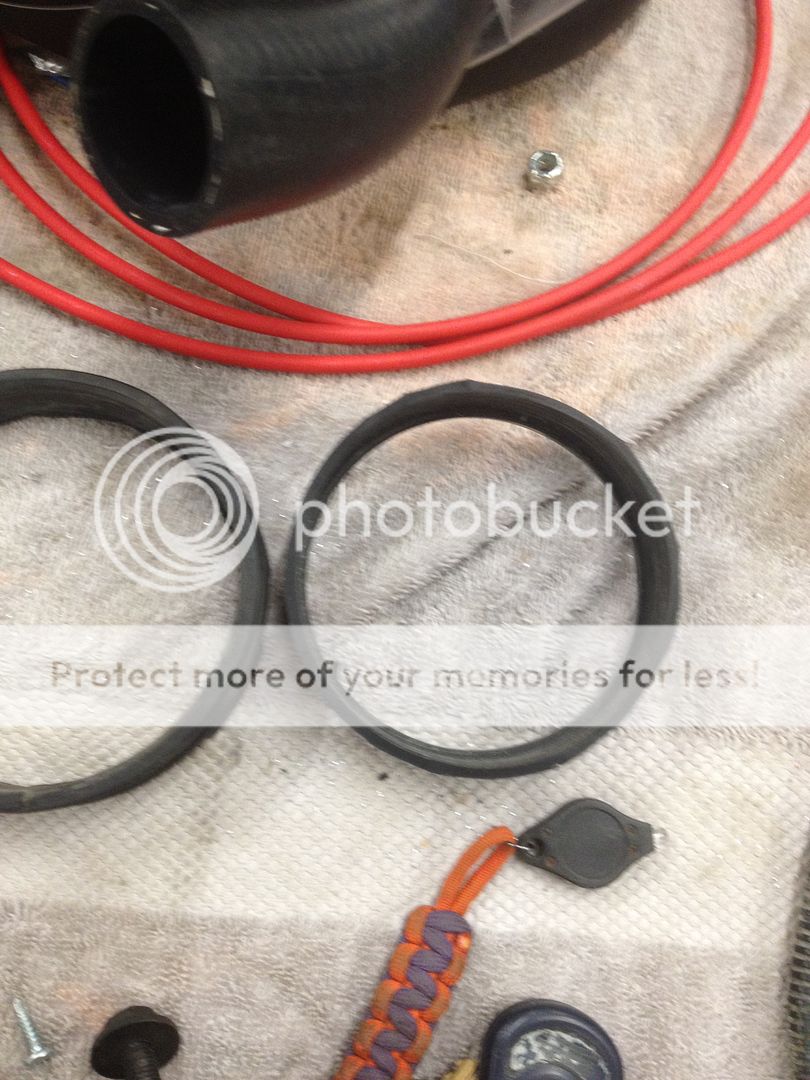

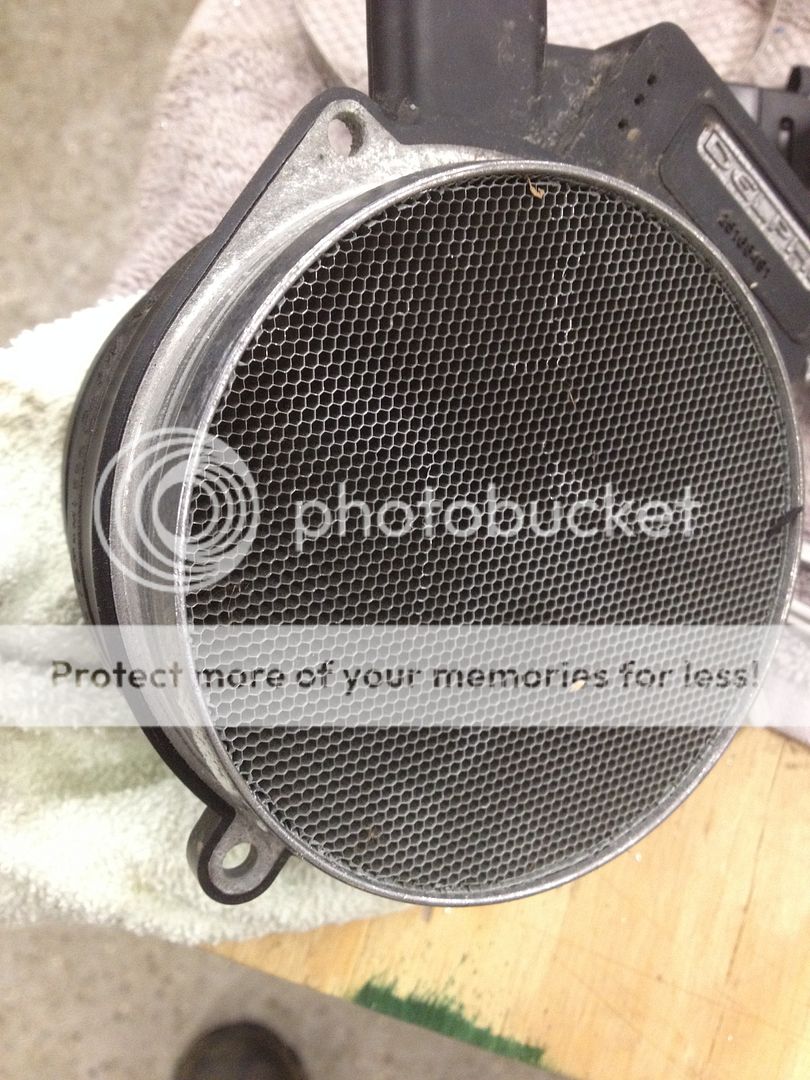

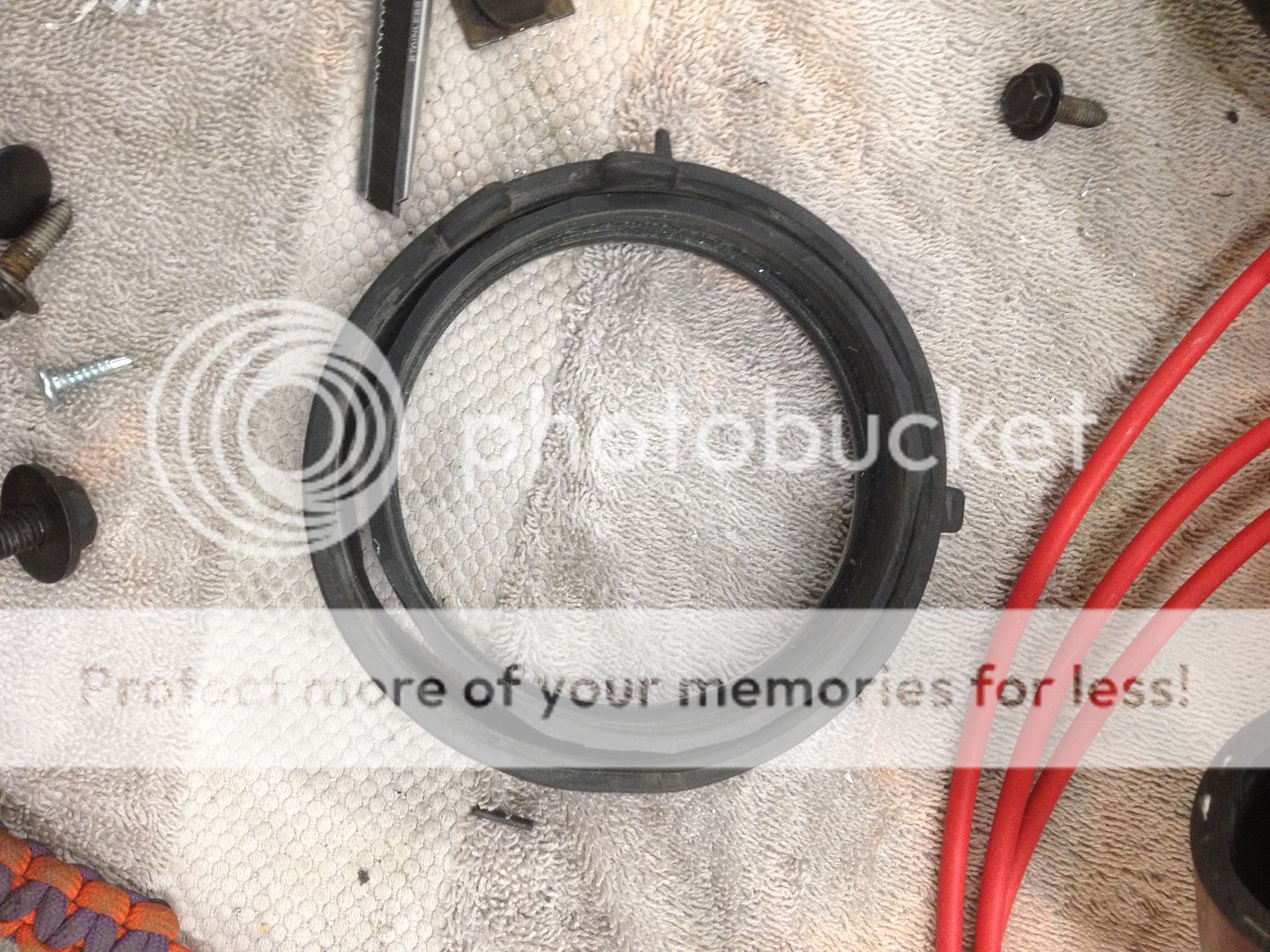

I needed a spacer to take up the gap between the air filter and the MAF. the 3.5 to4" spacer in the kit was too thick. as the MAF is something like 3.62 or something. anyways, I cut down the stock rubber grommet to what I needed. a spacer.






starting the mock up process..




once I was happy with the position and orientation, I bent a piece of aluminum bar sock then located my mounting holes



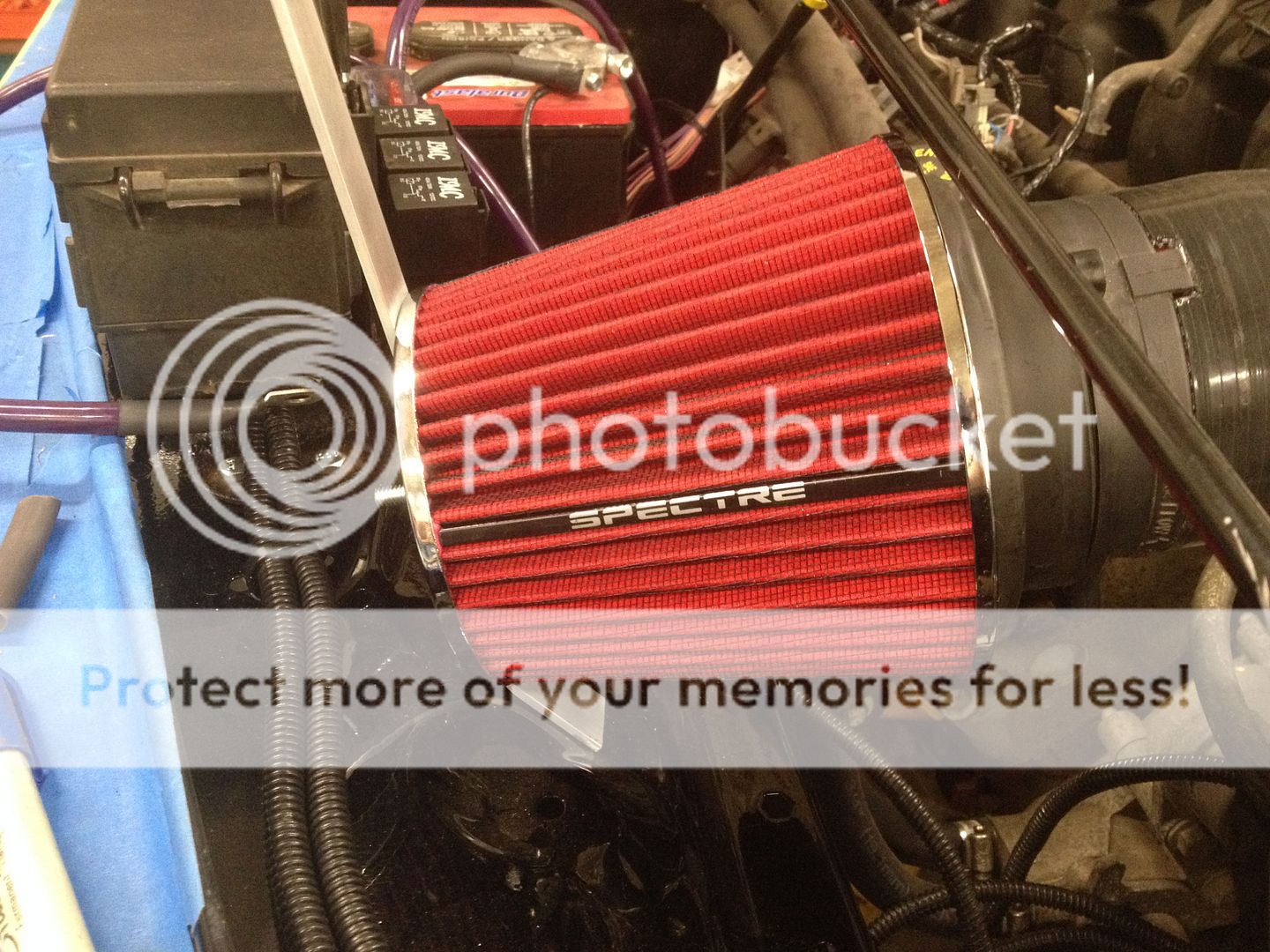

made the mounting bracket and got it bolted to the AF and then, mounted the assembly to the fender.


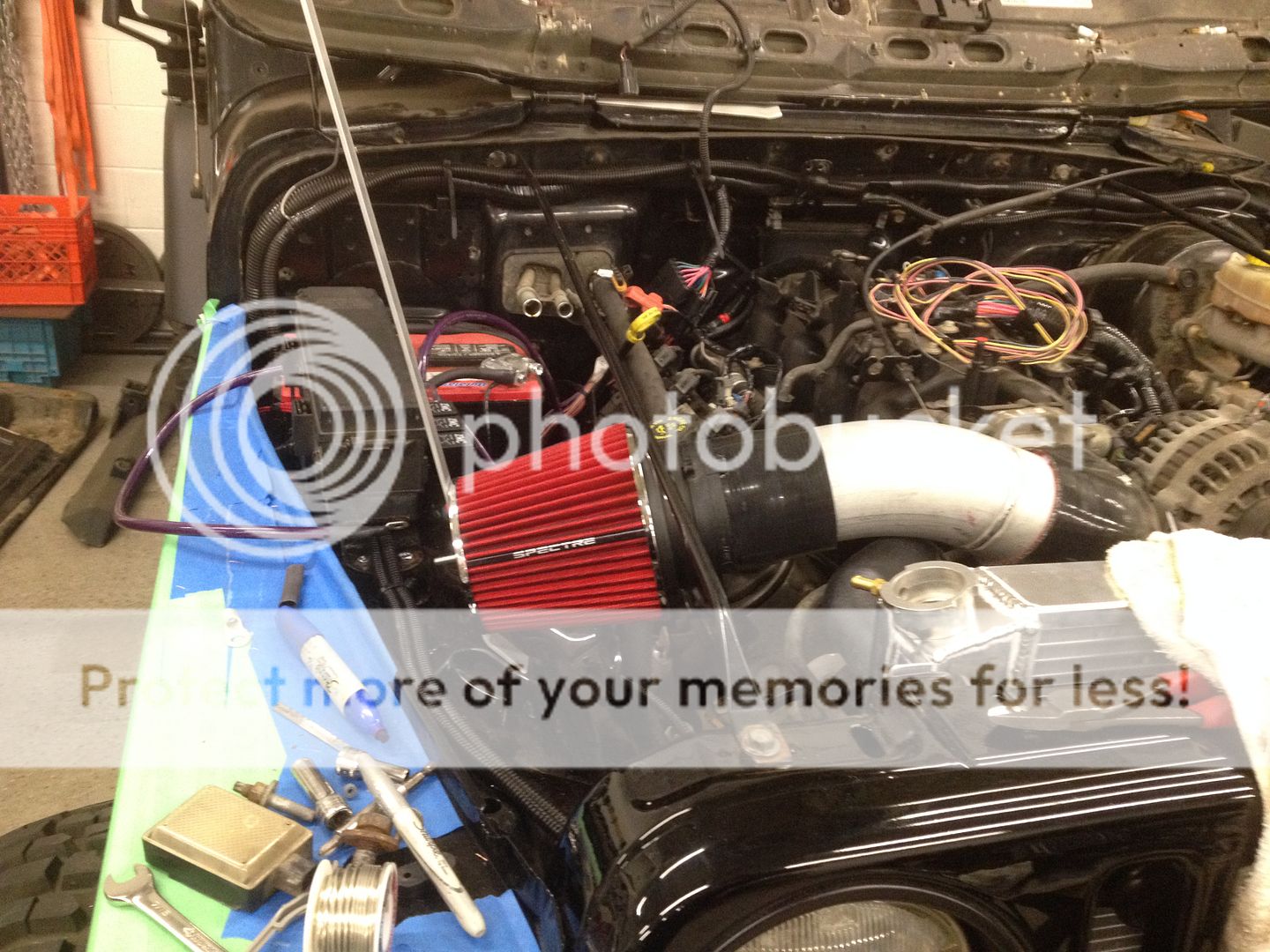

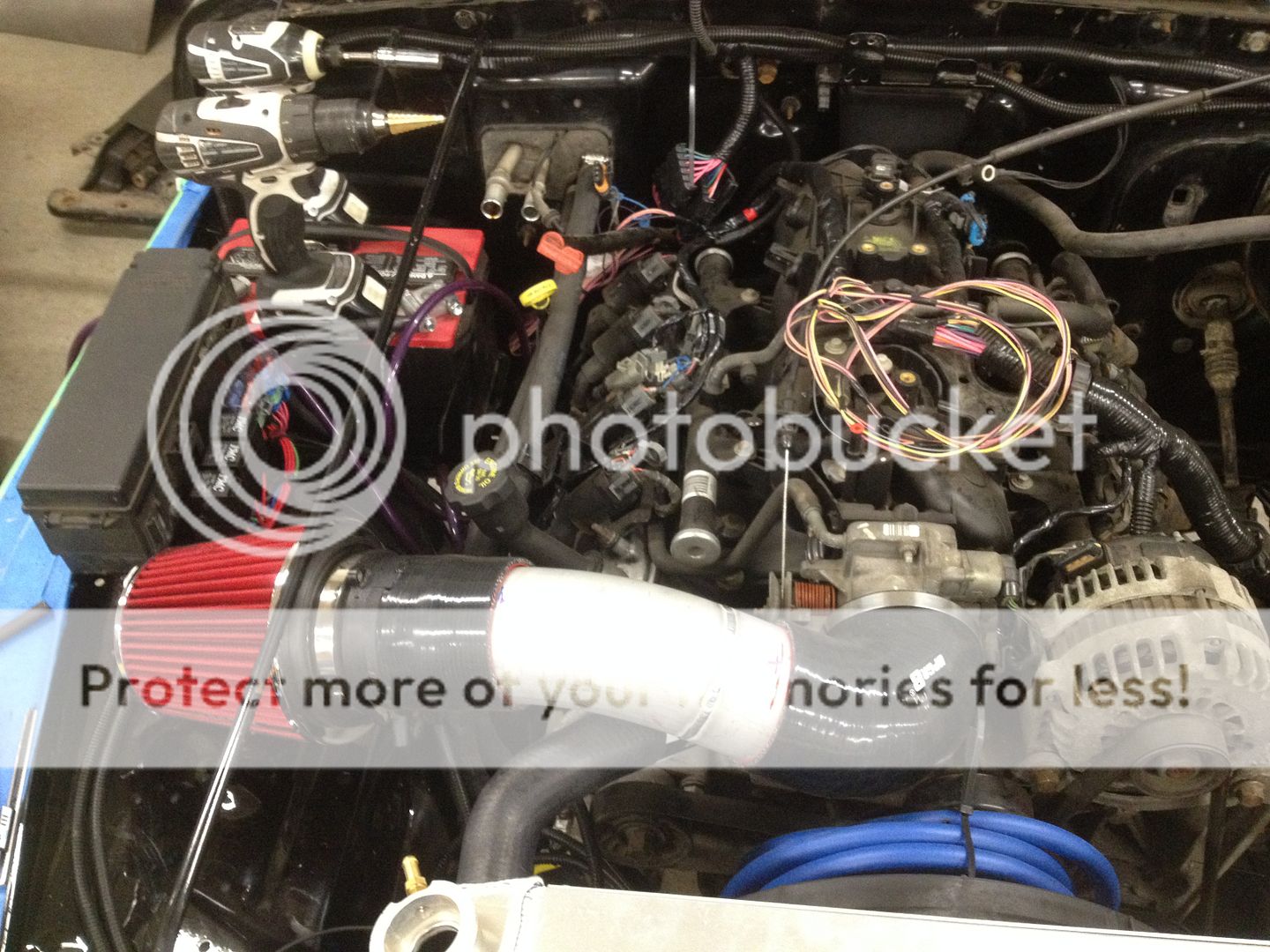

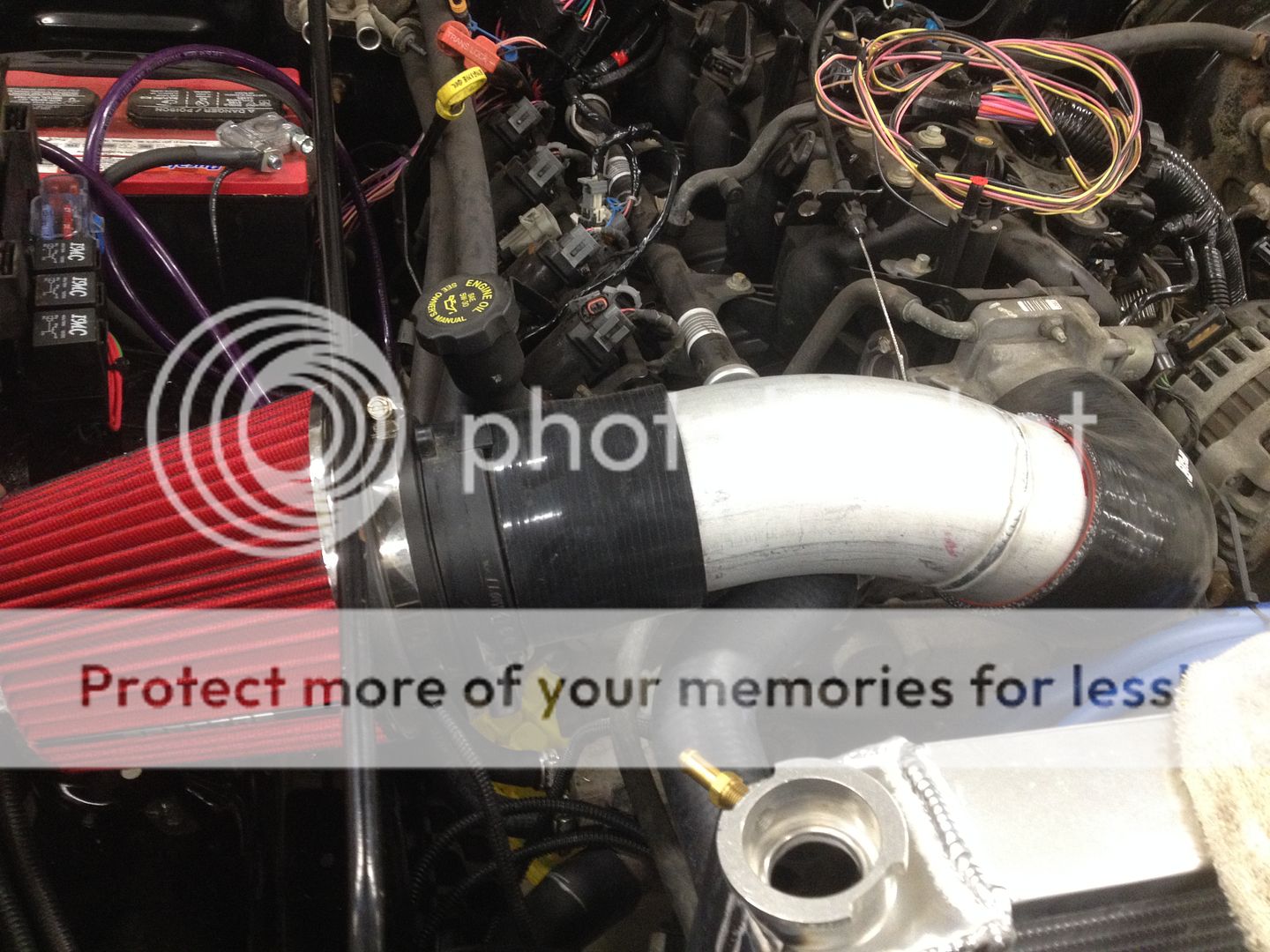

ending up with something like this...


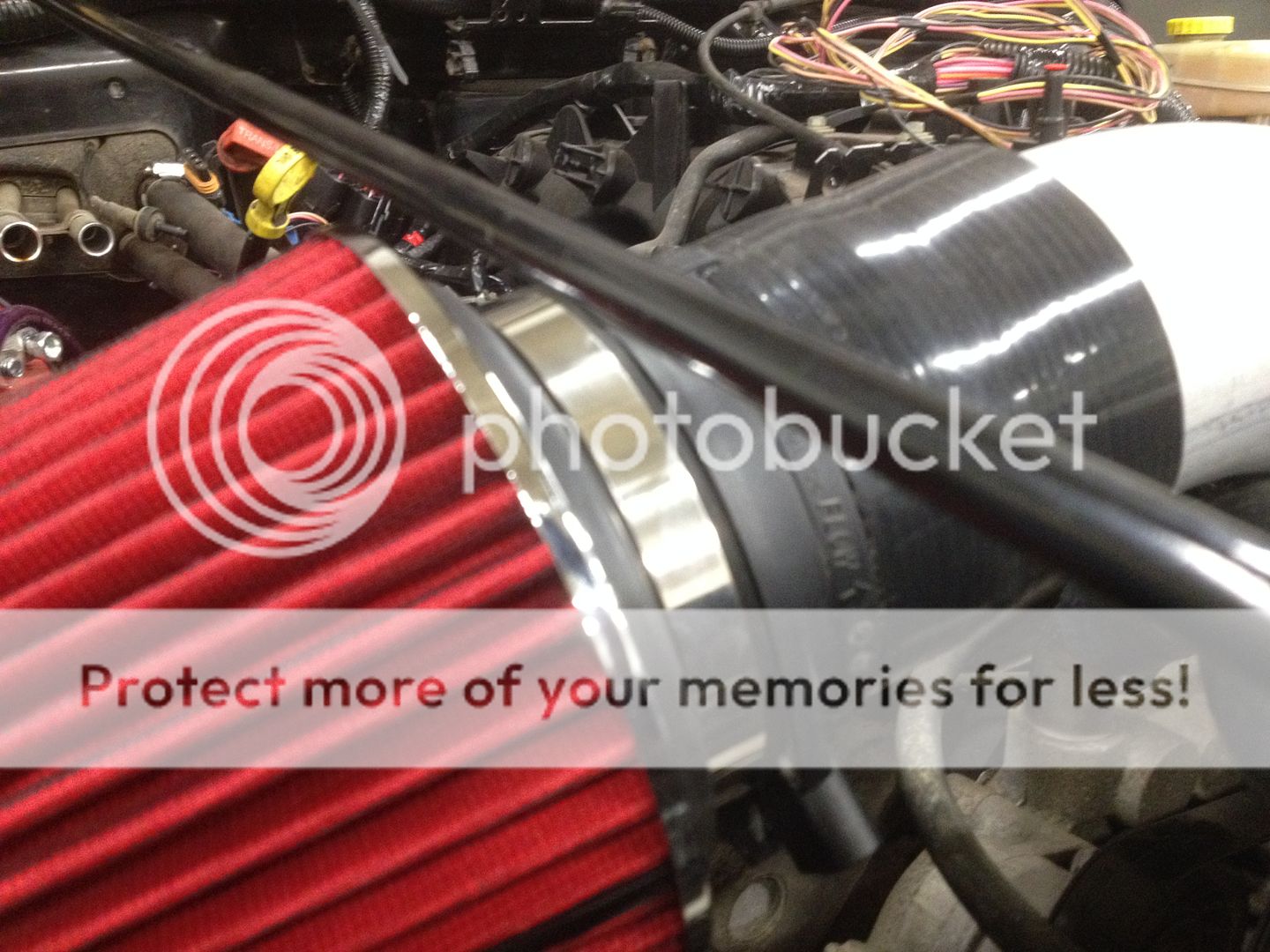

heres the clearance between the AF and the grille support..


now im off to shorten the MAF wires, I cut almost 3+ feet out of that circuit
__________________
Quote:
Originally Posted by CCJ View Post
Jesus. This is what heaven on 4 wheels looks like.
Quote:
Originally Posted by Deacon View Post
Hospital? What, are you suffering from Overextended Jeepaphelia or something? :)
I've never been poor, only broke. Poor is a state of mind. Broke is a condition brought on by Jeep ownership and a heavy right foot.

2006 Unlimited Redicon Panda Edition
RRI Long Arm...14" Fox CO's Front and Rear...D60 KP Front and D60 FF Rear... 5.38s spooled...40" Maxxis Trepadors...
6.1 HEMI...Atlas 5.1

5.7 HEMI 400 hp TJ Build http://www.jeepforum.com/forum/f9/ye...17/?highlight=
6.1 HEMI Ultimate LJ Rubicon Build http://www.jeepforum.com/forum/f9/6-...ayhem-1013800/
2.5 to 4.0L swap and build up http://www.jeepforum.com/forum/f9/he.../#post14946167
4.0 to 2008 5.3L GM LS in the Taco'd TJ [frame off build].....http://www.jeepforum.com/forum/f9/5-...28/?highlight=
My new DD Build, lift, 4.0 motor swap, done in 6 days?....http://www.jeepforum.com/forum/f22/6.../#post15716292

the new shop... http://redrockwiring.com/ conversion, parts and wiring systems
shop email.... info@redrockindustries.net
LIKE US on facebook..... https://www.facebook.com/redrockindustriesinc adding more daily
redrockindustries.net
theGiantPanda is offline   Reply With Quote Quick reply to this message
Unread 02-15-2014, 02:16 AM   #85
theGiantPanda
Swap This...

theGiantPanda's Avatar
2006 LJ Wrangler

Join Date: May 2009
Location: SE Michigan
Posts: 1,550
cleaned up some more of the engine compartment. I have to take care of a few small trinkets and that should be all set-other than fuel lines.


today was np231c SYE install day and work on a cable shifter set up day

enter [1] np231c out of a mid 90's s-10 series. check out the looooong output shaft....




tailshaft extension off


popped the rear case half off. found the common 1.25" chain and further investigation revealed the common chevy 4 planetary gear set. ehh its not the 6 but better than the 3 in the 231J



the short shaft next to the stock shaft


short shaft installed and rear case half back on...


new tailshaft bearing housing installed... do you know how much of a pain in the tail it is to get 200ft torque on a nut, whilst sitting on a bench... lol


the np231c I have, has the same shift pattern as the np231J however, the lever is inverted. it needs to be on the bottom to work correctly with the jeep's 4wd shifter, let alone a push/pull cable shifter.


I grabbed a shift lever off another 231J case I have on the shelf. looks like it would work. I did have to clearance out one of the case ribs alittle...


wanted to angle it in towards the case some. I put it in the vice and gave it a few wacks. when I looked at it, the lever had stress factures where it bent. sweet. I ground them out and threw a bead of weld in.


threw on a spare transmission adapter to start mocking up the cable shifter mount


knocked out the tub side mount for the cable shifter




then a paper template to start....


turns into this... I had to cut reliefs in the bracket where I wanted the bends. I cut it out before I bent it, so if I had tried to bend it in the brake, it would distort the profile because of the removed material. I just ran a bead of weld in the reliefs and good to go...








and a quick test fit...




tomorrow, I am hoping to get the 231C installed up under the tunnel and the tub bracket mounted as well. I am going to order up another shift cable and get that on its way.... I have to do [2] other jeeps.. making the transfer case side bracket for the 545rfe/np231J set up is going to be fun too...
__________________
Quote:
Originally Posted by CCJ View Post
Jesus. This is what heaven on 4 wheels looks like.
Quote:
Originally Posted by Deacon View Post
Hospital? What, are you suffering from Overextended Jeepaphelia or something? :)
I've never been poor, only broke. Poor is a state of mind. Broke is a condition brought on by Jeep ownership and a heavy right foot.

2006 Unlimited Redicon Panda Edition
RRI Long Arm...14" Fox CO's Front and Rear...D60 KP Front and D60 FF Rear... 5.38s spooled...40" Maxxis Trepadors...
6.1 HEMI...Atlas 5.1

5.7 HEMI 400 hp TJ Build http://www.jeepforum.com/forum/f9/ye...17/?highlight=
6.1 HEMI Ultimate LJ Rubicon Build http://www.jeepforum.com/forum/f9/6-...ayhem-1013800/
2.5 to 4.0L swap and build up http://www.jeepforum.com/forum/f9/he.../#post14946167
4.0 to 2008 5.3L GM LS in the Taco'd TJ [frame off build].....http://www.jeepforum.com/forum/f9/5-...28/?highlight=
My new DD Build, lift, 4.0 motor swap, done in 6 days?....http://www.jeepforum.com/forum/f22/6.../#post15716292

the new shop... http://redrockwiring.com/ conversion, parts and wiring systems
shop email.... info@redrockindustries.net
LIKE US on facebook..... https://www.facebook.com/redrockindustriesinc adding more daily
redrockindustries.net
theGiantPanda is offline   Reply With Quote Quick reply to this message
Unread 02-15-2014, 11:49 AM   #86
contdevelop
Registered User
2003 TJ Wrangler

Join Date: Dec 2008
Location: , Republic of Texas
Posts: 556
nice work!
contdevelop is offline   Reply With Quote Quick reply to this message
Unread 02-15-2014, 07:01 PM   #87
jherrington
Registered User
1998 TJ Wrangler

Join Date: Jan 2012
Location: Brusly, Louisiana
Posts: 28
Woo! I've been waiting for your plans on the shifter linkage. I followed your lead and picked up a range rover shifter cable too.
jherrington is offline   Reply With Quote Quick reply to this message
Unread 02-20-2014, 04:07 PM   #88
phil823
Registered User
1997 TJ Wrangler

Join Date: Oct 2010
Location: Bloomington, Illinois
Posts: 45
plan on making a few of those Shifter Brackets since you have a template lol?

my list of things to buy from you are going steadily!
phil823 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2014, 06:45 PM   #89
G Beasley
Web Wheeler

G Beasley's Avatar
2005 LJ Wrangler

Join Date: Nov 2001
Location: Eden, NC
Posts: 5,512
Nice clean work on the shifter cable ...
__________________
Free stickers and picture hosting at Jeep-Owner.com
G Beasley is offline   Reply With Quote Quick reply to this message
Unread 02-20-2014, 07:23 PM   #90
Ryanw10
Registered User
1997 TJ Wrangler

Join Date: Nov 2011
Location: West Olive, Michigan
Posts: 267
I really like the intake work but is that going to clear the hood? Im running the stock intake from the truck and it comes about an inch away from my hood even with a 1" body lift
Ryanw10 is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools






Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
