242TJ's Build

This is the build thread for my 2003 Jeep Wrangler. Here are the specs and my plans for it.

Stock Specs:

2003 TJ Sahara
4.0L
NV3550
NP231
Front: Dana 30
Rear: Dana 44 LSD
Gear Ratio: 3.73
70,000 miles on the Jeep.

The Lift:

Springs: 4" OME Coils 939/946
Shocks: OME LT N66L/N67L
F/R Adjustable Track Bars
Front LCAs
Rear UCAs
RC Front Sway Bar Disconnects
Rubicon Express Rear Sway Bar Links
Crown Extended Brake Lines
Currie Rear Shock Relocation Brackets
SYE/CV: TeraFlex Extreme Short SYE + Tom Woods XB Shaft
Wheels: 15x8 Canyons with Spidertrax Spacers
Tires: 33x12.5 BFG KM2

Status: Right now the Jeep is in the garage waiting on a SYE install.

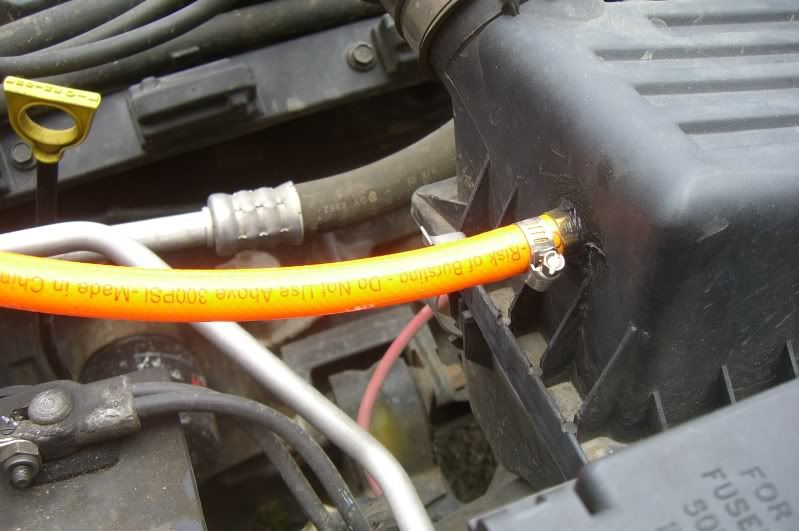

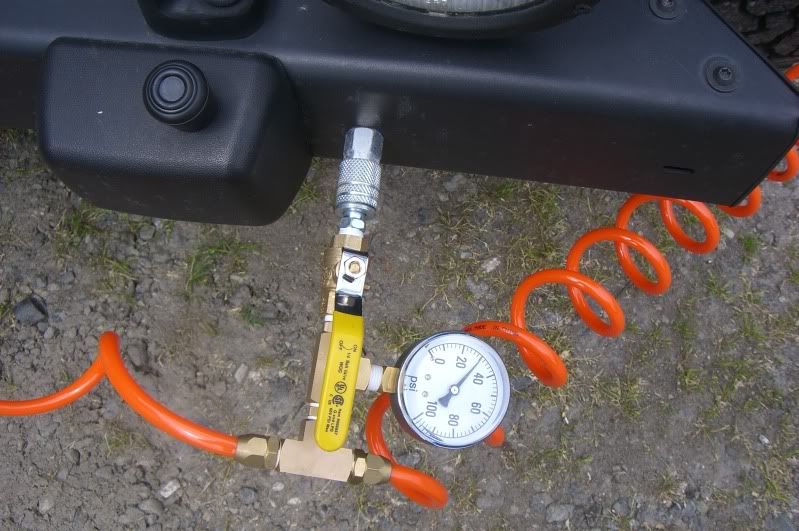

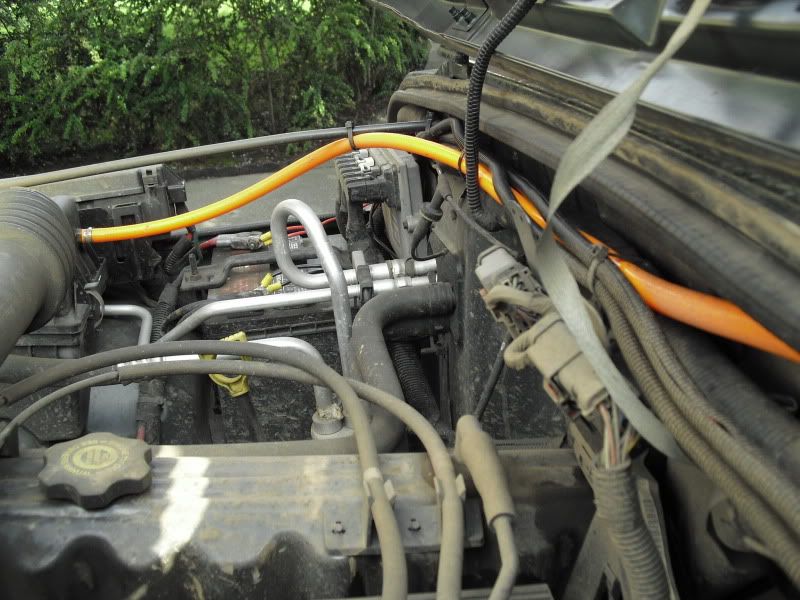

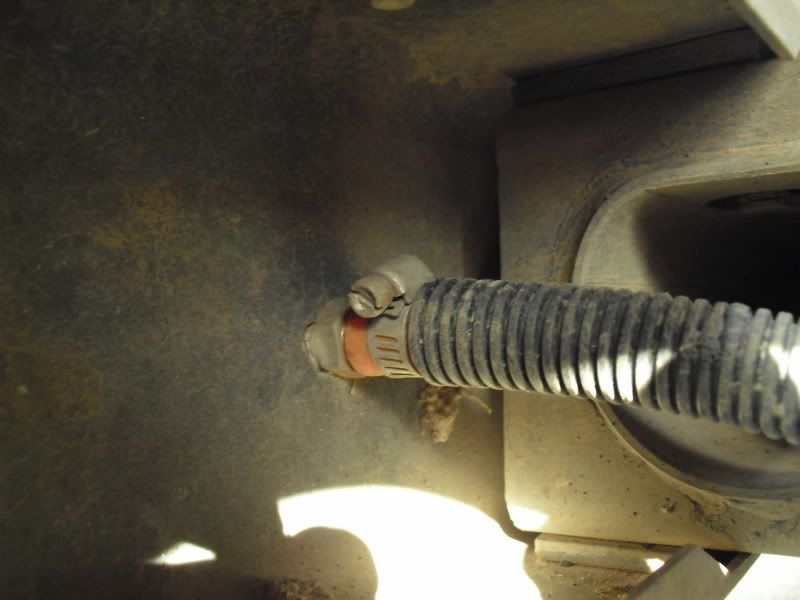

I am going to put up a few mods I have previously done and will try to keep this thread as updated as possible.

Please feel free to leave comments and ask questions. Any input will be welcome.


ll,ll,
lL_l--OlllllllO-
)_)-()_)--)_)


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
242TJ is offline
Sponsored Links
Advertisement

post #2 of 15 Old 08-12-2010, 10:56 PM Thread Starter
242TJ
Registered User
2003 TJ Wrangler

Join Date: Mar 2008
Location: WA
Posts: 245

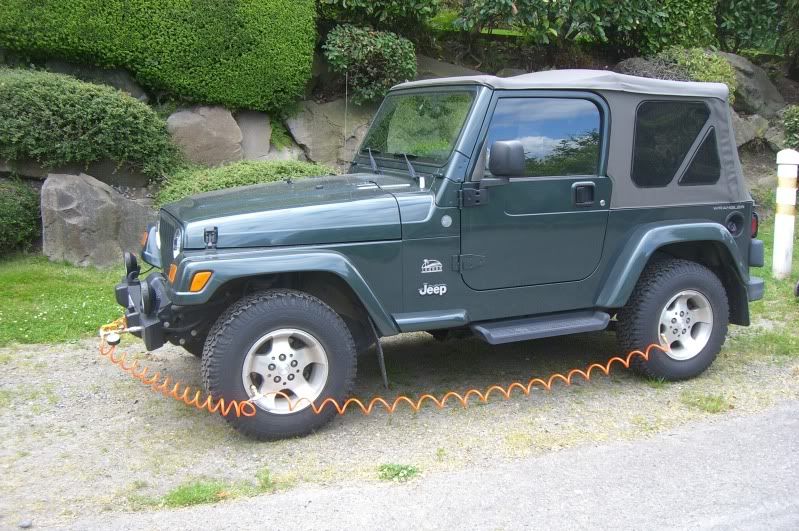

Before Pictures:








ll,ll,
lL_l--OlllllllO-
)_)-()_)--)_)


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
242TJ is offline
post #3 of 15 Old 08-13-2010, 02:14 PM Thread Starter
242TJ
Registered User
2003 TJ Wrangler

Join Date: Mar 2008
Location: WA
Posts: 245
The Jeep has been in the garage for a few weekends now. Waiting on back-ordered parts is a bigger problem than I thought it would be. Probably should have waited until everything was here to get started.

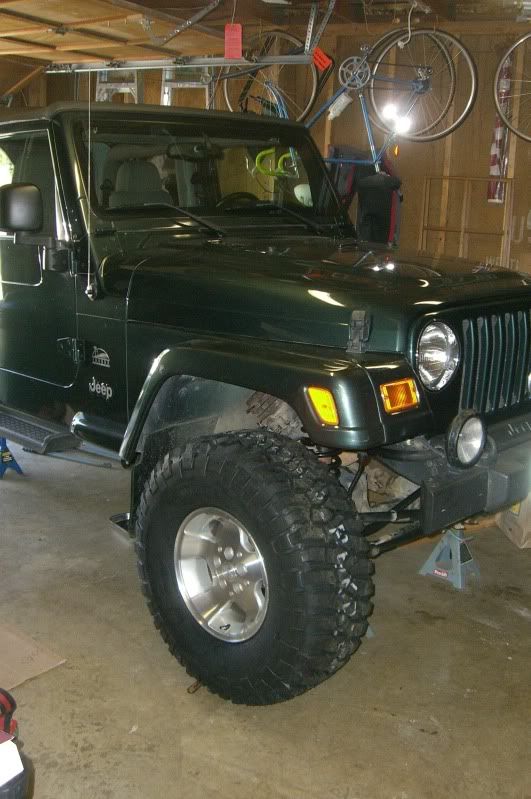

Tires came in and I was able to get them mounted and balanced for free at 4WheelPats. It was some sort of big sale weekend and they were offering free mounting.





As of last weekend:

Springs, control arms, track bars, and the sway bar links are installed

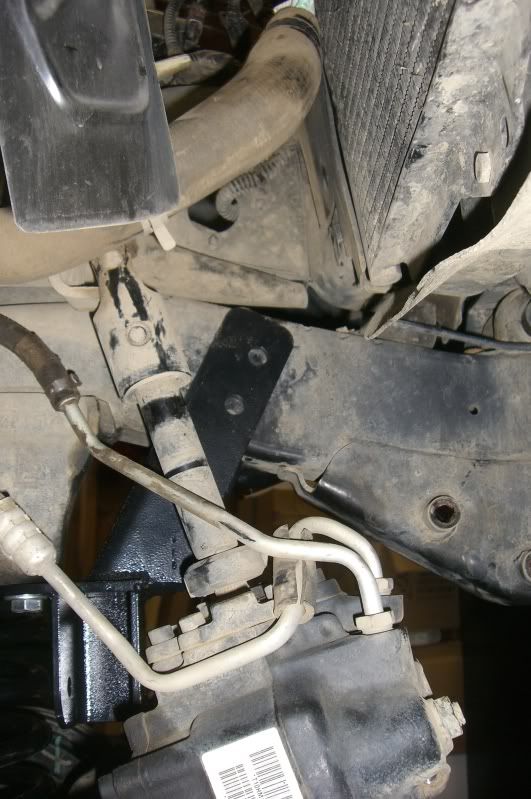

Front track bar bracket needs to be bolted through the frame. Four holes at almost 1", scary.



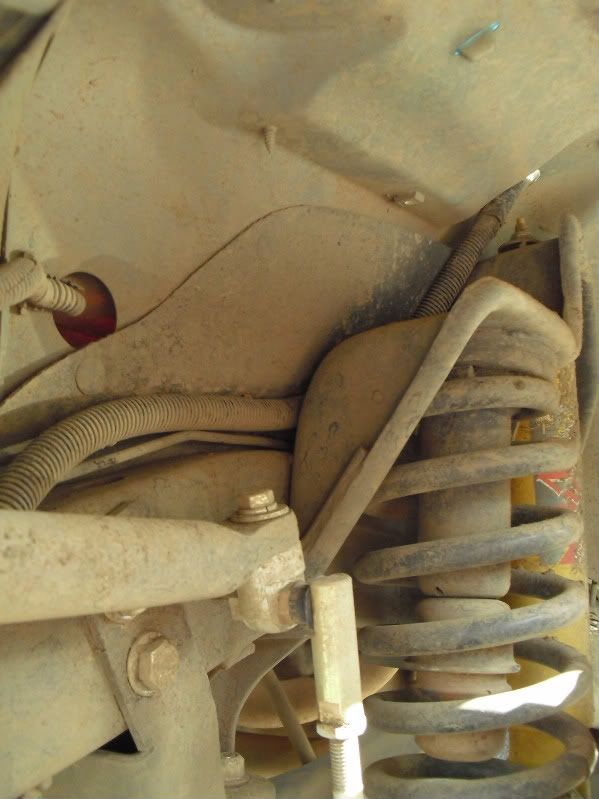

Used a spring compressor to get the front springs in. First time I had used a spring compressor and it made it much easier.

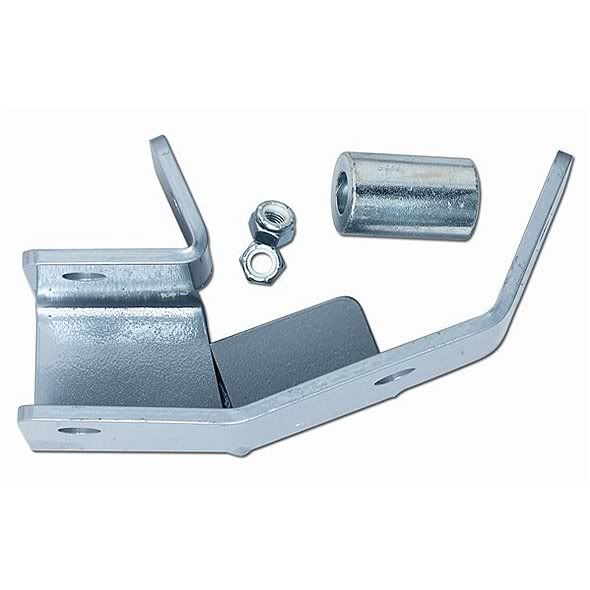

After some research I bought a RE CV rear track bar bracket to go with my adjustable track bar.
