New Cb Radio And Antenna Install (pictures!!)

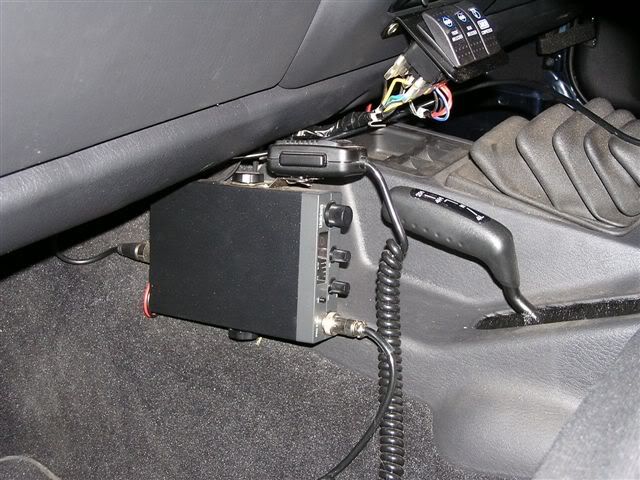

hey sup guys i just installed my new cb radio and antenna they work great and i love the area where the bracket for the antenna is here are some pics of the install.
That is a firestik II antenna on a "Rock iT" mount from quadratec with a radio shack cb radio they all work great im really happy.







jeepwrangler268 is offline   Reply With Quote
Unread 01-08-2005, 09:08 PM   #2
1BadTJ
Registered User
2001 TJ Wrangler

Join Date: Feb 2004
Location: in front of my computer, DUH.
Posts: 926
i wish i had a garage *sad,pouty face*



nice install.
__________________
Dont Mess with Techno Viking
1BadTJ is offline   Reply With Quote
Unread 01-08-2005, 09:11 PM   #3
Los
Registered User

Join Date: Dec 2004
Location: Portland, OR
Posts: 273
Looks good. I thought about mounting mine in the same spot but with my two monkeys climbing in and out and pushing the passenger seat all the way forward, it would only be a matter of time before I'd have to relocate it.

I mounted mine on the driver side of the shifter console. Not the most practical location if you plan to use it on the freeway as it is a pain to switch stations but I only use it on the trails.

Los is offline   Reply With Quote
Unread 01-08-2005, 09:50 PM   #4
NFaust
Registered User

Join Date: Jan 2004
Posts: 93
Quote:
Originally Posted by jeepwrangler268
hey sup guys i just installed my new cb radio and antenna they work great and i love the area where the bracket for the antenna is here are some pics of the install.
That is a firestik II antenna on a "Rock iT" mount from quadratec with a radio shack cb radio they all work great im really happy.





How did the install of the mount go? I just got one (yet to be installed) and the directions are a little unclear; whats the order of the washers/rubber spacers? Do they go on the inside or the outside of the body tub?

Overall looks good!

-Nick
NFaust is offline   Reply With Quote
Unread 01-08-2005, 10:07 PM   #5
jeepwrangler268
Registered User

Join Date: Aug 2004
Location: Georgia
Posts: 246
heres the deal the mount came with 2 huge bolts sticky out and that really scared me so i didnt want to drill any holes in my jeep plus they would be above the light so they couldnt be hiden if i took off the antenna so i took some bolt cutters cut off the bolts and grinded them down with a grinder i made it all smooth and painted it black with your generic spray paint then i just took off the light put the antenna cable through the light wire hole and put the bracket on with the light then put the antenna adapter on the antenna mount and then connected the cable. overall really easy wired the whole thing up including the cb with mounting in 30 minutes but im really good at this kind of stuff cause im a real tinker so i take stuff apart and put them back together fast here is a pic with the order.



u need to go to radio shack and get one of these for the antenna to be mounted on the metal part the hole is ment for a coaxial adapter.

http://www.radioshack.com/product.as...ct%5Fid=21-961
jeepwrangler268 is offline   Reply With Quote
Unread 01-08-2005, 10:14 PM   #6
jeepwrangler268
Registered User

Join Date: Aug 2004
Location: Georgia
Posts: 246
oh yea u need to get longer screws for your tail light they are hard to find the right size but just go to your local hard ware store and be like find this bolt but longer BI@tch
jeepwrangler268 is offline   Reply With Quote
Unread 01-08-2005, 10:18 PM   #7
jeepwrangler268
Registered User

Join Date: Aug 2004
Location: Georgia
Posts: 246
Quote:
Originally Posted by 1BadTJ
i wish i had a garage *sad,pouty face*



nice install.

its just too bad the antenna is too tall for me to drive in now!!! lol its a fixable problem im gonna get a quick disconnect
jeepwrangler268 is offline   Reply With Quote
Unread 01-09-2005, 12:09 AM   #8
bigblackblur
Registered User

Join Date: Aug 2004
Location: Denver
Posts: 769
will it hurt the antenna to drive in slowly and all that, cause when you close the garage it should have room. What are you gonna do in areas of low clearance?

o yeah and is there a way to rig up a removable flag for that antenna so that when you go offroading you dont need that AND a big flag
__________________
99' Sport: 33's with 3.5" RE & 8k lbs winch
bigblackblur is offline   Reply With Quote
Unread 01-09-2005, 08:18 AM   #9
NFaust
Registered User

Join Date: Jan 2004
Posts: 93
Quote:
Originally Posted by jeepwrangler268
u need to go to radio shack and get one of these for the antenna to be mounted on the metal part the hole is ment for a coaxial adapter.

http://www.radioshack.com/product.as...ct%5Fid=21-961
Will that adapter work with a normal RG58 coax cable plug? (IE-What comes on the end of the coax already?) It doesn't seem like they are the same size whatsoever. Oh, and here's a pic of the plug that I'm using:



What kind of plug did you use?

-Nick
NFaust is offline   Reply With Quote
Unread 01-09-2005, 10:08 AM   #10
vargeg60
Registered User

Join Date: Sep 2004
Location: staten island
Posts: 77
I have the same mount, have not installed it yet. If its not too much trouble, how did the coax enter the tub? Do the brake wires enter the tub? can you post a pic of the wires inside your jeep and how they entered. I want to tackle this install soon but cannot figure out how the coax gets into the jeep. Thanks.
vargeg60 is offline   Reply With Quote
Unread 01-09-2005, 10:16 AM   #11
jeepwrangler268
Registered User

Join Date: Aug 2004
Location: Georgia
Posts: 246
Quote:
Originally Posted by NFaust
Will that adapter work with a normal RG58 coax cable plug? (IE-What comes on the end of the coax already?) It doesn't seem like they are the same size whatsoever. Oh, and here's a pic of the plug that I'm using:



What kind of plug did you use?

-Nick
yes it will i got my cable from radio shack as well.
jeepwrangler268 is offline   Reply With Quote
Unread 01-09-2005, 10:18 AM   #12
jeepwrangler268
Registered User

Join Date: Aug 2004
Location: Georgia
Posts: 246
Quote:
Originally Posted by vargeg60
I have the same mount, have not installed it yet. If its not too much trouble, how did the coax enter the tub? Do the brake wires enter the tub? can you post a pic of the wires inside your jeep and how they entered. I want to tackle this install soon but cannot figure out how the coax gets into the jeep. Thanks.
the coax entered the tub through the brake light hole then up through a gasket in the fender under the carpet behind the back left roll bar hoop. u can then just put the wire under neath the lip of the tub i will take a pic soon and show u
jeepwrangler268 is offline   Reply With Quote
Unread 01-09-2005, 10:28 AM   #13
jeepwrangler268
Registered User

Join Date: Aug 2004
Location: Georgia
Posts: 246

jeepwrangler268 is offline   Reply With Quote
Unread 01-09-2005, 10:42 AM   #14
vargeg60
Registered User

Join Date: Sep 2004
Location: staten island
Posts: 77
Hey that was quick. Thanks you have cleared alot up for me. You help is greatly appreciated.
vargeg60 is offline   Reply With Quote
Unread 01-10-2005, 09:03 AM   #15
Joe Diver
Registered User
2009 JK Wrangler

Join Date: Sep 2004
Location: North Richland Hills, Texas
Posts: 580
I have the same mount/antenna. I went ahead and drilled into my tub and bolted the two studs down tight, along with the tail light screws. I debated over this quite a bit, but after studying the mount, distance from the antenna base and the upper screws from the tail light, I decided that the flexing stresses might be too great on the light mounts and wanted the extra bracing. I'm not saying this is necessary to do, just that it seemed to me to be the thing to do. I can say this....that mount doesn't move at all.

I had a 4' Firestick II but it was too tall to clear my garage. I swapped it with a 3' and am fine now. The load on the top of the antenna is completely above my roofline and I'm getting very acceptable range so far.
__________________
2009 Sahara, Red Rock, auto, MyGig REN, Trac-Lok, remote start, soft top, Nuvi 765T, Escort X50 Blue, Cobra 29WXNW, Firestick II, Recovery Kit, Bestop Bikini Top, Soft Top Cover, Jeep Hood Bra
Joe Diver is offline   Reply With Quote
