Unread 07-03-2013, 10:51 PM   #61
freeskier93
Registered User
1997 TJ Wrangler

Join Date: Oct 2009
Location: Longmont, Colorado
Posts: 7,061
Quote:
Originally Posted by NalinMFG View Post
how's the durability 2 years later?
The aluminum bracket I made is still holding up, which is surprising since it's mostly held together with duct tape. This weekend I was actually planning on getting some plywood and redoing the mount and some wiring.

__________________
CU Boulder Aerospace Engineering
freeskier93 is offline   Reply With Quote Quick reply to this message
Unread 07-03-2013, 11:00 PM   #62
NalinMFG
Registered User
1998 TJ Wrangler

Join Date: May 2007
Location: Evansville, Indiana
Posts: 2,047
Quote:
Originally Posted by freeskier93 View Post
The aluminum bracket I made is still holding up, which is surprising since it's mostly held together with duct tape. This weekend I was actually planning on getting some plywood and redoing the mount and some wiring.
Is yours just flat bar/straps? Are you looking at a benefit other than cost with a plywood upgrade? The durability question that I presented was in reference to the OP's plywood mount. I would like to assume that it's the same as day one, but that's tough to say with the humidity and water exposure of some areas. I'm all for cheap, but if there's a better/best way to do something...that's what I'm using.
__________________
[URL="http://www.NalinMFG.com/"][SIGPIC][/SIGPIC][/URL]

[URL="http://www.jeepforum.com/forum/f43/tj-5-25-speaker-adapters-nalinmfg-1325275/"]5.25" TJ Speaker Adapters[/URL]
[COLOR="DarkOrange"]
Linkedin:[/COLOR] [URL="http://www.linkedin.com/pub/andrew-nalin/30/65/825/"][B]Andrew Nalin[/B][/URL]
[COLOR="DarkOrange"] Email:[/COLOR] [B][email]NalinMFG@gmail.com[/email][/B]
[COLOR="DarkOrange"]Website: [/COLOR][B][URL="www.NalinMFG.com"]www.NalinMFG.com[/URL][/B]
[COLOR="DarkOrange"]Facebook: [/COLOR][B][URL="www.Facebook.com/NalinMFG"]NalinMFG[/URL][/B]
NalinMFG is offline   Reply With Quote Quick reply to this message
Unread 07-03-2013, 11:05 PM   #63
freeskier93
Registered User
1997 TJ Wrangler

Join Date: Oct 2009
Location: Longmont, Colorado
Posts: 7,061
Quote:
Originally Posted by NalinMFG View Post
Is yours just flat bar/straps? Are you looking at a benefit other than cost with a plywood upgrade? The durability question that I presented was in reference to the OP's plywood mount. I would like to assume that it's the same as day one, but that's tough to say with the humidity and water exposure of some areas. I'm all for cheap, but if there's a better/best way to do something...that's what I'm using.
The plywood seems more secure. My mount is just flat bar and some 90* angled stock that I cut up and is held together with self tapping screws and duct tape. It's just some scrap I found in the garage. One end is screwed to the firewall the other just sits on the HVAC tube with only duct tape holding it down. It's pretty ghetto.

Have you seen the skinny pedal mount? IIRC it's made out of aluminum. It's where I originally got the idea and didn't want to pay 60$ for it.
__________________
CU Boulder Aerospace Engineering
freeskier93 is offline   Reply With Quote Quick reply to this message
Unread 07-05-2013, 07:09 PM   #64
NalinMFG
Registered User
1998 TJ Wrangler

Join Date: May 2007
Location: Evansville, Indiana
Posts: 2,047
Quote:
Originally Posted by freeskier93 View Post
The plywood seems more secure. My mount is just flat bar and some 90* angled stock that I cut up and is held together with self tapping screws and duct tape. It's just some scrap I found in the garage. One end is screwed to the firewall the other just sits on the HVAC tube with only duct tape holding it down. It's pretty ghetto.

Have you seen the skinny pedal mount? IIRC it's made out of aluminum. It's where I originally got the idea and didn't want to pay 60$ for it.
Nope, I'll fire up Google and see what it is. Thanks.
__________________
[URL="http://www.NalinMFG.com/"][SIGPIC][/SIGPIC][/URL]

[URL="http://www.jeepforum.com/forum/f43/tj-5-25-speaker-adapters-nalinmfg-1325275/"]5.25" TJ Speaker Adapters[/URL]
[COLOR="DarkOrange"]
Linkedin:[/COLOR] [URL="http://www.linkedin.com/pub/andrew-nalin/30/65/825/"][B]Andrew Nalin[/B][/URL]
[COLOR="DarkOrange"] Email:[/COLOR] [B][email]NalinMFG@gmail.com[/email][/B]
[COLOR="DarkOrange"]Website: [/COLOR][B][URL="www.NalinMFG.com"]www.NalinMFG.com[/URL][/B]
[COLOR="DarkOrange"]Facebook: [/COLOR][B][URL="www.Facebook.com/NalinMFG"]NalinMFG[/URL][/B]
NalinMFG is offline   Reply With Quote Quick reply to this message
Unread 07-26-2013, 09:36 AM   #65
Brinbane
Registered User

Join Date: Jul 2013
Location: Zeeland, MI
Posts: 1
Size matters

Excellent thread.

However, size matters for this under dash location. I purchased the Alpine MRP-F300 to drive my front and rear speakers and it's too big for this location or any other location under the dash including side walls or firewall. It also won't fit under the driver or passenger seat. I have a 2005 Wrangler with the seats that raise up and forward to allow a rear passenger easier access.

It looks like it should fit under the dash but the heat sinks push against the heat ducts that run behind the kick plate and that's before I have the board mounted on it. So if you're thinking about this install, find a smaller sized amp. I'll need to return this one.

Dimensions are 9 3/4 x 11 and it's too big on both dimension. It looks like an inch less on both dimensions is the maximum you could go.

I returned the MRP-F300 and purchased the MRV-F300 instead (more money...) but this amp is 8x8 in size. After hours of trial and error I got it to fit. It misses the break pedal by about 1/8 " and leaves a 1/8" air space by the kick plate heating channel. Very tight fit but it works. I also came up with a fastener that worked far easier than a nut and bolt which proved to be impossible. I found a large butterfly toggle that mounts to a 1 inch bolt. This worked perfectly. Once you get the bolt threaded, it will spin and lock up on the side of the steering column so you can just tighten down on the bolt without struggling to keep the nut from spinning or fabricating something wierd to hold it.

Polk Audio speakers 4-6 front, Polk 5 1/4 in the pods and a 6 inch Quadratec direct replacement sub in the console and keeping my stock head unit. Sounds fantastic and painfully loud.




Last edited by Brinbane; 07-29-2013 at 08:45 AM..
Brinbane is offline   Reply With Quote Quick reply to this message
Unread 08-14-2013, 09:53 PM   #66
mjkjeep
Registered User
2004 TJ Wrangler

Join Date: May 2008
Location: PA
Posts: 25
I also just used this space for my Kicker Amp...(very small amp and plenty of space) Thank you OP...Question? Where did you guys fasten the ground wire? I think I either need to sand down the spot I used more (in the engine bay) or find another spot. The amp didn't work this morning but later in the day it worked. Thinking the ground has bad connection. This powers my kicker sub...Center console. Thanks!!
mjkjeep is offline   Reply With Quote Quick reply to this message
Unread 12-26-2014, 07:48 PM   #67
Jso123
Registered User

Join Date: Feb 2012
Location: Redding, Ct
Posts: 2
I know this is an old thread... but I'm trying to mount an alpine PDX 400.4 under the dash and am about to try zip ties. Got the amp mounted on a board with the lag screw going through that little convenient hole under the steering column. Even went out to buy a special wratchet 7/16 wrench. But can figure out how you got the nut started on that bolt so deep in the dash. Even tried gluing the nut in the wrench to try and get the thread started. I guess being an installer for 13 years gets you certain super powers that the rest of us mortals just don't qualify for..LOL
Jso123 is offline   Reply With Quote Quick reply to this message
Unread 12-23-2015, 05:00 PM   #68
rollout1
Registered User

Join Date: Dec 2015
Location: orlando, fl
Posts: 2
Thanks to OP and those that contributed to this thread. I stood on y'alls shoulders and tweaked your designs to mount my new amp. I am attaching a few images that may be helpful to the next person doing this project. They include some dimensions of the board and bracket. The amp attached to the board. The board and amp installed. And a closeup of the bracket installed on the steering column bolt.

EDIT: The bracket hole spacing is 15cm (not mm).
amp-mounting-dimensions.jpg   amp-mounted-board.jpg   amp-board-under-dash.jpg   closeup-bracket-installed.jpg

Last edited by rollout1; 12-28-2015 at 06:42 AM..
rollout1 is offline   Reply With Quote Quick reply to this message
Unread 12-24-2015, 09:40 AM   #69
mrpistol
Registered User

Join Date: Jan 2013
Location: knoxville, tn
Posts: 14
Very nice, I still get a kick out of knowing I have an amp installed in that location.
mrpistol is offline   Reply With Quote Quick reply to this message
Unread 12-24-2015, 10:46 AM   #70
Lastshot
Registered User
2005 LJ Wrangler

Join Date: Aug 2008
Location: Westchester, NY
Posts: 1,094
Quote:
Originally Posted by rollout1 View Post
Thanks to OP and those that contributed to this thread. And a closeup of the bracket installed on the steering column bolt.
Great 1st post, welcome to JF!

Also it amazes me how much smaller amps have been getting since this thread has started!
__________________
{Project "New Start" -'05 LJ build }~{SOLD '98 TJ -"Blue Steel"}
{You know you drive a TJ when....}
Quote:
gily25 Says...
Issues only become problems when you don't have the tools or time to fix it.
Mike318 Says...
I like my 4.0L like I like my ****... stroked and blown. :duhrock:
Lastshot is offline   Reply With Quote Quick reply to this message
Unread 12-24-2015, 11:20 AM   #71
jjvw
Web Wheeler

jjvw's Avatar
2003 TJ Wrangler

Join Date: Jun 2013
Location: Denver, CO
Posts: 2,635
In the very near future, I will be attempting to install both a 4 channel and a mono amp under the steering column using the DIY Skinny Pedal bracket.

Kenwood KAC-M1804 Compact 4-channel Amplifier
Kenwood KAC-M3001 Compact Mono Digital Amplifier
__________________
'03 Rubicon
jjvw is offline   Reply With Quote Quick reply to this message
Unread 12-26-2015, 08:02 PM   #72
TJCrawling
Member

TJCrawling's Avatar
2004 TJ Wrangler

Join Date: Apr 2014
Location: Geneva, Illinois
Posts: 204
I took this idea and let my imagination go where it goes and came up with this
2015-08-09-14.13.03.jpg   2015-08-09-15.44.59.jpg   2015-08-09-16.31.58.jpg   2015-08-10-12.51.02.jpg
TJCrawling is offline   Reply With Quote Quick reply to this message
Unread 12-27-2015, 08:26 AM   #73
rollout1
Registered User

Join Date: Dec 2015
Location: orlando, fl
Posts: 2
Nice TJCrawling.
rollout1 is offline   Reply With Quote Quick reply to this message
Unread 12-28-2015, 12:14 AM   #74
rbkelley89
Registered User
2001 TJ Wrangler

Join Date: Sep 2012
Location: chico, CA
Posts: 846
Quote:
Originally Posted by TJCrawling View Post
I took this idea and let my imagination go where it goes and came up with this
Damn nice! do you happen to have the dimensions or a cad file so I can have someone cut me out one that looks like it will hold two amps! great design.
__________________
2001 orange tj 2.5L (113,000) 35" Km2 Black rims D lp 30 Front and d 44 rear with ARB 1"BD MML, 1.25" BL, 4" RC Lift, Flat tc Skid, Adj rear ca's (front soon) TW rear DS, Novak shifter cable, JB ss SYE, RE angled rear trackbar, 8,000Lb Mile marker, Custom front and rear (w/swing) bumpers. Homemade CAI. Lots more to come.
rbkelley89 is offline   Reply With Quote Quick reply to this message
Unread 12-29-2015, 10:43 PM   #75
jjvw
Web Wheeler

jjvw's Avatar
2003 TJ Wrangler

Join Date: Jun 2013
Location: Denver, CO
Posts: 2,635

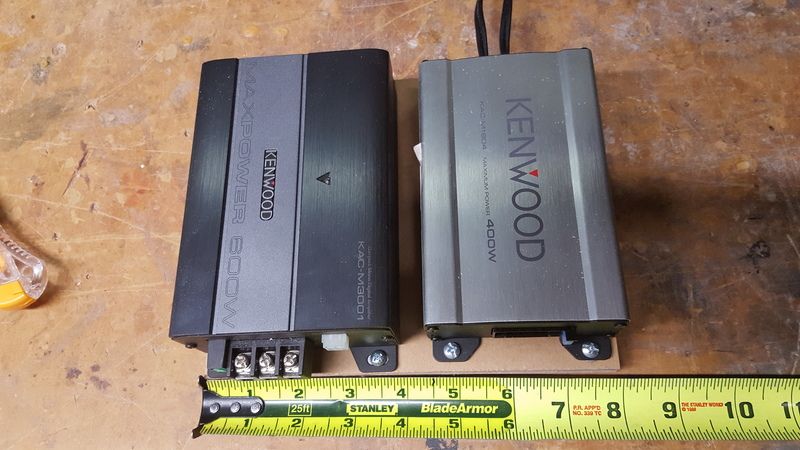

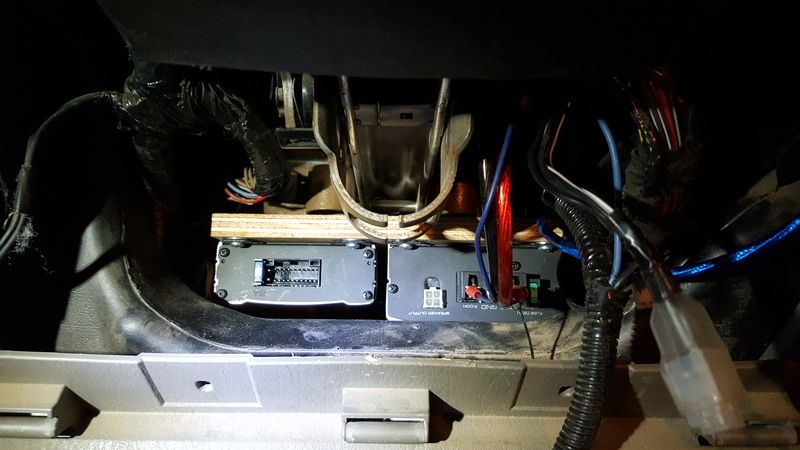

Here is my version with two compact digital amps. 4 channel and mono.

The plywood panel is about 8x7".

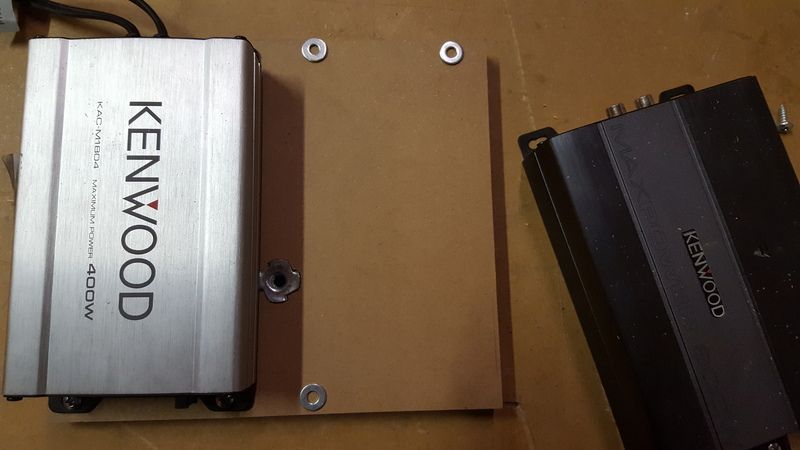

A t-nut is added to the plywood panel. I used a right angle pick to mark the hole while holding the panel in place. Also, because so many have mentioned concerns about heat, I raised the amps off the plywood with washers to add a bit of breathing room.

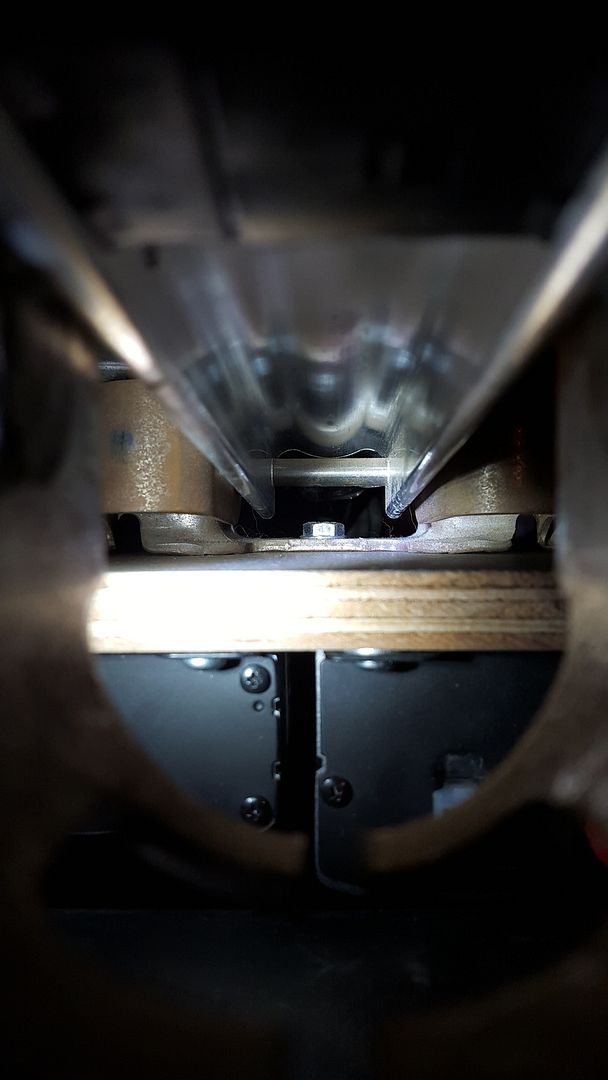

The panel is hung off of the steering column with a single bolt through the existing hole.




It's very secure and has no effect on the tilt steering.
__________________
'03 Rubicon
jjvw is offline   Reply With Quote Quick reply to this message
