post #1 of 55 Old 01-13-2009, 11:35 AM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
Wj Double Din Nav Install

I am going to install this into the factory radio location of my 2003 Jeep Grand Cherokee.

http://www.pioneerelectronics.com/PU...sh/AVIC-F900BT

Here is ghetto flip up LCD currently installed:



Removed fascia and pulled existing radio and cut out the top of the radio bracket this includes the attachment at the edge of the dash and the two clips that hold the top of the fascia on:





Here is the stuff I cut out:



Put existing radio back in and fascia still looks original so you can easily put stock back into sell and buy a new fascia from JY:




Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/


Last edited by tsconver; 01-13-2009 at 11:47 AM.
tsconver is offline
Sponsored Links
Advertisement

post #2 of 55 Old 01-13-2009, 11:35 AM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
While waiting for new unit to arrive, should be Thursday, Friday at the latest, I fabbed up some aluminum brackets:

Started with flat crafters aluminum sheets from hardware store, 10" x 4" x 0.032"

Made two side by bending them at right angles with 1" front and 5 3/4" sides, made two of these. To give it lateral strength I made a bottom plate that is 7" wide and has to sides each 1 1/8" tall. Have not drilled any holes, will do that once unit is arrived and I can fit it all in the dash and align it.

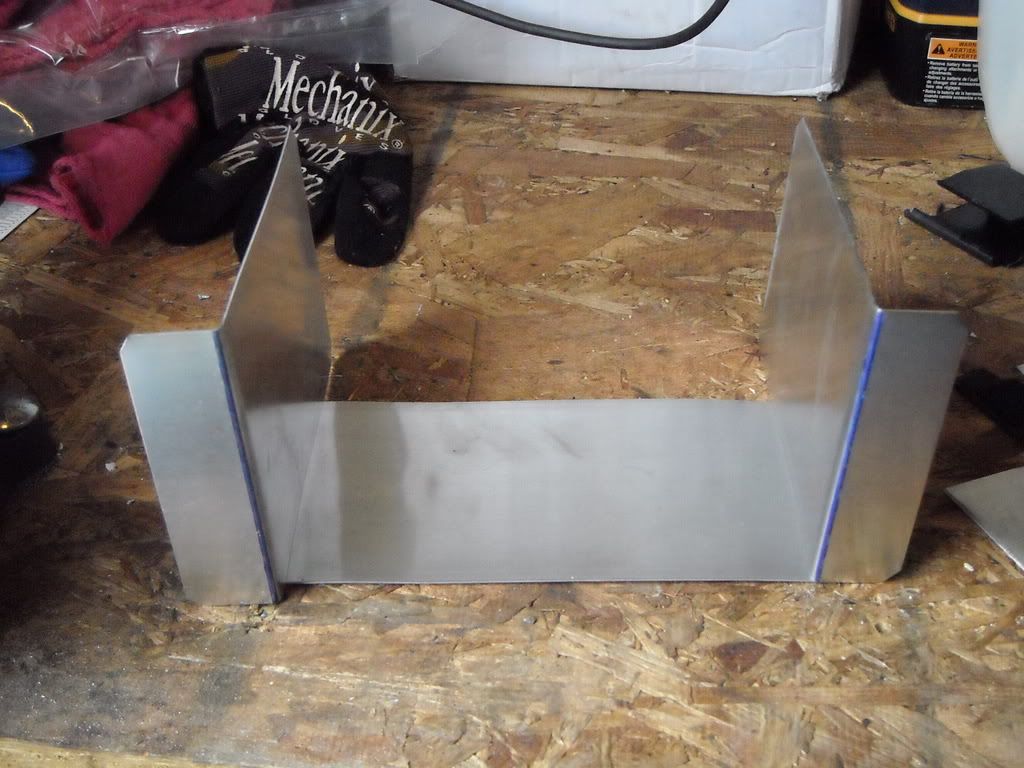

Couple of pictures of the preliminary frame to mount the nav unit:




Here is the install of the unit. Trimmed sides to fit unit, drilled holes in mounts, wired it up and slipped it in.




Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/


Last edited by tsconver; 01-16-2009 at 01:22 PM.
tsconver is offline
post #3 of 55 Old 01-13-2009, 11:35 AM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
This will detail the finishing of the fascia once the radio is installed.

Here is what I started with now for some glass:




some glass, plastic and a lot of sanding later it is getting close





Some finishing sanding and some paint and it will be done. Will add those when it is dry.


Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/


Last edited by tsconver; 01-17-2009 at 08:57 AM.
tsconver is offline
post #4 of 55 Old 01-13-2009, 11:52 AM
JC1390
Registered User
2004 TJ Wrangler

Join Date: Dec 2006
Location: NJ
Posts: 199
i likeeee....im looking to do this soon. if yours works out alright i'll be doing it even sooner! looking forward to the write up

2004 Jalopy Rubi ... Staying Low and Slow
JC1390 is offline
post #5 of 55 Old 01-13-2009, 11:56 AM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
Quote:
Originally Posted by JC1390 View Post
i likeeee....im looking to do this soon. if yours works out alright i'll be doing it even sooner! looking forward to the write up
the hole is cut and the radio is ordered so no going back now :-)

Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline
post #6 of 55 Old 01-13-2009, 04:29 PM
compcrasher86
Registered User
1998 XJ Cherokee

Join Date: Nov 2008
Location: Marblehead, MA
Posts: 6,276
looking nice, will this fit without obstructing the heat and AC vents?

Over the summer I am trying to get a new WJ so if this works for you, I'll give it a shot myself because I personally love that headunit, it does EVERYTHING and gives a nice integrate look over the "ghetto" flip-ups

98 XJ Sport | i6 | AW4 | 231 | Stone White | Agate Leather

SOLD 01 WJ Ltd | i6 | QT2 | Moog HD steering | Tow Package | Boston Acoustics Audio | RB1 | Lou's Catback | Stone White |

Matt
compcrasher86 is offline
post #7 of 55 Old 01-13-2009, 08:20 PM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
my plan is to leave the heat/ac vents in as is. Might have to use a heat gun to reform a couple of tight spots but hoping not and initially it looks like it iwll all fir with just cutting the top out of the radio area which is all I have done so far then of course cutting the fascia up but those are cheap at a junk yard to replace.

Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline
post #8 of 55 Old 01-13-2009, 08:38 PM
theksmith
Registered User
2003 WJ

Join Date: Nov 2007
Location: Phoenix
Posts: 1,701
on thought i had about doing this... if you remove the aluminum from the existing facia (it will peel off with pliers if you sort of "roll" it off), it shaves off a bit of thickness which could perhaps then be replaced with a custom cut piece of thin metal that you cut the correct new shaped opening out of. thereby allowing you to re-use the existing bezel with vents and mounting system with only minor fab?

of course if you know glass well, then i'm sure you'll be able to fab something up from scratch that looks great!

good luck, watching with anticipation!
theksmith is offline
post #9 of 55 Old 01-14-2009, 07:35 AM
mrgc
Registered User

Join Date: Jan 2008
Location: sydney
Posts: 6
More pics as I am looking at replacing the factory and want to get a 7" in dash and it is a doulble din.
mrgc is offline
post #10 of 55 Old 01-15-2009, 08:07 PM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
install will continue tomorrow got the unit today.

Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline
post #11 of 55 Old 01-15-2009, 09:35 PM
Kramer H
Built and Supercharged 47

Kramer H's Avatar
2001 WJ

Join Date: Feb 2008
Location: Everett, Washington.
Posts: 1,952
i wanted to do the same thing, keep us posted!

Built Beater 01 WJ MY BUILD THREAD
Swapped, SUPERCHARGED Locked, Lifted and Long Armed.
02 Cummins. It has a smoking problem, And it wont quit.
K8 GSXR 1000- Racefit,Comp Werks,Puig,Woodcraft,B2 Industries,55W HID'S, R&G Engineering, Two brothers, ASV, DDM, "The pantie dropper"
Kramer H is offline
post #12 of 55 Old 01-16-2009, 02:33 PM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
updated

Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline
post #13 of 55 Old 01-16-2009, 02:47 PM
theksmith
Registered User
2003 WJ

Join Date: Nov 2007
Location: Phoenix
Posts: 1,701
so it sticks out quite a bit further forward, or do you just not have it all the way back in the last picture with the bezel?
theksmith is offline
post #14 of 55 Old 01-16-2009, 04:28 PM
madrabbitt
Registered User

madrabbitt's Avatar

Join Date: Feb 2004
Location: Albuquerque
Posts: 8,821
subscribing.

i think its going to come out pretty damn nice.

Installing HID's in stock housings is bad. Here is why.

"When you see someone who needs help, help them. When you see someone who needs a hug, hug them... Help those who can't help themselves." -Sgt Andrew Tingwall, NMSP. End of watch 6-10-2009
madrabbitt is offline
post #15 of 55 Old 01-16-2009, 05:01 PM Thread Starter
tsconver
Web Wheeler

tsconver's Avatar
2003 WJ

Join Date: Nov 2007
Location: Durham
Posts: 2,945
Quote:
Originally Posted by theksmith View Post
so it sticks out quite a bit further forward, or do you just not have it all the way back in the last picture with the bezel?
yes it does stick out, but most of them do, I am trying to bring the fascia out to blend with plastic and fiberglass. This was somewhat required do to the angle of the head unit, if the top edge was flush the bottom edge would be set back in the fascia.

Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline
