CB help mainly the antenna

Hey all,
I have searched this forum and the Internet.
Jeep info: 2013 Wrangler
I recently bought a midland cb and a Wilson 1000 antenna. After connecting the cb directly to the battery and the antenna on my license plate holder. My SWR is above 3. So I added a 10 gauge grounding wire from the antenna to a bolt holding my bumbler on. Better now I am just barely above 3. I was thinking I won't get anywhere ne'er 1.5 or less, I should be able to get below 2. So I spent the next hour making small changes to the tip length without getting any reading below 3. So.... What's up with this? Where is a the best place to ground the antenna on the back of my jeep? Any help would be great.

Gumbercules563 is offline
Sponsored Links
Advertisement

post #2 of 7 Old 05-29-2013, 12:15 PM
Ross
Registered User
2001 TJ Wrangler

Join Date: Dec 2002
Posts: 12,082
Quote:
Originally Posted by Gumbercules563 View Post
Hey all,
I have searched this forum and the Internet.
Jeep info: 2013 Wrangler
I recently bought a midland cb and a Wilson 1000 antenna. After connecting the cb directly to the battery and the antenna on my license plate holder. My SWR is above 3. So I added a 10 gauge grounding wire from the antenna to a bolt holding my bumbler on. Better now I am just barely above 3. I was thinking I won't get anywhere ne'er 1.5 or less, I should be able to get below 2. So I spent the next hour making small changes to the tip length without getting any reading below 3. So.... What's up with this? Where is a the best place to ground the antenna on the back of my jeep? Any help would be great.
You need to ground to the main part of the body, bare medal, not anything that attaches to it such as fenders, doors, hoods bumpers etc. There can be payers of paint between things that mount to the body.

01 TJ, 34 Super Swaper 34x10.5 bias, Winch, locked, belly up, some armor.
Ross is offline
post #3 of 7 Old 05-29-2013, 04:12 PM
JPNinPA
Registered User
2005 LJ Wrangler

Join Date: Feb 2011
Location: Dayton
Posts: 2,330
You'll need this reference. Good tech no matter what antenna you have. http://www.firestik.com/Tech_Docs.htm
This a base loaded antenna and performs best on the top of the vehicle. With the load near the jeep body the reflected power (SWR) will be high just due to the nearby metal body.
Also isn't the 1000 a magnet mount? Where did you mount it and where did you add the ground? How was the antenna wire run?
Some in focus fairly (3-4ft away) pics of the antenna would be great.

"Never look down on anyone unless your helping them up"- Jesse Jackson
JPNinPA is offline
post #4 of 7 Old 05-29-2013, 07:08 PM
CJ7-Tim
Real Jeeps have dents

CJ7-Tim's Avatar
2000 XJ Cherokee

Join Date: Apr 2002
Location: out in the garage - Minneapolis
Posts: 24,427
Improper installation, and poor antenna selection are the root cause of your issues. Read the antennae selection and installation location info at www.Firestik.com, it applies to all brands and types of CB antennas.

.

A recent Gallup public opinion poll shows the NRA, at 58% approval, has a higher approval rating than either Hillary Clinton or Barack Obama.

Progressive Liberalism: Bringing you new Healthcare ideas so wonderful, they have to include mandatory participation ...

Originally Posted by Ronald W. Reagan: Government is not the solution to our problems; Government is the problem.
CJ7-Tim is offline
post #5 of 7 Old 06-04-2013, 02:59 PM
MJBinNM
Registered User
2006 LJ Wrangler

Join Date: Jan 2009
Location: New Mexico, USA
Posts: 604
The key is to make sure the antenna mount has a good ground to the vehicle, and the antenna is grounded properly to the mount. Or you may have a bad coax, but my money is on the antenna, mount, or both not being properly grounded.

Quote:
Originally Posted by mrblaine View Post
You must have grown up in the no winners no losers generation where everyone gets a participation trophy and a pat on the butt for just showing up with their clothes on right side out.
MJBinNM is offline
post #6 of 7 Old 06-05-2013, 03:56 PM Thread Starter
Gumbercules563
Registered User
2013 JK Wrangler

Join Date: Feb 2013
Location: El Paso
Posts: 6
Thanks everyone. Once I am back to my jeep I will double check the grounding of the antenna. I am not the greatest electrition, but I am learning, so when I test to see if it is grounding correctly I touch the mount and and the frame the lower the number on the volt meeter the better the ground? The same goes for testing the coax cable. If the ground is not good run the ground wire to another part of the frame and/or ??? This seemed like it was going to be a fairly easy first addition to the jeep. why am I feeling that i have a big learning curve ahead of me?? Thankfully I am semi retired.
Gumbercules563 is offline
post #7 of 7 Old 06-05-2013, 04:40 PM
JPNinPA
Registered User
2005 LJ Wrangler

Join Date: Feb 2011
Location: Dayton
Posts: 2,330
http://www.firestik.com/Tech_Docs/Te...Continuity.htm

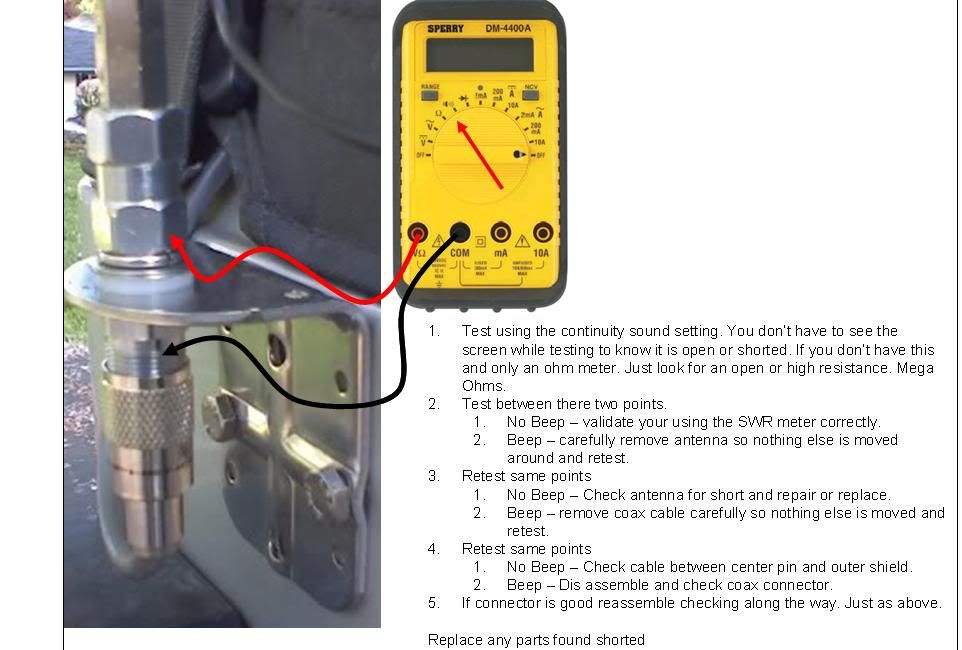

Yes set resistance or ohms and the lower the reading the better. Post a pic of the antenna to mount and wire. Take it from a few feet away and make sure it is in focus. Like this:


"Never look down on anyone unless your helping them up"- Jesse Jackson
JPNinPA is offline
