Audio System Installed - pics and video

Hey Everyone!

Well, to start this thread, I need to thank SirGCal. Without his help, my design wouldn't have turned out so well, and woulnd't have sounded so great. He taught me how to build a box and what kind of subs,amps,etc. components to consider.

And the results? Well, I'll dive right in.

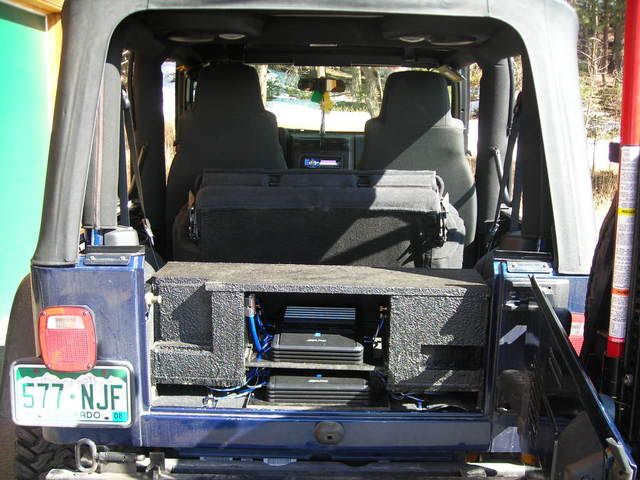

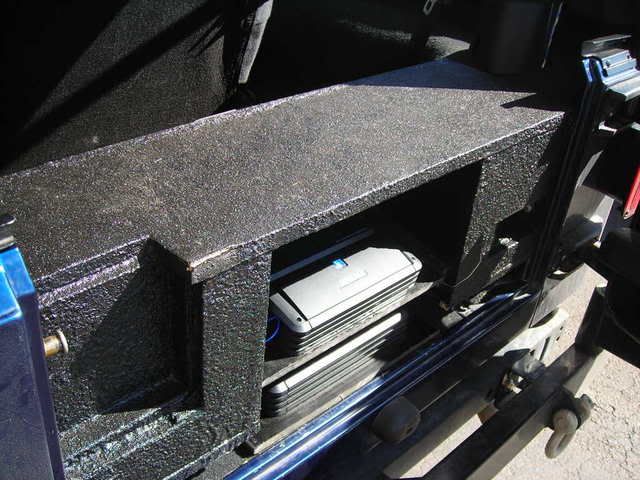

Here's my box:









Alright, so that should give you a good idea of how it works. This box has cutouts for the 3rd brakelight, door handle, and has an upper shelf for an amp, as well as a lower slide out shelf for another amp. It's missing 2 legs which I need to fix. As it sits right now, the bottom amp just sits in the tub, but is supposed to slide out. I'll get that fixed later. It's not too big of a deal right now. The box is stuffed with polyfil, liquid nailed, spray with undercoating (sub chambers), and covered in herculiner. It is air tight. No doubt about that. With the top down and the seat back, the box is invisible. The amps are out of the weather, but airflow still flows through the bottom back portion of the box.

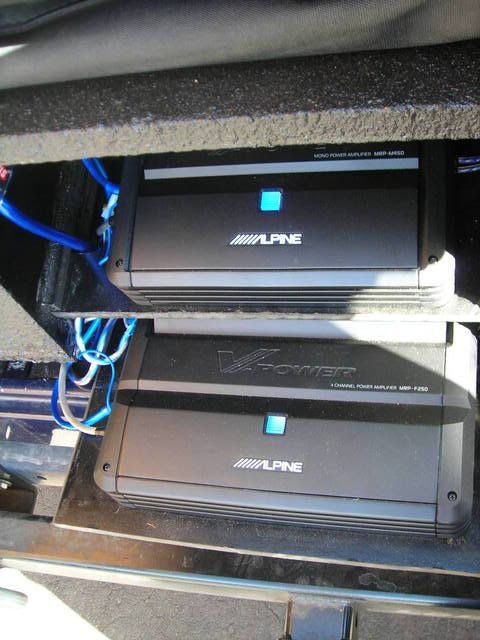

My system pushes 200 watts to each sub, via the Alpine MRP M450. The bass is very clean, rolls off nicely, and is easy to differentiate sub notes. It has a good amount of punch, and doesn't break a sweat at highway speeds. I pulled the top off and ran doorless today (very windy) and at highway speeds I can easily hear the bass, and there is still a good amount in reserve. Tailgate parties, trail rides and camping will be all the better with the great sound.

It gets loud too. Very loud. Upsetting the neighbors kind of loud.

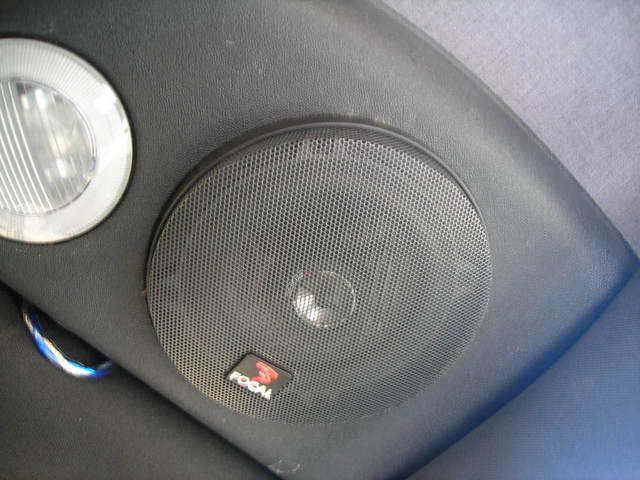

As for the speakers, I went with focal. I was wanting good midbass and these deliver past my expectations. The Focals have smooth highs, not ear piercing though. I can honestly say that half of my bass comes from these speakers. They have a little bit of bump to them too. I'm 100% satisfied with the Focal speakers. There are very few brand name speakers that could out do them. Worth every penny to me.

__________________


"The American Republic will endure, until politicians realize they can bribe the people with their own money." -- Alexis de Tocqueville

“Sometimes I wonder whether the world is being run by smart people who are putting us on or by imbeciles who really mean it” -- Mark Twain

† Christian Jeep Club †
Romans 12:5 | 1 Peter 3:15 | Matthew 9:37-38
bman9089 is offline   Reply With Quote Quick reply to this message
Unread 03-25-2008, 06:12 PM   #2
bman9089
Registered User
2005 TJ Wrangler

Join Date: Sep 2006
Location: USA
Posts: 12,791

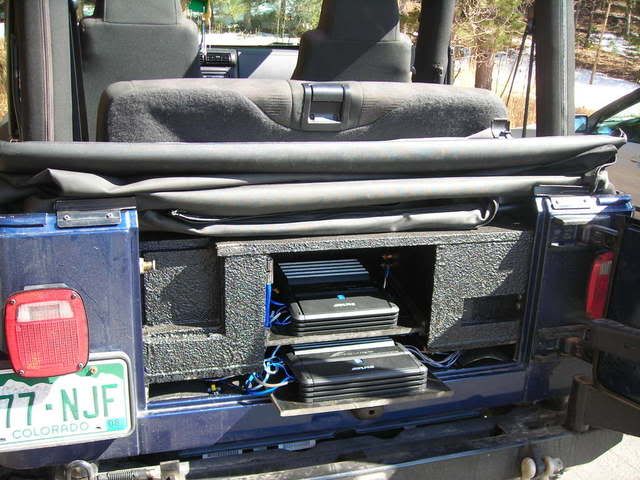

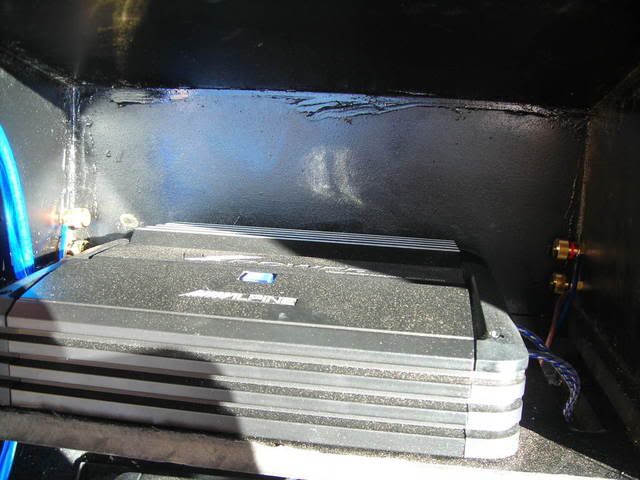

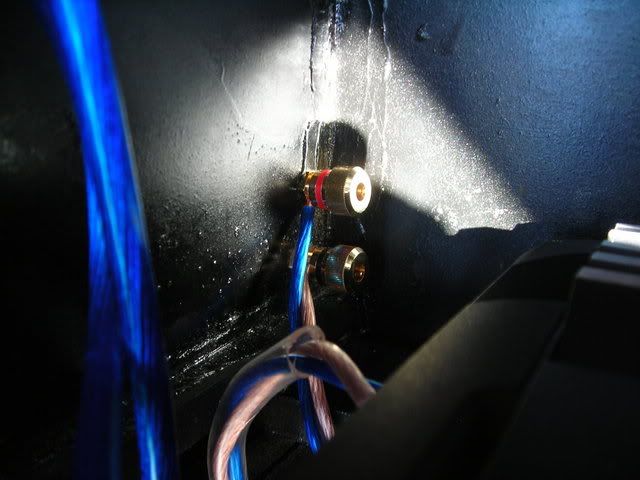

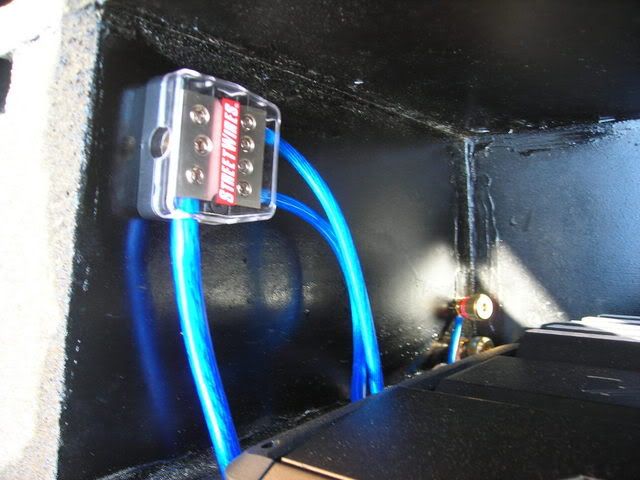

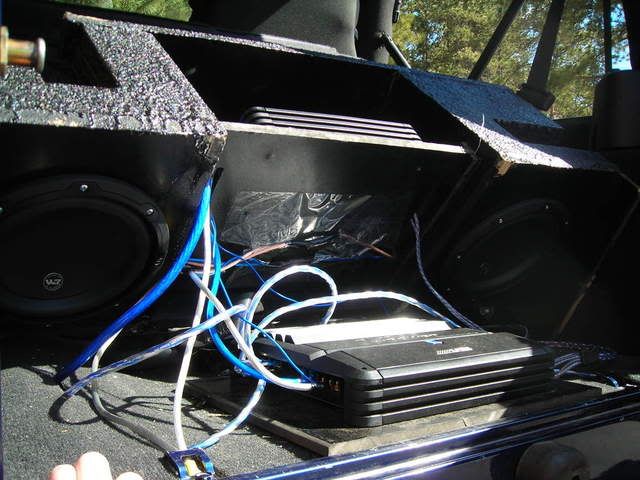

Here's some pics of the wiring, and sub terminals. The last picture is the ground wiring.





And a jungle of wires

My system sounded pretty good just adding the subs, but the stock speakers couldn't keep up, even with the alpine head unit pushing them. The Focals transformed the music. Just echoes coming off of the microphone from a singer come through. They get much louder than I will ever need, and all the details shine through even at high volumes. These speakers are being amped via the MRP F250 and see 40 watts per speaker. My system pushes ~560 watts rms.

I really had to be creative with how I was going to pull this off, but it works amazingly well. The sound is breathtaking. I run a soundboard at my church, and I'm familiar with deep, smooth bass and didn't think I could get that kind of quality in car audio, but I have.

The brains of the system is the Alpine CDA-9886. Wonderful little player. Looks very nice, has more features than most any other stereo, and is very easy to use and adjust on the fly.



My subs are the JL Audio 8w3v3 subs. They require very little box volume and are PLENTY, even at highway speeds to pump out the bass. I listen to a bit of techno and a lot of rock and some country. Very rarely I'll listen to rap. I don't need loud, pounding, window shaking bass. I have all the volume I need and my system sounds better than anything else that has ever pulled up next to me thumping on the highway.

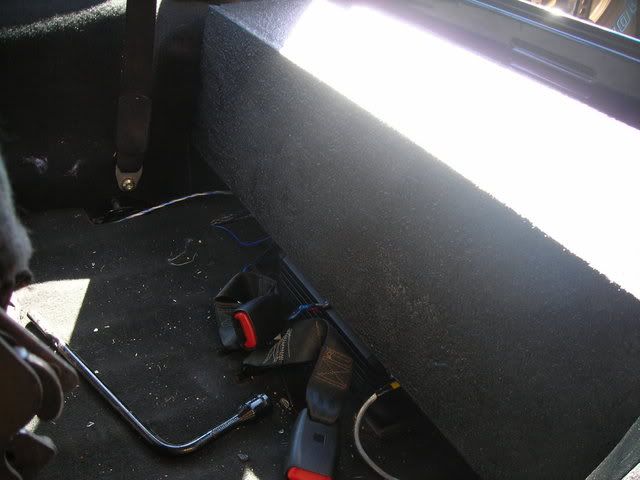

Here's one last pic of the whole system from a distance.



I can say that no part of the system dissapoints me. I have a little video of the subs/amps/box that I made too that I'll post up.

If you have specific questions, post 'em up!
