post #331 of 389 Old 10-02-2013, 10:20 AM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Havent done too much the past couple days, have had a few side jobs taking up my time. I did get a set of rear bump stops/coil retainers built. As well as started making the limit strap clevis mounts. After I get the limit strap clevis mounts, I have to make front bump stop extensions. After that the suspension is 100% done and it will be on to the hydro assist.

Last night I spent about an hour and a half and did a full clean up, crap was everywhere and I was getting tired of stepping over everthing.





TJSWJ is offline
Sponsored Links
Advertisement

post #332 of 389 Old 10-03-2013, 06:29 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Limit strap clevis mounts. Just need to make another pair for the rear.




Rear bump stop extension/coil retainer

TJSWJ is offline
post #333 of 389 Old 10-07-2013, 04:53 PM
CRJEeP_wj
Registered User
2002 WJ

Join Date: Sep 2012
Location: oroville
Posts: 699
Did you get the skid plate installed? You have any pics of it on?

02 grand cherokee, hp60 14b, 42s. Stazwork, triangulated 4-link, rear leafs, homemade bumpers and sliders. build thread http://www.jeepforum.com/forum/f197/...build-1505917/
CRJEeP_wj is offline
post #334 of 389 Old 10-07-2013, 05:23 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Skid plat is all finished, I just havent installed it yet because I still need to run a new t-case shifter cable and my front driveshaft. But If you want Ill throw it up there tomorrow and snap a few pics for ya.

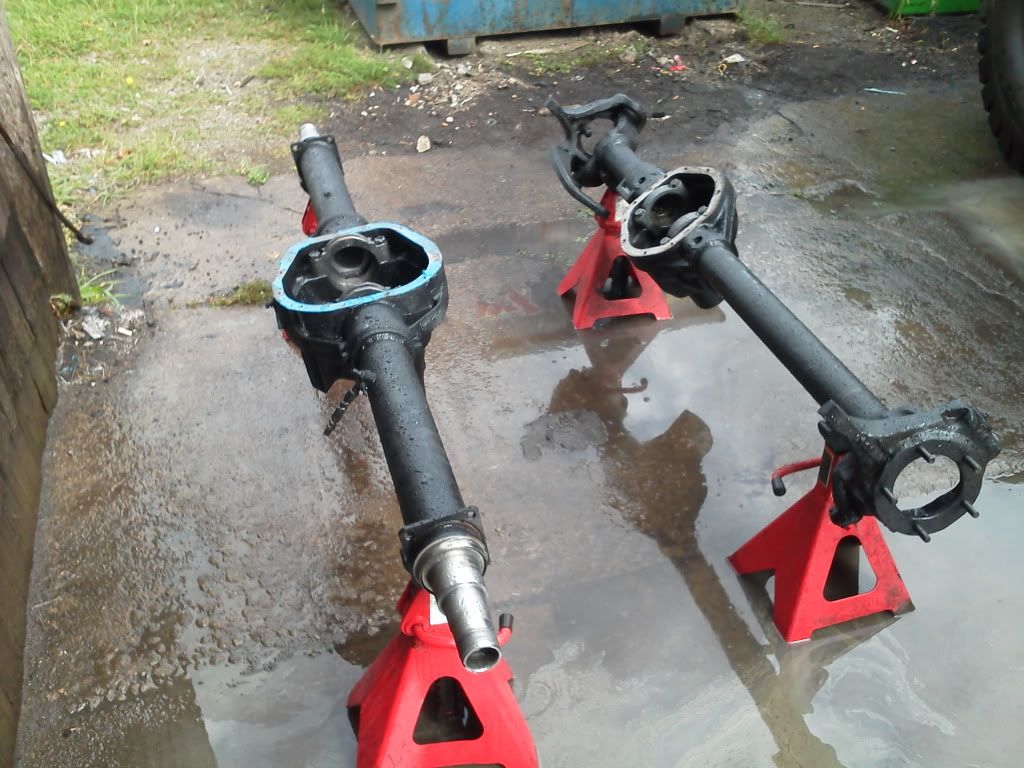

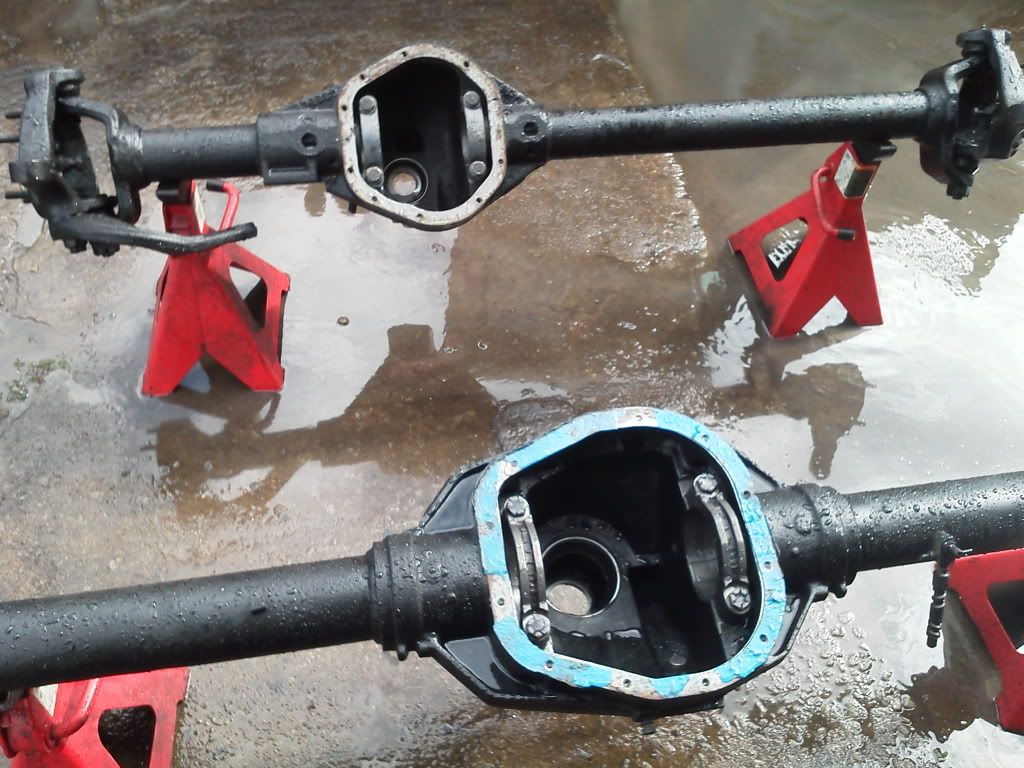

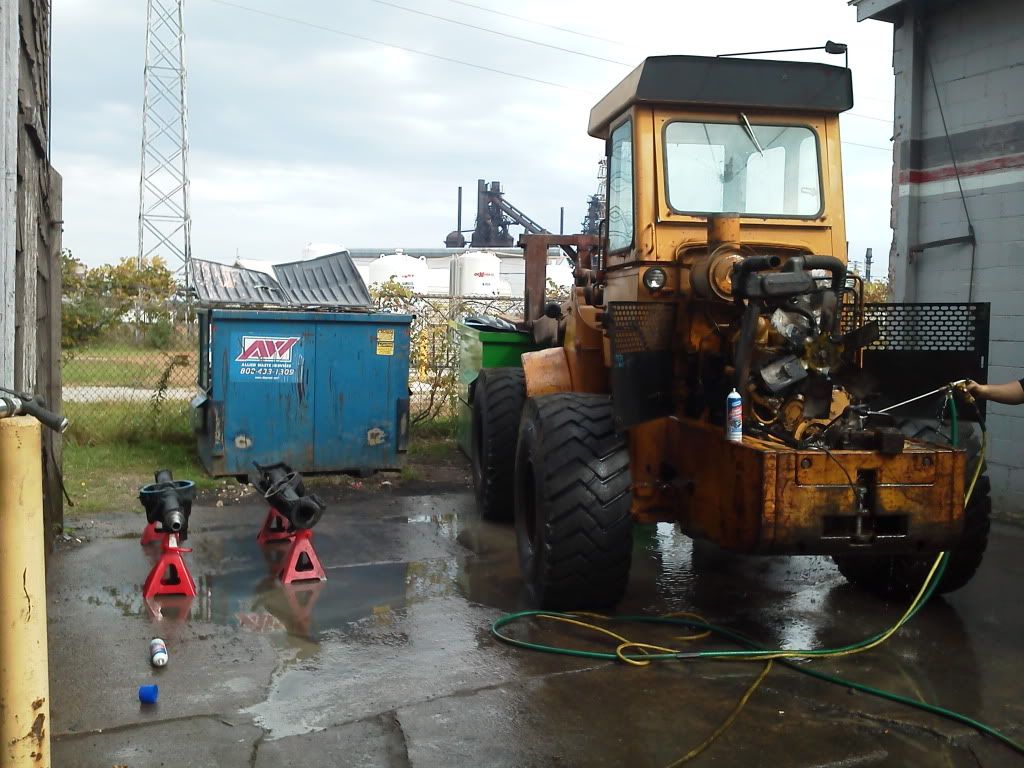

Had the pressure washer out cleaning up our loader, so I gave the diffs a good cleaning to get all the sand out from blasting.



TJSWJ is offline
post #335 of 389 Old 10-07-2013, 06:22 PM
CRJEeP_wj
Registered User
2002 WJ

Join Date: Sep 2012
Location: oroville
Posts: 699
Just anxious to see it and how your rivets and bolts all worked out. I can wait till you get to it, thanks.

02 grand cherokee, hp60 14b, 42s. Stazwork, triangulated 4-link, rear leafs, homemade bumpers and sliders. build thread http://www.jeepforum.com/forum/f197/...build-1505917/
CRJEeP_wj is offline
post #336 of 389 Old 10-07-2013, 07:59 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
The riv nuts worked beautifully! I tested one in a spare piece of 3/16th (same thickness are frame stiffeners). I torqued it to 70, then 80, 85, 86, and at 87 ft lbs the riv nut finally snapped in half. I don't plan on tightening my skid any more than 40-45 ft lbs, but it's great knowing the abuse they can take.

I'll get you some pics tomorrow afternoon on my lunch break.
TJSWJ is offline
post #337 of 389 Old 10-08-2013, 01:11 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271

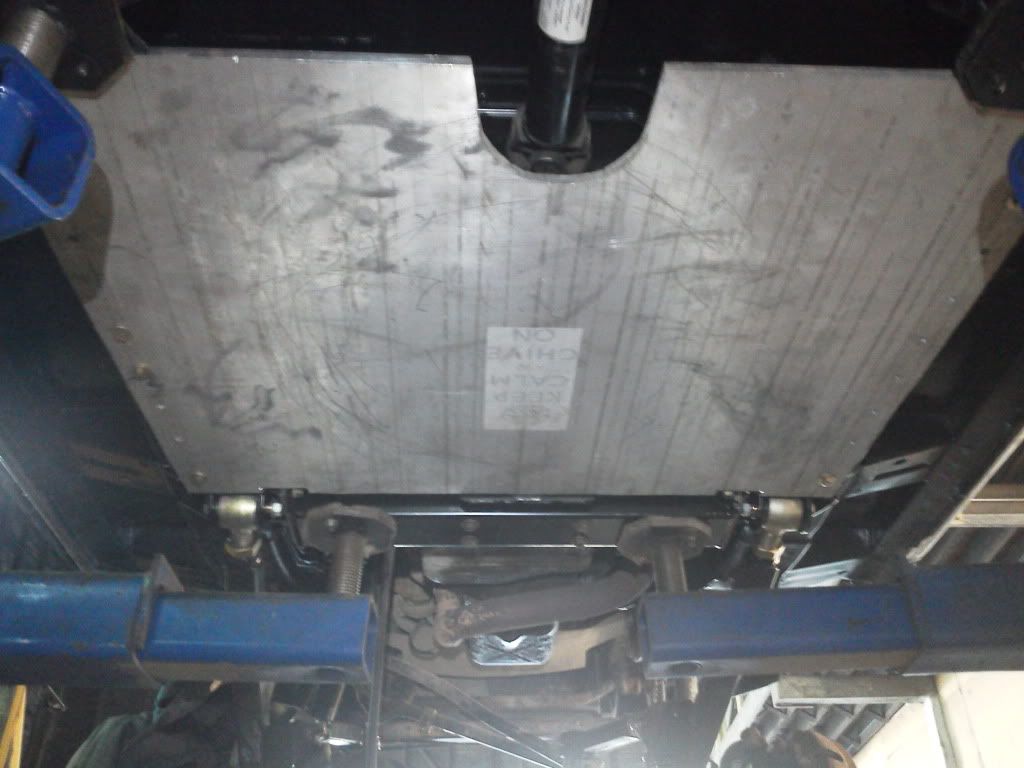

Here ya go.

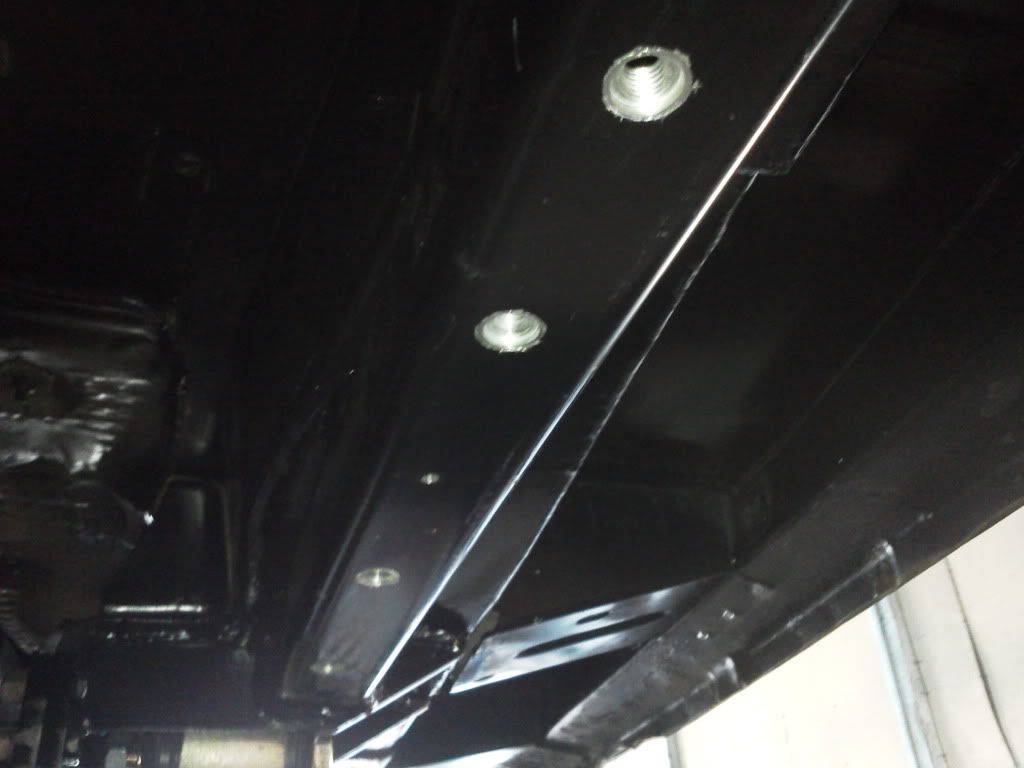

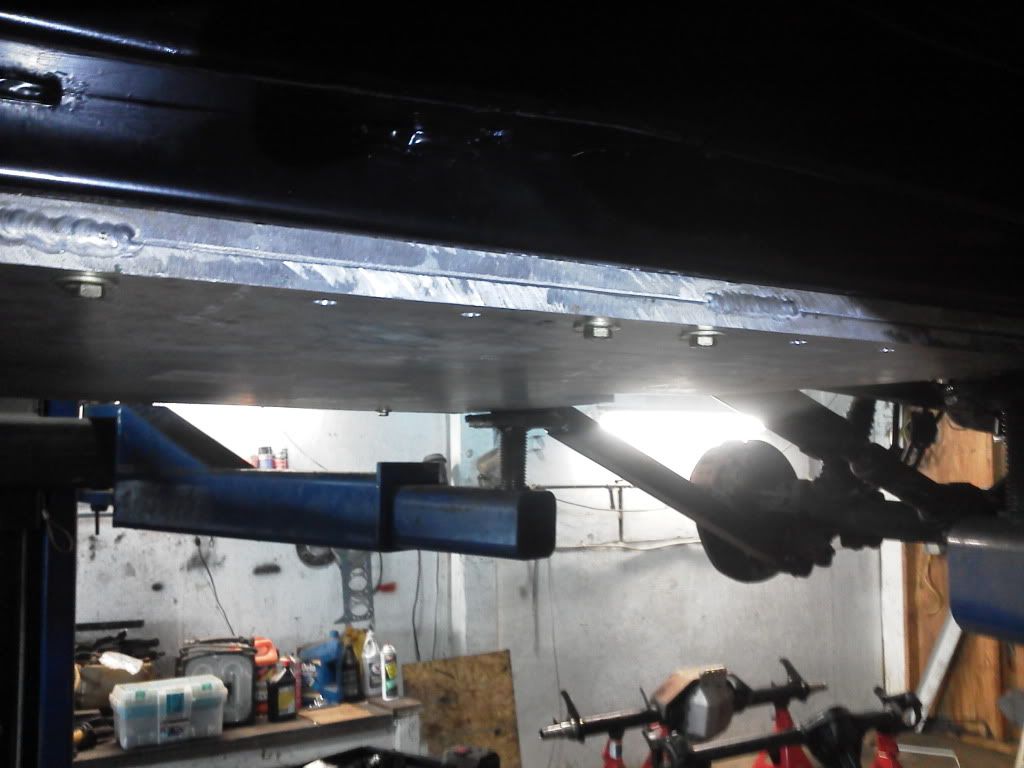

Riv Nuts

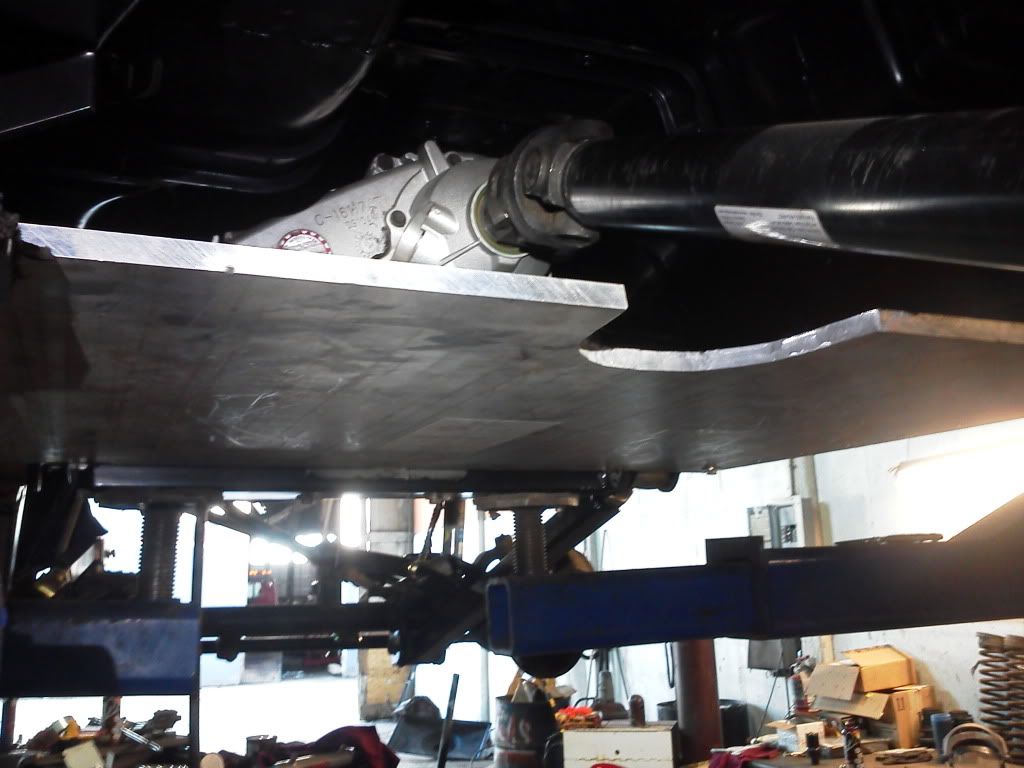

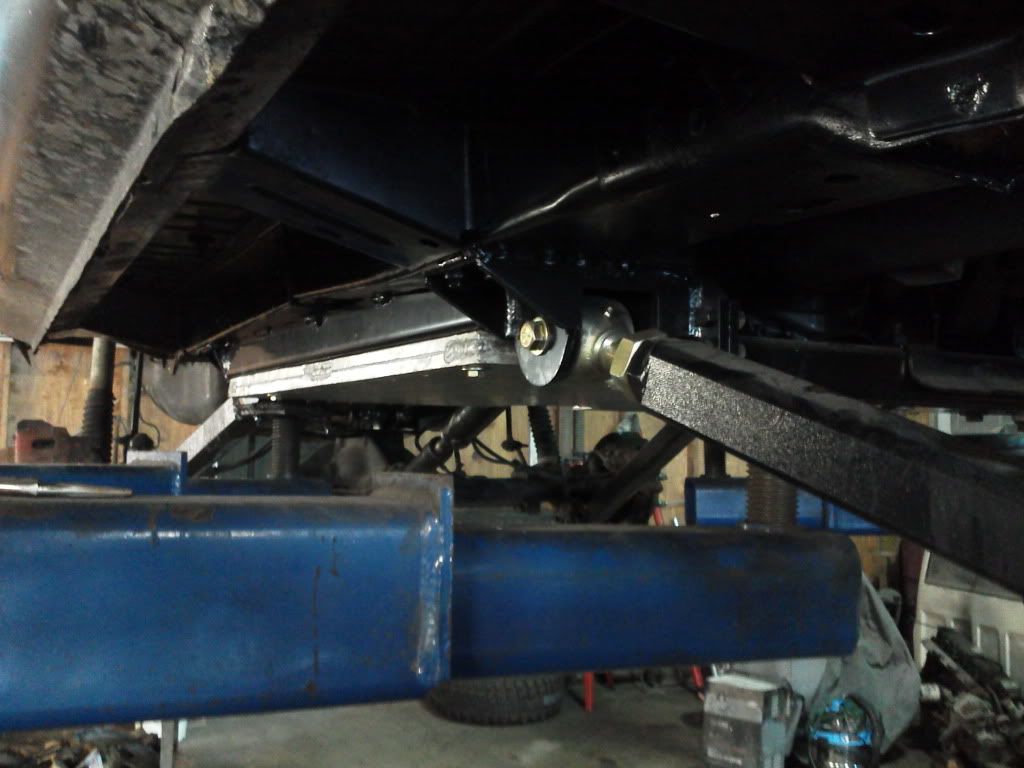

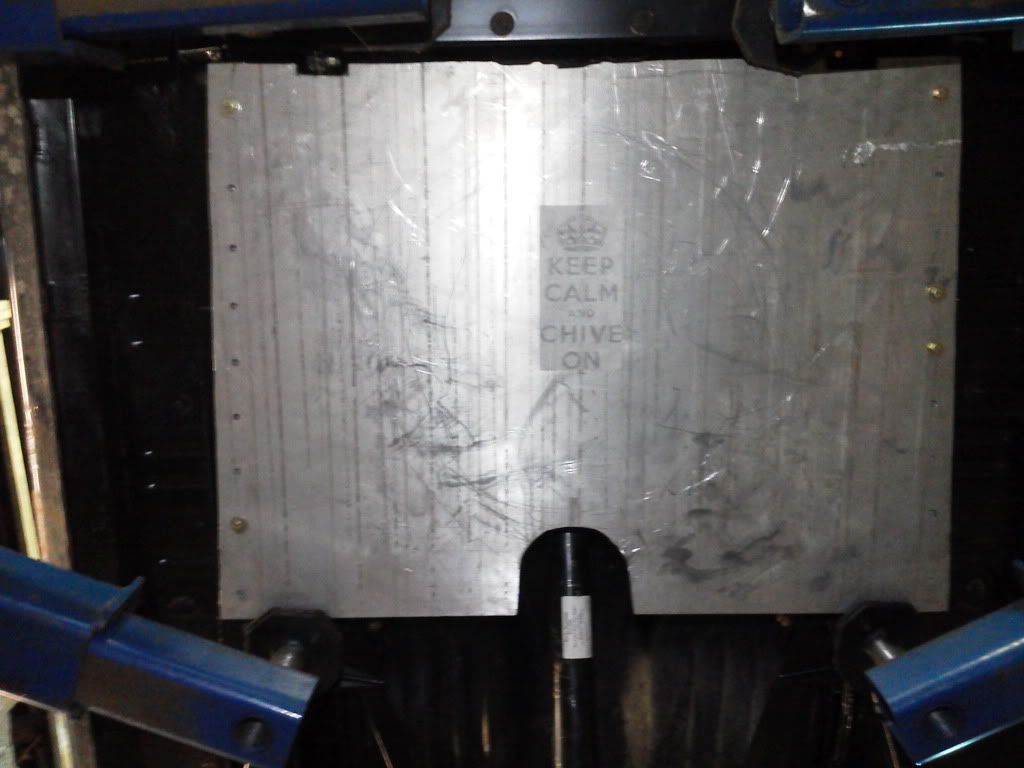

Skid






There are 9 holes drilled on each side of the skid. I decided to only drill 6 into the frame rail stiffeners. I was worried that 9 5/8 holes would weaken them

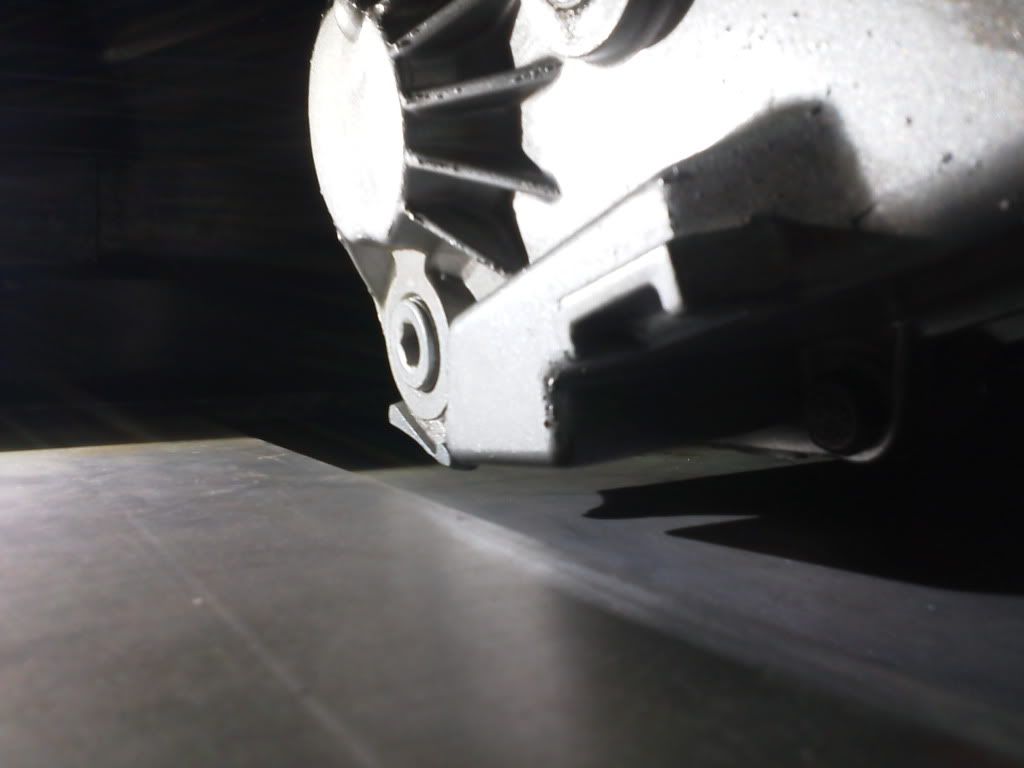

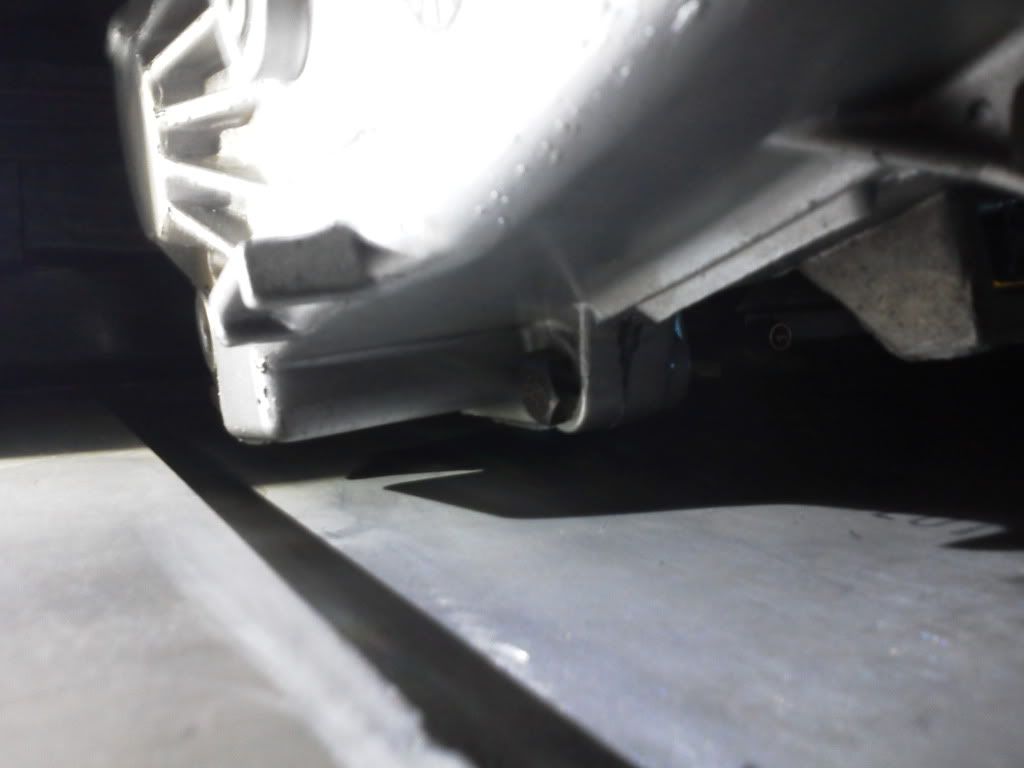

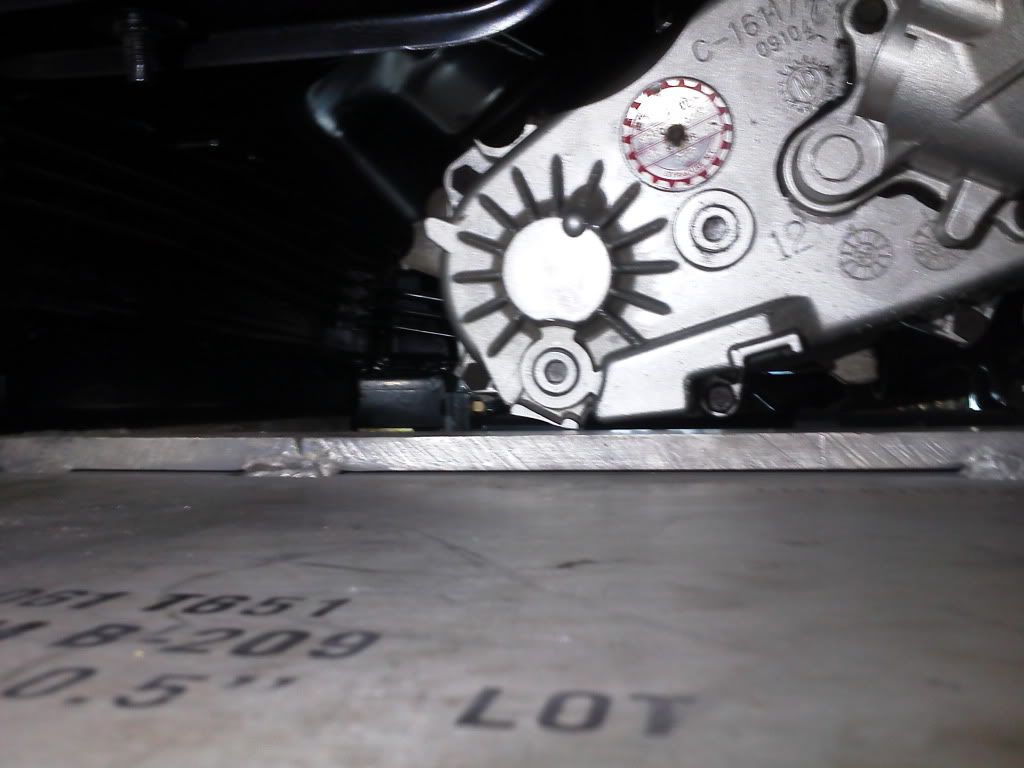

Clearence for t-case. There is 5/8" between the bottom of the skid and the case. I got the reinforcement extra close so I have no worries about the two ever meeting.




Let me know if you have any more questions
TJSWJ is offline
post #338 of 389 Old 10-08-2013, 01:17 PM
CRJEeP_wj
Registered User
2002 WJ

Join Date: Sep 2012
Location: oroville
Posts: 699
Man that looks great, you did a very solid clean job. The 231 case must be clocked higher that the 242hd cause your almost flat and still have room. Thanks for the pics!

02 grand cherokee, hp60 14b, 42s. Stazwork, triangulated 4-link, rear leafs, homemade bumpers and sliders. build thread http://www.jeepforum.com/forum/f197/...build-1505917/
CRJEeP_wj is offline
post #339 of 389 Old 10-08-2013, 01:18 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Thank you sir. Yeah, I cant tell if the 231 clocks a little higher, or if the clayton stiffeners sit down lower.
TJSWJ is offline
post #340 of 389 Old 10-09-2013, 06:13 PM
wvracer821
Web Wheeler

wvracer821's Avatar
2000 WJ

Join Date: May 2010
Location: Morgantown
Posts: 1,096
KCCO

DD: 2014 RAM 3500 Megacab Larmie 6.7L Cummins
Junk: 2000 WJ, 4.0L
Build Thread: http://www.jeepforum.com/forum/f197/...build-1436556/
http://www.pirate4x4.com/tech/
wvracer821 is offline
post #341 of 389 Old 10-09-2013, 06:54 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Quote:
Originally Posted by wvracer821 View Post
KCCO

It amazes me what a community can do when everyone gives a just a little. Melissa Smith's life was changed in a matter of hours! All because a few people believe in the power of giving.KCCO my friend.

Want to know who I'm talking about? Want to help change someone's life? Click here http://thechive.com/2013/10/09/we-su...ory-28-photos/
TJSWJ is offline
post #342 of 389 Old 10-13-2013, 10:47 PM
CountryRebel60
Registered User
2008 WK

Join Date: May 2013
Location: Lawley
Posts: 16
I see my baby is keepin your baby company while both are being worked on.
CountryRebel60 is offline
post #343 of 389 Old 10-14-2013, 03:28 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Quote:
Originally Posted by CountryRebel60 View Post
I see my baby is keepin your baby company while both are being worked on.
Sure is, but yours is making mine jealous. Getting all the love.
TJSWJ is offline
post #344 of 389 Old 10-21-2013, 09:04 AM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Between work and side work, I havent had time to do much to the wj. Got a ride coming up on black friday that I really really want to make, so im shooting for that. Good news is the side work should be slowing down a little, so I should have plenty of time.

I did have to call in some reinforcements though to help me finish the job on a TJ i was working on. My 2 year olds' first time getting dirty in the shop and helping dad. Proud moment for me.





Also ordered a set of 76-78 eldorado calipers for the sterling disc brake conversion. I figured id order them now while they were still available to me locally. I also have all the e-brake parts for them coming from blackbirds customs.
TJSWJ is offline
post #345 of 389 Old 10-24-2013, 01:09 PM Thread Starter
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271

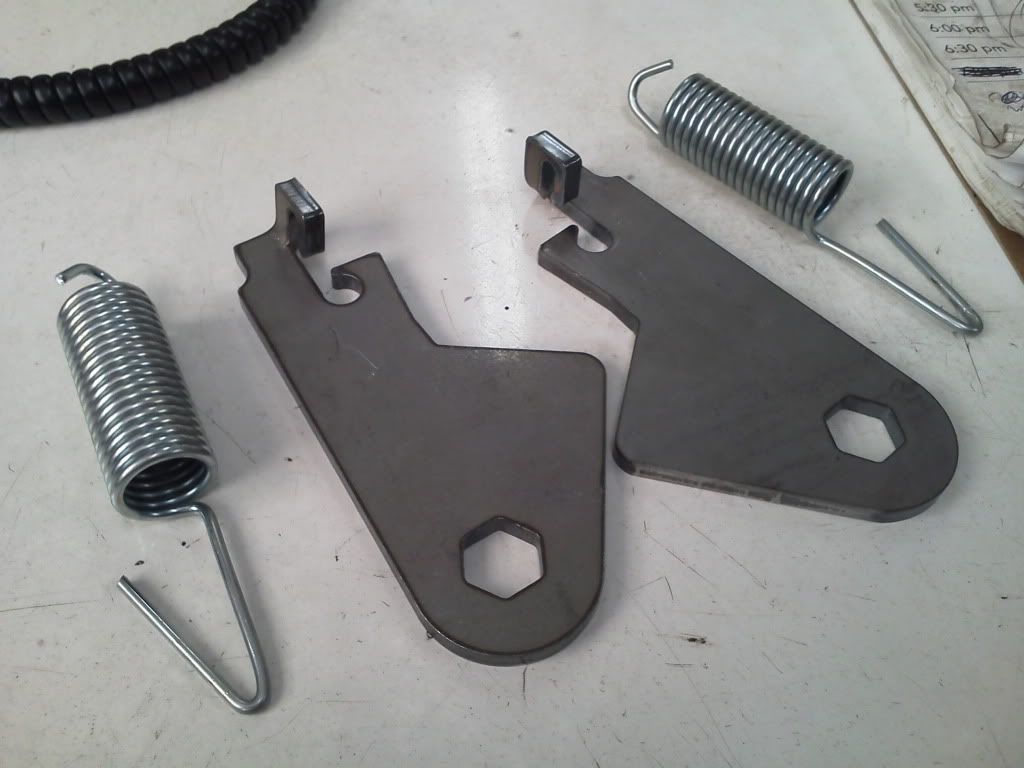

Got the e-brake springs and levers from blackbird. Ill just have to fab the cable mounts, but those are easy.

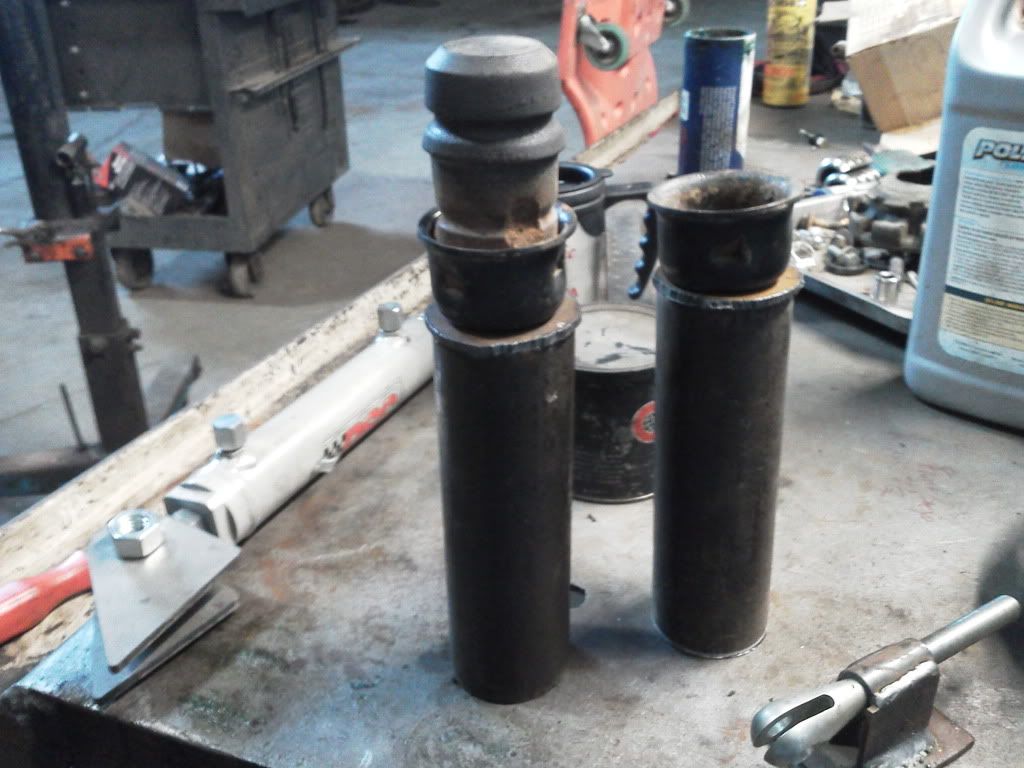

Also made some progress on my lunch break today. Got the tubes cut, and the caps cut and drilled for my front bumpstop/coil retainers. Gonna weld them up tonight hopefully. After that, just have to torque everything, run the t-case cable, get limit straps, and go wheel!
