post #241 of 540 Old 09-16-2012, 08:05 PM Thread Starter
CTeunuch
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: Sudbury, MA
Posts: 1,314
Picked up the axle and a bunch of parts yesterday. It's a '77 F150 housing, 2 3/4", 3/8" wall tubes already narrowed to Waggy width. It came with a full set of shafts plus some spare stubs, and the other guy I bought the knuckles/hubs from threw in another set of full width shafts. Looks like I'll have plenty of spares to break. Today I whipped up some spring pads after work, they aren't done yet, I'm planning to add a piece of 4" tube to center the spring, as well as a bolt in hold down strap. Hopefully I can get them finished tomorrow night, then get the axle slung under Thursday to start setting up the other brackets.

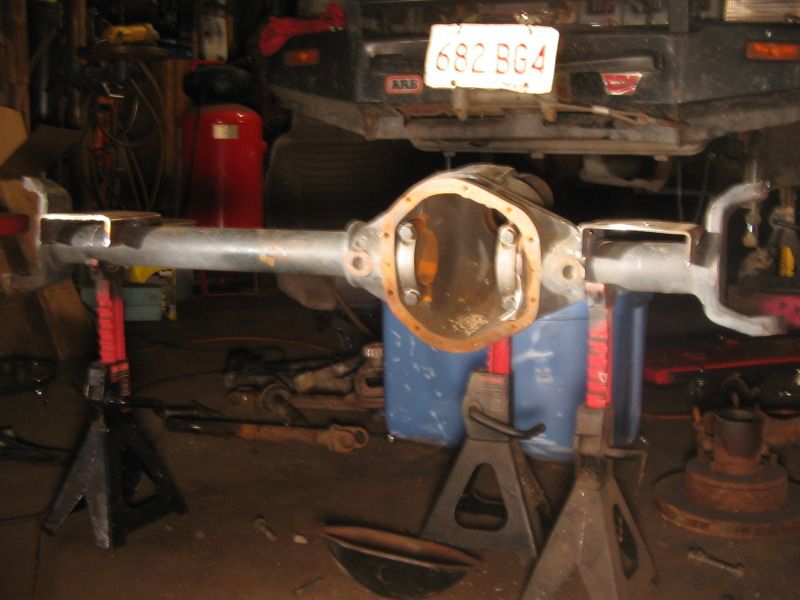

Here they are just placed on, the D/S needs a little more grinding to sit flat.


And some of the parts I picked up. Everything needs a good cleaning and some paint before it goes on.



Think Twice Garage
"Yeah, that might work, pass me the grinder..."
94ZJ AX15/HP44/8.8/5.13's/35'' MTZ's SOLD
99XJ 4.0/AW4/HP30/8.25 build coming soon...

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CTeunuch is offline
Sponsored Links
Advertisement

post #242 of 540 Old 09-17-2012, 07:56 PM
squashman702
Registered User
1994 ZJ

Join Date: Aug 2007
Location: Allston
Posts: 4,419
Shoulda gone D60. *****.

Think Twice Garage
"I guess I'd just run it?"
squashman702 is offline
post #243 of 540 Old 09-17-2012, 08:07 PM Thread Starter
CTeunuch
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: Sudbury, MA
Posts: 1,314
Quote:
Originally Posted by squashman702 View Post
Shoulda gone D60. *****.
Shouldn't you be tracking down tires instead of talking ****?

Think Twice Garage
"Yeah, that might work, pass me the grinder..."
94ZJ AX15/HP44/8.8/5.13's/35'' MTZ's SOLD
99XJ 4.0/AW4/HP30/8.25 build coming soon...

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CTeunuch is offline
post #244 of 540 Old 09-17-2012, 08:14 PM
squashman702
Registered User
1994 ZJ

Join Date: Aug 2007
Location: Allston
Posts: 4,419
Quote:
Originally Posted by CTeunuch View Post
Shouldn't you be tracking down tires instead of talking ****?
Been all over Clist.

I was thinking it would probably be a good plan to check all your dimensions on this before you welded mounts on at all. Would suck to see someone was 1/4" off somewhere when they narrowed the axle.

Think Twice Garage
"I guess I'd just run it?"
squashman702 is offline
post #245 of 540 Old 09-17-2012, 08:21 PM Thread Starter
CTeunuch
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: Sudbury, MA
Posts: 1,314
Quote:
Originally Posted by squashman702 View Post
Been all over Clist.

I was thinking it would probably be a good plan to check all your dimensions on this before you welded mounts on at all. Would suck to see someone was 1/4" off somewhere when they narrowed the axle.
Definitely planning on it. Everything will be tacked and then assembled for a test fit before anything gets fully burned home. So far the housing seems to have been done right, but like you said it would suck to find out too late.

And wheres my Crawl magazine from Saturday??

Think Twice Garage
"Yeah, that might work, pass me the grinder..."
94ZJ AX15/HP44/8.8/5.13's/35'' MTZ's SOLD
99XJ 4.0/AW4/HP30/8.25 build coming soon...

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CTeunuch is offline
post #246 of 540 Old 09-30-2012, 05:33 PM Thread Starter
CTeunuch
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: Sudbury, MA
Posts: 1,314
Just ordered ~$800 worth of goodies from ECGS and Randy's, should all be here by the beginning of next week. I'm hoping to get a few nights in this week, then some time next weekend. I'll have 2 weeks off at the end of the month before I start my new job, so I'm hoping to get the Jeep finished then. I'd really like to get a shakedown run in before snow flies...

Think Twice Garage
"Yeah, that might work, pass me the grinder..."
94ZJ AX15/HP44/8.8/5.13's/35'' MTZ's SOLD
99XJ 4.0/AW4/HP30/8.25 build coming soon...

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CTeunuch is offline
post #247 of 540 Old 10-02-2012, 06:09 PM
Xjoutsider
Registered User
1996 XJ Cherokee

Join Date: Jul 2008
Location: Landenberg PA
Posts: 154
For inspiration 79 d44 from f 250 narrowed to j truck width 65" wms to wms

Love the build !
Attached Thumbnails
image-2282122233.jpg   image-2715519604.jpg
Xjoutsider is offline
post #248 of 540 Old 10-02-2012, 08:05 PM Thread Starter
CTeunuch
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: Sudbury, MA
Posts: 1,314
Quote:
Originally Posted by Xjoutsider View Post
For inspiration 79 d44 from f 250 narrowed to j truck width 65" wms to wms

Love the build !
Holy giant truss! What is that, 1/4" plate? I'm debating doing a truss or not, I probably should so I don't regret it later. Thanks for the compliment, it's all off the cuff so we'll see how it turns out in the end.

Think Twice Garage
"Yeah, that might work, pass me the grinder..."
94ZJ AX15/HP44/8.8/5.13's/35'' MTZ's SOLD
99XJ 4.0/AW4/HP30/8.25 build coming soon...

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CTeunuch is offline
post #249 of 540 Old 10-02-2012, 08:36 PM
Xjoutsider
Registered User
1996 XJ Cherokee

Join Date: Jul 2008
Location: Landenberg PA
Posts: 154
Mix of 1/4 and 3/16 , and the upper mounts are cut from 1/2 inch with the weld in Johnny joints might be overkill but I had the access to my buddy's cnc plasma table. looking forward to seeing the progress
Xjoutsider is offline
post #250 of 540 Old 10-04-2012, 05:57 PM Thread Starter
CTeunuch
Registered User
1999 XJ Cherokee

Join Date: Feb 2009
Location: Sudbury, MA
Posts: 1,314
Pics of parts because I've been too busy to do any real work. I did get the driver's side LCA mount tacked on, and started prepping the passenger side framerail for the plating/mounts. Looks like packaging is going to be a *****, but I expected that. I have Monday off so I'm hoping to get the plating done and get the steering/trackbar ironed out.

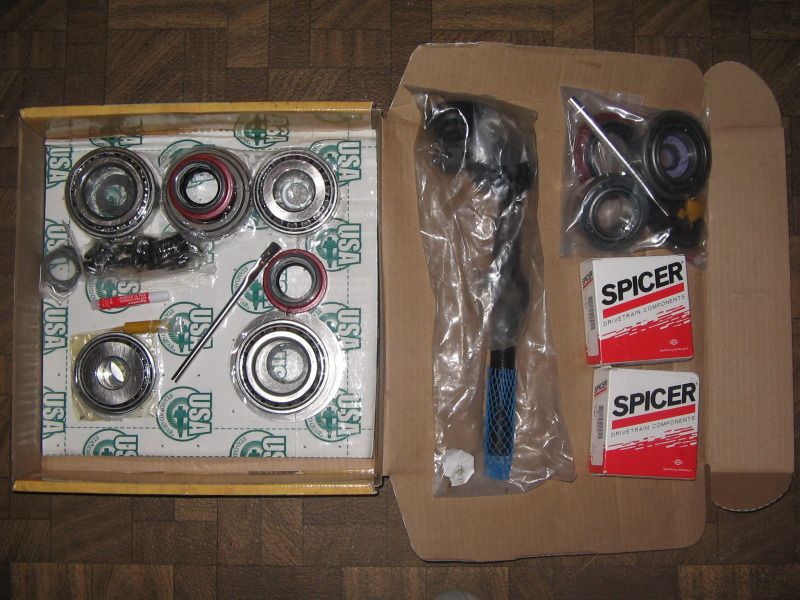

760's with full circle clips, pre-reamed TRE because I'm lazy, setup kit for the D44, pinion install kit for the 8.8 and a lubelocker for the D44.

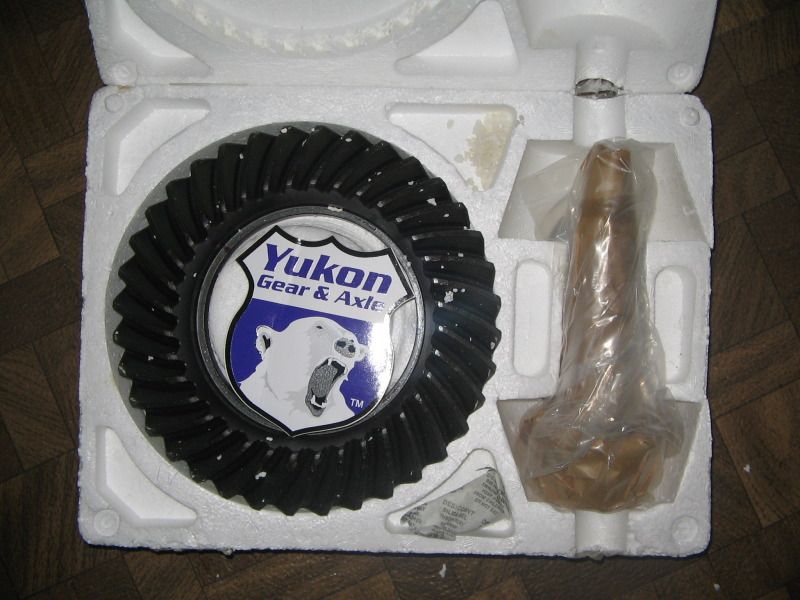

Yukons for the 8.8
