post #601 of 723 Old 06-09-2013, 06:56 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
Connected the white/orange wire to the green/blue wire, still no speedo.

I'm lost now. What else to do.


99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
Sponsored Links
Advertisement

post #602 of 723 Old 06-09-2013, 07:13 PM
W2001J
Registered User
1993 ZJ

Join Date: Jul 2008
Location: Grass Valley
Posts: 293
Don't need a speedo!

93 ZJ Under Construction

Build Thread
W2001J is offline
post #603 of 723 Old 06-09-2013, 07:54 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
Quote:
Originally Posted by W2001J View Post
Don't need a speedo!
Yes I do.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #604 of 723 Old 06-09-2013, 08:16 PM
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Are you sure your using the correct wss wires. Before you said your wires were black and brown (brown being the signal from the sensor. In that case you should be connecting a brown wire to the Orange/white (pin 3 @ abs connector) wire.

What color wire is white/Orange wire (at the sensor) connected to?

Just for ****s and giggles take a jumper wire and connect it from the sensor signal output wire to pin 3 at the abs. So you will be using the jeep to give the sensor 12v and ground, but you will be using your own wire to transfer the signal to the instrument panel.

Edit: this is a known good sensor right? No chance that it's bad?
TJSWJ is offline
post #605 of 723 Old 06-09-2013, 08:48 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
Quote:
Originally Posted by TJSWJ View Post
Are you sure your using the correct wss wires. Before you said your wires were black and brown (brown being the signal from the sensor. In that case you should be connecting a brown wire to the Orange/white (pin 3 @ abs connector) wire.

What color wire is white/Orange wire (at the sensor) connected to?

Just for ****s and giggles take a jumper wire and connect it from the sensor signal output wire to pin 3 at the abs. So you will be using the jeep to give the sensor 12v and ground, but you will be using your own wire to transfer the signal to the instrument panel.

Edit: this is a known good sensor right? No chance that it's bad?
Its a weird situation. At the sensor, the white/orange connects to the brown wire. The orange goes to black. I measured 12v with the key on to the black wire. So that's obviously power. And brown is signal, that's why its connected to the white/orange at the sensor. And black is ground. The ground is good. I tested voltage after connecting the power and ground through the 3 wire connector.

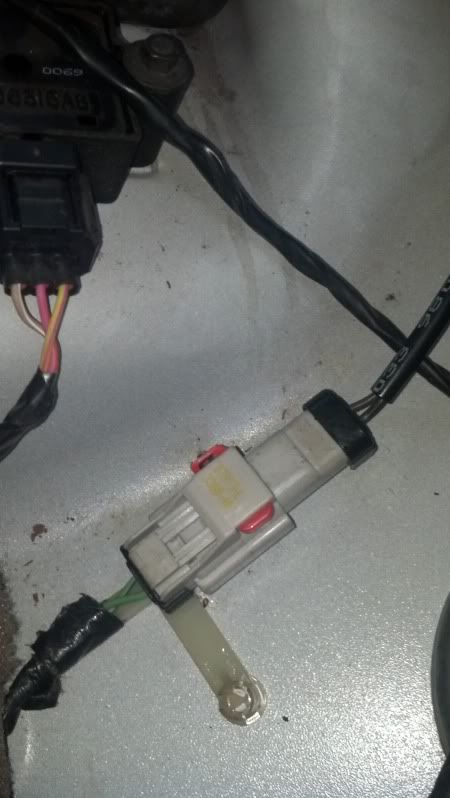

This is where the abs 2 wire connector is under the rear seat drivers side



Brown goes to green/blue.
Black goes to green.

So at the abs module harness I connected the green/blue to the white/orange wire. That is what I'm told is the vehicle speed wire that goes to the pcm. I've been told by a few people that looked at the FSM, they said that's the wire.

Ground is good.
Power is good.

Sensor is brand new. It must not be getting signal. I can try clocking the sensor a different way.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #606 of 723 Old 06-09-2013, 08:51 PM
dillonjm
Registered User
2013 WK

Join Date: Jun 2003
Location: Wichita Falls, TX
Posts: 4,203
Instead of driving it each time, try turning the sensor with a drill with the key on to test. This should help rule out installation into the case errors.

If that all checks out, it appears you at least have the wires up to the ABS module correct.

If you cant get a signal the way i mentioned, you can also back track with a multimeter to test the sender itself. Spinning the sensor with the meter checking voltage on the sender wire should indicate if your sensor is actually outputting a signal.

If I get time, I'll run my wiring tomorrow and see what I get.

13 GC Overland - (Wife's DD) 5.7, stock
Past Jeeps: 99TJ, 78CJ7, 91YJ, 01WJ, 03TJ, 05KJ
dillonjm is offline
post #607 of 723 Old 06-09-2013, 09:13 PM
CRJEeP_wj
Registered User
2002 WJ

Join Date: Sep 2012
Location: oroville
Posts: 699
Have you looked at wagoners.com/WJ/tech/WIRING/wj-wiring.pdf ? That's how I figured out how to wire my speed sensor to my dd box. Was your jeep originally picking up a signal from the tone rings on your axles? If so, are they sending the same type signal?

02 grand cherokee, hp60 14b, 42s. Stazwork, triangulated 4-link, rear leafs, homemade bumpers and sliders. build thread http://www.jeepforum.com/forum/f197/...build-1505917/
CRJEeP_wj is offline
post #608 of 723 Old 06-09-2013, 09:22 PM
dillonjm
Registered User
2013 WK

Join Date: Jun 2003
Location: Wichita Falls, TX
Posts: 4,203
Quote:
Originally Posted by wjCREEPjeep View Post
Have you looked at wagoners.com/WJ/tech/WIRING/wj-wiring.pdf ? That's how I figured out how to wire my speed sensor to my dd box. Was your jeep originally picking up a signal from the tone rings on your axles? If so, are they sending the same type signal?
I pulled the relevant diagrams from that PDF:





Crappy uploads, sorry.

It looks like pin3-pin6 on the abs control. Colors are irrelevant, but I'd cut pin 3 and 6's wires from the controller and tie them together. But I think you said you were already tying 3-6 together.

Pin 5 should be the 12v supply to the sensor, 6 should be the return. Pin 3 is the wire to the PCM, at least according to these diagrams.

13 GC Overland - (Wife's DD) 5.7, stock
Past Jeeps: 99TJ, 78CJ7, 91YJ, 01WJ, 03TJ, 05KJ
dillonjm is offline
post #609 of 723 Old 06-09-2013, 09:26 PM
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Ah, forgot about the color change under the seat. I agree with dillonjm, hook up a meter and see if your getting an output. Wouldn't be the first time I've seen a brand new sensor be bad. I also agree with using a drill, that way you can verify the sensor is in deed turning and you don't have some weird mechanical issue with the sensor.
TJSWJ is offline
post #610 of 723 Old 06-09-2013, 09:28 PM
CRJEeP_wj
Registered User
2002 WJ

Join Date: Sep 2012
Location: oroville
Posts: 699
I could be wrong but i think i would look for the right rear wheel speed sensor wire where it ties into the c.a.b. and eliminate it and replace with the new signal. If the signal is a different type then you may need a signal converter of some sort.

02 grand cherokee, hp60 14b, 42s. Stazwork, triangulated 4-link, rear leafs, homemade bumpers and sliders. build thread http://www.jeepforum.com/forum/f197/...build-1505917/
CRJEeP_wj is offline
post #611 of 723 Old 06-10-2013, 08:37 AM
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
What vehicle is the case and speed sensor out of? That way I can look up the wirring diagrams for that vehicle and make sure you are using the right pins at the sensor.

Looking at a 97 TJ

Pin# 1 would be the signal output (connects to brown wss wire)
Pin# 2 sensor ground (Chassis ground)
Pin# 3 5V supply (in your case 12v)

If your looking at the sensor, pin# 1 is on the left.
TJSWJ is offline
post #612 of 723 Old 06-10-2013, 08:55 AM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
I think the sensor was for an 01 tj, which should be the same as a 97.

I remember pin 2 was ground (black). I don't have any pictures, but I know solid orange went to power and white/orange was signal.

Following that diagram, its the same as all the others I've seen, the left rear wire colors are different, but they are wired in the right way.

I'll just have to drive it to work tomorrow and try the drill method. And I'll tale tons of pictures to show my exact set up.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #613 of 723 Old 06-10-2013, 10:45 AM
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
On a 01 Tj:

Pin# 1 5v supply (or 12v in your case) should be violet/orange
Pin# 2- Sensor Ground, Black/Light Blue
Pin# 3- signal output (connects to brown wss wire) white/orange
TJSWJ is offline
post #614 of 723 Old 06-10-2013, 02:27 PM
wj4play
Registered User
1999 WJ

Join Date: Apr 2010
Location: Des Moines
Posts: 1,284
here is that post for a 99 wj that swapped TC like you only used a ZJ 242

http://www.jeepforum.com/forum/f197/...99/index9.html

================================================== ====
I got the new 242 swapped in and got it wired up. It is reeding about 10% fast right now but it sould be right on with 36s and 5.13s.

For anyone that is curious, the wiring is quite simple. The speed sensor on the 242 is 3 wires:
1) Orange- 5v (I used a 5v source from the power seats)
2) White\Orange- speed signal to PCM
3) Dark blue- signal ground (I just grounded to the e-brake bracket under the rear seat)

I reused the wiring from the rear driverside wheel sensor to get the speed signal to the CAB. Then I spliced it to the white/orange wire coming out of the CAB. The ABS light is on but the brakes dont feel any different so I think it will be okay. PM me if you need any more info on that.

..........

99 Grand, 37" and mostly factory - Raised tank and trimmed fenders etc
wj4play is offline
post #615 of 723 Old 06-10-2013, 03:15 PM
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls
Posts: 2,271
Quote:
Originally Posted by TJSWJ View Post
What vehicle is the case and speed sensor out of? That way I can look up the wirring diagrams for that vehicle and make sure you are using the right pins at the sensor.

Looking at a 97 TJ

Pin# 1 would be the signal output (connects to brown wss wire)
Pin# 2 sensor ground (Chassis ground)
Pin# 3 5V supply (in your case 12v)

If your looking at the sensor, pin# 1 is on the left.
Quote:
Originally Posted by TJSWJ View Post
On a 01 Tj:

Pin# 1 5v supply (or 12v in your case) should be violet/orange
Pin# 2- Sensor Ground, Black/Light Blue
Pin# 3- signal output (connects to brown wss wire) white/orange

Looks like its different than the 97 TJ. That could be your problem right there, you need to know for sure what year sensor your using. 97 TJ uses pin#1 for signal output, 01 TJ uses pin#3
TJSWJ is offline
