I see now. I thought that big protrusion where the coil sits was going to get cut out in order to fit the coilovers.


Daniel
1 Ton WJ Build In Progress

The Daily: 2011 Chevy Cruze Eco - Trifecta tuned and 37+ MPG

Wife's Jeep: 2006 WK Overland - OME HD Lift, 265/70/17 BFG AT's, 1.25" SpiderTrax wheel spacers, 3" Gibson Cat-Back

North Alabama Jeep
42RE Vent Mod - Seal your transmission!
YouTube. - My Video Channel
Facebook - Wheeling Pictures/Videos
The Jeep Wave. Bringing it back.
Bama_WJ is offline
Sponsored Links
Advertisement

post #467 of 723 Old 05-02-2013, 05:41 AM
dillonjm
Registered User
2013 WK

Join Date: Jun 2003
Location: Wichita Falls, TX
Posts: 4,203
Any reason why you didn't run the coil over mounting bracket to the axle tube instead of your link bracket? Or is this just s partial bracket mockup?

13 GC Overland - (Wife's DD) 5.7, stock
Past Jeeps: 99TJ, 78CJ7, 91YJ, 01WJ, 03TJ, 05KJ
dillonjm is offline
post #468 of 723 Old 05-02-2013, 11:53 AM
AgitatedPancake
Registered User
2001 WJ

Join Date: Nov 2004
Location: Sac, California
Posts: 3,959
Dan I'm not personally a fan of putting the lower control arm mount on top of the axle tubes like most people do. It makes you have to stuff more of the coilover into the engine bay than I feel is ever really necessary. This location actually worked out great, I didn't even have to remove the AC drier like I expected. On the drivers side, the mount squeezes just BARELY into the pocket between the abs pump, master cylinder and brake booster.

Dillon, it will also be attatched to the axle tube, but this is the best orientation for packaging the mount down there, and still being able to get the control arm bolt out without the mount being in the way haha.

To contact me, email Greg@Frobotfab.com
Frobot Fabrication Facebook
01 WJ 5 Speed Claytons LA's, 36" Iroks, 35 spline 9" rear, Custom Ruffstuff 60-9" front axle.
Build Thread: http://www.mallcrawlin.com/forum//showthread.php?t=7387
AgitatedPancake's Youtube Channel
AgitatedPancake is offline
post #469 of 723 Old 05-02-2013, 02:32 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541

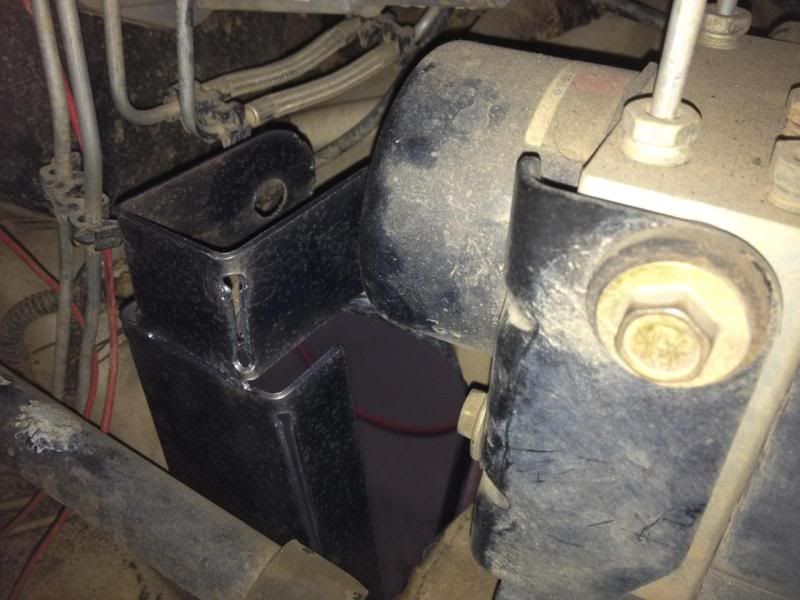

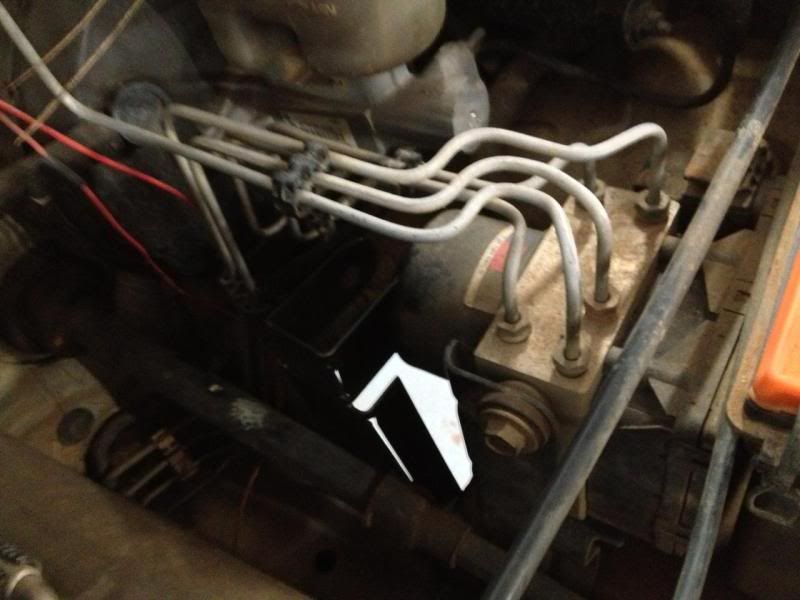

Pictures of the clearance.

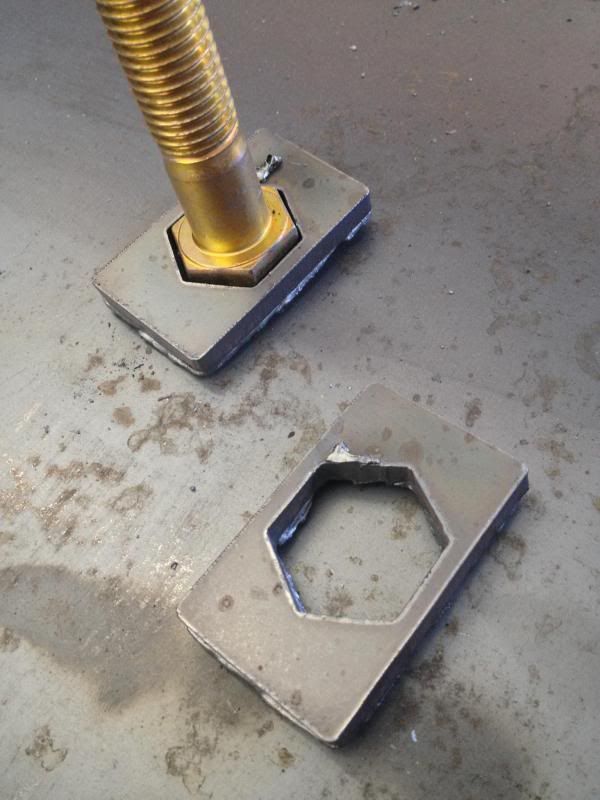

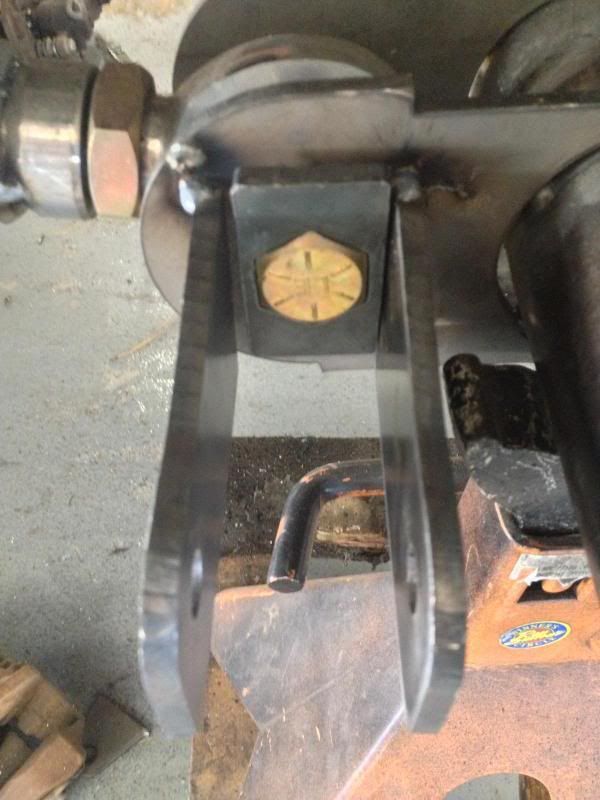

And then Greg's awesome idea.




99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #470 of 723 Old 05-02-2013, 02:57 PM
wj4play
Registered User
1999 WJ

Join Date: Apr 2010
Location: Des Moines
Posts: 1,284
Quote:
Originally Posted by mtnmarc
Pictures of the clearance.

And then Greg's awesome idea.
Now Greg ..those hex head tabs... .. That's just showing off



Sent from iPhone

99 Grand, 37" and mostly factory - Raised tank and trimmed fenders etc
wj4play is offline
post #471 of 723 Old 05-02-2013, 03:43 PM
adavis39
Registered User
2002 WJ

Join Date: Nov 2011
Location: Nashville
Posts: 2,808
freaking genius with those tabs. I first looked at the pic and thought it was dumb to have to remove the coil to get the arm off........then I looked harder and had to slap myself for judging you too quickly....excellent work man!!!


EDIT: when I first saw the pic it was where Mark had posted it in another section of the forum. he only included the second pic. so im not completely blind haha

2002 WJ Limited 4.7: 6" Clayton REALLY long arms....yep, they are longer than yours SOLD : (
1998 Platinum 5.9 DD
2007 WK Overland 5.7 wifes DD
TNJEEPS.COM

BUILD: http://www.jeepforum.com/forum/f197/...-crap-1399123/

"In a world that he did not create, but he will go through it as if it is his own creation. Half man, half beast, whatever it is it is weird, it is ticked off and it calls itself Slash"
adavis39 is offline
post #472 of 723 Old 05-02-2013, 07:50 PM
sdmayhew
Registered User
1993 ZJ

Join Date: Jul 2011
Location: placerville
Posts: 297
Dang greg that's showing off

1993 ZJ Clayton long arms with Johnny joints, custom front axle W yota center, D44 chevy outers, fabtech dirtlogic 2.25, front bilsten rear shocks, tacoma rear axle, 4.88, arb rear, 5 speed, poly motor mount inserts, NP241OR 4-1 ,receiver front for xcr 8k winch
sdmayhew is offline
post #473 of 723 Old 05-03-2013, 06:38 PM
AgitatedPancake
Registered User
2001 WJ

Join Date: Nov 2004
Location: Sac, California
Posts: 3,959
Haha! you guys are funny, gotta do something trick every once in a while to mix things up a bit

Quote:
Originally Posted by adavis39 View Post
freaking genius with those tabs. I first looked at the pic and thought it was dumb to have to remove the coil to get the arm off........then I looked harder and had to slap myself for judging you too quickly....excellent work man!!!


EDIT: when I first saw the pic it was where Mark had posted it in another section of the forum. he only included the second pic. so im not completely blind haha
Don't count yourself out too fast now! You do have to unbolt the coilover to remove the control arm bolt, it's the only way I could get things packaged in a way that fit all the constraints well. Ideally it wouldn't be like that, but I put more importance on placing the shock where I think it'll work best, even though disassembly might take an extra couple minutes .

I'm just letting you guys know, this thing looks GOOD with the front coilovers under it...that's been todays fun!

To contact me, email Greg@Frobotfab.com
Frobot Fabrication Facebook
01 WJ 5 Speed Claytons LA's, 36" Iroks, 35 spline 9" rear, Custom Ruffstuff 60-9" front axle.
Build Thread: http://www.mallcrawlin.com/forum//showthread.php?t=7387
AgitatedPancake's Youtube Channel
AgitatedPancake is offline
post #474 of 723 Old 05-04-2013, 11:47 AM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541

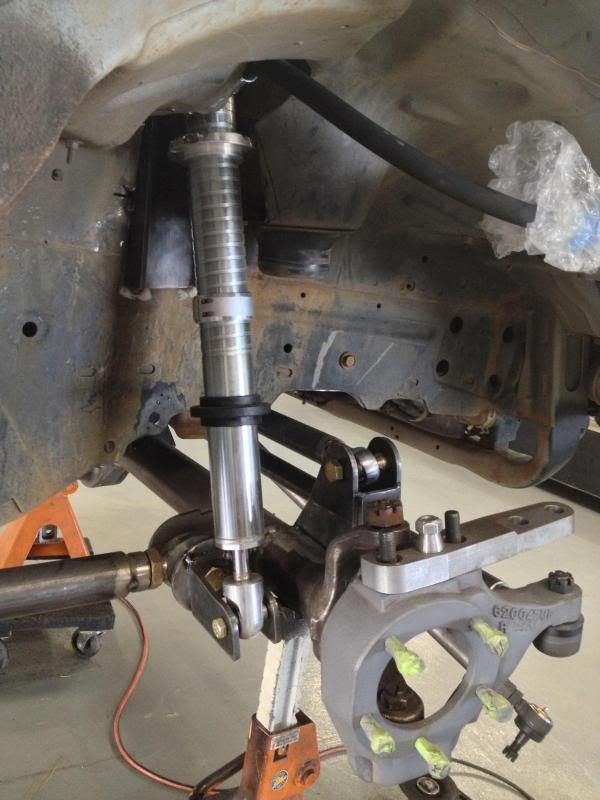

Full bump. A little less than an inch of shaft showing will prevent the shocks from ever bottoming out and blowing out a seal or worse. At this point, the lower control arms are flat on the frame rails.




99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #475 of 723 Old 05-04-2013, 10:47 PM
dillonjm
Registered User
2013 WK

Join Date: Jun 2003
Location: Wichita Falls, TX
Posts: 4,203
Reading back a ways, did you use a special reamer for your pitman warm to accept the larger TRE or just measure out the size of the tapered shaft and take it down to that depth on the reamer?

13 GC Overland - (Wife's DD) 5.7, stock
Past Jeeps: 99TJ, 78CJ7, 91YJ, 01WJ, 03TJ, 05KJ
dillonjm is offline
post #476 of 723 Old 05-04-2013, 10:54 PM
AgitatedPancake
Registered User
2001 WJ

Join Date: Nov 2004
Location: Sac, California
Posts: 3,959

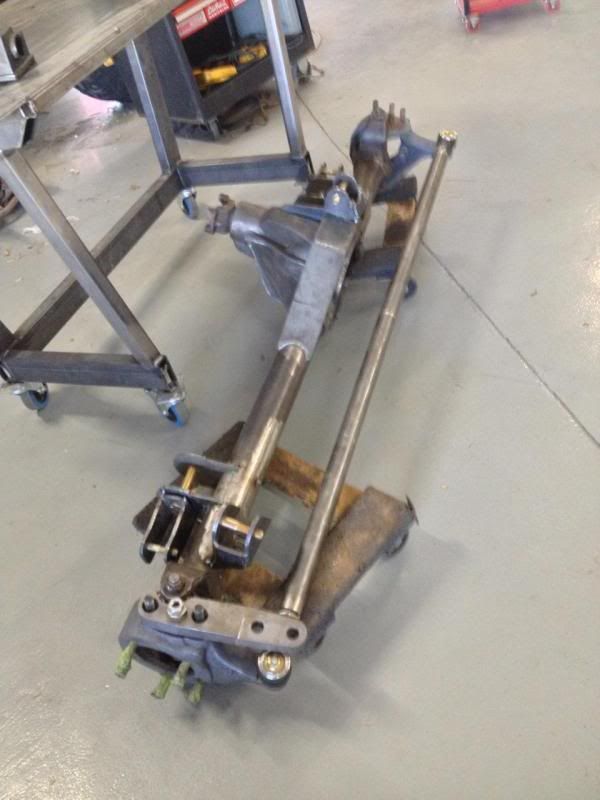

Just a 1.5" per foot reamer (that is the taper of all GM 1 ton TRE's), go until the TRE seats far enough to get a cotter pin through the castle nut and you're good. If you go a little farther than that, you can put a washer under the nut to give proper spacing for the cotter pin.

To contact me, email Greg@Frobotfab.com
Frobot Fabrication Facebook
01 WJ 5 Speed Claytons LA's, 36" Iroks, 35 spline 9" rear, Custom Ruffstuff 60-9" front axle.
Build Thread: http://www.mallcrawlin.com/forum//showthread.php?t=7387
AgitatedPancake's Youtube Channel
AgitatedPancake is offline
post #477 of 723 Old 05-04-2013, 10:57 PM
dillonjm
Registered User
2013 WK

Join Date: Jun 2003
Location: Wichita Falls, TX
Posts: 4,203
Quote:
Originally Posted by AgitatedPancake View Post
Just a 1.5" per foot reamer (that is the taper of all GM 1 ton TRE's), go until the TRE seats far enough to get a cotter pin through the castle nut and you're good. If you go a little farther than that, you can put a washer under the nut to give proper spacing for the cotter pin.
Thanks.

Gotta do mine here before too long.

13 GC Overland - (Wife's DD) 5.7, stock
Past Jeeps: 99TJ, 78CJ7, 91YJ, 01WJ, 03TJ, 05KJ
dillonjm is offline
post #478 of 723 Old 05-04-2013, 11:05 PM
AgitatedPancake
Registered User
2001 WJ

Join Date: Nov 2004
Location: Sac, California
Posts: 3,959
Heck yeah. What I do to make life easier is measure the diameter of the threaded shank, IIRC the ES2233L and ES2234R are 5/8" and the ES2027L and ES 2026R drag link ends are 11/16" but the same 1.5" taper per foot. That makes it so you have less to cut with the reamer. If your not too familiar with reamers they are awesome. If you're doing it by hand, just a nice slow even speed with as much weight as you can smoothly apply. If you get any binding/deflection watch it because I've heard of people breaking reamers. I haven't had any issues myself yet, doing about 50% by hand and 50% in a drill press. They cut material like nobody's business, just put some sort of oil to keep cutting temps down and go to town

To contact me, email Greg@Frobotfab.com
Frobot Fabrication Facebook
01 WJ 5 Speed Claytons LA's, 36" Iroks, 35 spline 9" rear, Custom Ruffstuff 60-9" front axle.
Build Thread: http://www.mallcrawlin.com/forum//showthread.php?t=7387
AgitatedPancake's Youtube Channel
AgitatedPancake is offline
post #479 of 723 Old 05-05-2013, 01:15 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541

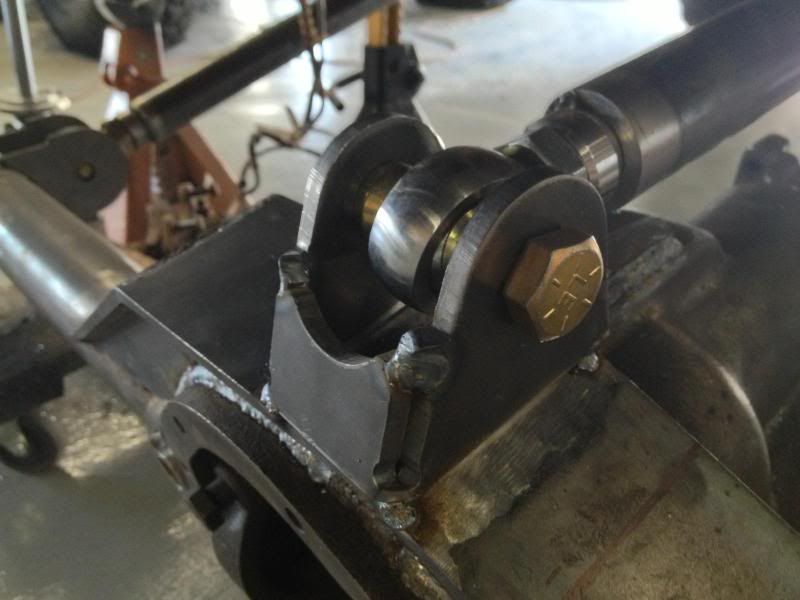

Upper control arm mount.





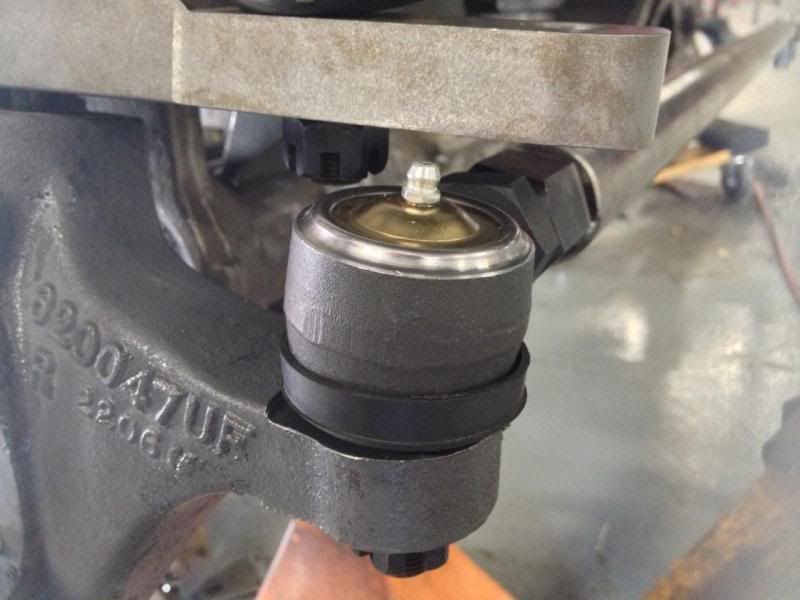

Reamed out.



3/8" spacer was needed to make a little clearance.

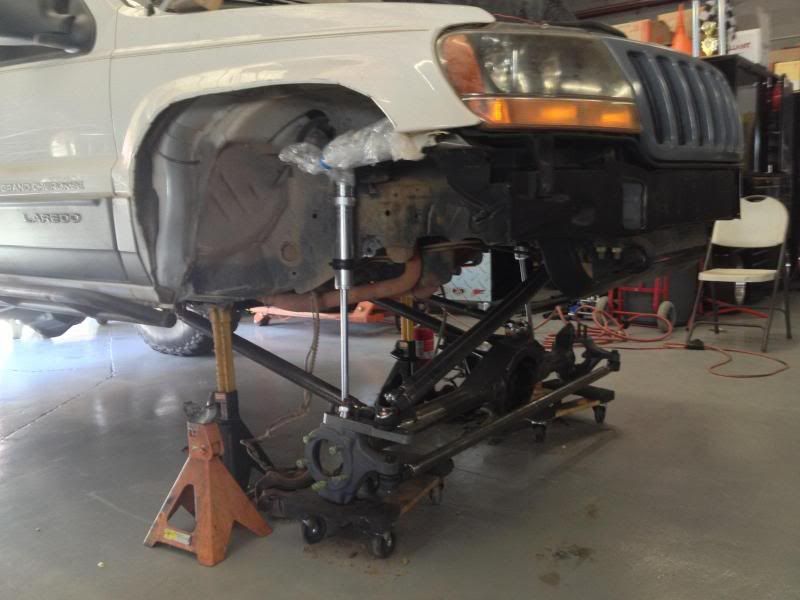

Droop to the floor.


99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #480 of 723 Old 05-05-2013, 01:54 PM
scarrskey
Registered User
1999 WJ

Join Date: Jun 2010
Location: Cameron Park
Posts: 537
Looking good man. Is it going to be ready before Memorial day. We are thinking of either a Rubicon or Moonrocks trip that weekend. My new 3 link worked awesome on the trail can't wait to see yours perform.
