post #436 of 723 Old 04-19-2013, 07:16 AM
sdmayhew
Registered User
1993 ZJ

Join Date: Jul 2011
Location: placerville
Posts: 297
Hey I stopped by Greg's shop and saw your build.
Pretty cool stuff.
The one thing that I mentioned to Greg was look at buying prothene motor inserts. I used these on my 4.0
prothane 1-504-bl about $50
Pictures here
http://www.nagca.com/forum/showpost....&postcount=104
Yours were looking pretty shot.
Even if they are a little large Greg can chuck them in the lathe and turn them down.


1993 ZJ Clayton long arms with Johnny joints, custom front axle W yota center, D44 chevy outers, fabtech dirtlogic 2.25, front bilsten rear shocks, tacoma rear axle, 4.88, arb rear, 5 speed, poly motor mount inserts, NP241OR 4-1 ,receiver front for xcr 8k winch
sdmayhew is offline
Sponsored Links
Advertisement

post #437 of 723 Old 04-19-2013, 07:46 AM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
Oh yeah my motor mounts are done. Haven't really looked into replacing them too much.

This winter I might be looking to do a full rebuild on the engine to cure my burning issue. Driving city and freeway its not noticeable, but wheeling under heavy load it puffs like a chimney. So during that time I'll look at upgrading those mounts.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #438 of 723 Old 04-20-2013, 04:56 AM
Geo-Nemesis
Registered User
2002 WJ

Join Date: Mar 2011
Location: Bologna
Posts: 459
Quote:
Originally Posted by AgitatedPancake View Post
for what/where? Marc's suspension is all 1.25" and 3/4" heims (including track bar), and the steering is all 1 ton TRE's
but the heims won't worn out quickly / create vibes?
isn't the johnny joint or similar the best choice?
thx

'02 Black Overland H.O. V8
Geo-Nemesis is offline
post #439 of 723 Old 04-20-2013, 08:31 AM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
There are advantages and disadvantages to each choice. If it were a semi daily driver and seeing a ton of road miles, I may have chosen johnny joints or something similar. Johnny joints are better on the road due to to rubber/urethane pockets they have supporting the ball part of the joint. But since this will be a mostly trail rig, with fordyce and Rubicon within an hour of my house, I wanted heims for the amount of articulation they offer. Also with johhny joints, its only a 9/16 bolt. I've heard very little problems with such a small bolt, but with a relatively heavy rig, I'm running 3/4" bolts on the lowers and 5/8" bolt uppers.

The only problem I see in the future is the 3/4" heim uppers and track bar. If I were to do it again, I would have gone 7/8" instead.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #440 of 723 Old 04-20-2013, 08:33 AM
wj4play
Registered User
1999 WJ

Join Date: Apr 2010
Location: Des Moines
Posts: 1,284
Quote:
Originally Posted by Geo-Nemesis

but the heims won't worn out quickly / create vibes?
isn't the johnny joint or similar the best choice?
thx
That's what I was thinking - greaseable and serviceable

Sent from iPhone

99 Grand, 37" and mostly factory - Raised tank and trimmed fenders etc
wj4play is offline
post #441 of 723 Old 04-20-2013, 10:09 AM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
Wfo carries heims and they are 15 minutes from my house.

Ruffstuff carries heims and they are an hour from my house.

If I wear them out or bend a shank, I can pick up some easily compared to ordering and waiting for the replacement parts to come in.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #442 of 723 Old 04-22-2013, 01:29 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
16" coils from foa just got ordered. They are viper coils.

Can't order the advanced adapter sye from my phone, so that will wait till tonight. And misc driveshaft parts will be ordered soon.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #443 of 723 Old 04-25-2013, 06:44 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
16 inch coils came in today.

Pictures of the day from Greg...

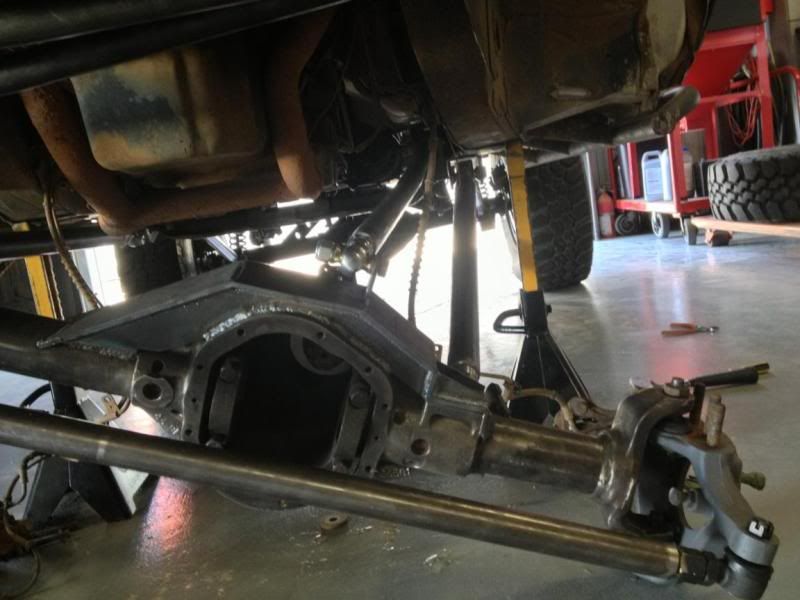

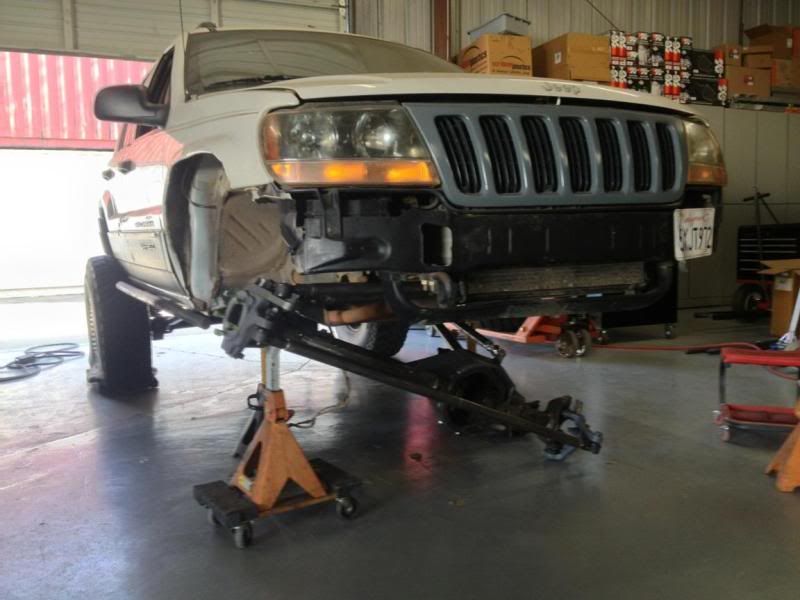

Had to put a 5 degree bend in the track bar to clear the oil pan. Clearances are tight, but they work! Upper control arm mount goes right by the motor mount at full bump. And the lower control arms lay flat on the frame rails.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #444 of 723 Old 04-25-2013, 06:59 PM
wvracer821
Registered User
2000 WJ

Join Date: May 2010
Location: Morgantown
Posts: 1,090

DD: 2014 RAM 3500 Megacab Larmie 6.7L Cummins
Junk: 2000 WJ, 4.0L
Build Thread: http://www.jeepforum.com/forum/f197/...build-1436556/
http://www.pirate4x4.com/tech/
wvracer821 is offline
post #445 of 723 Old 04-25-2013, 07:12 PM
dillonjm
Registered User
2013 WK

Join Date: Jun 2003
Location: Wichita Falls, TX
Posts: 4,203
Looking good!

13 GC Overland - (Wife's DD) 5.7, stock
Past Jeeps: 99TJ, 78CJ7, 91YJ, 01WJ, 03TJ, 05KJ
dillonjm is online now
post #446 of 723 Old 04-25-2013, 08:59 PM
CRJEeP_wj
Registered User
2002 WJ

Join Date: Sep 2012
Location: oroville
Posts: 697
Thats a beautiful thing. Looks like you put a slight bent in your uca too.
CRJEeP_wj is offline
post #447 of 723 Old 04-25-2013, 09:04 PM
BLACK04WJ
Registered User
2006 LJ Wrangler

Join Date: Nov 2011
Location: 115 Miles from MOAB!
Posts: 2,610
sweet track bar mount!

06 LJ Rubi / 97 TJ / 04 WJ
Oct '12 GCOTM
http://www.jeepforum.com/forum/f22/unlimited-lj-2212193/
BLACK04WJ is offline
post #448 of 723 Old 04-25-2013, 09:19 PM
AgitatedPancake
Registered User
2001 WJ

Join Date: Nov 2004
Location: Sac, California
Posts: 3,959
Nice catches guys! very slight bend in the UCA to avoid the floorboards, and very slight bends in the track bar and drag link to avoid the oil pan. The lower control arms juuust start to touch the frame rails when everything else in the suspension has around 1/2"-3/4" left to go. That will be a nice extra security to keep bad things from happening even in the event of a worst case scenario. I completely removed the factory track bar mount, put some frame plating there to reinforce the new bracket.

42" long drag link and track bar, at the same exact angle. Should drive pretty dang nice!

*edit* Oops, didn't see that Marc posted most of the info in the bottom of his recent picture post, my bad!

To contact me, email Greg@Frobotfab.com
Frobot Fabrication Facebook
01 WJ 5 Speed Claytons LA's, 36" Iroks, 35 spline 9" rear, Custom Ruffstuff 60-9" front axle.
Build Thread: http://www.mallcrawlin.com/forum//showthread.php?t=7387
AgitatedPancake's Youtube Channel
AgitatedPancake is offline
post #449 of 723 Old 04-25-2013, 11:49 PM Thread Starter
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley
Posts: 1,541
How long are the lowers? And upper for that matter too. Everything looks awesome.

There is a perfect groove in the frame where the drag link or track bar goes. That extra 1/4" helped. Hahah.

99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline
post #450 of 723 Old 04-27-2013, 06:42 PM
AgitatedPancake
Registered User
2001 WJ

Join Date: Nov 2004
Location: Sac, California
Posts: 3,959
Lowers are 36" long, upper is 34" long. I'll get the revised 3 link calculator design to ya, ended up pretty dang close just some minor changes for clearance issues.

To add to the link lengths, you have a 42" long drag link and a 42" long track bar. Better yet they are at the same angle as each other, only 10ish degrees off horizontal. This axle is going to move and steer like a dream through the full range of motion!

To contact me, email Greg@Frobotfab.com
Frobot Fabrication Facebook
01 WJ 5 Speed Claytons LA's, 36" Iroks, 35 spline 9" rear, Custom Ruffstuff 60-9" front axle.
Build Thread: http://www.mallcrawlin.com/forum//showthread.php?t=7387
AgitatedPancake's Youtube Channel
AgitatedPancake is offline
