post #91 of 189 Old 10-26-2010, 07:41 PM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Quote:
Originally Posted by biggoofy View Post
Hey Eric can you post up some pics from the bottom on the pinch seem as well as the back tie in i will be doing this soon and am a tad curious also can you take pics of the uniframe tie ins?
Will do ASAP. I'm travelling the next few days and then wheeling it as-is this weekend. I can tell you right now that the pinch seam itself is gone; one of the cuts to get the old rocker skins off was just above the pinch seam. All that is left is the metal just above the factory pinch seam.

Technohead is offline
Sponsored Links
Advertisement

post #92 of 189 Old 10-27-2010, 08:13 AM
biggoofy
Registered User
1996 ZJ

Join Date: Nov 2009
Location: Troy, NC Uwharrie
Posts: 4,195
Ok sounds good the more pics the better. Looks great though man.
biggoofy is offline
post #93 of 189 Old 11-01-2010, 05:27 PM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Tested out the sliders last weekend:


The video got cut short. For the record all it took was a tap of the brake to lock up the front Tru-Trac and I drove right off.
Technohead is offline
post #94 of 189 Old 11-01-2010, 05:48 PM
biggoofy
Registered User
1996 ZJ

Join Date: Nov 2009
Location: Troy, NC Uwharrie
Posts: 4,195
hey man any chance of the pics and what was the total length you used on the 4x4?

Zack

96 ZJ HP44 / 9"
90 XJ on 33s
RIP Troy aka BigBlueZJ94

FroBot Fab FTW

My Build


Need quality parts call Andy at Ironman4x4fab!!!!!
http://ironman4x4fab.com/index.html
biggoofy is offline
post #95 of 189 Old 11-01-2010, 05:54 PM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Quote:
Originally Posted by Technohead View Post
. . . I used 4"x4"x3/16" square section for the main structure and 1-1/2" x 0.120 wall tubing for the steps. The overall length is 72". . .
Will get the pictures ASAP. Its dark when I leave for work and dark when I get home.
Technohead is offline
post #96 of 189 Old 11-01-2010, 06:08 PM
biggoofy
Registered User
1996 ZJ

Join Date: Nov 2009
Location: Troy, NC Uwharrie
Posts: 4,195
lol yeah i know the feeling man thanks for the help

Zack

96 ZJ HP44 / 9"
90 XJ on 33s
RIP Troy aka BigBlueZJ94

FroBot Fab FTW

My Build


Need quality parts call Andy at Ironman4x4fab!!!!!
http://ironman4x4fab.com/index.html
biggoofy is offline
post #97 of 189 Old 11-12-2010, 04:52 PM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Ok Goofy, are these the pictures you were looking for:

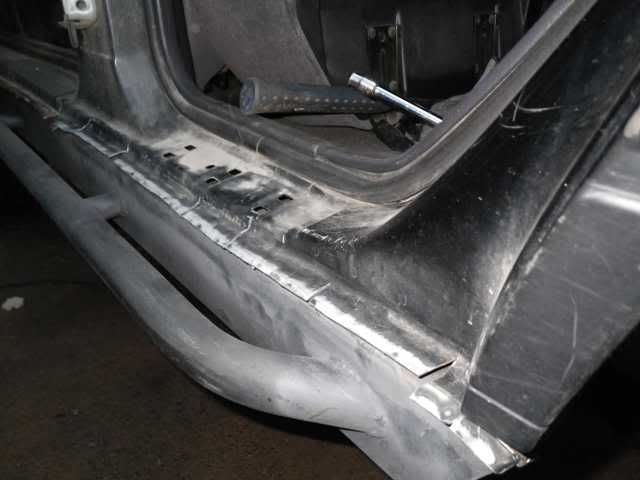

I still have not installed tubing from the sliders to the frame and at this point probably will not. The way they are tied into the body through the pillars is plenty strong enough. The remaining tasks are to stitch the rocker sheet metal to the sliders and then finish with seam sealer & Herculiner. The following picture shows the trimmed and cleaned sheet metal ready to fold onto the slider:

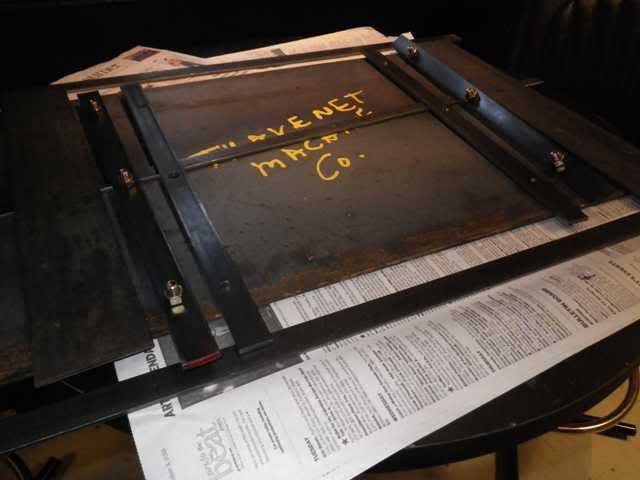

I also started building a belly skid plate. Here are the parts:

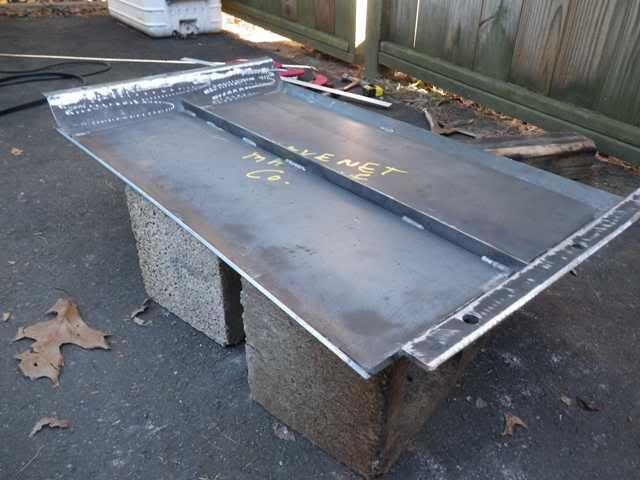

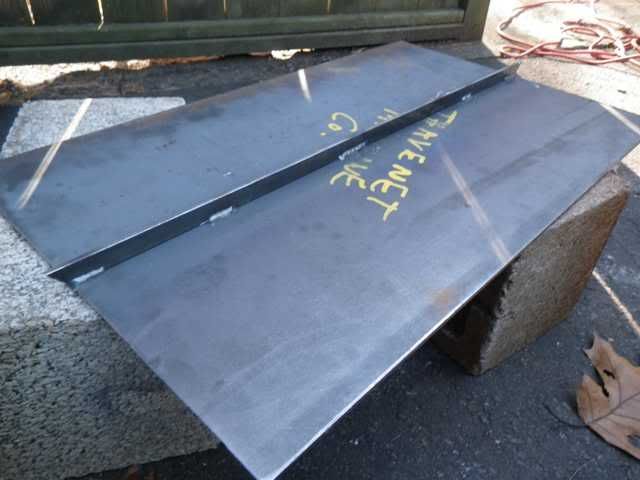

Fitting the parts together and tacking:

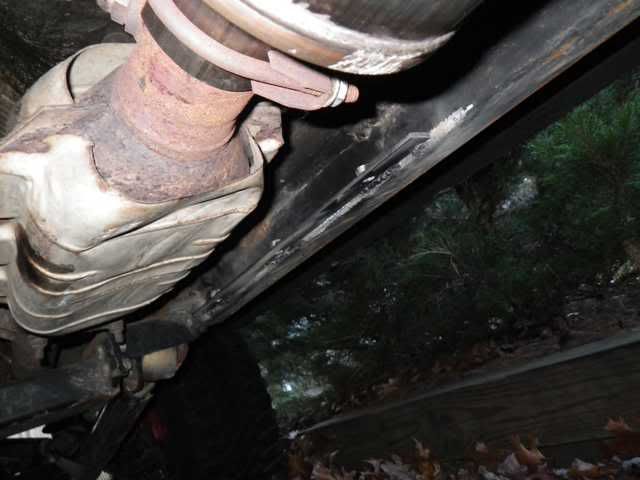

I welded a couple flanges to the Clayton frame stiffeners for mounting the skid plate. That cat sure will be happy to have some protection:



Now I just need to be patient and keep it from warping when completing the welds.
Technohead is offline
post #98 of 189 Old 11-16-2010, 04:27 AM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Video footage from last Saturday's trail ride. A great time was had with minimal carnage.

www.youtube.com/watch?v=1Ni4SeDzTSg
Technohead is offline
post #99 of 189 Old 11-16-2010, 07:50 AM
biggoofy
Registered User
1996 ZJ

Join Date: Nov 2009
Location: Troy, NC Uwharrie
Posts: 4,195
looks fun man

Zack

96 ZJ HP44 / 9"
90 XJ on 33s
RIP Troy aka BigBlueZJ94

FroBot Fab FTW

My Build


Need quality parts call Andy at Ironman4x4fab!!!!!
http://ironman4x4fab.com/index.html
biggoofy is offline
post #100 of 189 Old 11-16-2010, 01:00 PM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Here's some additional footage from last weekends trail ride. The group was small but we had a great time with minimal carnage: Blown brake line that was pinched off with vise-grips, bent Currie tie rod, tweaked driveshaft, smashed tail light, blown bead, a few small dents, and one slider ripped from the pinch seams.

Images (1-20):







































If you are in the Southeastern New England area and want to do some wheeling then come check us out.
Technohead is offline
post #101 of 189 Old 11-16-2010, 01:01 PM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Technohead is offline
post #102 of 189 Old 11-16-2010, 01:02 PM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Technohead is offline
post #103 of 189 Old 11-16-2010, 01:35 PM
1993ZJ
Registered User
1993 ZJ

Join Date: Apr 2009
Location: Cincinnati OH
Posts: 290
looks like a blast!

1993 ZJ 4.0L AX-15 2" BB Rola Roof Rack, Warn 8274, 235/75/R15 BFG AT's, that's about all for now...
1993ZJ is offline
post #104 of 189 Old 12-19-2010, 08:02 AM Thread Starter
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 7,346
Finally got around to fixing the brake line that blew out during Novembers trail ride. I've been putting it off because I knew it would be a nightmare accessing the fitting where the line enters the ABS pump. I had to remove the airbox and windshield washer reservoir in order to unbolt the ABS pump so that I could create enough clearance to get a wrench in there.

Here is what I found when I opened up the airbox:



This is on the BACK side of the air filter mind you. I have no idea how critters could have found their way in there.

Here is the brake line that blew out. The vice grips were the trail fix. Dead center in the second pic you can see the crack in the line. I used a piece of coat hanger as template to guide bending the new brake line:







Blue arrow points at the fitting I needed to access:



Everything ripped apart:



Done (for now):



This is actually a temporary fix. The plan is to rip out the ABS pump and plumb in an adjustable proportioning valve with all new brake lines.
Technohead is offline
post #105 of 189 Old 12-19-2010, 08:23 AM
Greengc4x4
