Ok here we go

1999 WJ, 4.7, Limited Quadradrive 90000 miles, Rusty's 2 1/2" springs and 2" pucks new to me 3/21/09:



First Mod Project "Eliminate droopy drawers!" :
The best tool ever built!

Cut tire tub leaving approx 1"


Drilled 2" and 1" holes for fill and vent tubes

Placed Jack under driver side of tank. Cut and clearanced factory tank pan by cutting at the bottom of unibody sudo frame. There is a gap in the pan for the hoses to run through. I cut that down 2" to clear the new location of the fill tubes.




Last edited by SaturnICL; 08-25-2010 at 01:24 PM..
SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 10:35 PM   #2
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
I raised jack and let the pan/skid sides slide up past uni-frame until it stopped on the cargo floor. I used a few zip screws to hold in place while I drilled and installed a few 1/4" x 1" bolts and bolted the skid pan to the uni-frame.

Re- installed hoses though new holes.

Looking up from underneath!
SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 10:40 PM   #3
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
Moved to the other side and removed exhaust shield and cut exhaust behind Cat!
Repeat cut, lift and bolt

Viola I can see my rear diff!


SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 10:43 PM   #4
FortCollinsZJ
Registered User
1993 ZJ

Join Date: Jul 2007
Location: Fort Collins, Colorado
Posts: 2,342
Cool. Good to see a build that doesnt start with "installed the BB"

That gas tank lift seems to be a must for WJ's. cool mod, hopefull more will come? I like builds where folks arent afraid to cut some metal on the Jeep.
__________________
1993 ZJ 2001 5.9 swap. Crawler

1998 5.9 limited, DT headers, CAI, 3" exhaust.
FortCollinsZJ is offline   Quick reply to this message
Unread 06-23-2009, 10:46 PM   #5
Jones
Consider the following...

Jones's Avatar

Join Date: Jan 2008
Location: Arizona
Posts: 10,794
Quote:
Originally Posted by FortCollinsZJ View Post
Cool. Good to see a build that doesnt start with "installed the BB"

That gas tank lift seems to be a must for WJ's. cool mod, hopefull more will come? I like builds where folks arent afraid to cut some metal on the Jeep.
I saw this jeep in person in Moab, trust me, there is a lot more to come.
__________________
Put your bacon where your mouth is!
Jones is offline   Quick reply to this message
Unread 06-23-2009, 10:49 PM   #6
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
Now to fill the hole:
I cut 4" off the spare tire tub. Cut some relief cuts due to the pan being tapered and now it is smaller than the hole.





Due to no desire to weld over a plastic fuel tank and wanting to be able to remove the tub if needed to replace the sending unit and etc. I used zip screws to re-install the tub, silicone and Alumatape to seal it Now I have a storage place for my recovery gear and tire iron etc.

Where did it GO?

SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 10:51 PM   #7
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
Quote:
Originally Posted by -ZJones- View Post
I saw this jeep in person in Moab, trust me, there is a lot more to come.
LOL thanks
SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 10:58 PM   #8
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
Fender trim OK Big fender CUT!


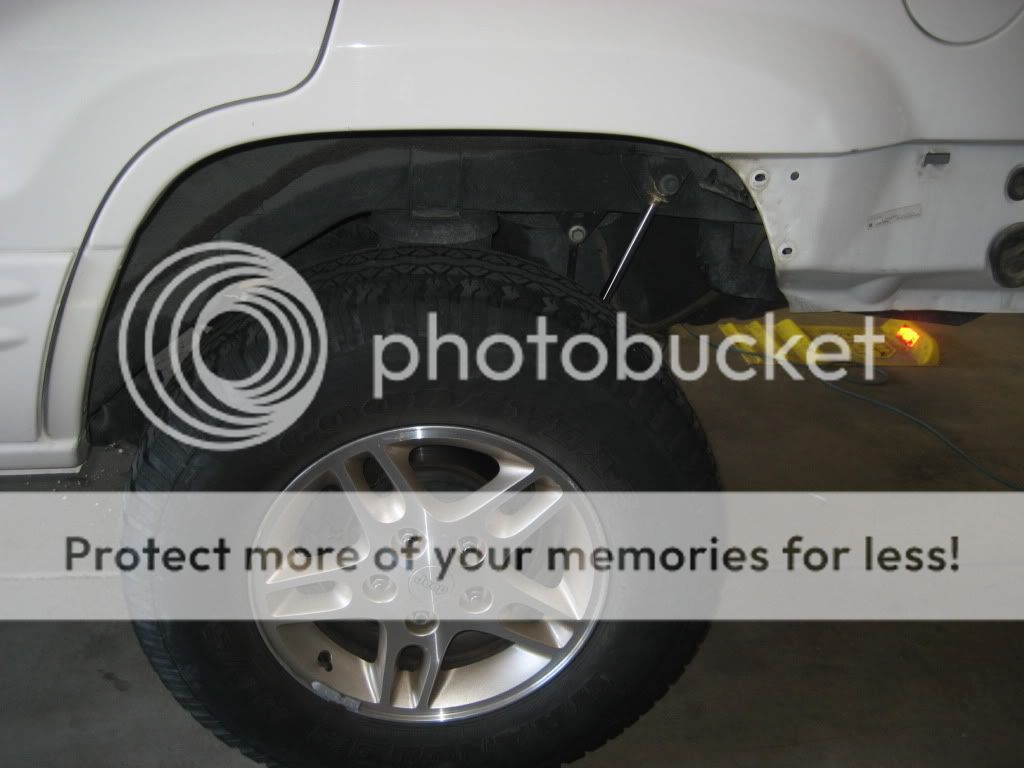

Before:

I started with (The best tool ever made)

And taped off the cut line.
fender-cut-001.jpg   fender-cut-002.jpg   fender-cut-005.jpg
SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 11:02 PM   #9
gatorayde
Registered User
1999 WJ

Join Date: Jun 2008
Location: Crystal Lake, IL
Posts: 3,334
That's a lot of trimming to fit those 29's
gatorayde is offline   Quick reply to this message
Unread 06-23-2009, 11:03 PM   #10
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
On the back I left 1/2" from the door opening and folded it over pinching the inner fender between the door opening and the fold. I used a ball peen hammer and a 2lb sledge as a backer to hammer it together tight! (my neighbors hated me that weekend!)
cut.jpg   cut-002.jpg   cut-003.jpg
SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 11:10 PM   #11
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
I folded the iner-fender out 1/2" and overlaped the outer hammering them together so the edge of the fender is smooth in case the tire or a hand contacts it.


Last edited by SaturnICL; 06-23-2009 at 11:24 PM..
SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 11:13 PM   #12
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
Rear difference:



SaturnICL is offline   Quick reply to this message
Unread 06-23-2009, 11:15 PM   #13
gatorayde
Registered User
1999 WJ

Join Date: Jun 2008
Location: Crystal Lake, IL
Posts: 3,334
Jesus christ, resize your pics. Even on my 22" monitor those look big.
gatorayde is offline   Quick reply to this message
Unread 06-23-2009, 11:16 PM   #14
FortCollinsZJ
Registered User
1993 ZJ

Join Date: Jul 2007
Location: Fort Collins, Colorado
Posts: 2,342
Holy Gigantic Pictures Batman!!!!
__________________
1993 ZJ 2001 5.9 swap. Crawler

1998 5.9 limited, DT headers, CAI, 3" exhaust.
FortCollinsZJ is offline   Quick reply to this message
Unread 06-23-2009, 11:16 PM   #15
SaturnICL
Registered User
1999 WJ

Join Date: Mar 2009
Location: Sparks,NV
Posts: 602
Quote:
Originally Posted by gatorayde View Post
Jesus christ, resize your pics. Even on my 22" monitor those look big.
Sorry I don't have a photo editor I'll upload them to Photobucket
SaturnICL is offline   Quick reply to this message
