post #1141 of 1985 Old 02-28-2010, 08:28 PM
ArloGuthroJeep
Mr. Hyde!

ArloGuthroJeep's Avatar
2004 WJ

Join Date: Mar 2005
Location: Boulder
Posts: 23,085
You need to get a better pattern on there. Can't tell anything from what you have there...


'04 WJ, 6" Clayton LA's, 242 SYE, 35" BFG MT KM2's, 4.56 gears, & D44a locked
'14 WK2 Limited w/5.7L, ORAI, & Tow Package
ArloGuthroJeep is offline
Sponsored Links
Advertisement

post #1142 of 1985 Old 02-28-2010, 08:31 PM
Virmagicus
Moderator

Virmagicus's Avatar
1998 ZJ

Join Date: Feb 2006
Location: Northern Indiana
Posts: 6,440
Quote:
Originally Posted by Greengc4x4 View Post
Post it up on MC and ask them
Yeah ... we don't know **** here.
Virmagicus is offline
post #1143 of 1985 Old 02-28-2010, 08:35 PM Thread Starter
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
Quote:
Originally Posted by Virmagicus View Post
Do you have the illustration from the FSM showing the drive side and the coast side contact patterns?
I have the FSM, and iv got the yukon books that came with the gears that show acceptable patterns. Mine seems to be good, but figured Id get others opinions as well.

Quote:
Originally Posted by 96DCZJ View Post
just did my front on sat, as we talked about on FB, and I had .007"
spec for the 30 is .005-.009. and .003-.006 for the 44a

Quote:
Originally Posted by ArloGuthroJeep View Post
You need to get a better pattern on there. Can't tell anything from what you have there...
the pattern looks clear to me

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University

Last edited by BLACKzj52; 02-28-2010 at 08:58 PM.
BLACKzj52 is offline
post #1144 of 1985 Old 02-28-2010, 09:02 PM Thread Starter
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
well, my buddy who has rebuild ~14 D44a's (and ~150 axles total) says I've got a good pattern and my BL is about perfect (he likes to set his at .004 though).

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #1145 of 1985 Old 02-28-2010, 09:09 PM
Virmagicus
Moderator

Virmagicus's Avatar
1998 ZJ

Join Date: Feb 2006
Location: Northern Indiana
Posts: 6,440
Well IMHO it looks to deep and the paint does not show enough contact ... i am by no means an expert though.
Virmagicus is offline
post #1146 of 1985 Old 02-28-2010, 09:13 PM
Greengc4x4
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Ohio
Posts: 4,002
Quote:
Originally Posted by Virmagicus View Post
Yeah ... we don't know **** here.
Sorry, but MC has many more people with gear experience than Jeepforum ZJ technicle section
Greengc4x4 is offline
post #1147 of 1985 Old 02-28-2010, 10:01 PM
MiniTubbedNova
Registered User
1996 ZJ

Join Date: Mar 2009
Location: Delaware
Posts: 318
Pattern Looks good. a tiny tiny tiny bit on the shallow pinion depth. but if it was me id would leave it as is.

how much did the regearing stuff cost you. im looking to regear my soon when i get my 33's and looking for estimates

MiniTubbedNova takes no responsibility for the comments above...
1970 Nova SS -355-Th-350
1996 Jeep Grand Cherokee - 4.0L-
IRO 4.5" - 33" MT's
Quote:
Originally Posted by -n8man1068
Jeeps don't get stuck. They just take a nap when they're tired of being awesome.
MiniTubbedNova is offline
post #1148 of 1985 Old 02-28-2010, 10:08 PM Thread Starter
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
Quote:
Originally Posted by MiniTubbedNova View Post
Pattern Looks good. a tiny tiny tiny bit on the shallow pinion depth. but if it was me id would leave it as is.

how much did the regearing stuff cost you. im looking to regear my soon when i get my 33's and looking for estimates
I was thinking it may be a little deep if anything.

Ill break it down for you:

- D44a and Hp30 Yukon master install kits $222 shipped
- D44a 4.56 Yukon gears ~$260 shipped
- HP30 4.56 Yukon gears ~$140 shipped
- Dial indicator $30
- In/lb BEAM STYLE torque wrench ~$50 shipped
- 1 5/16" socket ~$20

I think that's about everything

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #1149 of 1985 Old 02-28-2010, 11:23 PM
Greengc4x4
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Ohio
Posts: 4,002
We're meeting up for pics as soon as this thing is done. lol
Greengc4x4 is offline
post #1150 of 1985 Old 03-01-2010, 02:22 AM Thread Starter
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
^sounds good

cleaned up the gear teeth and removed all excess marking compound and ran the pattern again. With the excess compound removed, the gear pattern looks much better and I am very happy with the results

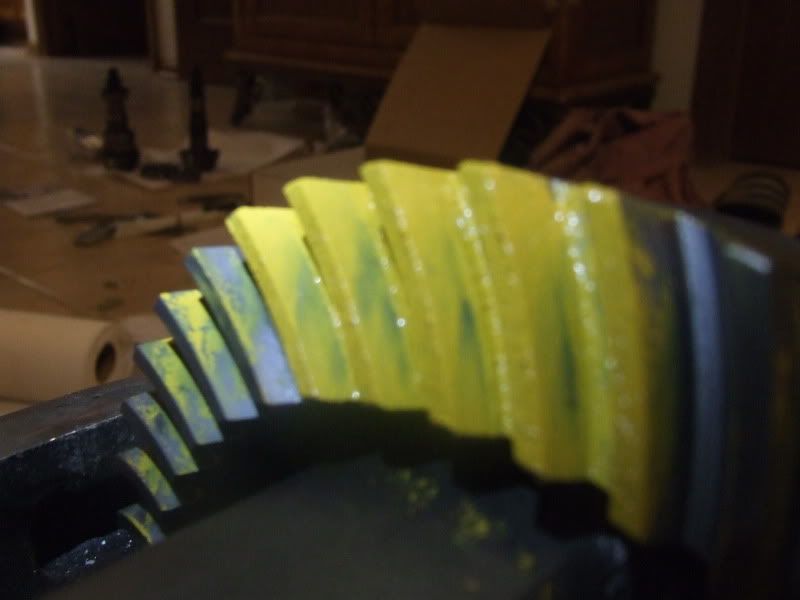

Drive side:




This area was not originally marked with the compound, but was covered by some left over from the pinion


and coast side:



got to work on the hp30 a little bit. Started with stock shim sizes and couldn't even turn the pinion when meshed with the carrier, lol. Played around with some different combos. Started to get a decent pattern but had NO backlash whatsoever. So I loosened it up a little bit and got this


Spec calls for .005-.009, it's on the tight side, which I prefer (no pun intended)

but heres the thing: I was thinking, and I came up with a question. The question was, what is considered the drive and coast pattern on a front axle gear setup thats reverse rotation? It was messing with me a little bit and I couldn't figure it out (tired). I just assumed that when spinning the gears (simulating the Jeep in drive/forward), the side of the gear getting "pushed" is the drive..Correct? So in the case of an hp30, it would be the opposite of the 44a gears. Am I right to assume that or am I overthinking this?

to put images to words, heres some pics, with patterns..

Coast (?) side:


Drive (?) side:





somebody correct me if I am wrong and I will edit my post so I dont confuse anybody. How do those look to you guys?

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #1151 of 1985 Old 03-01-2010, 03:32 AM
torchd
Registered User
2003 WJ

Join Date: Jan 2010
Location: Chicago
Posts: 2,730
How did you prep to paint your wood grain trim? I want to paint mine black too. What paint did you use?
torchd is offline
post #1152 of 1985 Old 03-01-2010, 07:24 AM
ArloGuthroJeep
Mr. Hyde!

ArloGuthroJeep's Avatar
2004 WJ

Join Date: Mar 2005
Location: Boulder
Posts: 23,085
Quote:
Originally Posted by ArloGuthroJeep View Post
You need to get a better pattern on there. Can't tell anything from what you have there...
Quote:
Originally Posted by BLACKzj52 View Post
Example of a pattern that is "properly" painted. Just put more resistance on the pinion/ring gears when rotating.




Also, use less paint in the future. You only need to paint a couple teeth. That way if you don't get the pattern right on the first few tries there is some ring gear left to see the new pattern on. Likewise less paint then what you put on will make it easier to get a readable pattern out of it

'04 WJ, 6" Clayton LA's, 242 SYE, 35" BFG MT KM2's, 4.56 gears, & D44a locked
'14 WK2 Limited w/5.7L, ORAI, & Tow Package
ArloGuthroJeep is offline
post #1153 of 1985 Old 03-01-2010, 08:02 AM
MiniTubbedNova
Registered User
1996 ZJ

Join Date: Mar 2009
Location: Delaware
Posts: 318
Quote:
Originally Posted by BLACKzj52 View Post
I was thinking it may be a little deep if anything.

Ill break it down for you:

- D44a and Hp30 Yukon master install kits $222 shipped
- D44a 4.56 Yukon gears ~$260 shipped
- HP30 4.56 Yukon gears ~$140 shipped
- Dial indicator $30
- In/lb BEAM STYLE torque wrench ~$50 shipped
- 1 5/16" socket ~$20

I think that's about everything
sweet thanks man..

and yeah for some reason i was in the middle of typing the pattern is a tiny bit on the indside to much... it was late and i got confused. looks good. cant wait to see it all finished up

MiniTubbedNova takes no responsibility for the comments above...
1970 Nova SS -355-Th-350
1996 Jeep Grand Cherokee - 4.0L-
IRO 4.5" - 33" MT's
Quote:
Originally Posted by -n8man1068
Jeeps don't get stuck. They just take a nap when they're tired of being awesome.
MiniTubbedNova is offline
post #1154 of 1985 Old 03-01-2010, 12:02 PM Thread Starter
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
Quote:
Originally Posted by torchd View Post
How did you prep to paint your wood grain trim? I want to paint mine black too. What paint did you use?
Only prep I did was to clean the woodgrain with soap and water. Then I used rustoleum Auto primer to prime (probably the last thing you would expect ) then I used a couple coats of Krylon Fusion Black

Quote:
Originally Posted by ArloGuthroJeep View Post
Example of a pattern that is "properly" painted. Just put more resistance on the pinion/ring gears when rotating.




Also, use less paint in the future. You only need to paint a couple teeth. That way if you don't get the pattern right on the first few tries there is some ring gear left to see the new pattern on. Likewise less paint then what you put on will make it easier to get a readable pattern out of it
oh ok thanks for the advice. Believe it or not I only painted 3-4 teeth on my ring gear, then painted another 3-4 on the other side. Musta gone a little overboard with the marking compound

made a post on MC, feel free to make any input

Quote:
Originally Posted by MiniTubbedNova View Post
sweet thanks man..

and yeah for some reason i was in the middle of typing the pattern is a tiny bit on the indside to much... it was late and i got confused. looks good. cant wait to see it all finished up
no prob. I know how it goes when trying to think through mechanics when tired.

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #1155 of 1985 Old 03-01-2010, 12:54 PM
Greengc4x4
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Ohio
Posts: 4,002
Quote:
Originally Posted by BLACKzj52 View Post
made a post on MC, feel free to make any input
We must not know anything over here
Greengc4x4 is offline
