post #46 of 563 Old 07-05-2011, 08:57 PM Thread Starter
billzcat1
Chicken in a Turkey Suit
2003 WJ

Join Date: Oct 2008
Location: Redmond
Posts: 8,532
Mini Trip Report coming! Since I'm not doing much in the way of "building", I guess this is now a "wheeling" thread.

Fortune Creek Trail 4WD301 07/02/2011

Airing down at the start of FS 4330


Tailgunner on FS 4330, AKA "DustFest 2011"


A creek


The lower half of the trail, it's considerably more washed out than last year.


Water crossing...the Montero did pretty well for most of the day despite being stock/open/open.


WJ in the water.


Another creek/waterfall


Our group taking a break in the creek bed






The trail goes on


Yeah... that's a tree and a half!


Tree removal in progress. It required 3 chainsaws, 2 winches, 3 snatch blocks, and claimed the lives of two tree straps.


Getting around the tree. We all made it without hitting, except for one fellow with a JK-U that tagged it with a rear fender (plastic).


Onward to another stream crossing


Stopped by 2-3 feet of semi-melted snow on a tight, off-camber trail.


On the way back, I went from tailgunner to trail leader.




Anyway, it was fun and little carnage, just more scratches and the skid plates did their job. I'm trying to get one of my photographer friends out there to get the whole group with some high-quality images.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


~Richard
billzcat1 is offline
Sponsored Links
Advertisement

post #47 of 563 Old 07-05-2011, 09:38 PM
WillMcD
Registered User
2004 WJ

Join Date: Mar 2010
Location: Florence, SC
Posts: 1,169
Looks like fun. Good pics

04 WJ Limited Black, 5.5" LA hybrid (IRO Trackbar, Teraflex Springs, Bilstein 5100/5125 Shocks, IRO Critical Path High Clearance LA's + KOR 3/4" spacers, JKS Disconnects) 32" Firestone Destination M/T's, JCR Stage 3 Sliders, Black Moabs, Muffler Delete, Hella 700ff's, Yakima Load Warrior

Phil:4:13: I can do all things through Christ which strengtheneth me.

Quote:
Originally Posted by billzcat View Post
a lot of people waste their life playing FB games all day like Farmville, Cityville, Gangsterville, Hookersnblowville, Idonteffingcareville
August 2011 GCOTM Winner

Build Thread:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WillMcD is offline
post #48 of 563 Old 07-06-2011, 06:09 PM
Thomahawk
Web Wheeler

Thomahawk's Avatar
2004 WJ

Join Date: Mar 2011
Location: Oslo
Posts: 8,050
Nice pics, Looks like great fun. 

2004 Grand Cherokee Overland 4.7 HO Quadradrive
95 ZJ Limited 5.2 Winter Project
Sold 94 ZJ Laredo 4.0 Winter Beater
R.I.P. 2000 Grand Cherokee Limited, 4.7 V8, Quadradrive, Shale Green Metallic, Agate/Carbon interior, Well modded and highly missed :(

Buildthread
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


MONEY WILL CONTINUE TO BE THROWN INTO THE RIG UNTIL CONDITION AND SATISFACTION IMPROVES!!!
Thomahawk is online now
post #49 of 563 Old 07-06-2011, 09:39 PM
SnowLeopard
Registered User
1997 ZJ

Join Date: Apr 2009
Location: Woodland Park
Posts: 4,726
I have to say again that I envy you. What a great place to live and wheel. The Jeep looks good, also. I have to slip that in there so my comment is Jeep related.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


"Roads? Where we're going we don't need roads"
SnowLeopard is offline
post #50 of 563 Old 07-28-2011, 11:26 PM Thread Starter
billzcat1
Chicken in a Turkey Suit
2003 WJ

Join Date: Oct 2008
Location: Redmond
Posts: 8,532
Well... my Rough Country sway bar disconnects are cursed. They are all kinds of clunking/rattling at the bottom bushing, much worse than the little noises that my JKS discos made.

Part of the issue is that the metal sleeves that go where the original end links went have collapsed. Part of the issue is that they are not sitting vertically, so the load on the bushing causes it to move around. Part of the issue is that the bushings themselves are getting sloppy. Part of the issue is that they are just too long and the load on the sway bar is very high, putting more load on the end links than they were intended to see.

So, I'm running disconnected for the moment as I can't stand the clunking. What I had thought was a bad steering box or intermediate shaft (they have slight play) was actually these stupid end links. I am going to get new bushings from RC (again) and re-work them so that the design doesn't suck so bad. I used to be a machinist and I also manufactured aftermarket parts (including sway bar end links) for almost 4 years, so I should be able to improve them a bit. I only wish I had access to all the machinery from my former life.

Stay posted for how I either improve or destroy a set of RC end links.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


~Richard
billzcat1 is offline
post #51 of 563 Old 08-21-2011, 05:42 PM Thread Starter
billzcat1
Chicken in a Turkey Suit
2003 WJ

Join Date: Oct 2008
Location: Redmond
Posts: 8,532

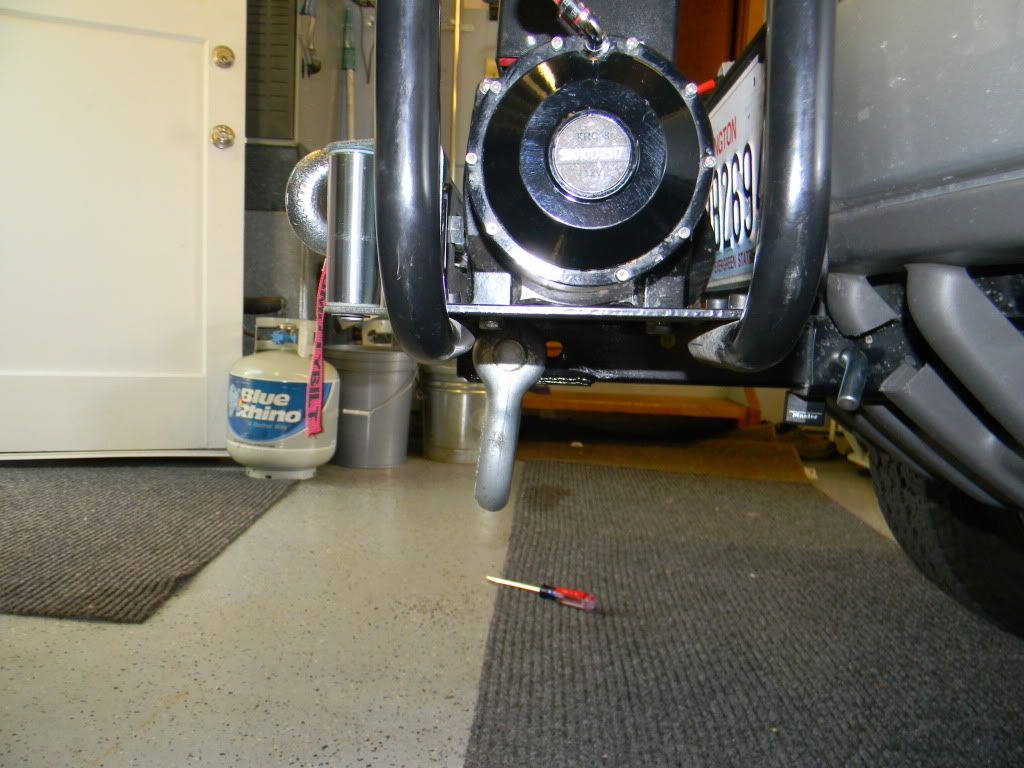

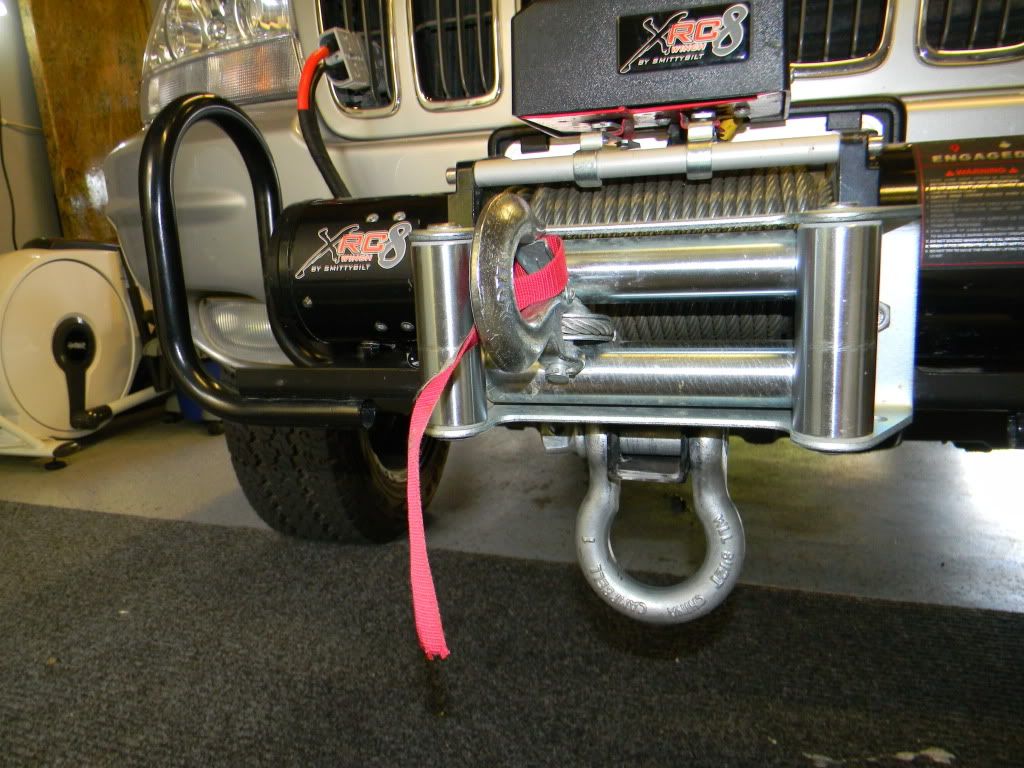

Well, I finished a couple projects this weekend, time for a build thread update!

First, about those Rough Country quick disconnects. They were clunking quite a bit, about every 2-3 seconds on normal smooth roads, and quite loudly on even small bumps. I got in there to find that the aluminum sleeves in the axle mount had collapsed so the mounting posts were loose and rattling around. Why they used a thin aluminum roll sleeve here instead of steel, I don't know. Since I didn't have any suitable steel, I used a box of M12 washers and stacked washers to make this piece solid.

In addition, the RC QDs are designed "For 3-6" lift" but I feel they are just too long to work well with the 3" lift I have. The sway bar was sitting at a 50-60 angle which means that as the axle travels up, the sway bar rotates forward and limits vertical motion. The result was a rougher ride and limited up-travel. Cornering was fairly flat but body roll was not linear, almost as if you were hitting the bump stops during normal cornering.

The solution is to make the end links shorter. I measured out where they needed to be to put the sway bar at a 30 angle, used a 1/2-20 Die to cut new threads, cut it off, and reinstalled. In the process, I had to relocate the mounting of the RC QDs to the outside of the sway bar, closer to the tire. This means they can rub slightly at full lock (my JKS end links did the same). I also found out that the sway bar is not centered on the body (but it should be) and this is contributing to the rubbing. The way I set it up will load the bar back to center as it travels, it's very hard to slide it sideways by hand.

Here's a couple pics of the process:

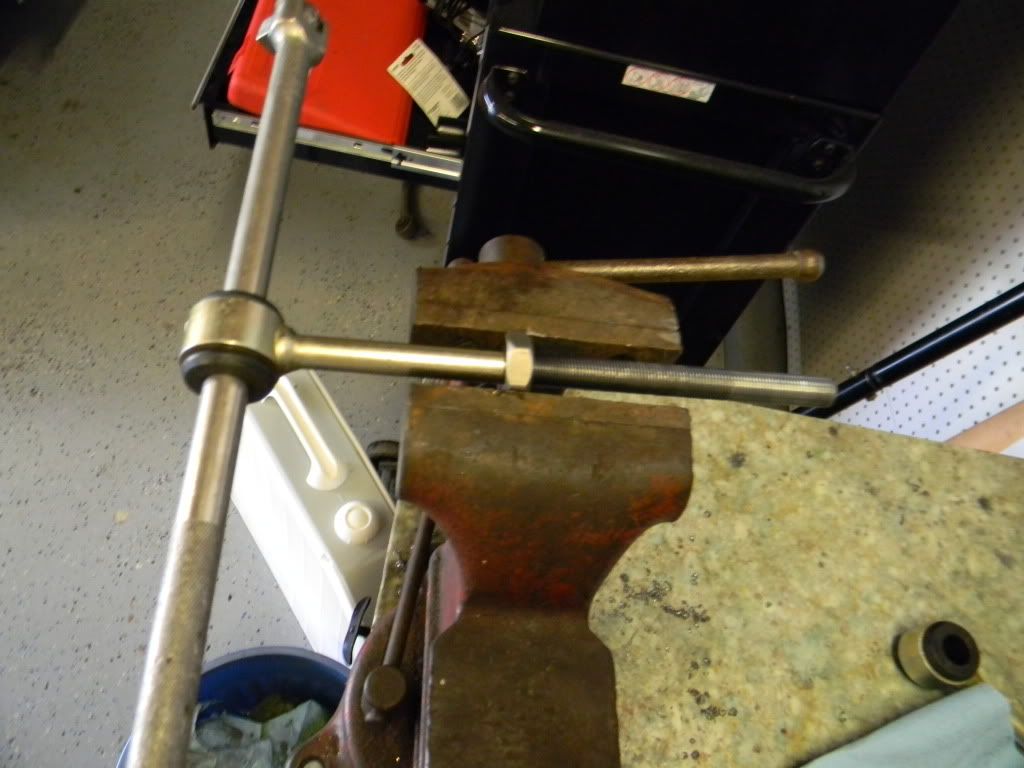

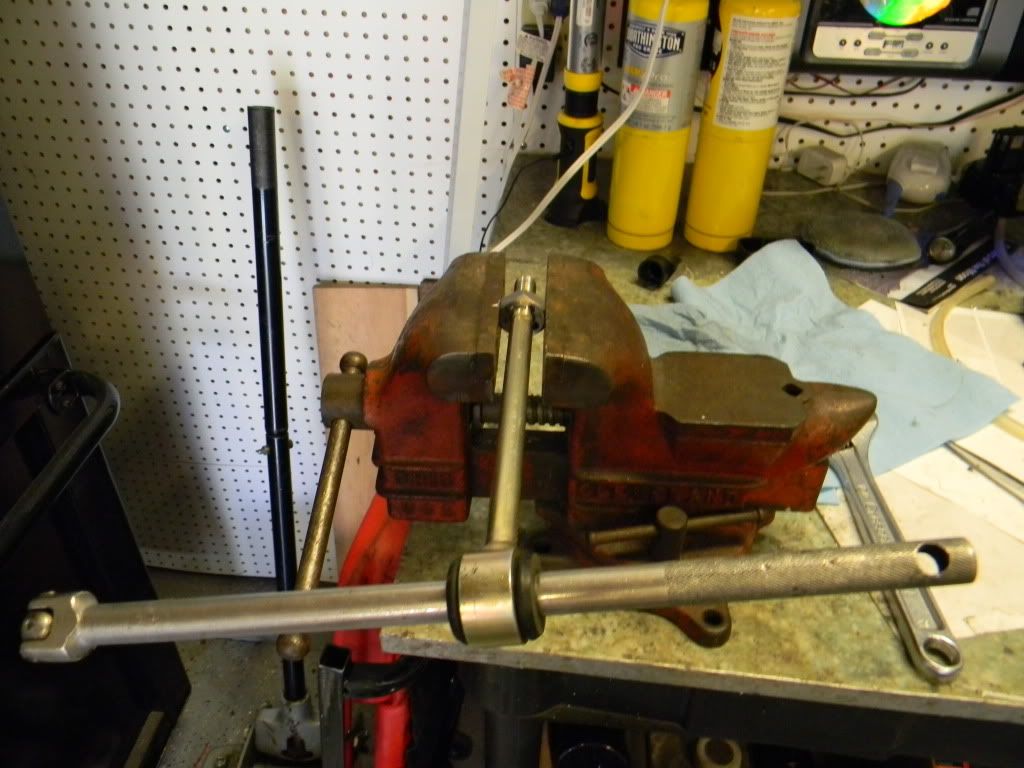

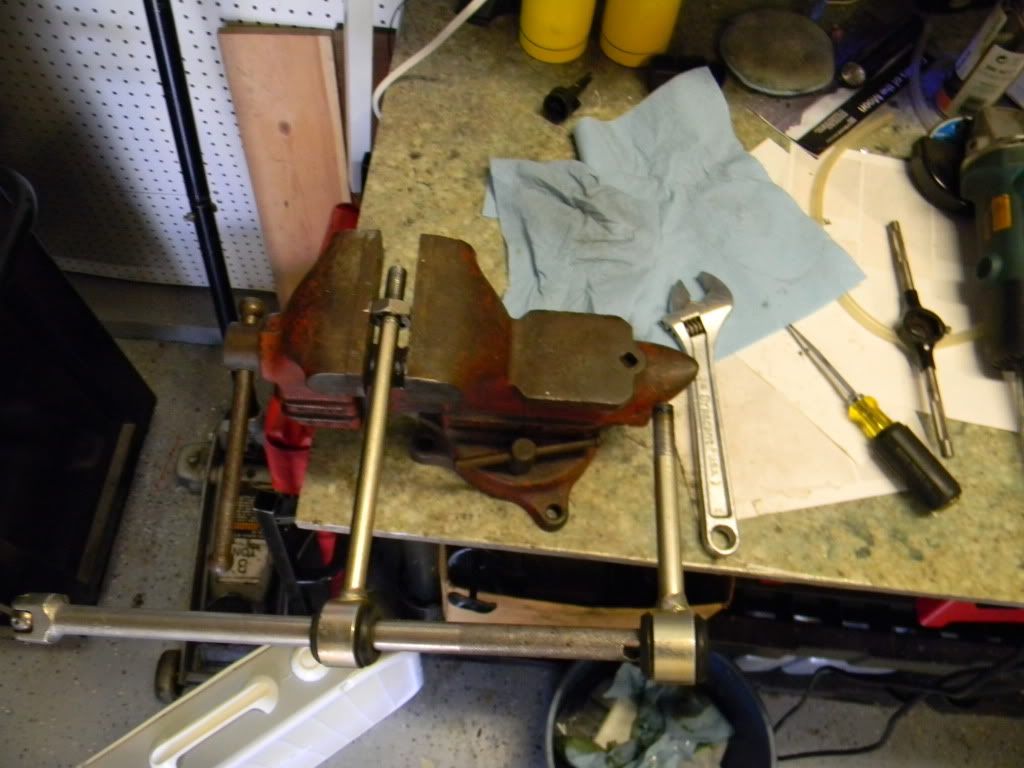

RC quick disconnect in the process of cutting new threads. I used a cheezy breaker bar through the bushing as my die wrench and held the die in the vice. I found that gear oil makes a GREAT cutting fluid.


Comparo of the original length to the correct length


That's a lot of threading


Collapsed roll sleeves. A fine example of Rough Country's poor design and low quality.




Final install. This is with the washers in place of the aluminum sleeves, relocated the mounting to the outside edge of the sway bar/axle (same location as JKS), and the shortened end link. I also added a couple washers between the ball-jointed end and the sway bar. This places the disconnect a nice, vertical angle, no funky load on the bushing or ball joint. Lastly, I adjusted the lengths so that the sway bar was not preloaded, making it easy to dis/re-connect.



End result: Perfect. The ride quality is great on bumps, the body roll is linear and controlled, they disconnect easily, and the clunking is gone. The only issue is a slight rub at full lock that should get better as the sway bar re-centers. I may go with small (10mm) wheel spacers in the future.
