Unread 04-21-2013, 10:20 AM   #121
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083
Quote:
Originally Posted by jessebrown View Post
I wish knew how to do all that axle work. Awesome job, can't wait to see if finished!
Never too late to teach yourself. I'm far from an expert.

This is a good place to start:
http://www.pirate4x4.com/tech/billavista/Gear_Setup/

__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-21-2013, 10:37 AM   #122
SDHarleydad
Registered User
1994 ZJ

Join Date: Jun 2012
Location: Spring Valley, CA
Posts: 188
subsbd
__________________
[COLOR="Blue"]Casper[/COLOR]
1994 JGC Laredo
SDHarleydad is offline   Reply With Quote Quick reply to this message
Unread 04-21-2013, 02:52 PM   #123
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083

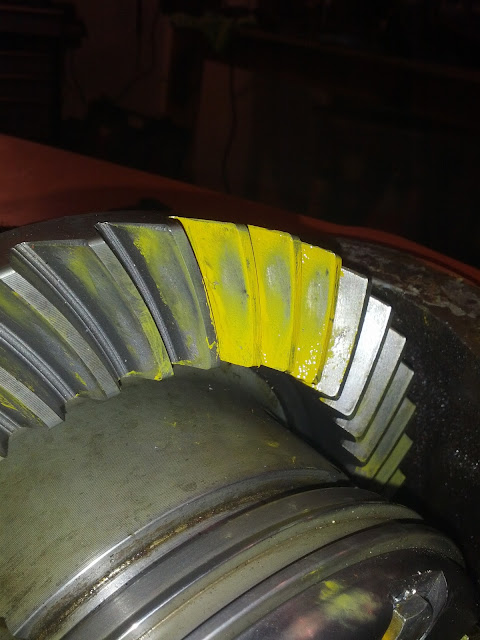

Not horrible.. First is drive side, second is coast

Calling it quits for the day, wife is going out of town for a week, going to do dinner and a movie.
__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-21-2013, 10:40 PM   #124
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls, ohio
Posts: 2,271
Quote:
Originally Posted by dillonjm View Post
Spent most of the day in KC, but when I got home I started working on the front gears. Got the old gears apart, setup bearings made, shims measured, and ring gear on the OX.

Then I got hungry.
Any more info on how you made your own setup bearings. I found it mentioned in the pirate thread you linked, but couldnt find any more info on it.
__________________
[URL="http://www.jeepforum.com/forum/f197/tjs-01-wj-build-thread-1023461/"]4.5" Claytons, 33's, 231hd, locked, and more. Click here for details[/URL]
TJSWJ is offline   Reply With Quote Quick reply to this message
Unread 04-21-2013, 11:07 PM   #125
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083
Quote:
Originally Posted by TJSWJ View Post
Any more info on how you made your own setup bearings. I found it mentioned in the pirate thread you linked, but couldnt find any more info on it.
Sure, I took the old bearings I pressed off and used my dremmel to hone out the ID of the bearing so that it was a hand fit onto the carrier and pinion. I ground them out just enough that I could push them on by hand but not so much that they were loose.

Makes it so you don't have to press the bearings each time you change shims. Then after I got the pattern where I wanted I pressed on the new bearings and put it all back together.

Hope that was clear enough.
__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-21-2013, 11:12 PM   #126
TJSWJ
Registered User
2001 WJ

Join Date: Mar 2010
Location: Olmsted Falls, ohio
Posts: 2,271
Plenty clear. I figured it was something to that effect, the fact that its really that easy is what threw me off. Thanks!
__________________
[URL="http://www.jeepforum.com/forum/f197/tjs-01-wj-build-thread-1023461/"]4.5" Claytons, 33's, 231hd, locked, and more. Click here for details[/URL]
TJSWJ is offline   Reply With Quote Quick reply to this message
Unread 04-24-2013, 06:43 PM   #127
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083
Had to run a jet to Tucson yesterday hence the lack of work.

Burned on the base brackets for the coils. Gotta cut off the track bar mount deal on the passenger side as I'm using Claytons TB bracket for high steer. These brackets were originally T&T's TJ brackets I moved wider for the WJ. Also have to weld on the center cup(not sure what you'd call it) for the isolators to sit on.

I'm kinda taking parts I like from different places and welding them to the truss I liked.







As soon as I have the front as far as I can go until more parts get here I'll cut off the rears brackets and leaf spring mounts and get the gears in it. I **expect** to have that done NLT this weekend.

Oh, and the shafts, knuckles, etc are staying off until I get it under the jeep. Its heavy enough as it sits..
__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-24-2013, 06:58 PM   #128
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083
Also, Mike from Protofab emailed and said they loaded my bumpers and got them on the road yesterday.

Looking forward to getting those mounted up.
__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-24-2013, 07:58 PM   #129
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083

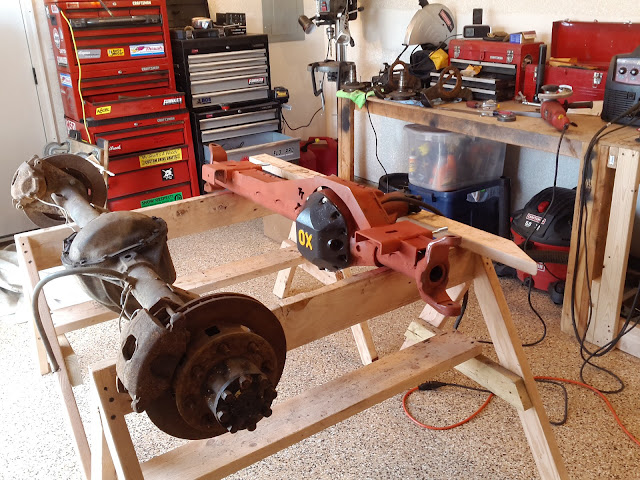

And where I stop for the night.

Cups burned on and bracket cut as needed. And yes, I intentionally put them centered on the axle instead of offset forward.





__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-24-2013, 09:20 PM   #130
wvracer821
Web Wheeler

wvracer821's Avatar
2000 WJ

Join Date: May 2010
Location: Morgantown, West Virginia
Posts: 1,008
Quote:
Originally Posted by dillonjm View Post
And where I stop for the night.

I intentionally put them centered on the axle instead of offset forward.

]
that thing is looking great. explain the reason for not offsetting the spring perch. wouldn't this create a low caster angle when springs are straight?
__________________
DD: 2014 RAM 3500 Megacab Larmie 6.7L Cummins
Junk: 2000 WJ, 4.0L
Build Thread: http://www.jeepforum.com/forum/f197/...build-1436556/
http://www.pirate4x4.com/tech/
wvracer821 is offline   Reply With Quote Quick reply to this message
Unread 04-24-2013, 09:28 PM   #131
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083
Quote:
Originally Posted by wvracer821 View Post
that thing is looking great. explain the reason for not offsetting the spring perch. wouldn't this create a low caster angle when springs are straight?
I took this into account when I welded the truss, I set vertical @ 5 degrees of caster.

All moving the cups directly over the axle did was push the axle forward a little under 2".
__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-24-2013, 10:43 PM   #132
badassdude
Registered User

Join Date: Apr 2013
Location: dayton, oh
Posts: 2
i think what you're getting at is TLAR
badassdude is offline   Reply With Quote Quick reply to this message
Unread 04-25-2013, 06:23 AM   #133
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083
Quote:
Originally Posted by badassdude View Post
i think what you're getting at is TLAR


Standard
__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:44 PM   #134
dillonjm
30mm @ 70/sec

dillonjm's Avatar
2003 TJ Wrangler

Join Date: Jun 2003
Location: Warrensburg, MO
Posts: 4,083
Pulled the NP247 today, guy picks it up tomorrow.

Also started disassembling the 60 to get it ready.

Then I ordered a Dorman plastic tank to modify for my windshield washer bottle since I need to relocate from the stock bottle location.. I fully intended to use a ZJ setup and change my intake or move the evap system but decided to go a different route since I really don't like the open element style filters.
__________________
03 Rubicon (Weekend Toy) Build thread

11 Ram 2500 - 6.7 Cummins (DD/Tow Rig)

05 Liberty Limited (Wife's): Minor mods, OME/JBA Suspension, 245 70/17 Duratracs
dillonjm is offline   Reply With Quote Quick reply to this message
Unread 04-27-2013, 10:39 AM   #135
mtnmarc
Registered User
1999 WJ

Join Date: May 2009
Location: Grass Valley, CA
Posts: 1,495
Picture or link to the plastic tank? I haven't had a washer bottle in years. Carrying around a bottle of water for the windshield gets old after a while. Hahah.
__________________
99 WJ hp44, 3 link, Eaton e locker, 14" foa coilovers in the front. 14 bolt, 4 link, grizzly locker, 12" foa coilovers in the rear. 5.38s and 37s
mtnmarc is offline   Reply With Quote Quick reply to this message
