pics of factory hidden winch on my 00.

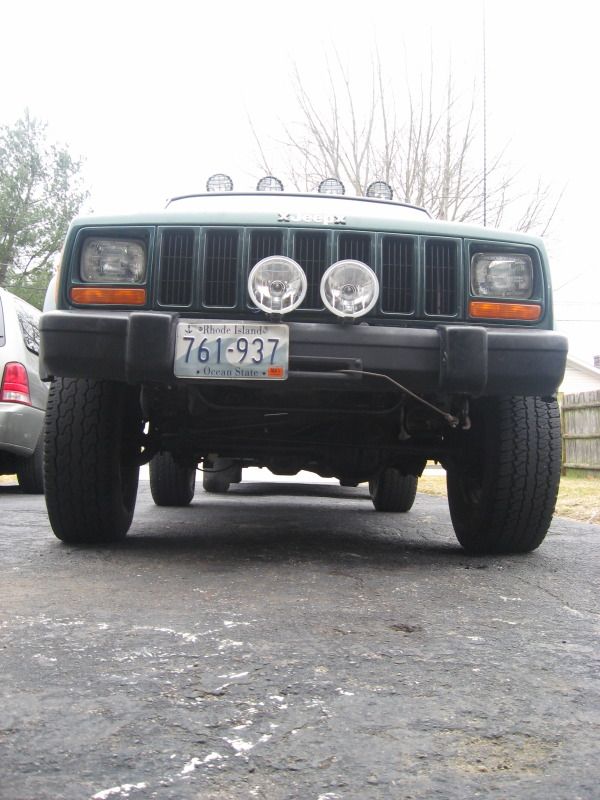

some people asked for pics, here they are.




00 xj clayton 3 link and yadda yadda yadda...
vx1kxj is offline
Sponsored Links
Advertisement

post #2 of 16 Old 03-08-2012, 02:58 PM
roughknight69
Registered User
1995 ZJ

Join Date: Jun 2009
Location: Jamestown ny
Posts: 1,904
Looks good

Is the fairlead connected to the bumper?

wouldn't that damage/rip it if you were winching at angle
roughknight69 is offline
post #3 of 16 Old 03-08-2012, 08:32 PM
Dbiked
Registered User
1998 XJ Cherokee

Join Date: Sep 2009
Location: Kaysville
Posts: 723
I have always Wanted to do that. Spectacular job!

Utah jeep crew member #32
Dbiked is offline
post #4 of 16 Old 03-08-2012, 08:51 PM
KINGSB
Registered User
1998 XJ Cherokee

Join Date: Aug 2009
Location: MA
Posts: 1,050
Looks great, where did you get the brackets etc? Does the front bumper get pushed out a little?

1998 Jeep Cherokee - 2.5 Inch Old Man Emu Lift - BF Goodrich All Terrains - All Mopar Accessories
KINGSB is offline
post #5 of 16 Old 03-08-2012, 08:55 PM
KINGSB
Registered User
1998 XJ Cherokee

Join Date: Aug 2009
Location: MA
Posts: 1,050
On earlier XJs, the front bumper gets pushed out forward and they have to add special bumper end caps and covers to the top of the bumper:
Attached Thumbnails

1998 Jeep Cherokee - 2.5 Inch Old Man Emu Lift - BF Goodrich All Terrains - All Mopar Accessories
KINGSB is offline
post #6 of 16 Old 03-08-2012, 09:12 PM Thread Starter
vx1kxj
Registered User
2000 XJ Cherokee

Join Date: Jul 2008
Location: RI/New Bedford Ma
Posts: 744
yea my bumper got pushed out a little. i had all the original bumper covers and extensions but i opted to use the plastic strip that is on the back bumper of a wj (where you load the cargo in). It looks like it should be there and fits the contour of the bumper perfectly and hides everything nicely. I like a really clean stock appearance on my jeeps and i am happy with how it turned out.

the bumper cant bend around the fairhead because the winch support bars are RIGHT up against it.

00 xj clayton 3 link and yadda yadda yadda...
vx1kxj is offline
post #7 of 16 Old 03-08-2012, 09:20 PM
KINGSB
Registered User
1998 XJ Cherokee

Join Date: Aug 2009
Location: MA
Posts: 1,050
I am pretty sure this was only an option on the pre-96 ones and not the 97+ XJs. So you must have the older extensions then.

1998 Jeep Cherokee - 2.5 Inch Old Man Emu Lift - BF Goodrich All Terrains - All Mopar Accessories
KINGSB is offline
post #8 of 16 Old 03-08-2012, 09:29 PM
Muddy97Cherokee
Registered User
1997 XJ Cherokee

Join Date: Aug 2011
Location: Norman
Posts: 703
WOW, that is clean!! May have to think about doing that.

1997 XJ Sport
6.5" with 31's
Built to CRAWL
BUILD THREAD
IG: zack_hstadt
-ZACK
Muddy97Cherokee is offline
post #9 of 16 Old 03-08-2012, 09:57 PM Thread Starter
vx1kxj
Registered User
2000 XJ Cherokee

Join Date: Jul 2008
Location: RI/New Bedford Ma
Posts: 744
thanks and yea, i pulled it from an 94. they had them for 97+ they were a little different and were even more rare.

00 xj clayton 3 link and yadda yadda yadda...
vx1kxj is offline
post #10 of 16 Old 03-08-2012, 10:42 PM
MagicNelson
Registered User
1999 XJ Cherokee

Join Date: Dec 2010
Location: Columbus
Posts: 398
Man that is cool. I wish somebody would sell something like that.
MagicNelson is offline
post #11 of 16 Old 03-09-2012, 07:16 PM
Dbiked
Registered User
1998 XJ Cherokee

Join Date: Sep 2009
Location: Kaysville
Posts: 723
I didn't realize that these were actually factory options!!! That's even sweeter!

Utah jeep crew member #32
Dbiked is offline
post #12 of 16 Old 03-17-2012, 03:23 PM
darkstar06109
Registered User
2009 WK

Join Date: Oct 2008
Location: New Britian
Posts: 81
This is a very cool place for a winch. I know that these are extremly rare options. Would you have any measurements off of the mounting plates? Are they made out of 3/16 or 1/4? If I cant find one maybe I can try to make one
darkstar06109 is offline
post #13 of 16 Old 05-18-2013, 12:46 AM
Xride
Registered User

Join Date: Aug 2002
Location: Edmonton Alberta
Posts: 1,546
Where do I buy one, or how do I fab one?

99 XJ, black, 4x4, NP231, 8.25 rear. Fully locked.
5.5" long arm lift, 35x12.5x15 Kumo KL71MT
Xride is offline
post #14 of 16 Old 05-18-2013, 01:45 AM
diesel_wr3nch
Registered User
1999 XJ Cherokee

Join Date: May 2013
Location: philadelphia
Posts: 21
looks clean... can you post some more pictures... like from above and such? also did you reinforce that crossmember at all
diesel_wr3nch is offline
post #15 of 16 Old 05-18-2013, 08:01 AM
roughknight69
Registered User
1995 ZJ

Join Date: Jun 2009
Location: Jamestown ny
Posts: 1,904
This threads over a year old btw.
