Milton's Other Jeep Build - Page 11 - JeepForum.com

 1Likes
Reply

LinkBack Thread Tools
post #151 of 647 Old 10-29-2012, 01:01 AM
Joshharris98xj
Registered User
1998 XJ Cherokee

Join Date: Mar 2011
Location: Pace
Posts: 2,178
Quote:
Originally Posted by JeepN4KC
Did some tinkering today on the XJ. Finally got around to pulling the belly pan to investigate something I had suspected:

Yep - trashed transmission mount. I was getting some horrible rattle/thumping/vibes from time to time and could even feel it in the floorboard. I looked all over the underside for a few weeks hoping I'd find something other than this that was right there in front of me and quick to fix. Nope - bad mount. I also noticed the bolt holes in the belly pan are not centered:

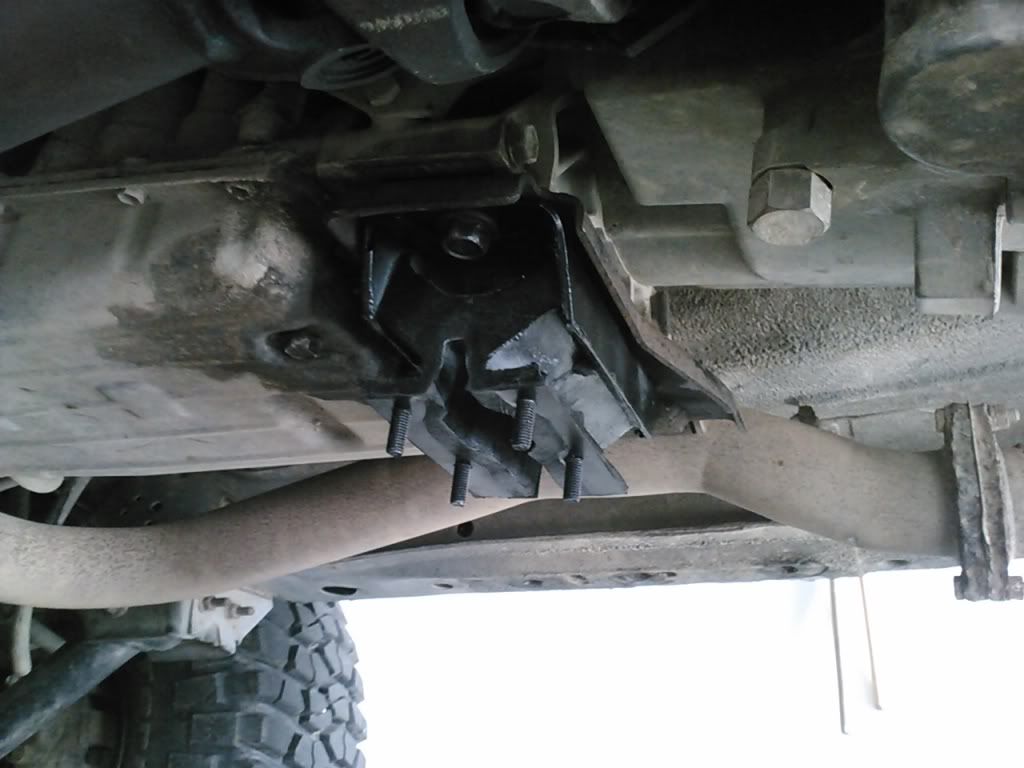

I marked center and point to it in the pic and you can see the trans mount holes are off center to the driver side about 1/2". I need to contact TnTCustoms in the morning to find out if the belly pans they sell are year specific so I know whether to order an off center tranny mount or not. I'll keep the thread posted on what I find out.

I also decided to pull the front driveshaft while under there to swap it with the spare I have. The spare was gonna be used for a HnT but I want to get the sloppy play in the slip shaft outta there. The spare is solid.

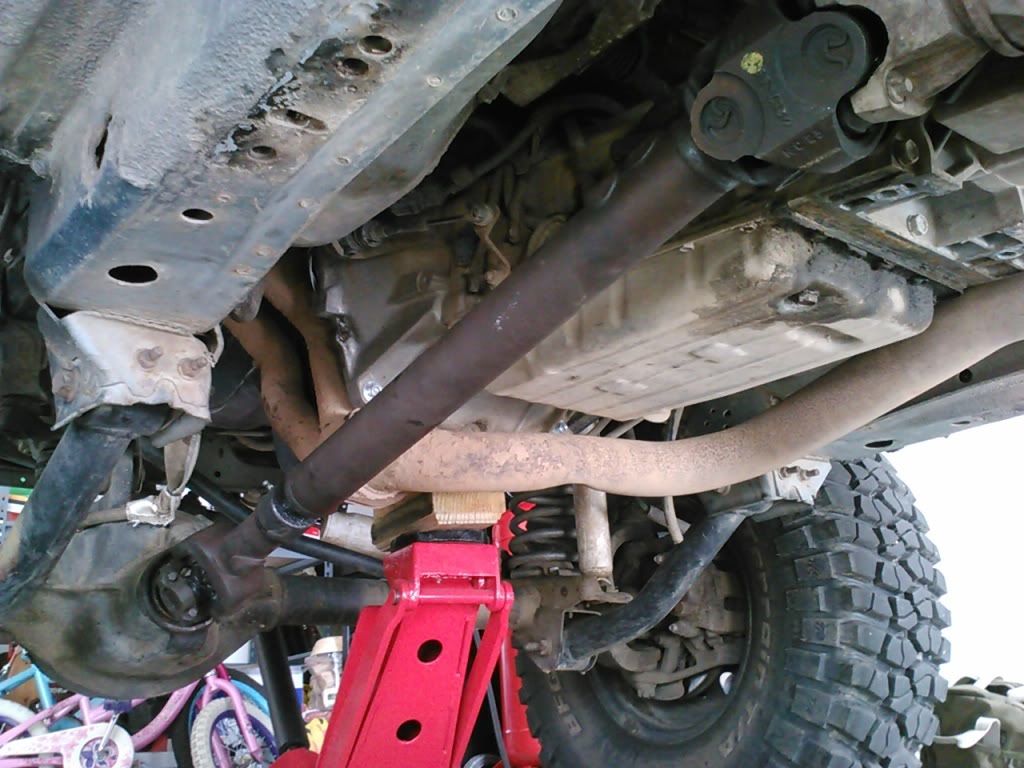

So - this is what I left it as for tonight - all jacked up

Besides - my daughters were itchin to do some punkin' carvin'

I'll be back with whatever it is I get to next and in the meantime Happy Halloween!!........................
Gotcha beat

Attached Thumbnails
Joshharris98xj is offline
Sponsored Links
Advertisement

post #152 of 647 Old 10-29-2012, 08:19 AM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
^^^ My seven year old said the one on the right is especially wicked

Nice work - I guess you could say I was going for quantity not quality

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
post #153 of 647 Old 10-29-2012, 02:35 PM
jakesjeepmj1988
Registered User
1988 MJ Comanche

Join Date: Sep 2011
Location: pittsburgh
Posts: 190
How about my pumpkin?
Attached Thumbnails
jakesjeepmj1988 is offline
post #154 of 647 Old 10-29-2012, 03:19 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
^^^ That's awesome! Eat, sleep, $h!t, and carve Jeep.

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
post #155 of 647 Old 10-29-2012, 03:35 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034

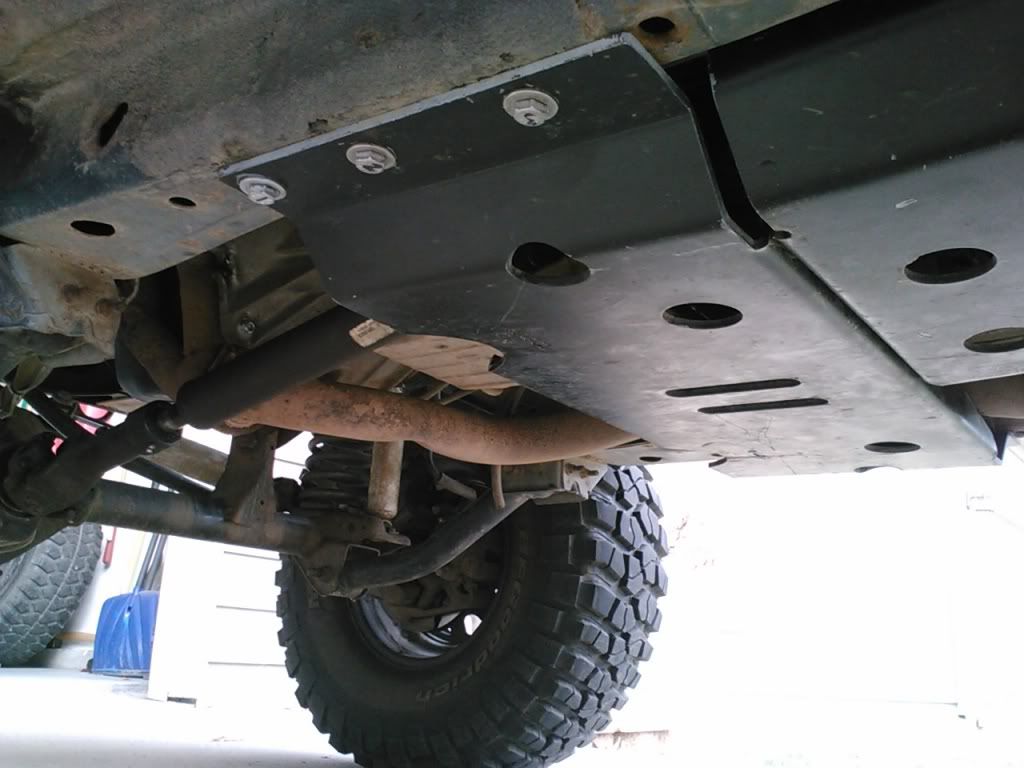

So - I called TnT Customs this morning and found out I have an older model bellypan on a newer model XJ. Which is why the tranny mount bolt holes on the pan are offset to the driver side and the bolts on the old mount are centered. I made a call to O'Reilly's and had a '99 XJ transmission mount waiting for me to pick up.

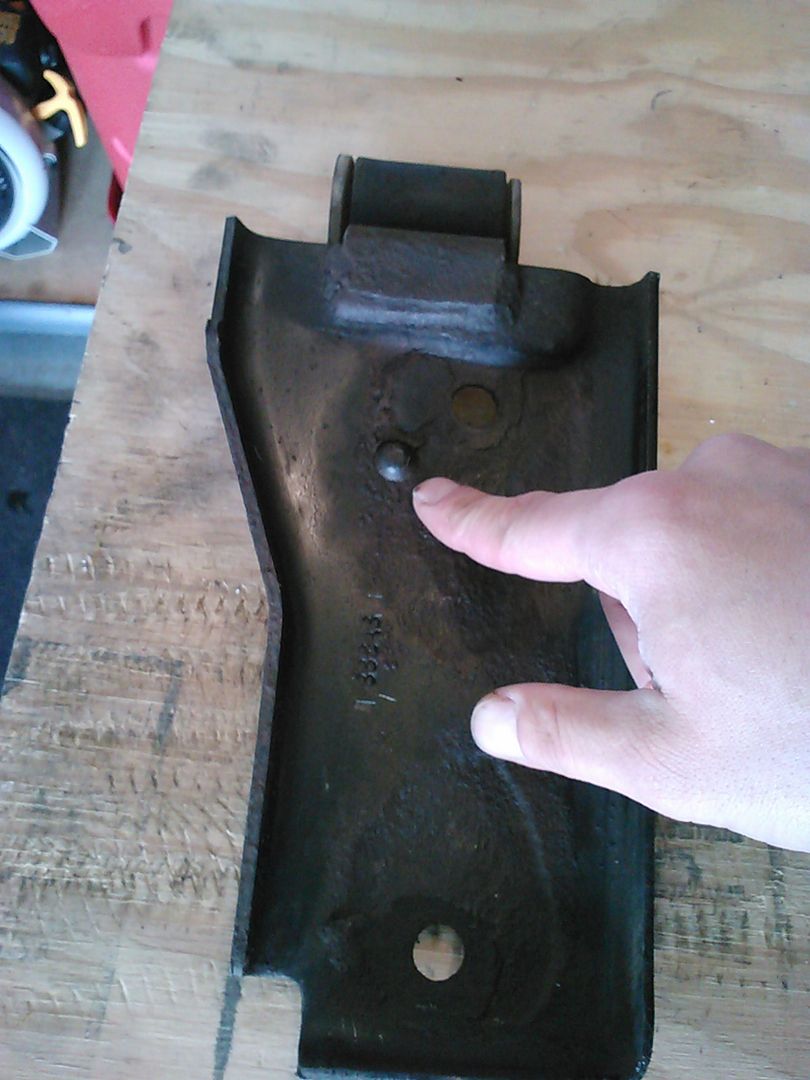

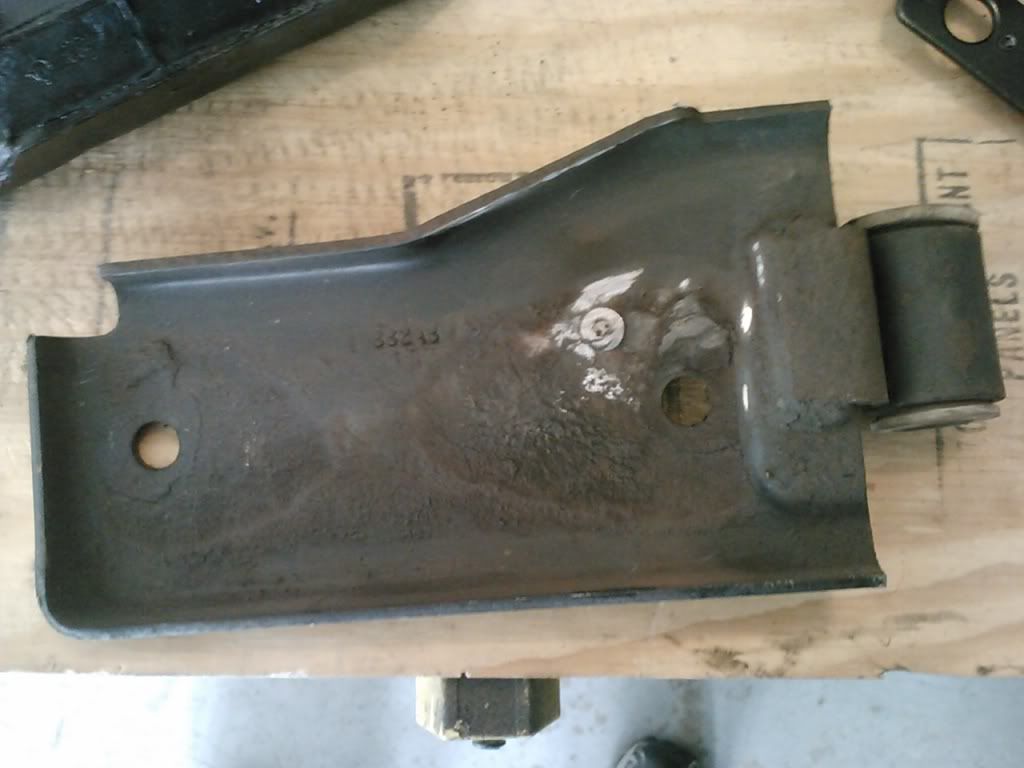

Here is the difference:



The bolt holes to mount this to the transmission are the exact same and the only modification I needed to do was grind the alignment bump down on the exhaust hanger bracket that goes between the mount and the transmission:




Before I went any further with the t-mount/bellypan I went ahead and swapped in the new-to-me front shaft:

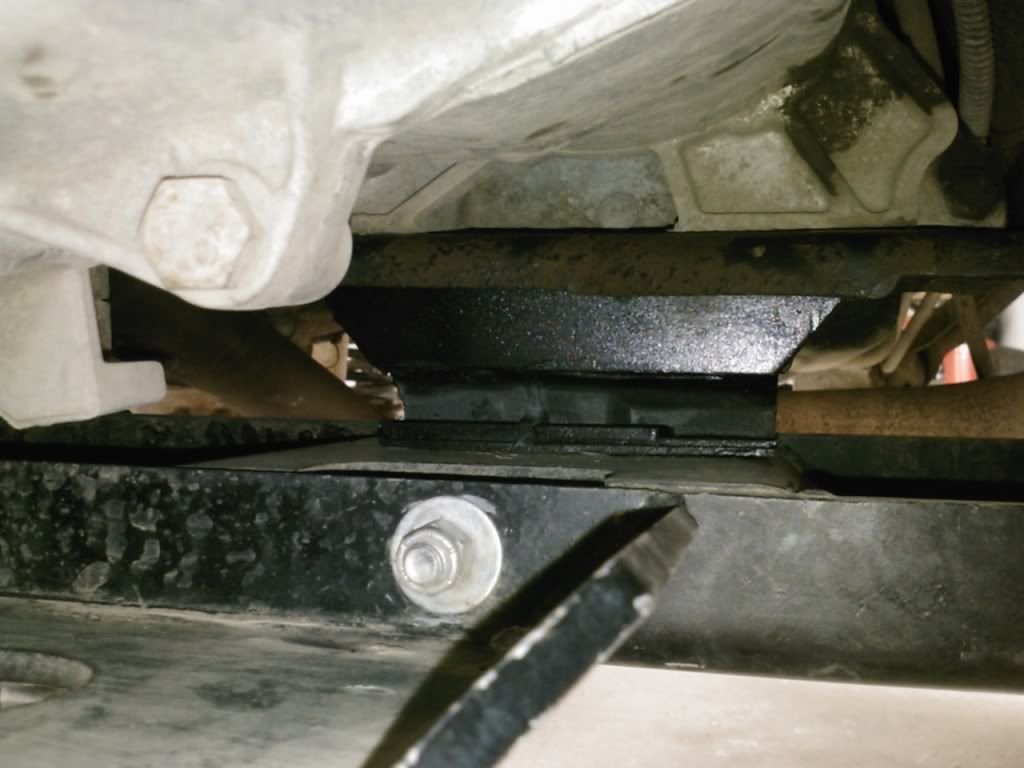

Then I put the new trans mount in with some blue locktite on the 2 mounting bolts:



With everything put back together I took it around the block some for a test spin:




A night and day difference. No more random, violent vibes/thumping/popping

I'm hoping to upgrade my steering next with a Crown HD linkage assembly. Hopefully sooner than later as I have quite a bit of play in the TRE/pitman arm joint - until next time.....................

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
post #156 of 647 Old 10-29-2012, 07:07 PM
Camfam07
Registered User
1996 XJ Cherokee

Join Date: Jan 2012
Location: Tulsa
Posts: 851
is that Trans mount easy to replace?? I have been chasing down vibes for a few weeks and when I get under the heep I can push up on the TC and I notice little play in the tranny mount... I thought this could cause vibe's and I think you have confirmed that my friend! doesnt look like it took too much to replace that mount..
Camfam07 is offline
post #157 of 647 Old 10-29-2012, 09:25 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
^^^The trans mount itself is nothing - two bolts. The only reason mine was somewhat a PITA is the heavy@ss bellypan. It replaces the factory crossmember and isn't exactly an easy one-man job to pull off and put back on. But the transmission mount is as easy as it gets. Once you get the 4 trans/crossmember nuts off (13mm) then pull the crossmember (factory is two bolts per side). The trans mount is just two bolts. They are locktite blue from the factory so I used my airgun instead of messing with my breaker bar. Put the new one up and locktite it in. Easy cheezy

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
post #158 of 647 Old 10-29-2012, 09:40 PM
straightsixjeep
Registered User
1998 XJ Cherokee

Join Date: Jan 2012
Location: ks
Posts: 2,083
Good pictures, jealous of your belly skids. A friend just gave me a tc skid off his 85' cherokee but it unfortunately doesnt fit my 98'. I read online that the trans mount to crossmember nuts are to be torqued to 35ft lb. Dont torque them, it snapped a stud right off mine. Just put a 13mm socket on a decent sized ratchet and get them tight, dont over do it. Make sure the trans is supported before pulling that crossmember!
straightsixjeep is offline
post #159 of 647 Old 10-29-2012, 09:50 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Quote:
Originally Posted by straightsixjeep View Post
Good pictures, jealous of your belly skids. A friend just gave me a tc skid off his 85' cherokee but it unfortunately doesnt fit my 98'. I read online that the trans mount to crossmember nuts are to be torqued to 35ft lb. Dont torque them, it snapped a stud right off mine. Just put a 13mm socket on a decent sized ratchet and get them tight, dont over do it. Make sure the trans is supported before pulling that crossmember!
I got the bellypan off a guy in Lee's Summit via KCJC for a great price. It had never been installed but I got it for much less than they go for new. That s.o.b. is stout!

I just hand tightened the 13mm nuts but 35ft/lbs isn't very much torque anyway. I used a little 1/8" drive deepwell 13mm. I put my jack under the oil pan and a jackstand under the exhaust muffler. You have to keep enough room under the t-case/tailhousing for room to work.

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
post #160 of 647 Old 10-29-2012, 09:58 PM
straightsixjeep
Registered User
1998 XJ Cherokee

Join Date: Jan 2012
Location: ks
Posts: 2,083
Quote:
Originally Posted by JeepN4KC View Post
I got the bellypan off a guy in Lee's Summit via KCJC for a great price. It had never been installed but I got it for much less than they go for new. That s.o.b. is stout!

I just hand tightened the 13mm nuts but 35ft/lbs isn't very much torque anyway. I used a little 1/8" drive deepwell 13mm. I put my jack under the oil pan and a jackstand under the exhaust muffler. You have to keep enough room under the t-case/tailhousing for room to work.
It didnt seem like it was to much torque until I heard "snap." I had just bolted the crossmember to the frame/unibody and was tightening the final mount nut, then the nut/stud fell inside the crossmember and I had to remove it again to replace the mount! Who makes that skid if you dont mind me asking? I saw a rustys oil pan/trans skid on CL a month or so back, seemed like you had to drill quite a few holes in the frame which Im trying to stay away from. I have a teraflex oil pan skid that bolts to the bottom of my ax15 bellhousing, Im searching for a gas tank skid. I already put a gouge in my gas tank, and the first time wheeling my wrangler at ks rocks I cracked its fuel tank.
straightsixjeep is offline
post #161 of 647 Old 10-29-2012, 10:35 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
^^^ TnT Customs HD bellypan. THE best around IMO.

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
post #162 of 647 Old 10-31-2012, 06:17 PM
Camfam07
Registered User
1996 XJ Cherokee

Join Date: Jan 2012
Location: Tulsa
Posts: 851
Thanks a bunch for that info since its so easy and cheap I mean I might as well ive replaced everything else on my own just never even thought about doing the TRANS MOUNT, ill get that swapped out thanks! appreciate all the details also, I might not have supported the tranny up, lol that is something one would need to know im sure!
Camfam07 is offline
post #163 of 647 Old 11-01-2012, 05:01 PM
dukie564
Web Wheeler

dukie564's Avatar
1995 XJ Cherokee

Join Date: Jun 2008
Location: Aberdeen
Posts: 2,832
Quote:
Originally Posted by jakesjeepmj1988 View Post
How about my pumpkin?
nice!

This was mine from last year

1995 XJ Cherokee Sport
4.5" Homebrew Lift, 4.0L HO I-6, AX-15, NP231, D30(Open)/C8.25(Locked)
33x12.5 Mickey Thompson Baja MTZ Tires, 309,000 mi and runnin' strong

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dukie564 is offline
post #164 of 647 Old 11-01-2012, 07:07 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
^^^Now that is some nice carving!

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
post #165 of 647 Old 11-01-2012, 07:29 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Went to PicknPull and a local metal shop today. I was lookin for a fan shroud but no luck. I wasn't leaving empty handed so I wrenched off a fan cluth from a '98 4.0 ZJ. Then picked up a couple 1x2x5 flatbar "blocks" and some 1.5 square tube (.125 walls).

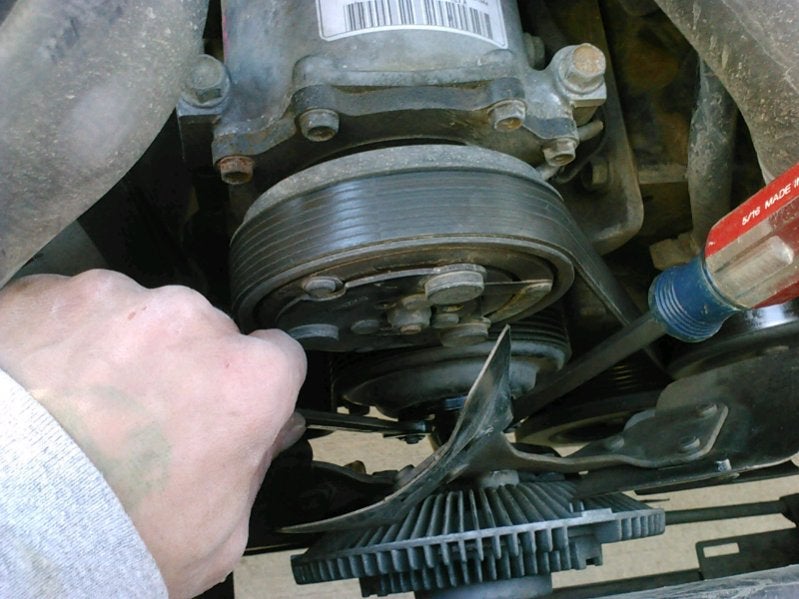

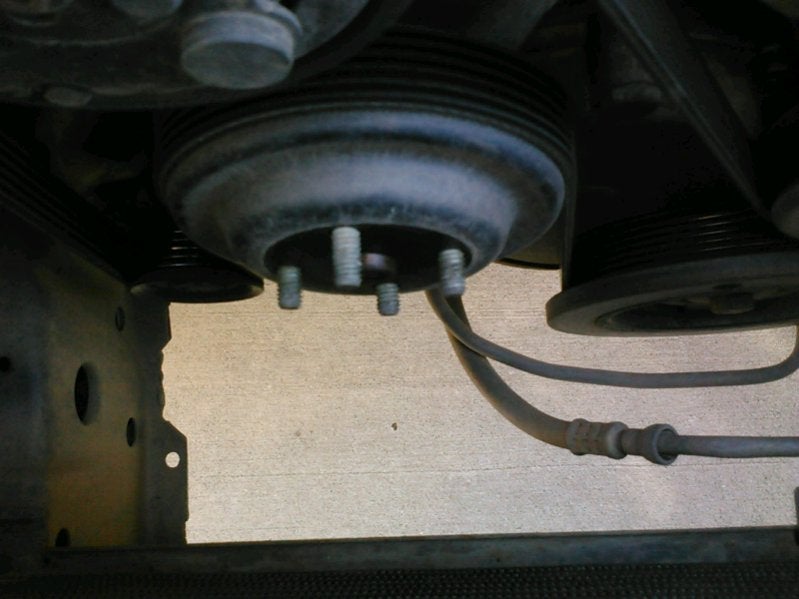

The fan clutch swap is cake. First pull the old assembly off by removing the four 1/2" nuts at the pulley:



Then remove the four 13mm bolts to separate the clutch from the fan:



The two side by side:








Then bolt the ZJ clutch to the fan:




Then bolt the new-to-me assembly back on:



And viola - a simple, cheap "upgrade" that is direct fit with nothing else needed:




The clutch ran me $16 and the steel $11 - so all in I got the makings of 3 mods for under 30 bucks. The blocks and square tube are for something I hope to get to in the next week so I'll see how things go and update when updates are made.

Until next time........................

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is online now
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.



Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Similar Threads
Thread Thread Starter Jeep Forums Replies Last Post
1992 Jeep Build (Bocephus) My first jeep TimHaw XJ/MJ Cherokee Non-Technical Forum 6 01-28-2012 03:57 PM
my DD jeep build teamskiawa XJ/MJ Cherokee Non-Technical Forum 7 02-17-2010 09:36 PM
The Jeep Jeep's Build Thread bigern26 XJ Cherokee Technical Forum 18 06-25-2008 12:03 AM
Jeep Build Tlong80 XJ Cherokee Technical Forum 2 10-24-2007 09:26 PM
'New' Jeep XJ..........Got the build bug! TwistedXJ XJ Cherokee Technical Forum 3 02-25-2007 09:47 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
