hand bulit 88xj...no bolt ons.

well, i have been playng in the garage for some time now, and the build is almost complete. So i thought i would share some pics of the builds progression. Its not the prettiest thing around, but i build everythng myself, in my garage using minimal tooling.

specs for the build.
long arms
shackle relocation
rock rails
hybrid exo
bunch of non-sense..lol

on with the pics, hope you guys like.

started with a well worn out 88 4.0 231 i picked up for 600 bucks.

cut the doors of(made removeable)

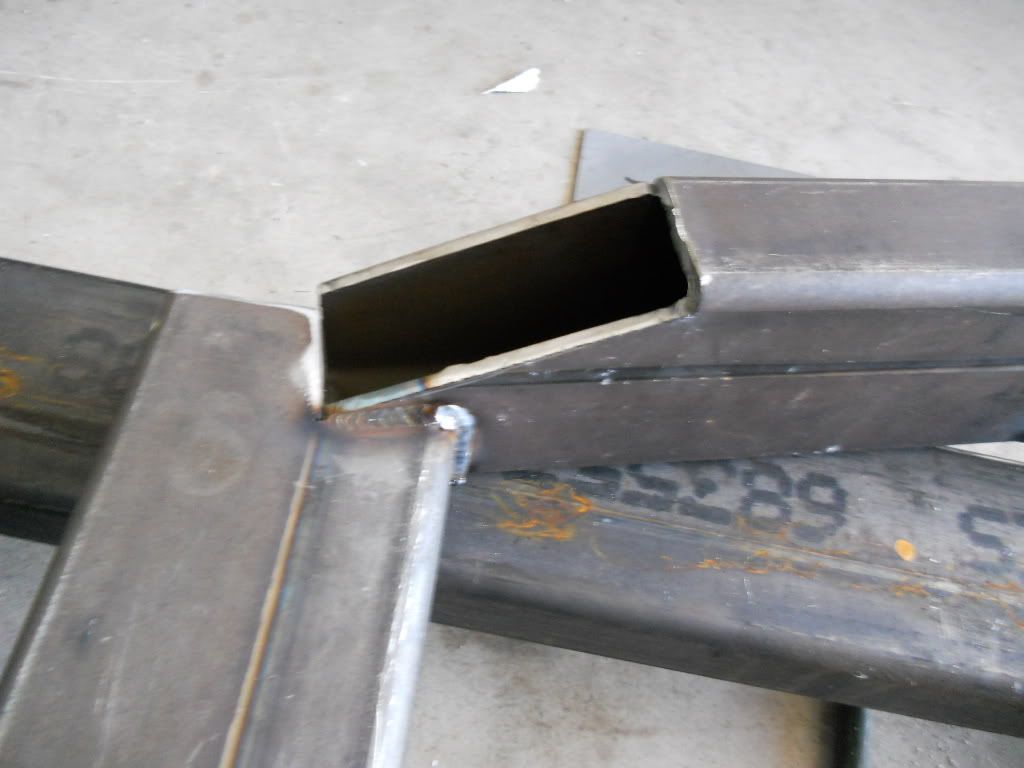

picked up some tube for the rock sliders. 2x4 .188 wall.



then got busy cuttng out the rockers for the rock sliders.



domaas is offline   Reply With Quote
Unread 07-01-2013, 12:06 AM   #2
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37
burned them in with this.





then swapped out the idiot cluster

for this upgraded cluster
domaas is offline   Reply With Quote
Unread 07-01-2013, 12:14 AM   #3
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37

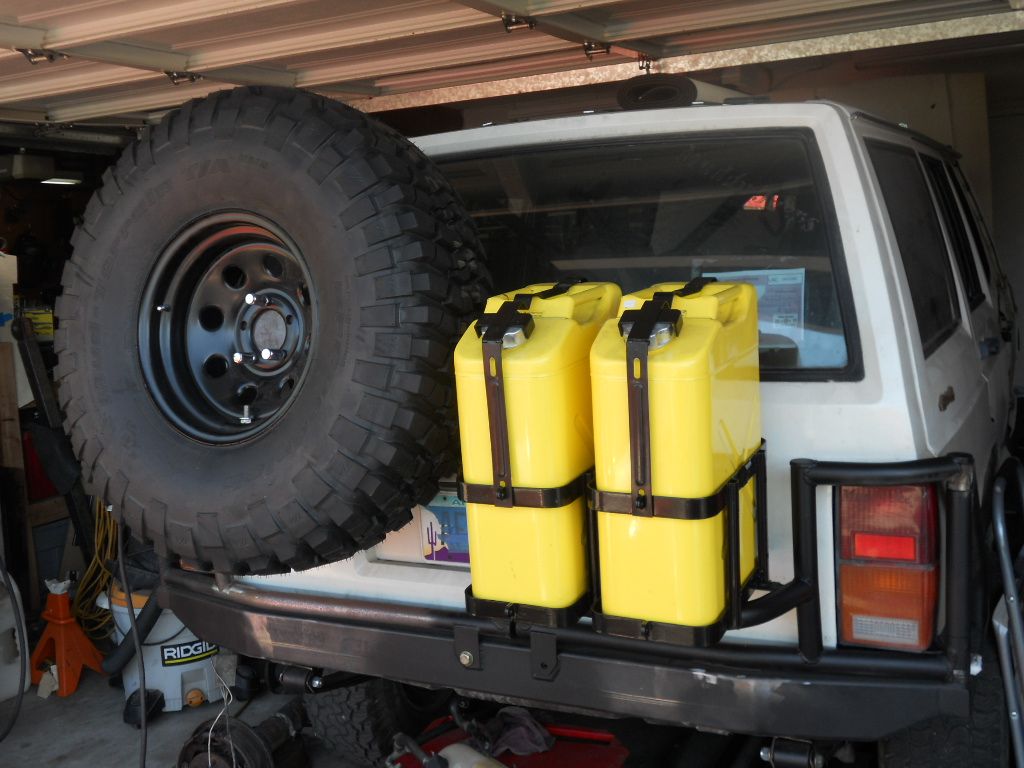

pulled the rear bumper, to fab up a new bumper,tire carrier, fuel can rack.

making the bumper.

had to cut and fold the rear quarters to clear the new bumper.
domaas is offline   Reply With Quote
Unread 07-01-2013, 12:20 AM   #4
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37
test fitting the new bumper.

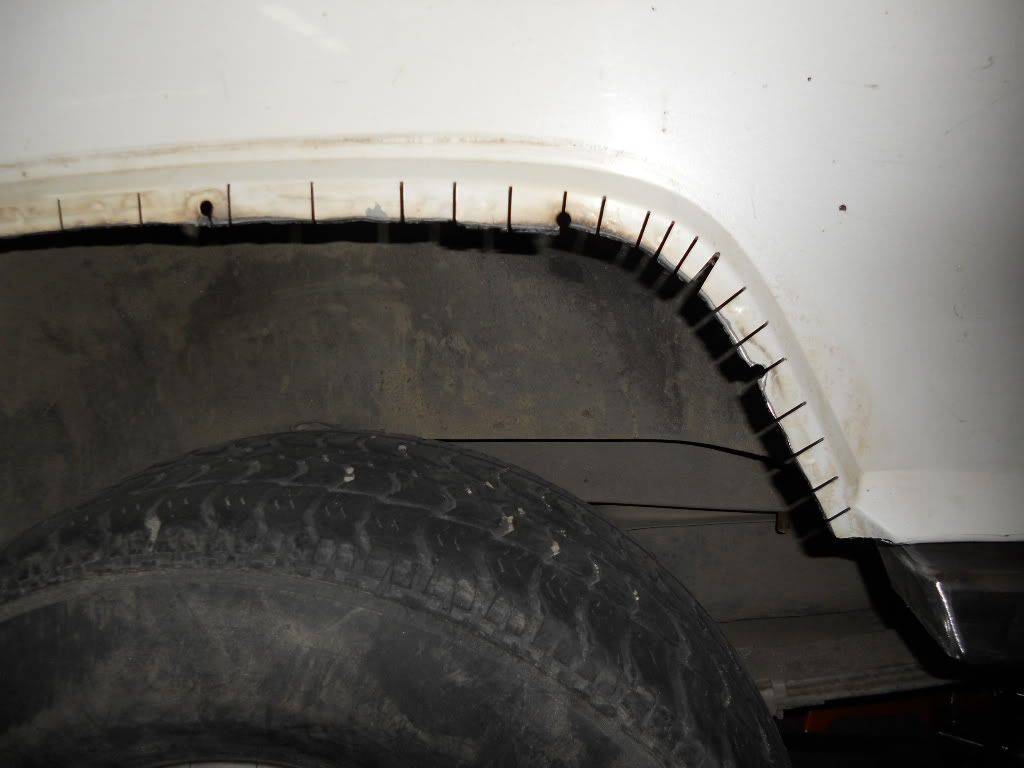

started to trim the rear fenders as well.

rockers and fender triming done.

domaas is offline   Reply With Quote
Unread 07-01-2013, 12:24 AM   #5
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37

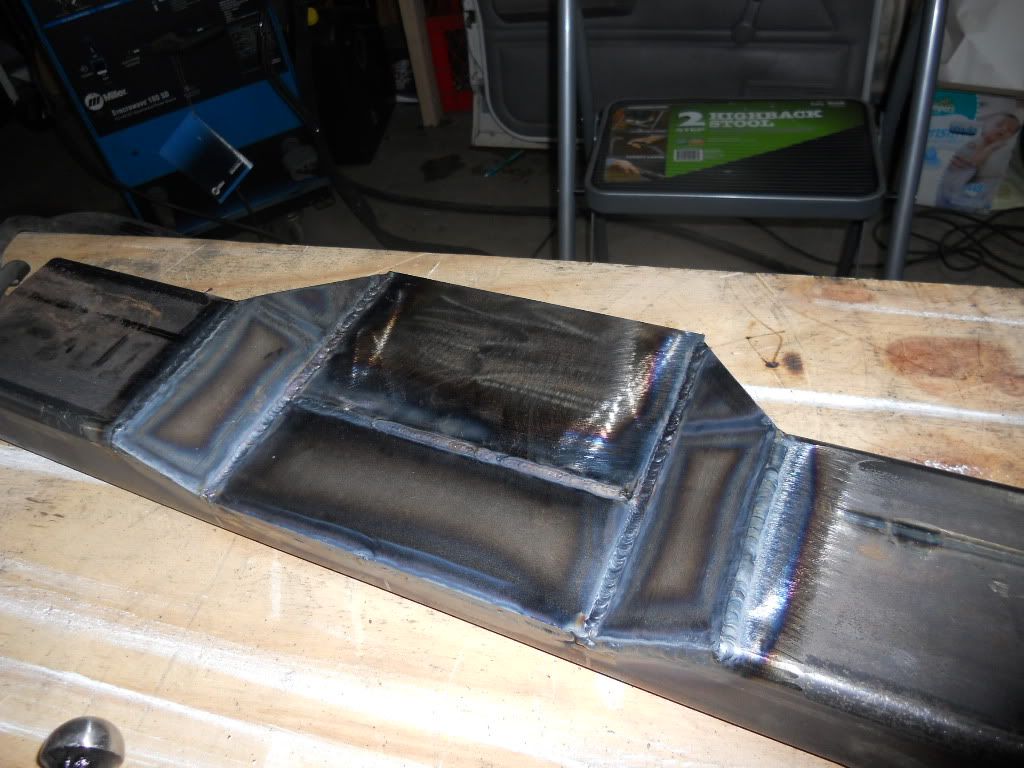

welded up the crossmember for the long arms.

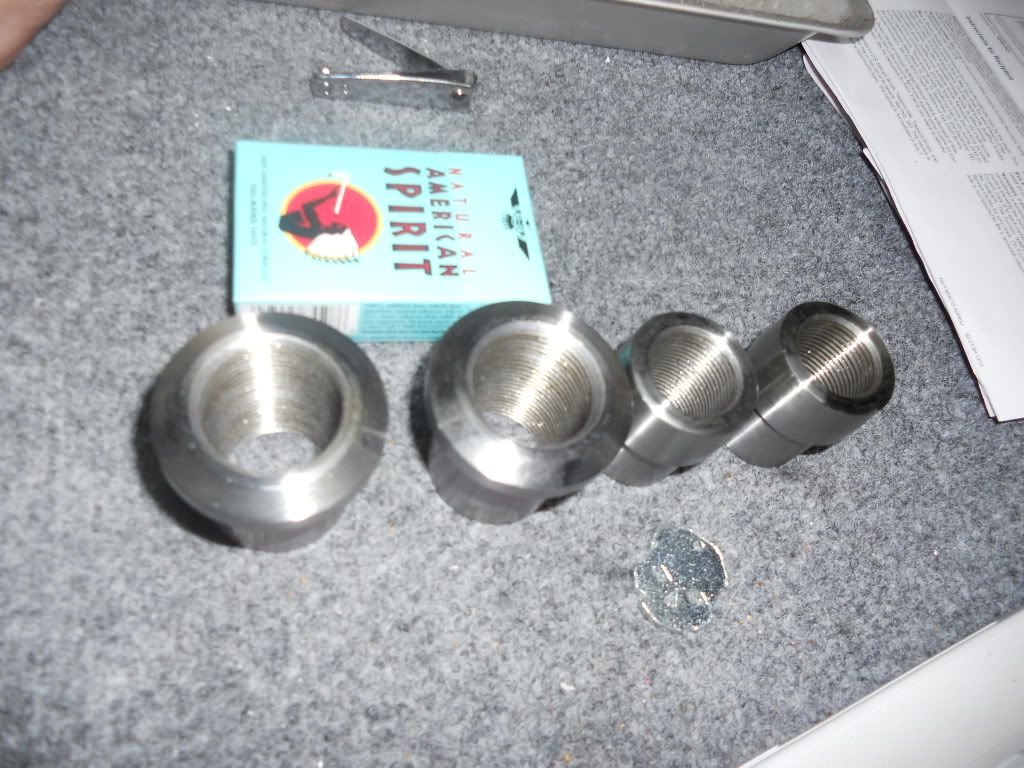

got my weld in inserts from ruff stuff.

also picked up this 8.8 from craigslist for 70 bucks, (i know,its got drums...but it was cheap!!!)
domaas is offline   Reply With Quote
Unread 07-01-2013, 12:29 AM   #6
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37
while i was waiting for this stuff to show up

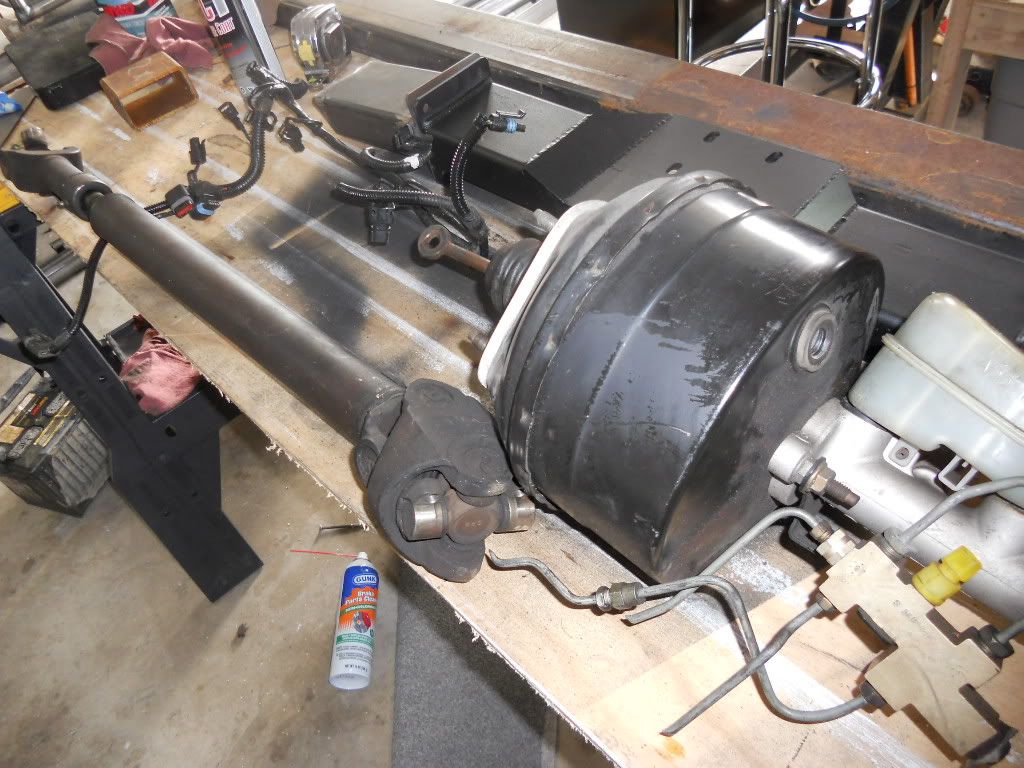

I upgraded the brake booster to the late model dual diaphram unit, and just did some maint stuff.

new intake gaskets

timming chain.
domaas is offline   Reply With Quote
Unread 07-01-2013, 12:35 AM   #7
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37

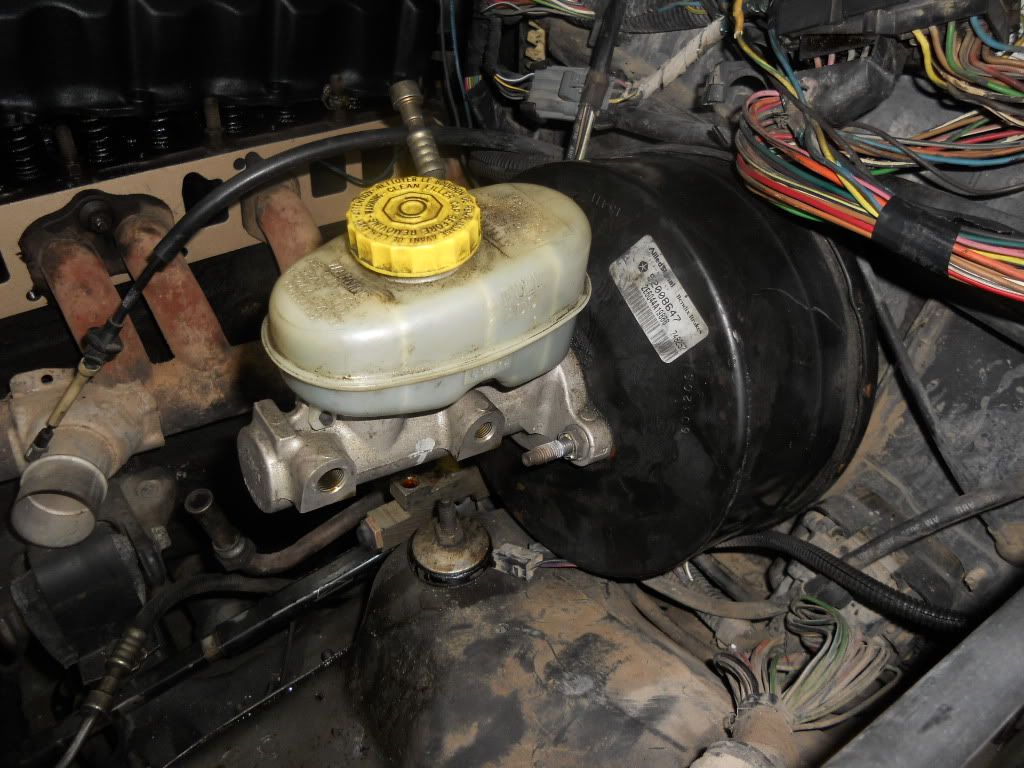

new booster installed.

new 703 injectors

tacked in the new cross member to fit the long arms, had to drop it back out and modify for driveshaft clearance.

also started plating in the frame.
domaas is offline   Reply With Quote
Unread 07-01-2013, 12:40 AM   #8
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37
built the rear shackle relocation brakets.
started with some 3/8 plate.

welded on the 3/8 cold plate, pre drilled for shackles.



test fit.
domaas is offline   Reply With Quote
Unread 07-01-2013, 12:47 AM   #9
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37

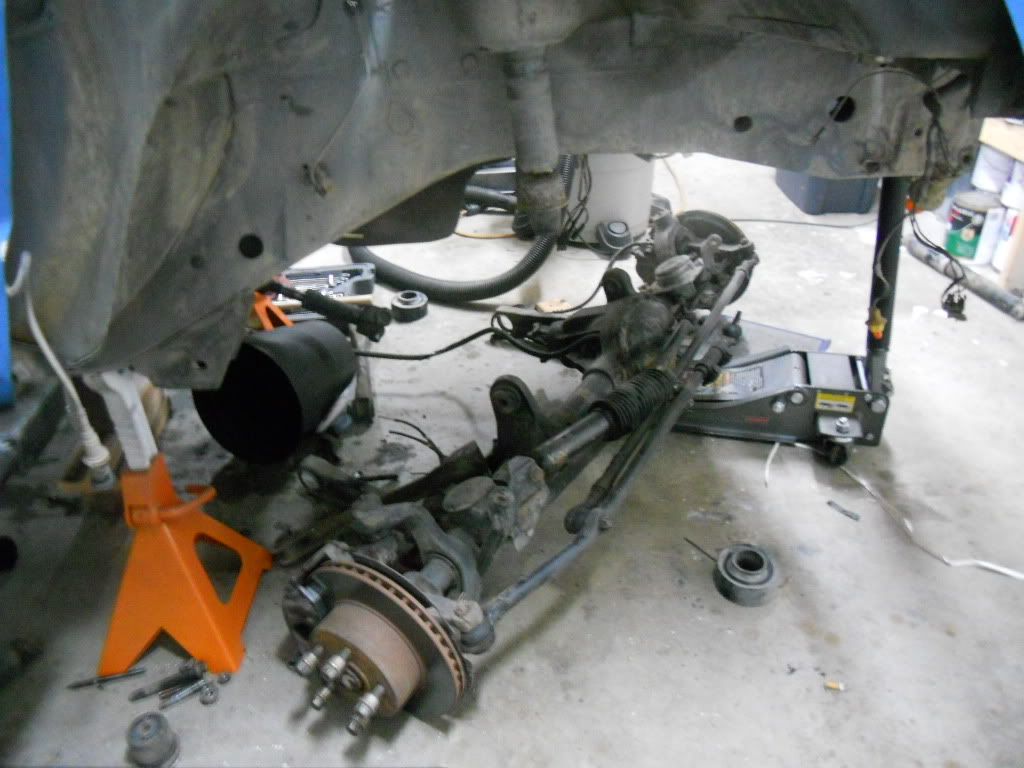

dropped out the disco d30 in for a non disco d30..it was free.

used the plasma to cut out some 3/16 gusset plates for the the axle.

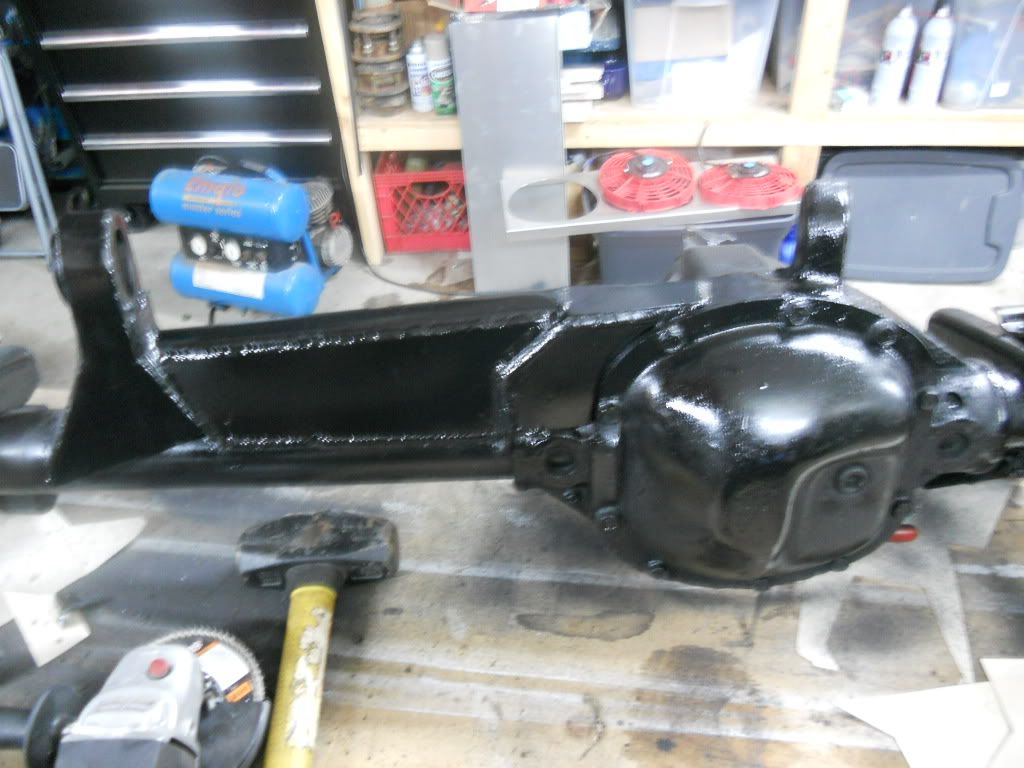

all plated up and painted

while the axle was out, i decided to cut out some frame gussets for the front. and weld them in,

domaas is offline   Reply With Quote
Unread 07-01-2013, 12:55 AM   #10
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37

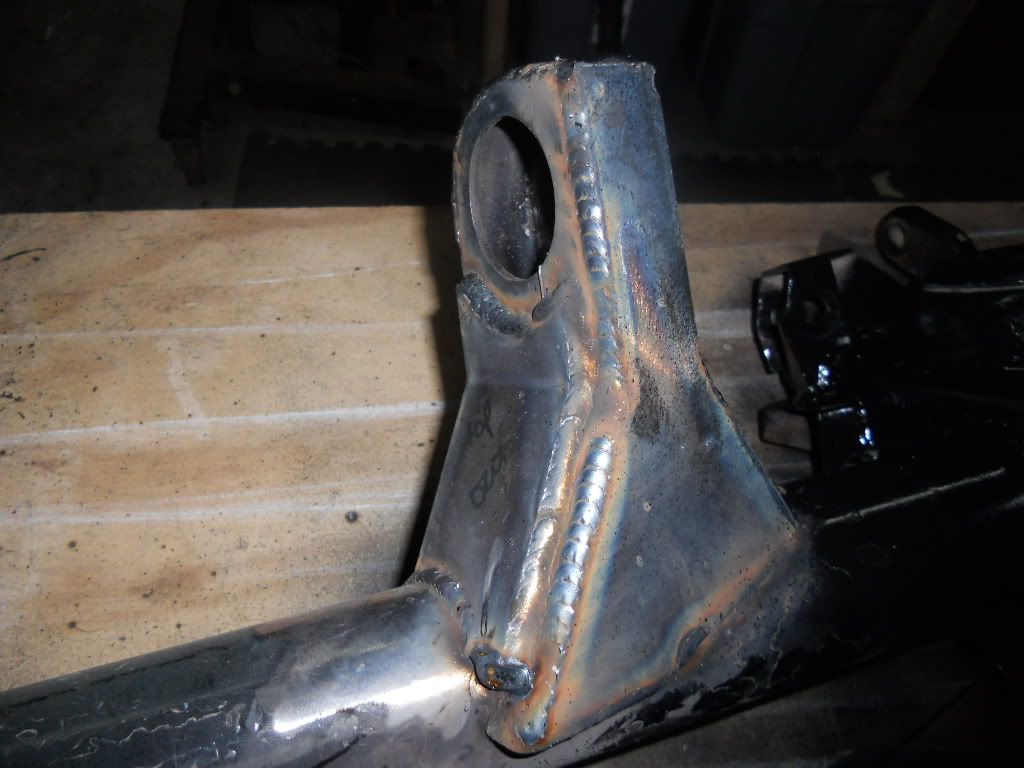

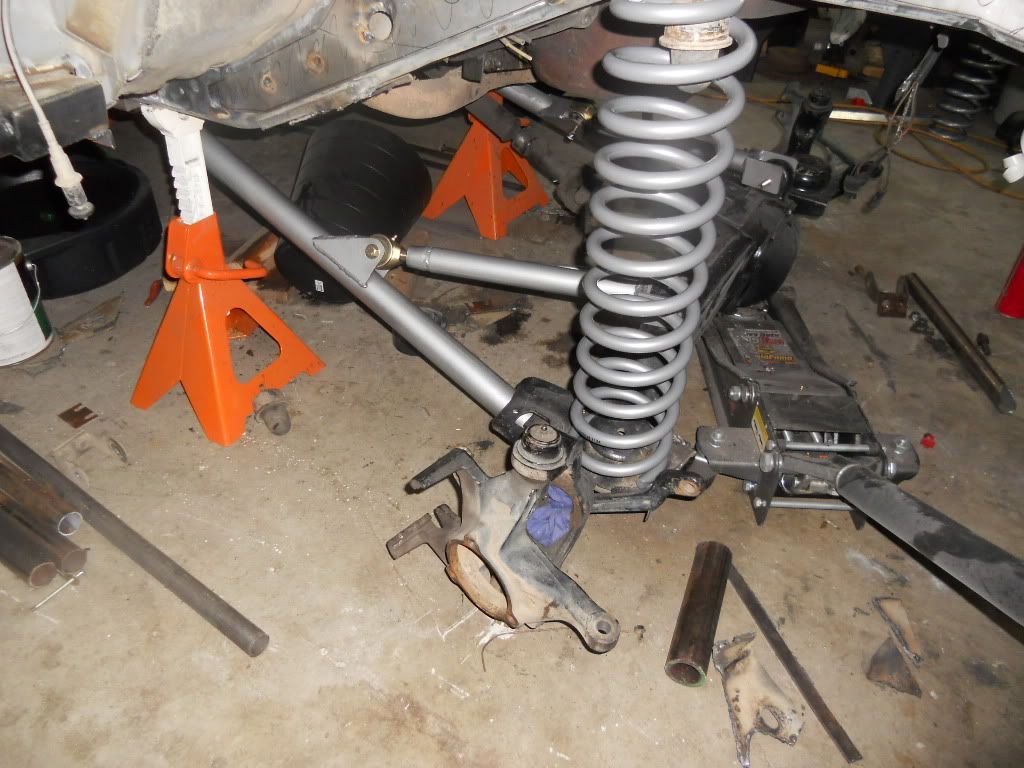

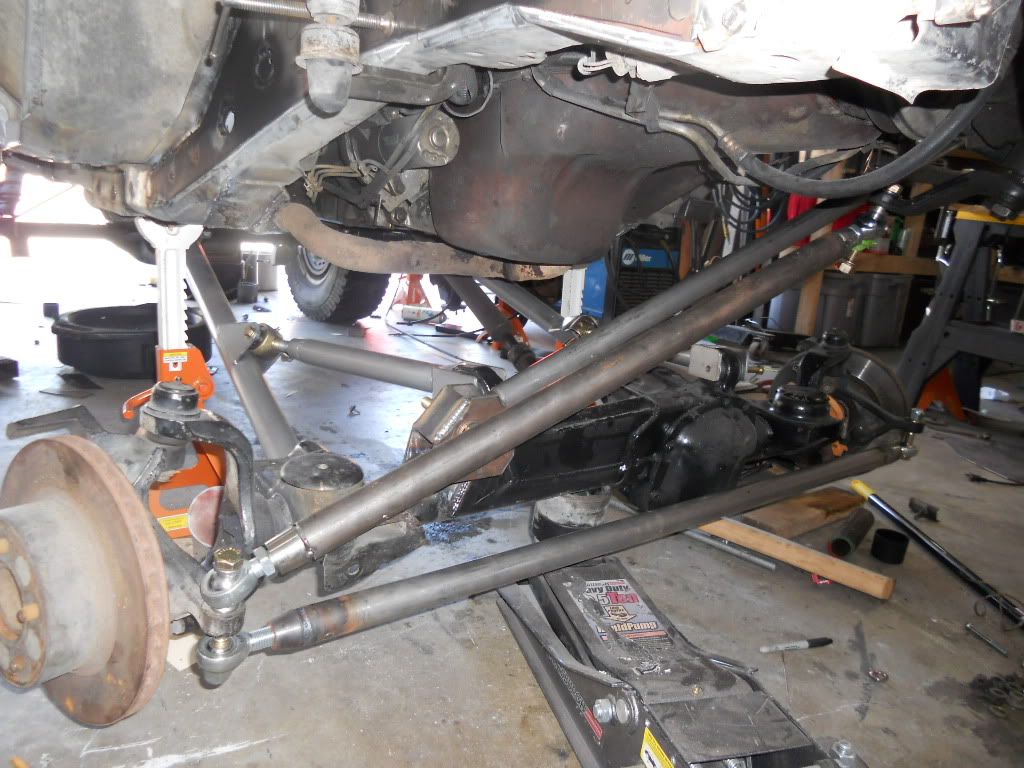

started building the long arms

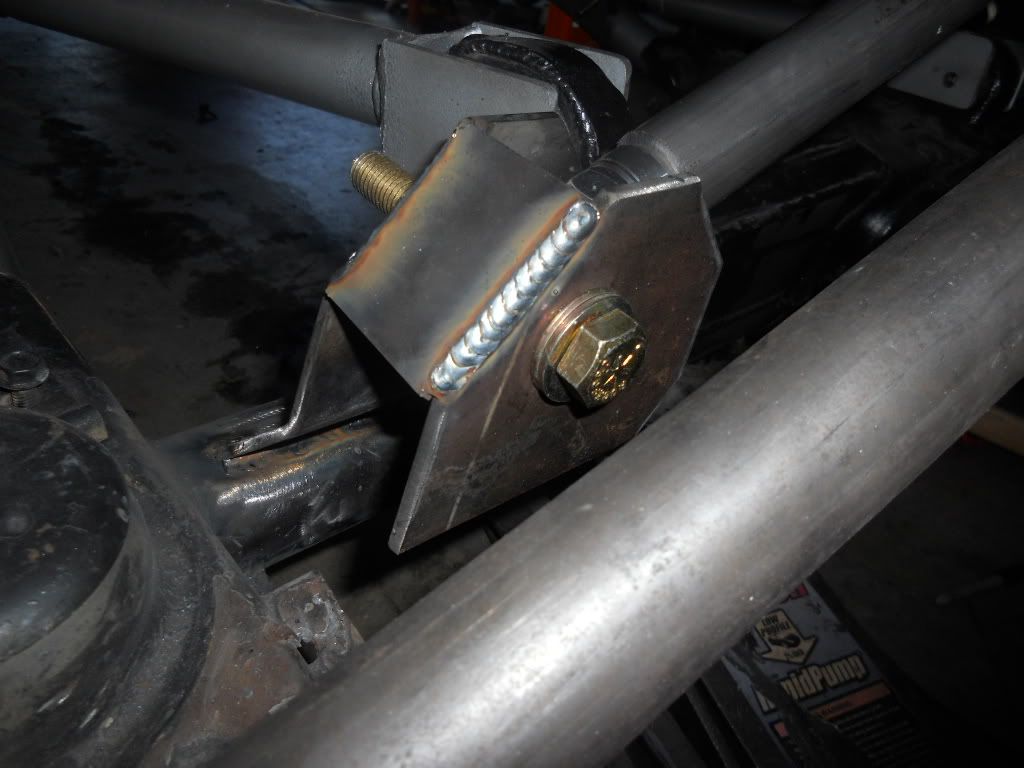

new track bar mount for the cross over steerng.

checking bump steer

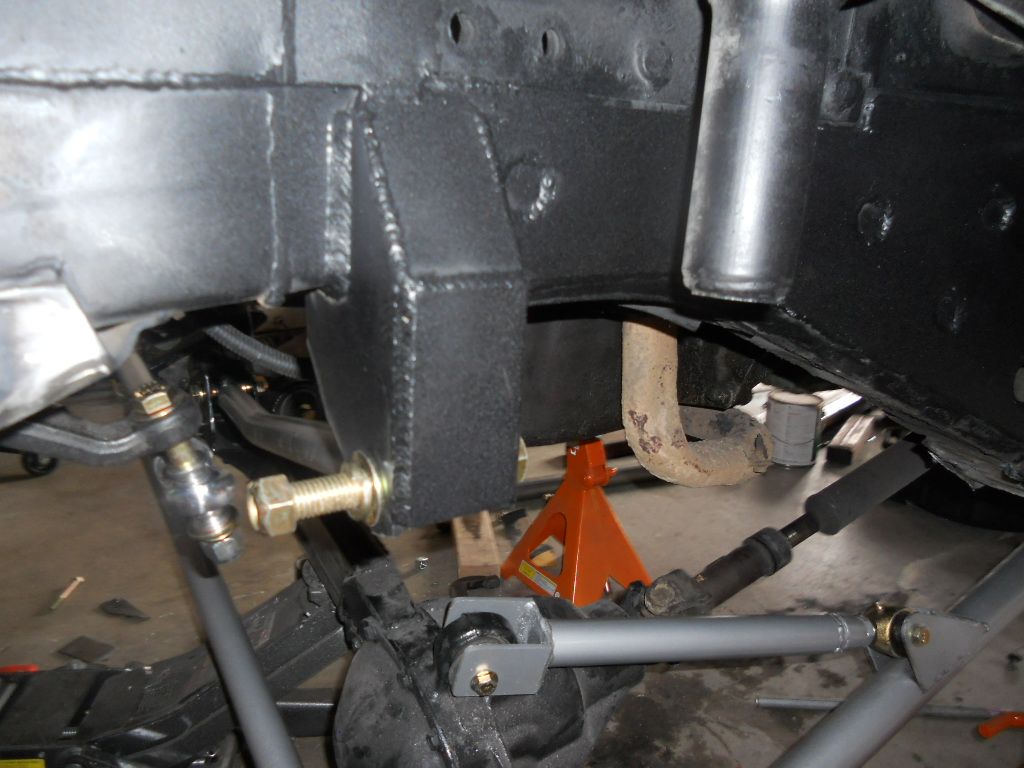

fabbed up a frame side bracket.

full compression
domaas is offline   Reply With Quote
Unread 07-01-2013, 12:58 AM   #11
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37
done for now, but will leave ya with this.
start of the cage.
domaas is offline   Reply With Quote
Unread 07-01-2013, 09:29 AM   #12
CRJEeP_wj
Registered User
2002 WJ

Join Date: Sep 2012
Location: oroville, ca
Posts: 603
Nice work. I like the cage, I may start the same project in my wj soon.
__________________
02 grand cherokee, hp60 14b, 42s. Stazwork, triangulated 4-link, rear leafs, homemade bumpers and sliders. build thread [url]http://www.jeepforum.com/forum/f197/creep-wj-tons-build-1505917/[/url]
CRJEeP_wj is offline   Reply With Quote
Unread 07-03-2013, 01:54 AM   #13
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37
built the B piller supports.



C pillar supports


B pillar supports to the tunnel.
domaas is offline   Reply With Quote
Unread 07-03-2013, 02:01 AM   #14
domaas
Registered User

Join Date: May 2013
Location: oside, ca
Posts: 37
started bending up the bars for the external part of the hybrid exo.


but had to finish the rear bumper first, its tied and sleeved into the uni body in the rear.

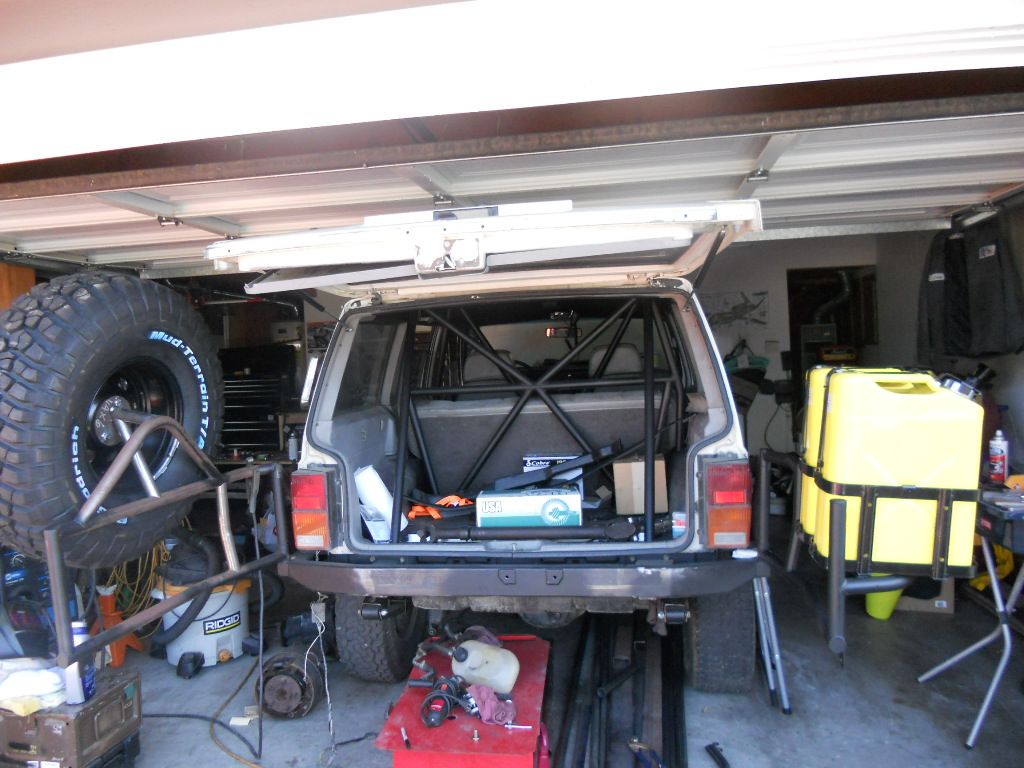

closed

open

finishing up the exo.
domaas is offline   Reply With Quote
Unread 07-03-2013, 11:43 AM   #15
AdamLC
Registered User
2003 TJ Wrangler

Join Date: Jan 2013
Location: Oklahoma City, Oklahoma
Posts: 68
Quite Impressive fabrication skills you have, looking good!
