Fabbing XJ bumpers-project OVERKILL

So i rear ended a guy that cut me off on the interstate in my GF's 99 cherokee. It is a moss green xj with stock everything. So bob, my girlfriends dad my dad and i all decided to build a new bumper for this thing. Bob went and got the steel for roughly 250 all together.

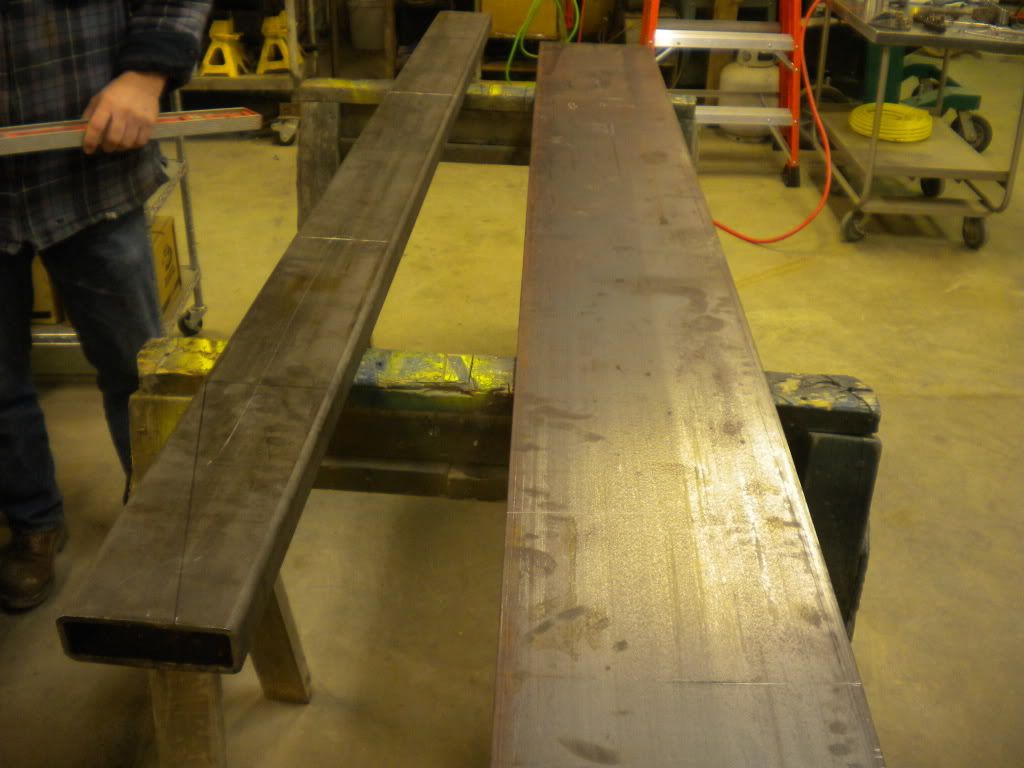

We started ou with a 8 ft piece of 2x6 in the quater inch flavor
, along with a 10 ft piece of 1/4 flat steel at 12 inches wide.

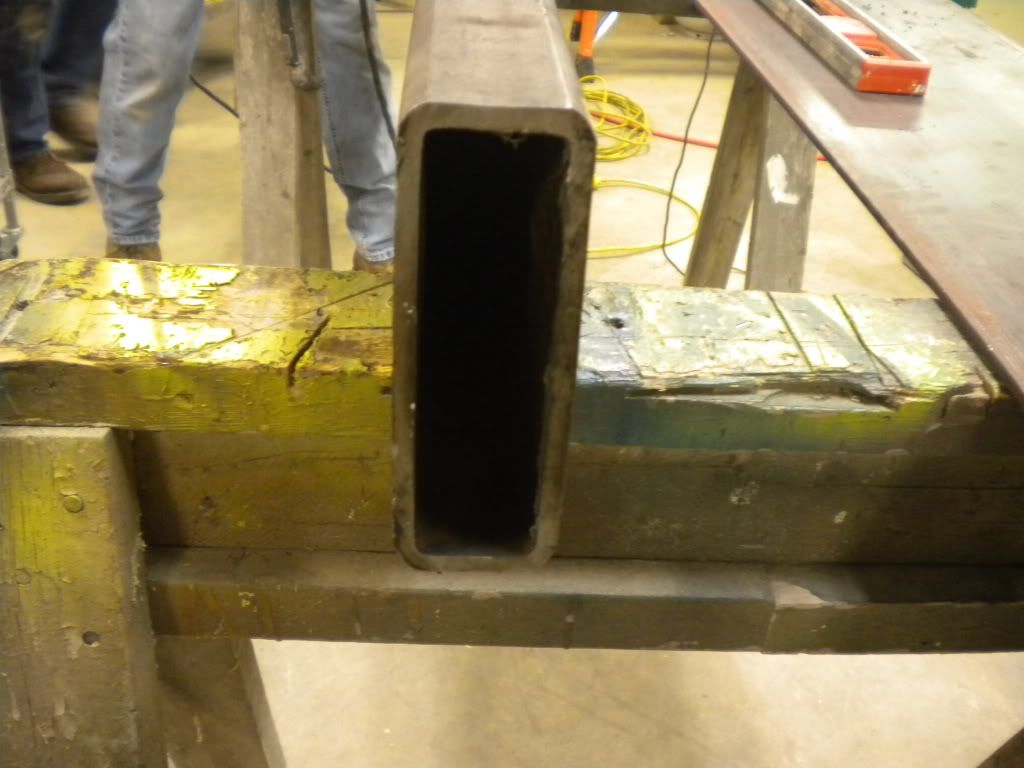

First we cut the 2x6 to roughly five foot and gave it some shape

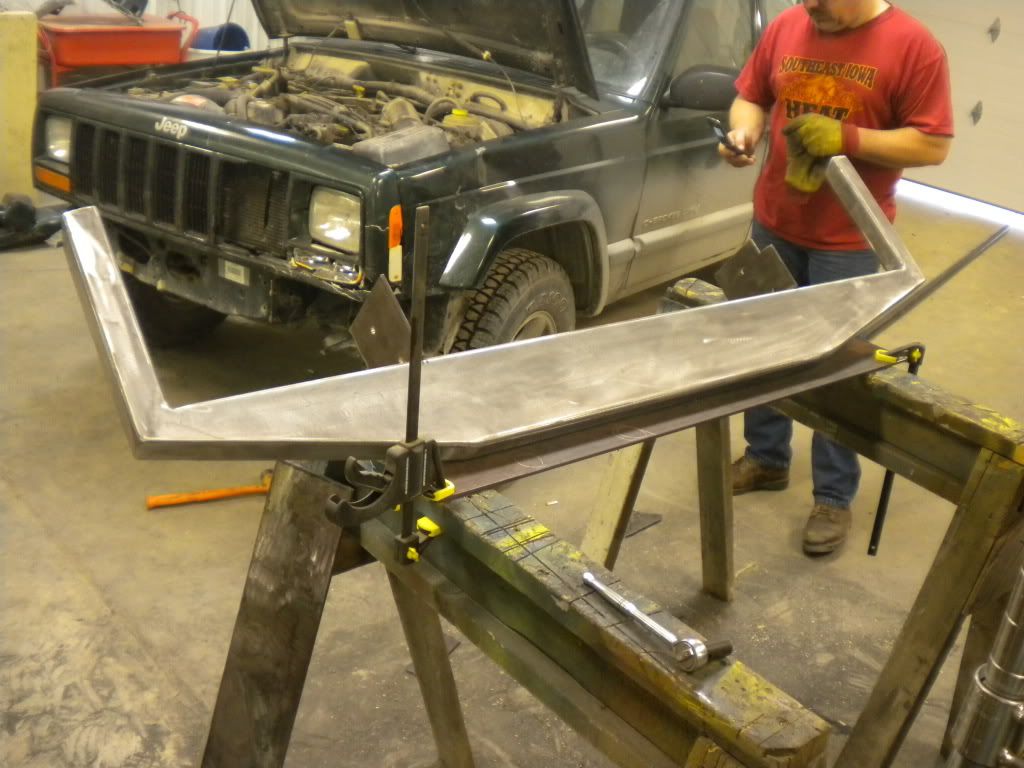

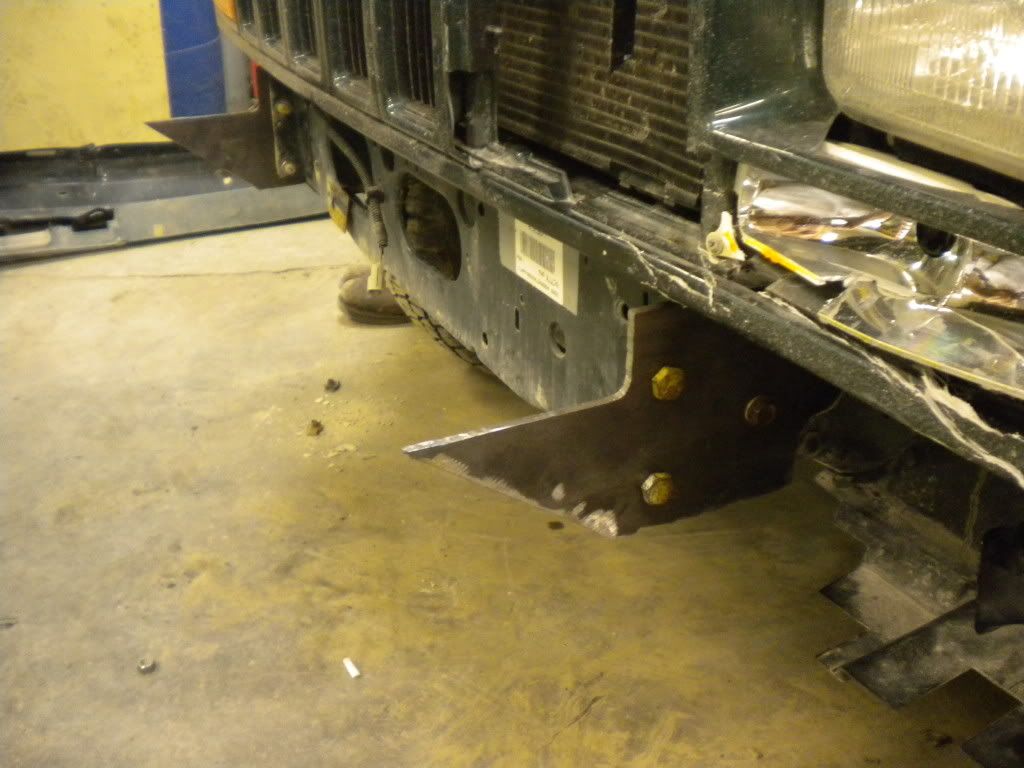

we then set it on the unibody tie ins we made.

IMG]http://i1191.photobucket.com/albums/z472/brookhart63/bumperbuild133.jpg[/IMG]

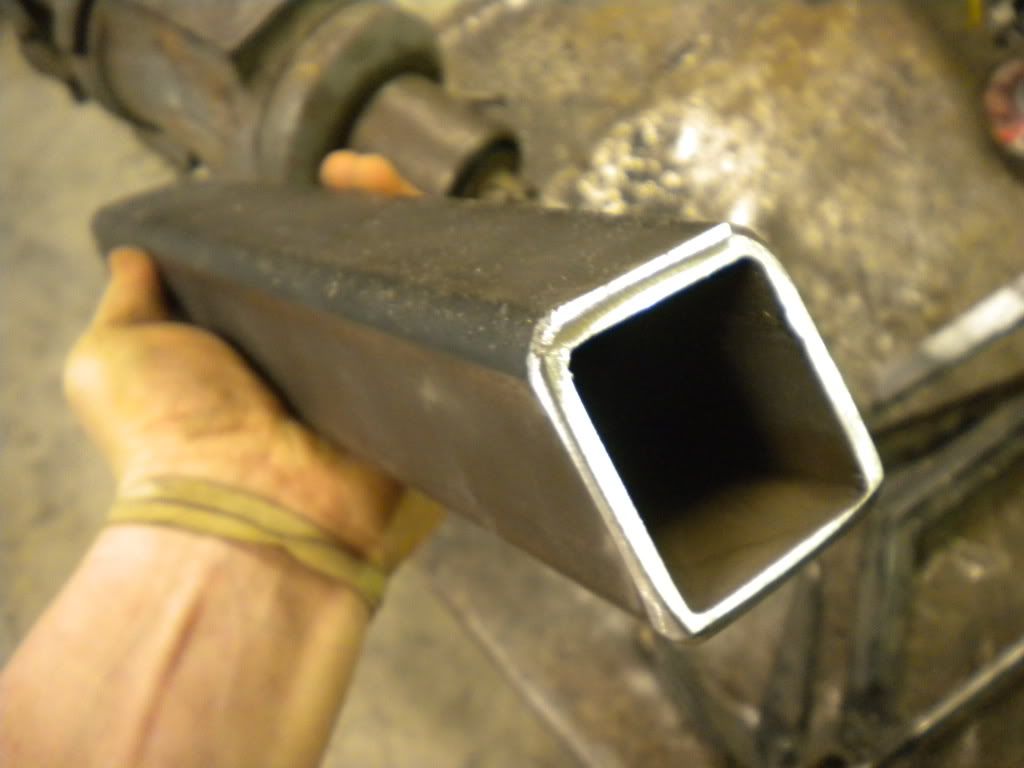

Bob also bought some 2x2 piping that we are using to go back to the factory flares

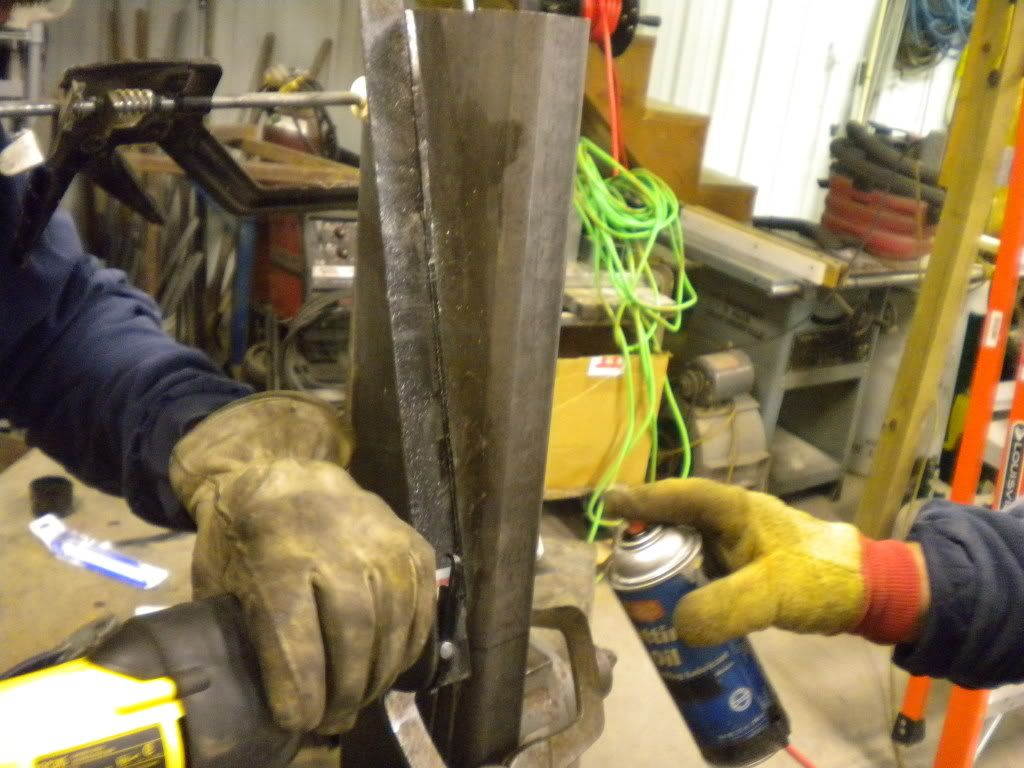

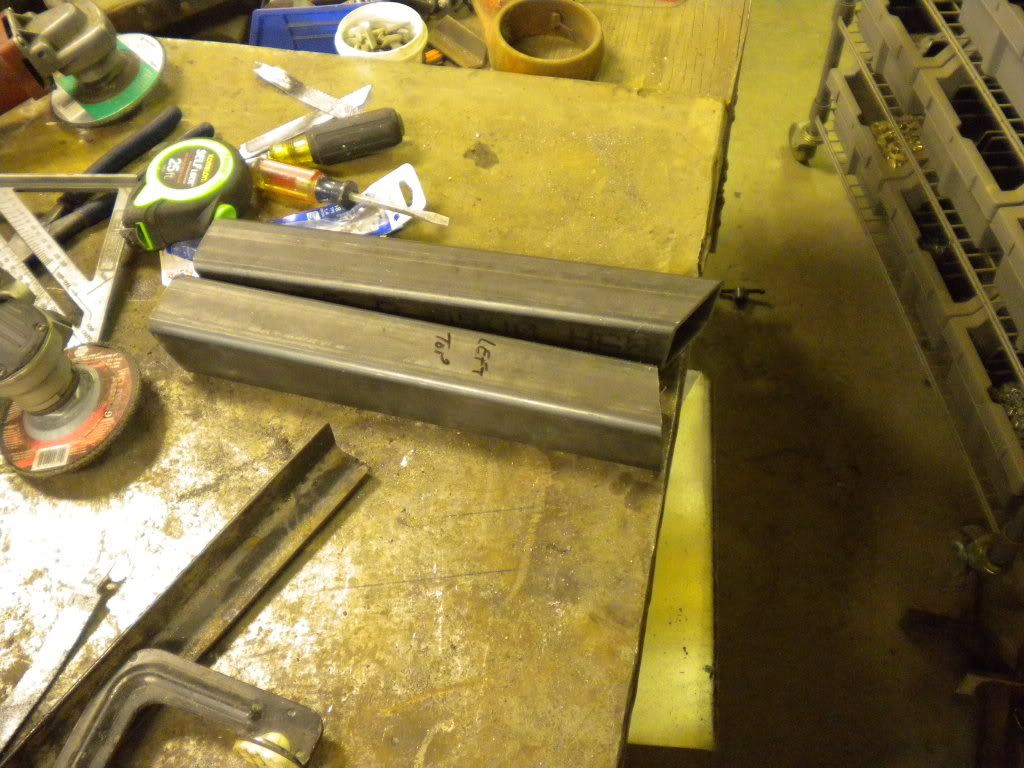

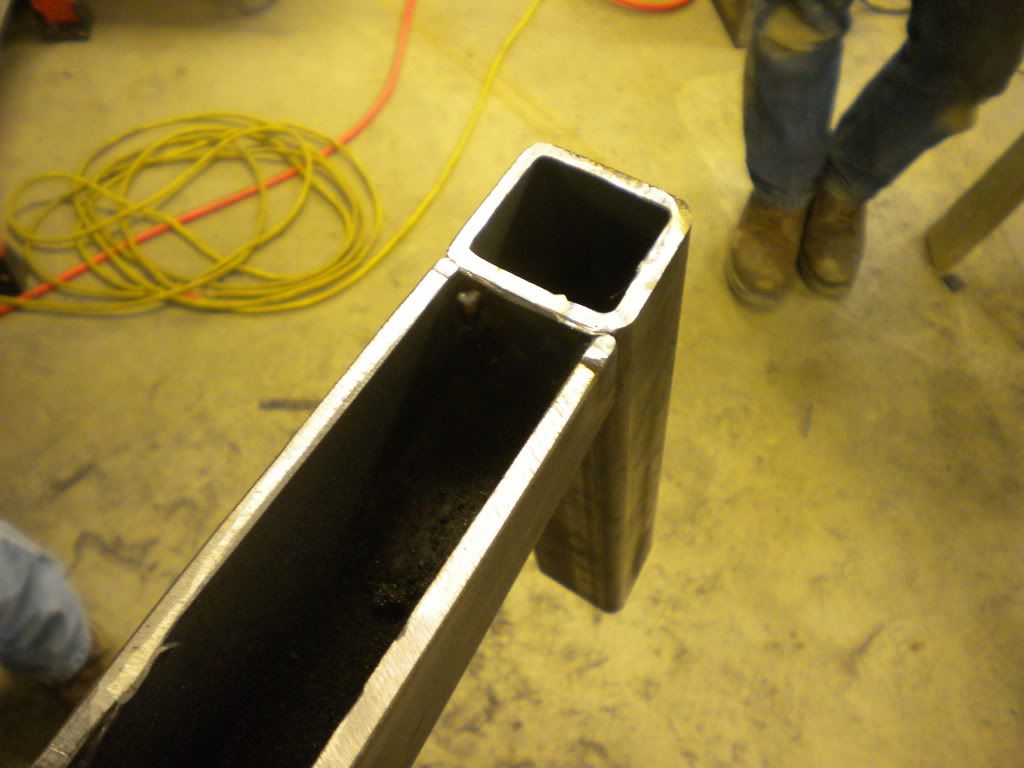

We cut those at an angle to go with the one on the 2x6 and to keep the angle of the factory flares.



We took a piece of flat steel and placed it from the start of the cut on the 2x6 to the end of the 2x2.

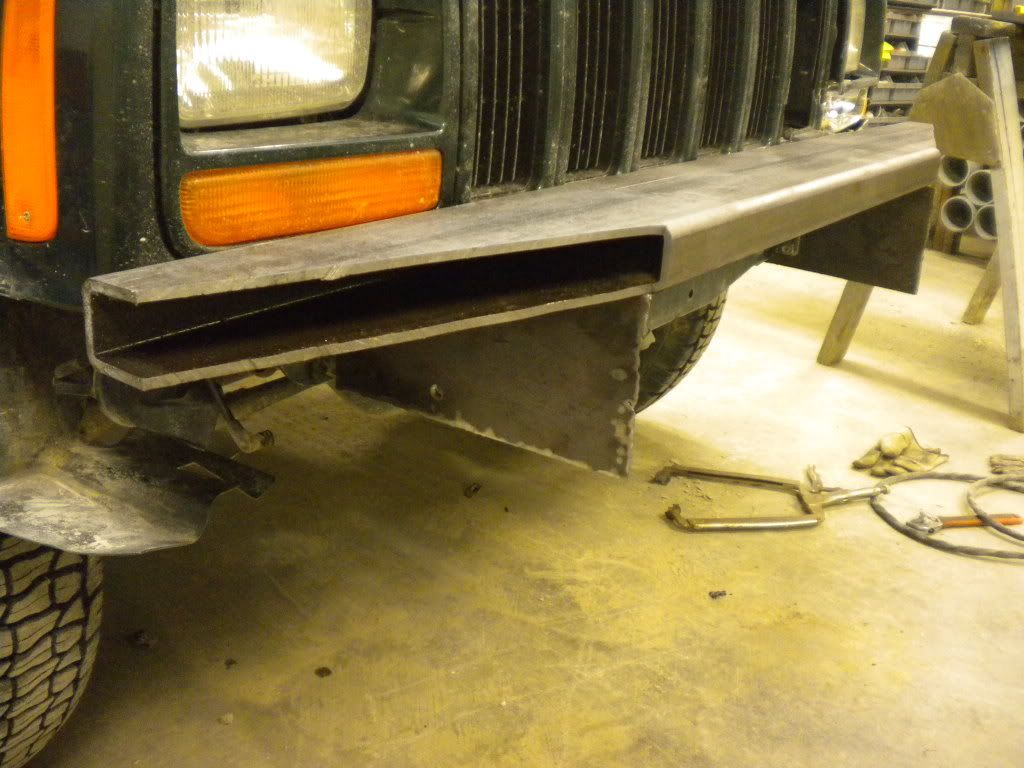

We figured ot the angle we wanted our "skirt" at and cut it into the unibody tie in mounts.

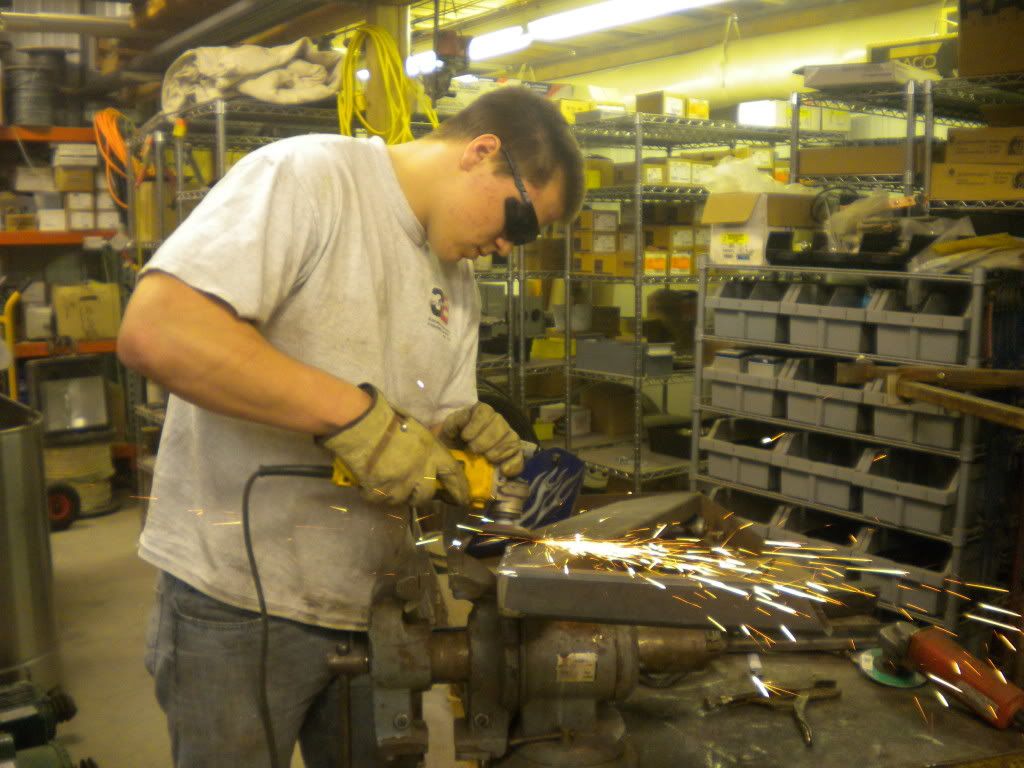

This is me doing what i did for probably 3 hours.....

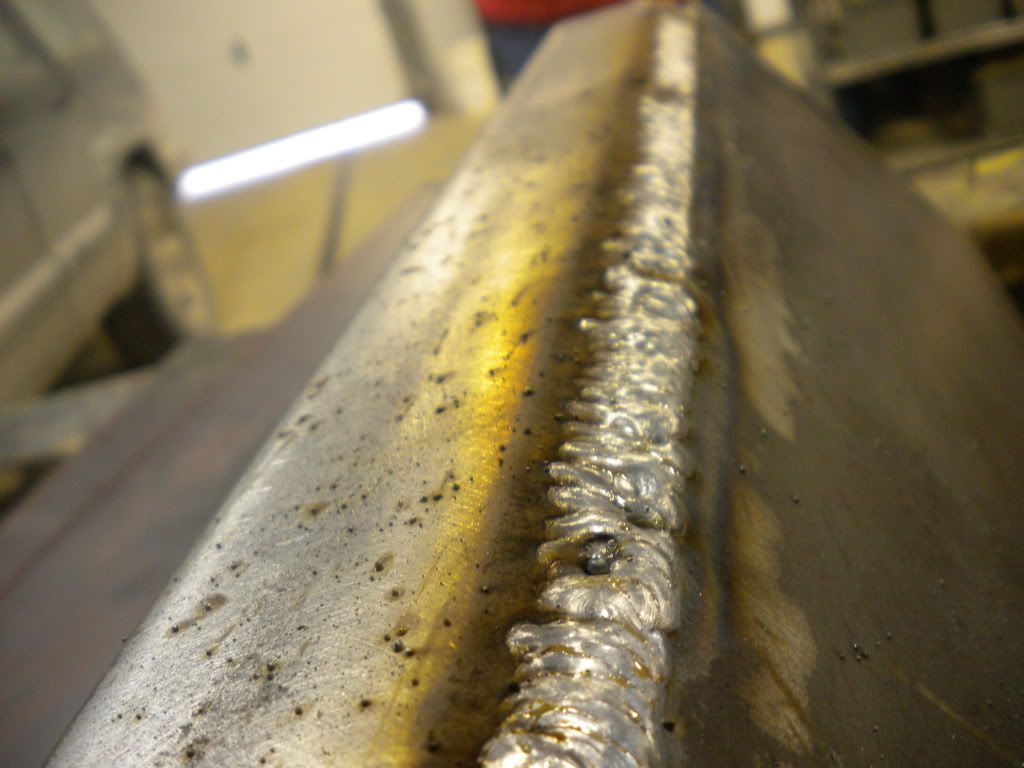

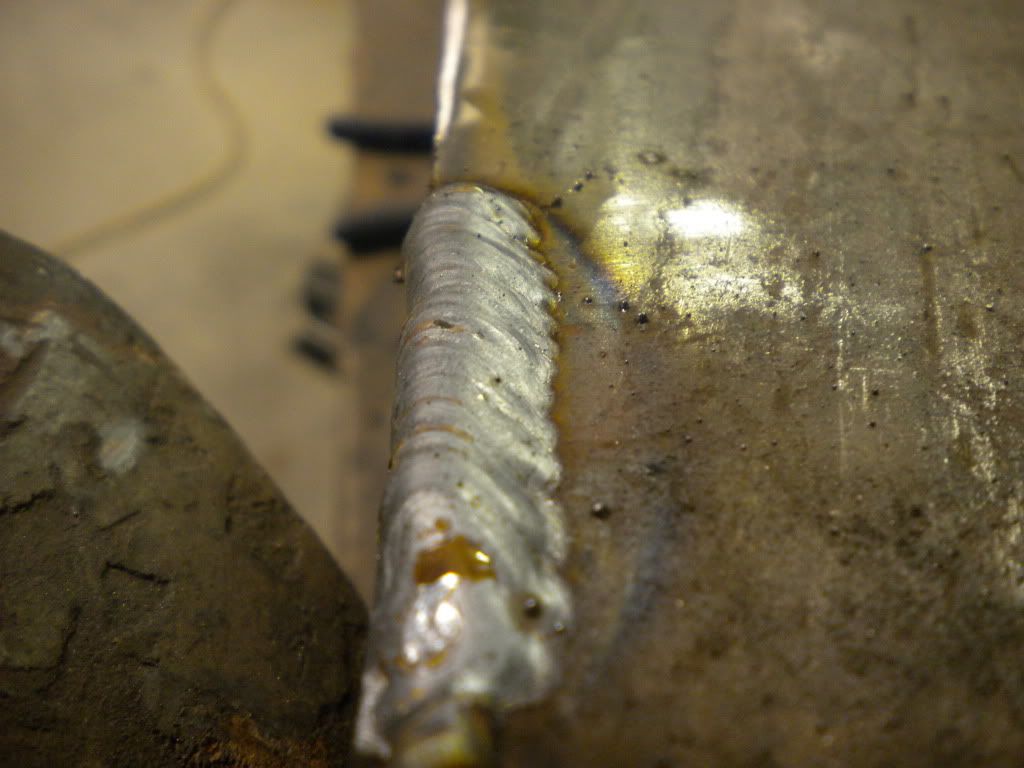

Here is a weld for no reason

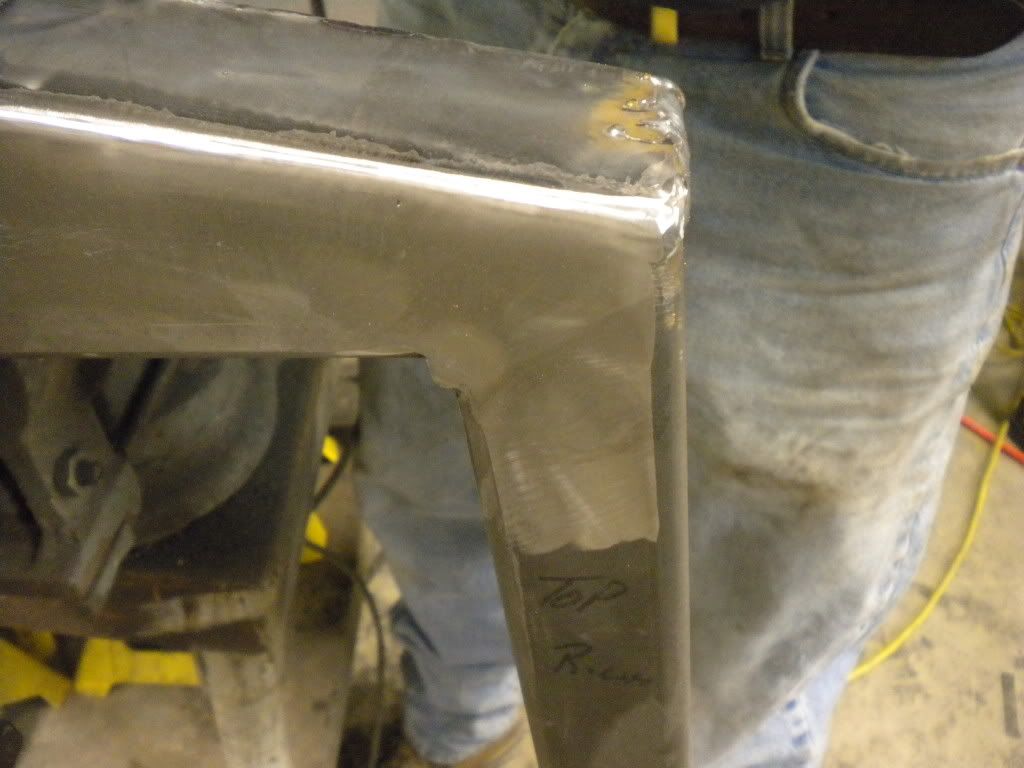

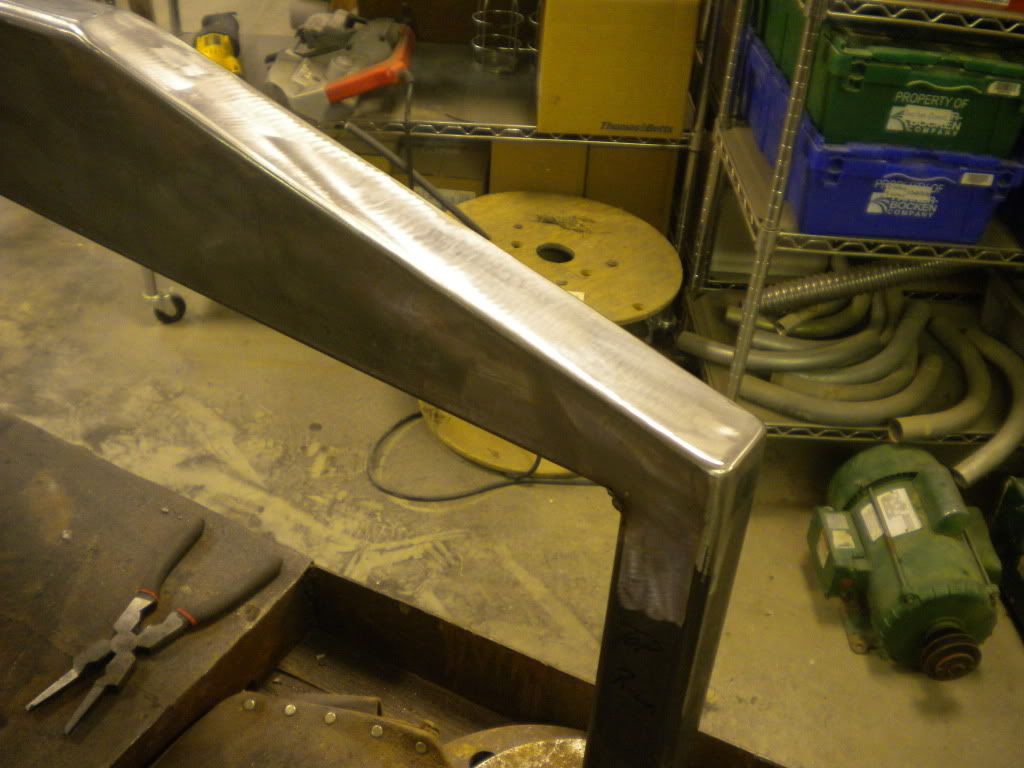

Here is one corner all smoothed out
And a bigger one

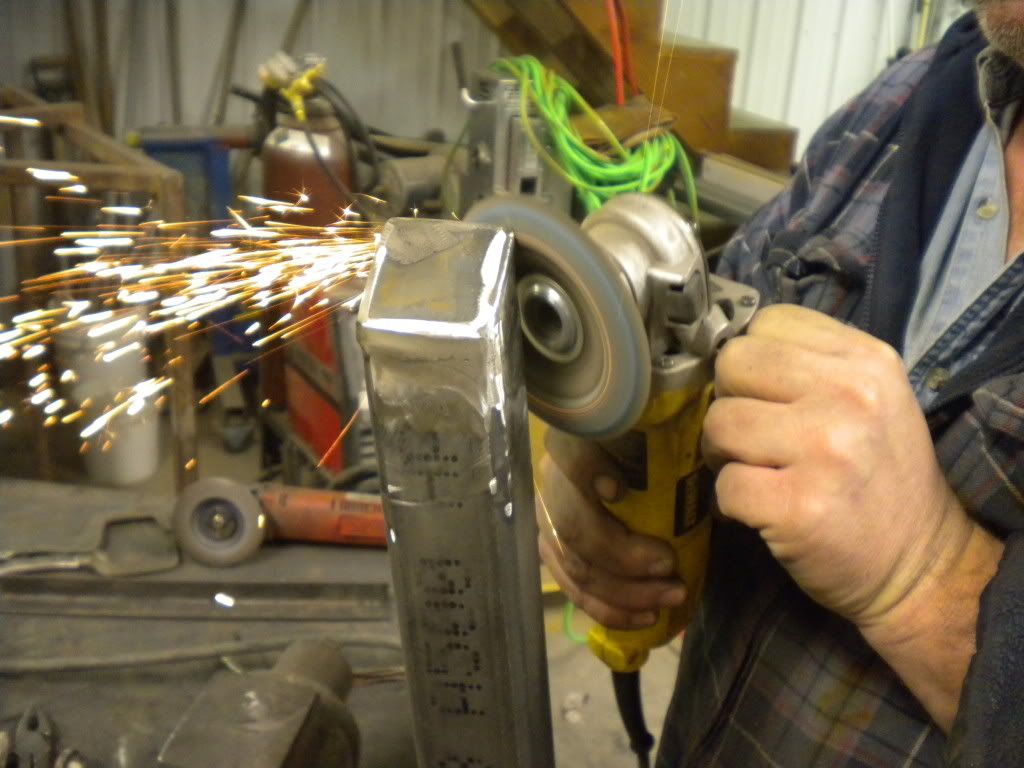

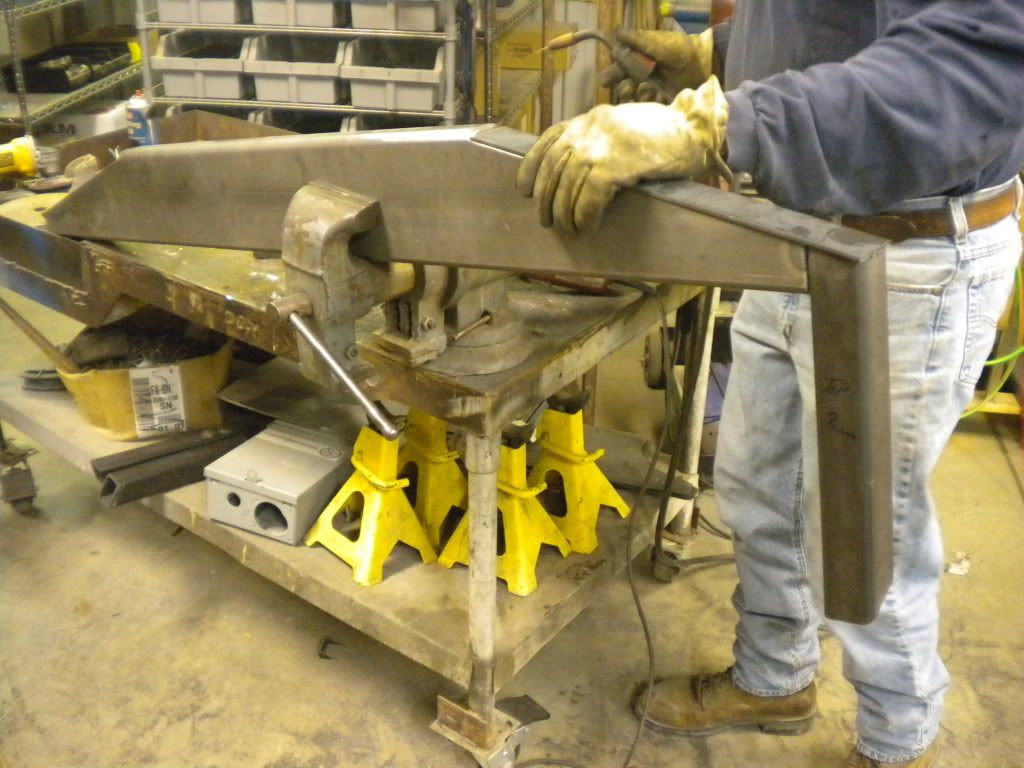

Bob grinding on the end caps

and some others



and that was the end of saturday.
Start of sunday....

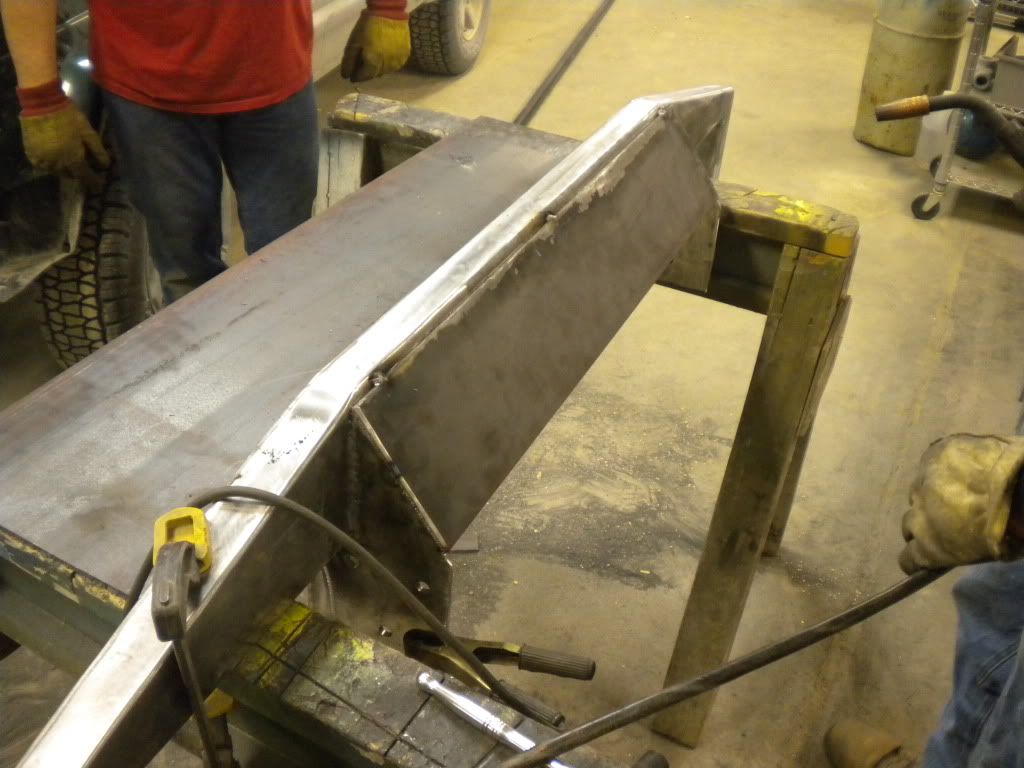

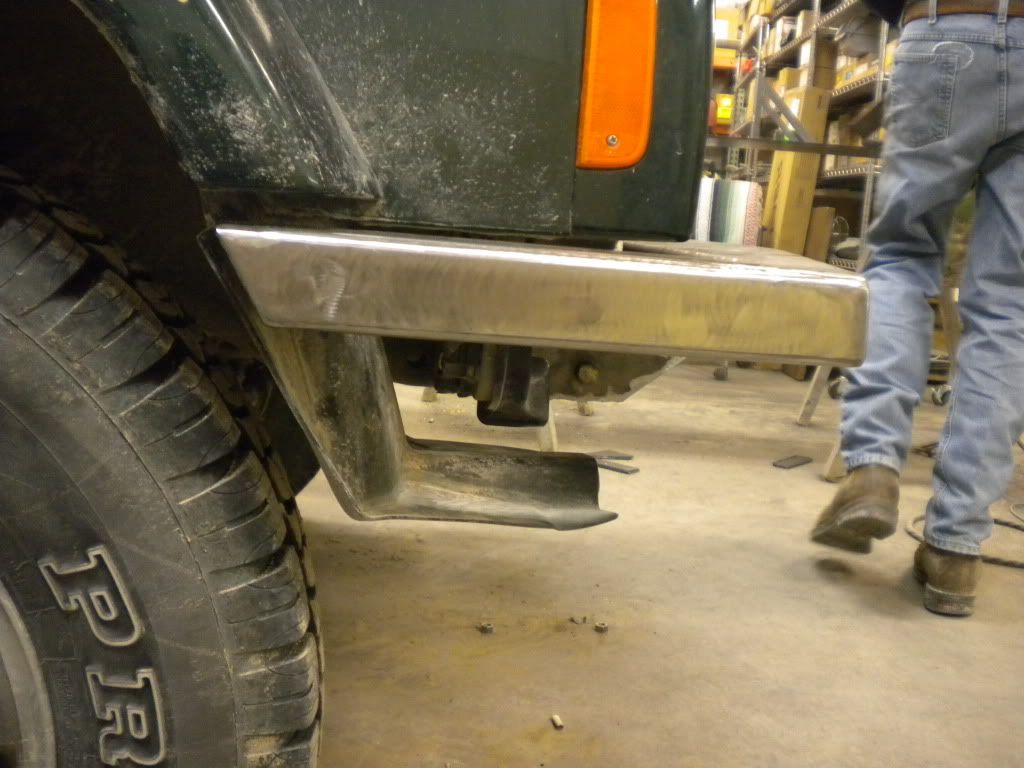

With the skirt on

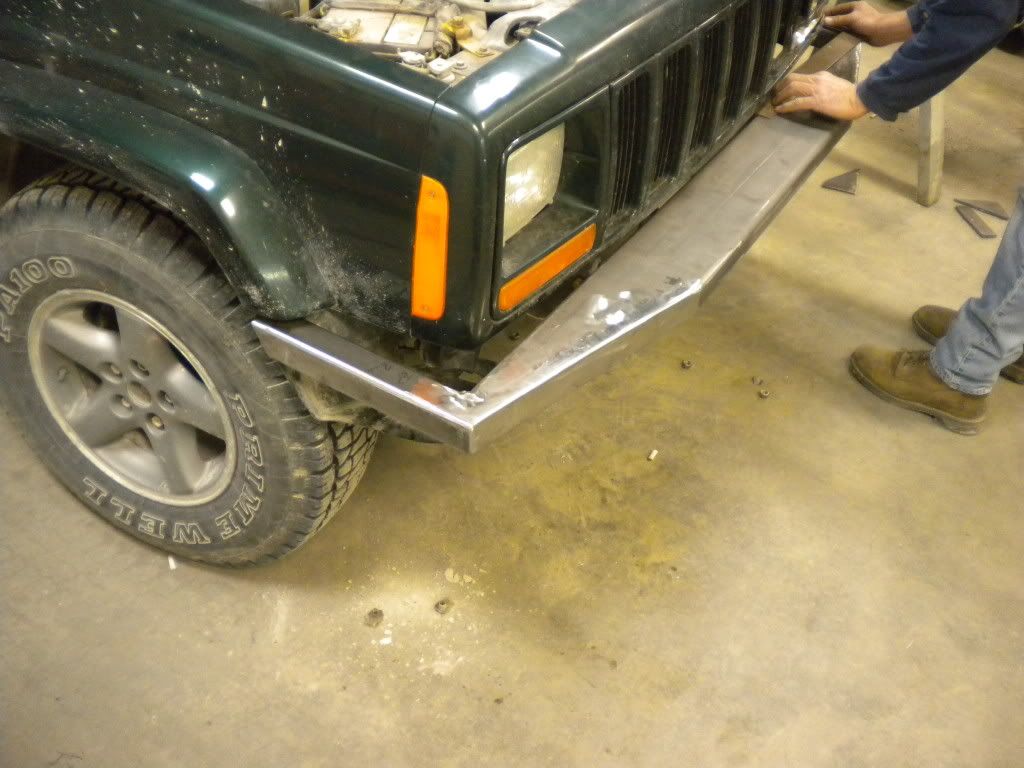

And that is what i have for now. i havemore pictures that i will upload later. Let me know what yall think
