What Axle is this...I thought it was a d30. And should I be worried about this gear?

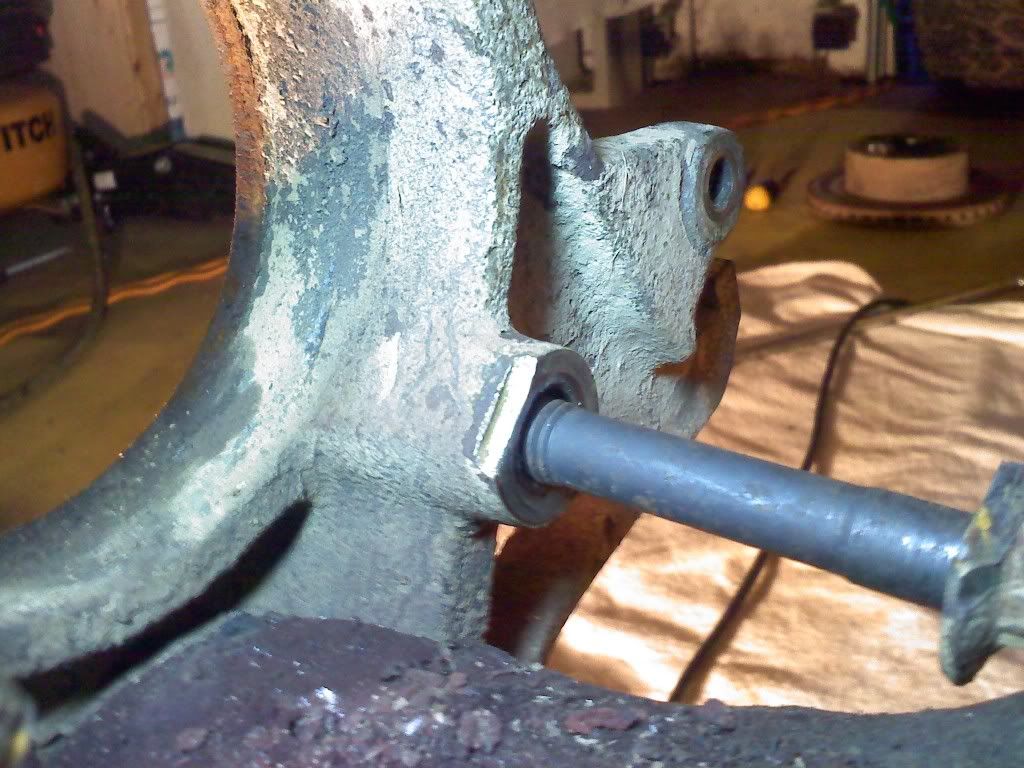

So for anyone who ever saw my posts, I'm trying to replace the u joints in the front right of the axle on my 91 YJ. Well I needed a new outer shaft because the ears on mine were bent. So I went to Jeff Daniels, got a YJ d30 shaft. got home, it looks too short. Took it back today, and talked to the guy, we went out back and looked at their axle rack and by process of elimination figured out I have a TJ D30 in the front. Traded axle shafts, all good. Get home, finally get the hub nut off with my new impact wrench (half off, display model ) and after convincing the hub to come off, got the axle shaft out. Well the two aren't quite the same. It's closer than before though. The threading on the end for the hub nut is finer on my shaft, and coarser on the new one. The inner shaft piece (I got the whole thing) is skinnier, and the splines on the end are smaller and more plentiful. The splines on my shaft (I apologize for any innuendos you my draw from my overuse of that word ) are larger and fewer. You can also see the outer piece is a little different. In all these pics, the new (to me) shaft is the one on top, and mine is on bottom.

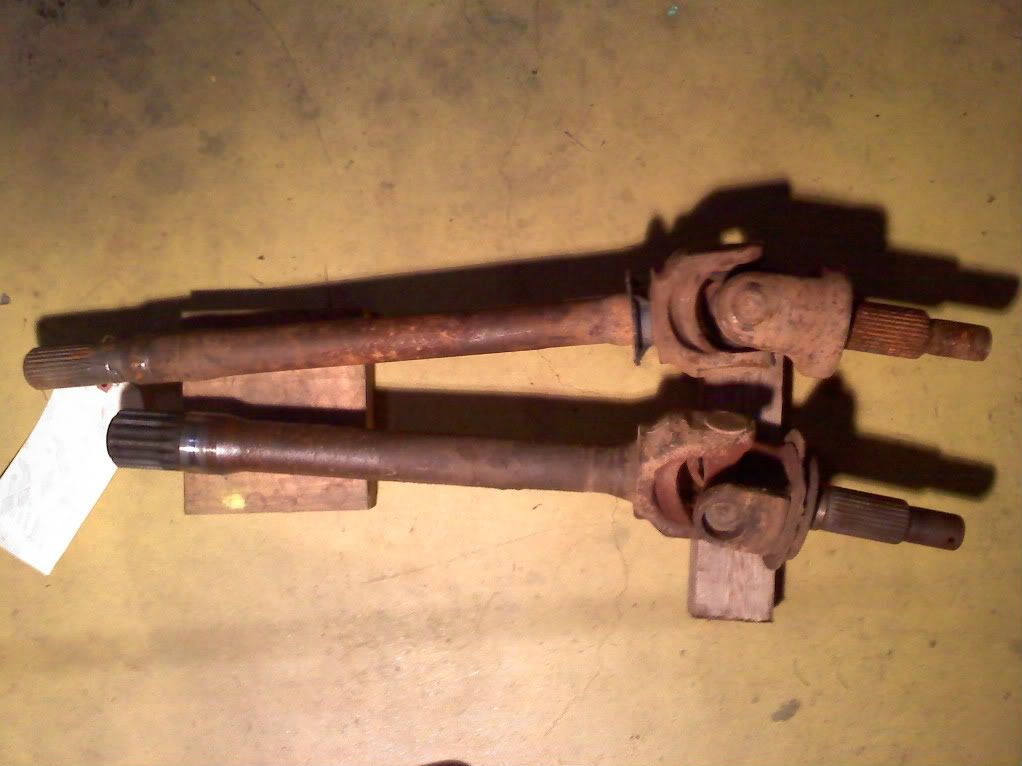

Finer threads

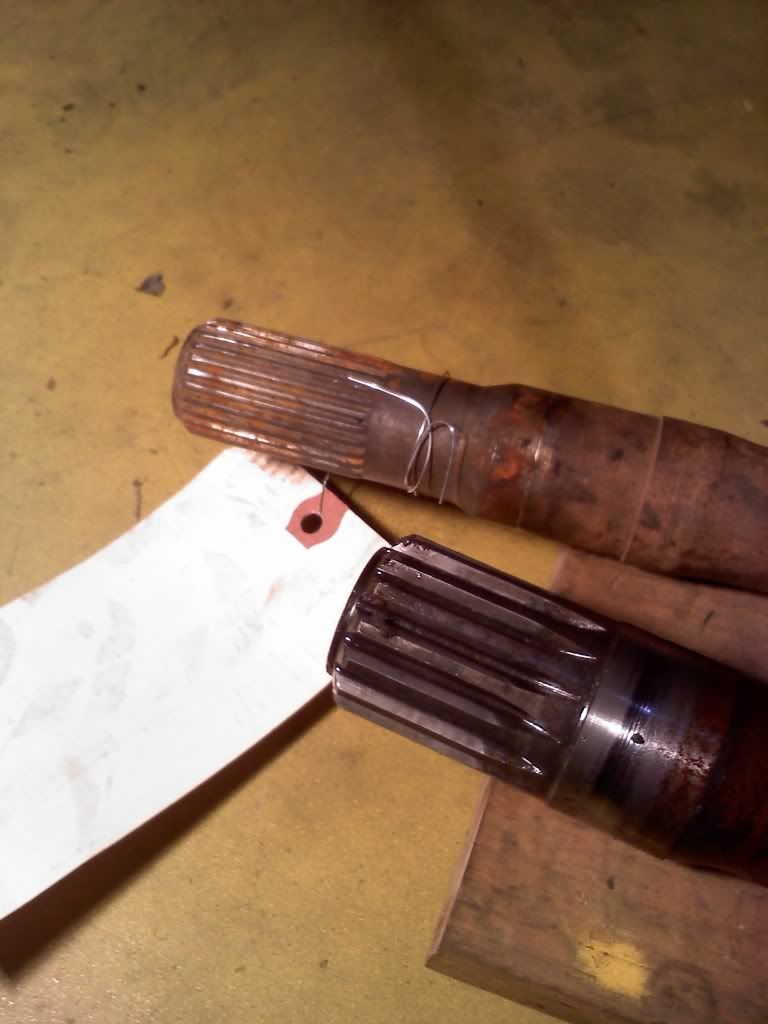

Larger splines

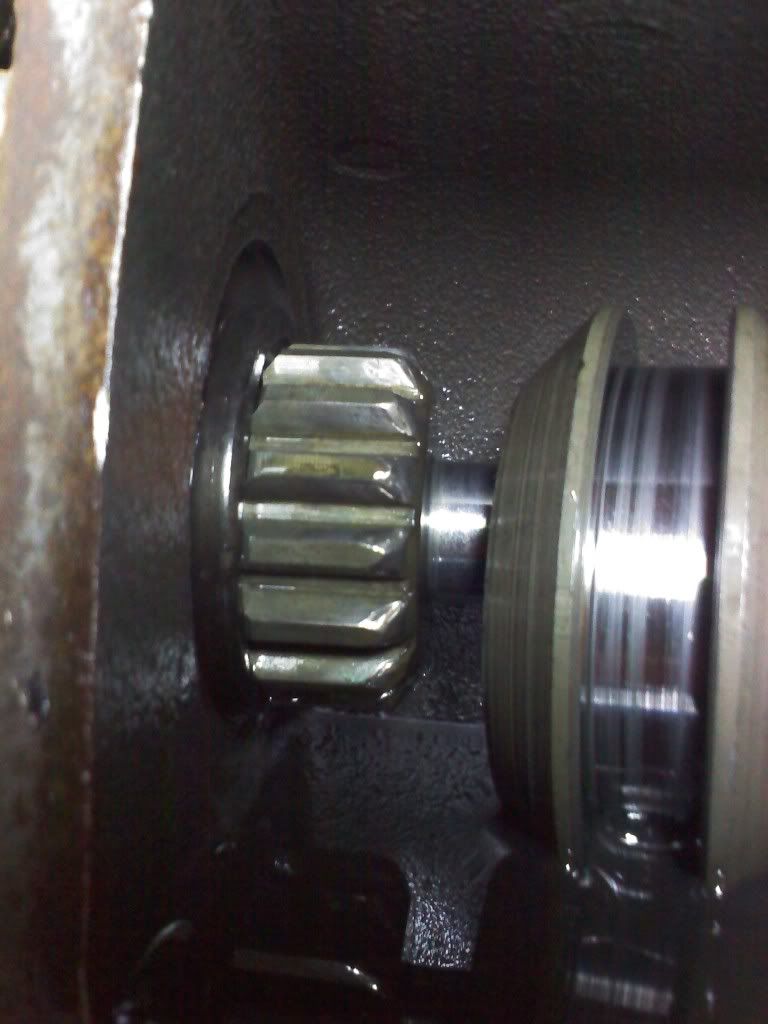

Okay and now the second part. When I took my shift motor out I noticed that the gear teeth ends looked a little worn, is this anything I should be worried about? And the second pic is of my steering knuckle. The loose bearing cap came around and wore bits off the knuckle as you can see, should I be worried about that?

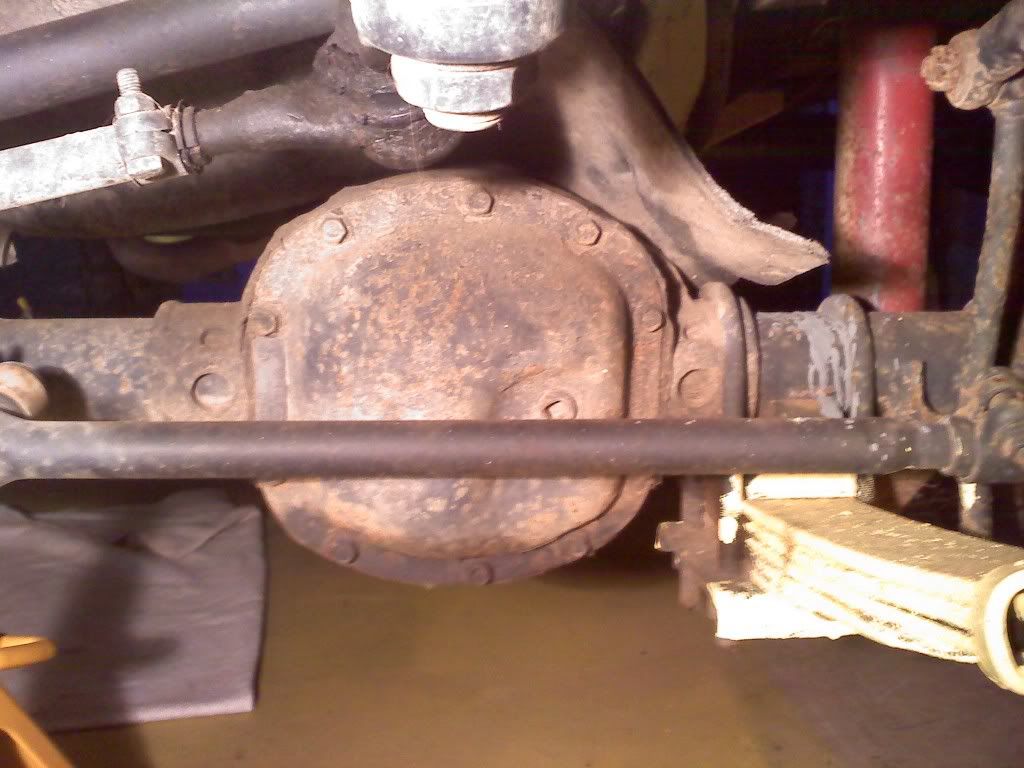

And lastly a picture of my axle...which I'm 95% sure is a dana 30, but with all thats been going on lately who knows. Also, if anyone could give me a run down of the pros/cons of a TJ d30 over a YJ just so that i know what I'm dealing with, that'd be awesome. If I could get some help here ASAP I would really appreciate it, I wanna hopfully get the new shaft in tomorrow and be driving this weekend



nathanninja is offline   Reply With Quote Quick reply to this message
Unread 08-11-2011, 08:32 PM   #2
1murderedjeep
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Glendale Heights, Illinios
Posts: 725
That is a d30 but I would recommend chromoly one piece shafts if you are going to do any wheeling and I got mine from east-coast gear supply I'm pretty sure they are a vendor on here and you could probably get a deal. Btw I don't believe there is a difference between the tj and yj front axle however the tj has a d35 rear which is known to be weaker.
1murderedjeep is offline   Reply With Quote Quick reply to this message
Unread 08-11-2011, 08:47 PM   #3
nathanninja
Registered User
1991 YJ Wrangler

Join Date: Apr 2011
Location: Collegeville, Pennsylvania
Posts: 801
Quote:
Originally Posted by 1murderedjeep View Post
That is a d30 but I would recommend chromoly one piece shafts if you are going to do any wheeling and I got mine from east-coast gear supply I'm pretty sure they are a vendor on here and you could probably get a deal. Btw I don't believe there is a difference between the tj and yj front axle however the tj has a d35 rear which is known to be weaker.
I would get the upgraded shafts except I'm dead fricken broke, I got the used shaft for $30 so I got lucky. From what I could tell and what the guy said at Jeff Daniels, the TJ front has a different attachment for the hub and nut. I counted the splines, the new shaft has 27, my old one is 15. I did a little googling, I think he got me a driver's side shaft, I need the passenger with a disconnect. I can take him my shaft tomorrow and have him match it up and hopefully he has a used one for me
nathanninja is offline   Reply With Quote Quick reply to this message
Unread 08-11-2011, 08:55 PM   #4
1murderedjeep
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Glendale Heights, Illinios
Posts: 725
Ya I busted my pass. U joint and shaft the first time I went wheeling. You are lucky to find used shafts I called so many junk yard and couldn't find anything so I have to bit the bullet and get new ones. Good luck and be careful with the seals when you put the new ones in.
1murderedjeep is offline   Reply With Quote Quick reply to this message
Unread 08-11-2011, 09:00 PM   #5
nathanninja
Registered User
1991 YJ Wrangler

Join Date: Apr 2011
Location: Collegeville, Pennsylvania
Posts: 801
Quote:
Originally Posted by 1murderedjeep View Post
Ya I busted my pass. U joint and shaft the first time I went wheeling. You are lucky to find used shafts I called so many junk yard and couldn't find anything so I have to bit the bullet and get new ones. Good luck and be careful with the seals when you put the new ones in.
Thanks man. I priced new ones off morris and qtec and was like crap $100 I'm gonna die, and then I was like what the heck I'll go to the local Jeep shop and see if they've got anything. Those guys are awesome, he gave me both pieces of the shaft for the price of the outer one cuz he didn't want to take it apart. If I ever need something done that I can't do, I'm totally taking the Jeep there. There's only one Junkyard around here with wranglers, and even thats an hour and a half away, and they only have 3 wranglers. On the plus, they have TONS of explorers, 8.8 one day
nathanninja is offline   Reply With Quote Quick reply to this message
Unread 08-11-2011, 09:34 PM   #6
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,032
Like you already found out you have the wrong shaft.
You need the drivers shaft. The only problem is the TJs did not have a axle disconnect.
You can still use a TJ shaft but you will have to install another seal on the inside of the diff.
Plus side is you will have larger U joints.
Not sure of the spline count on the stub axle. Never heard anything about different spline counts.
You may have to change your unit bearings to make it work.
Hey they probably need to be replaced anyway right?
I would also go ahead and change the U joints too. Those looked toasted.
Yes that is a HP Dana 30.
__________________
93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list. www.mijc.org
TSEJEEPERS is offline   Reply With Quote Quick reply to this message
Unread 08-11-2011, 10:48 PM   #7
nathanninja
Registered User
1991 YJ Wrangler

Join Date: Apr 2011
Location: Collegeville, Pennsylvania
Posts: 801
Quote:
Originally Posted by TSEJEEPERS View Post
Like you already found out you have the wrong shaft.
You need the drivers shaft. The only problem is the TJs did not have a axle disconnect.
You can still use a TJ shaft but you will have to install another seal on the inside of the diff.
Plus side is you will have larger U joints.
Not sure of the spline count on the stub axle. Never heard anything about different spline counts.
You may have to change your unit bearings to make it work.
Hey they probably need to be replaced anyway right?
I would also go ahead and change the U joints too. Those looked toasted.
Yes that is a HP Dana 30.
The drivers side unit bearing seems newer, it looks shiny and spins really well. The passenger side is a little stiffer, but still spins smoothly. The whole reason for me taking the shafts out is to replace the u Joints and passenger outer shaft, so those (nearly immovably stiff) old joints are definitely getting tossed. What does the stock YJ outer (or "stub") shaft look like?
nathanninja is offline   Reply With Quote Quick reply to this message
Unread 08-12-2011, 09:19 PM   #8
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,032
Quote:
Originally Posted by nathanninja View Post
The drivers side unit bearing seems newer, it looks shiny and spins really well. The passenger side is a little stiffer, but still spins smoothly. The whole reason for me taking the shafts out is to replace the u Joints and passenger outer shaft, so those (nearly immovably stiff) old joints are definitely getting tossed. What does the stock YJ outer (or "stub") shaft look like?

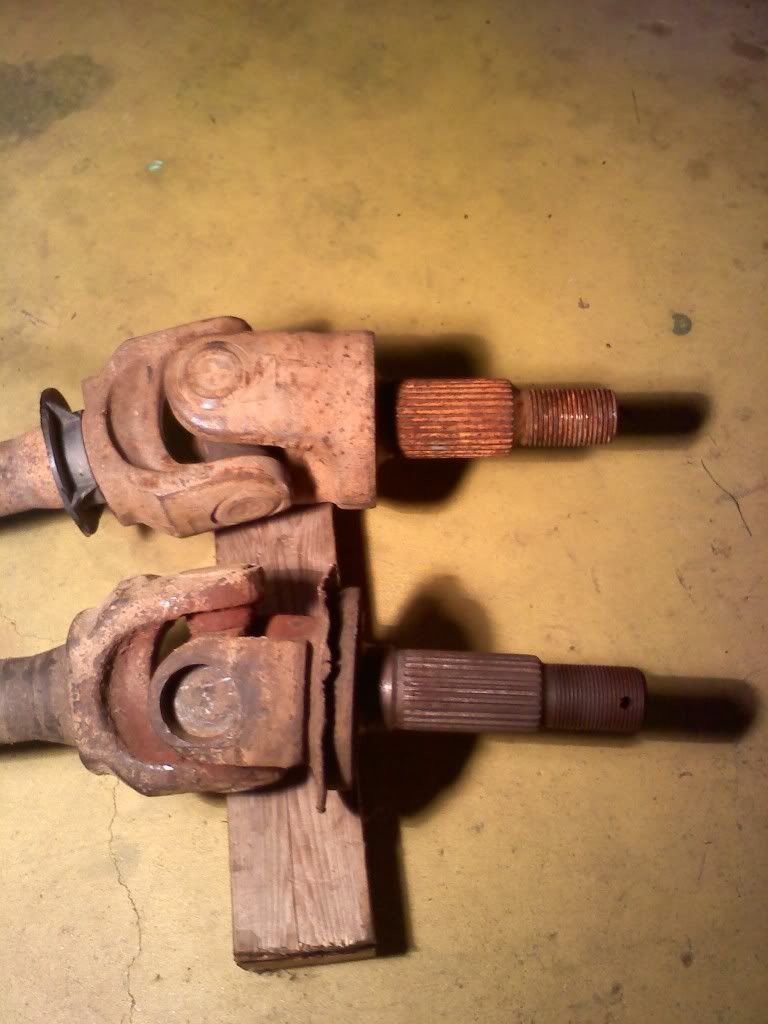

The stub shaft is your second picture.
