Hardtop roof ribs and sunroof

I'd like the put a sunroof in my LJ's hardtop. I know it's been done before but I am struggling with the roof ribs. They are raised up 1/8 inch above the top. I think most sunroof frames are an inverted L shape that goes into the hole in the top and then rests on the top. The problem with the top ribs is that if the sunroof frame sat on them water would have huge gaps to leak in. So the roof ridges would have to be cut back a inch to allow the sunroof frame to sit flat on the roof. The problem then is how to seal the edges of the ridges. The paper examples below show the ridge.



and then how the ridges would have to be cut futher back than the roof hole.



and then how there would be a gap with the sunroof frame in place.

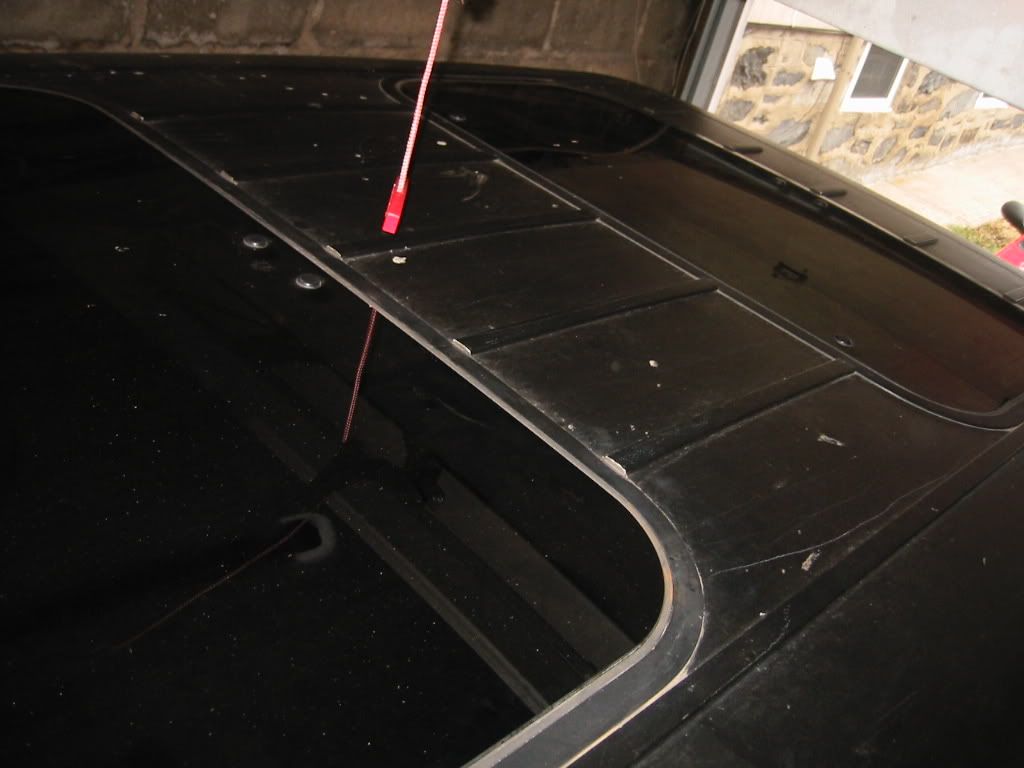

This is how it actually looked on someone's install.



How could I seal up the open end of the ridges?
