How-to: Mount tires on beadlock wheels.

Figured I'd do this for JF as there is a lot of questions on them.

I'm installing 40" Swamper LTBs on 17" Allied Beadlock wheels. Here's the basic steps to install them. I won't go into great detail concerning torquing pattern as you need to go by what the manufacturer of your wheel says. Mine is a crossing pattern like 12, 6, 3, 9, then one over from each of those in that order, etc.

Shaynea was awesome and got a bunch of pics of the beadlock install process:
















SOLDThe lumbering steel-laden pig - 2003 TJ - 40" LTBs - D60/D70HD - 5.86s - Detroit lockers - 110" wheelbase
Build thread here.

Quote:
Originally Posted by 2006 Sport
Being able to make vroom vroom noises in Tonys Jeep was the highlight of my life.
Currently Jeepless.
flatlander757 is offline
Sponsored Links
Advertisement

post #2 of 10 Old 04-13-2009, 09:18 PM Thread Starter
flatlander757
Registered User
2003 TJ Wrangler

Join Date: Nov 2006
Location: Dayton
Posts: 5,417

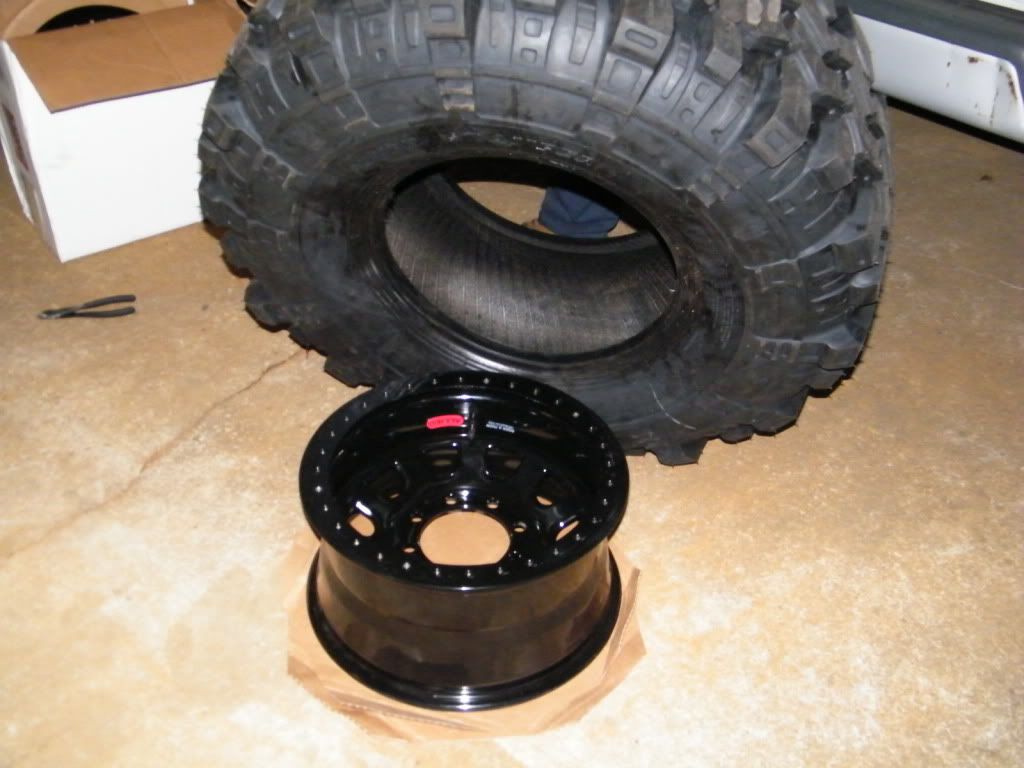

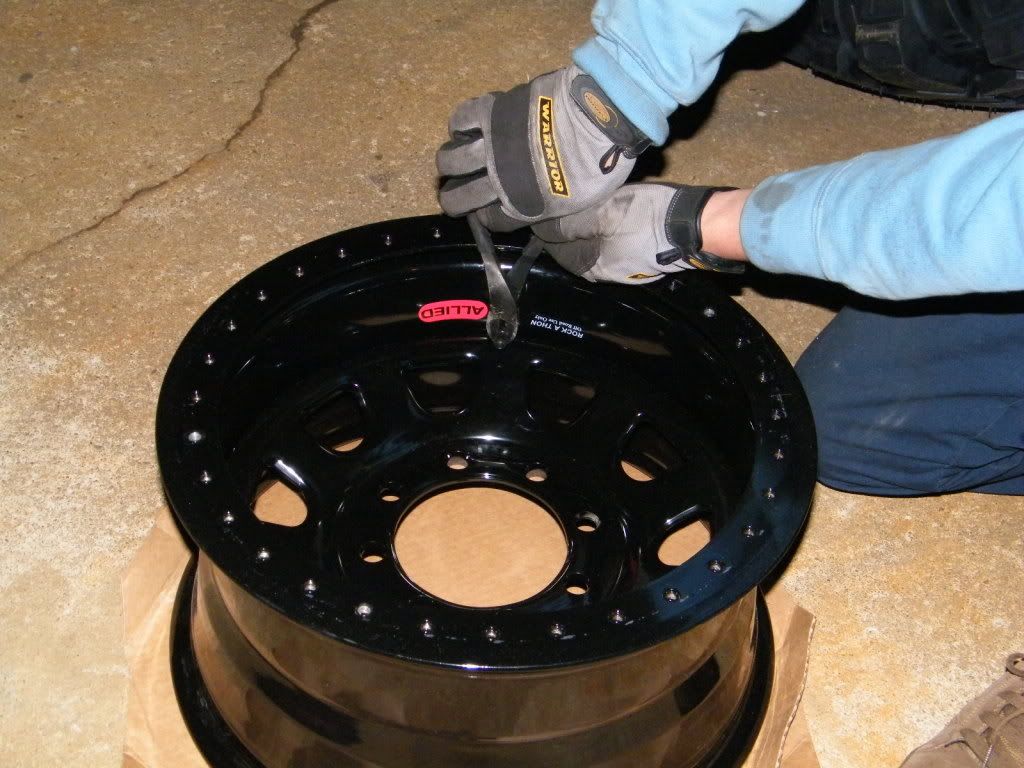

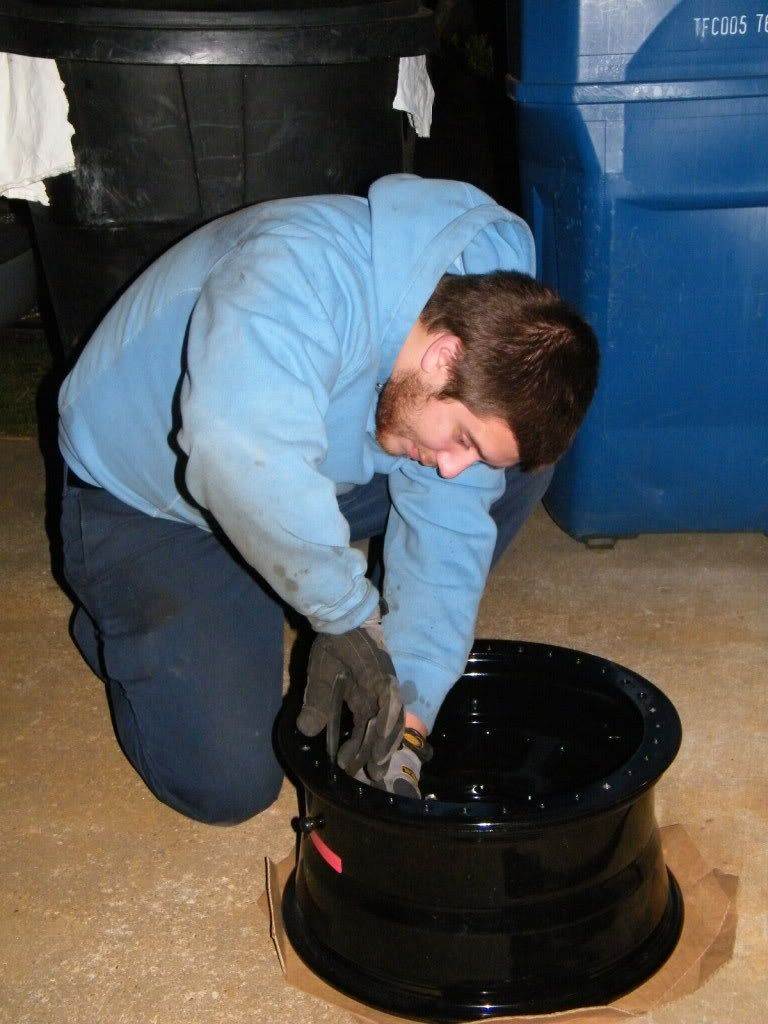

After you're done unpacking all your goodies, now it's time to pull the valvestem through. I can do it w/ a pair of side-cutters without galling the threads because I'm crazy awesome like that. A valvestem installing tool is quite nice to have but I'm not about to go out and buy one for 4 wheels.

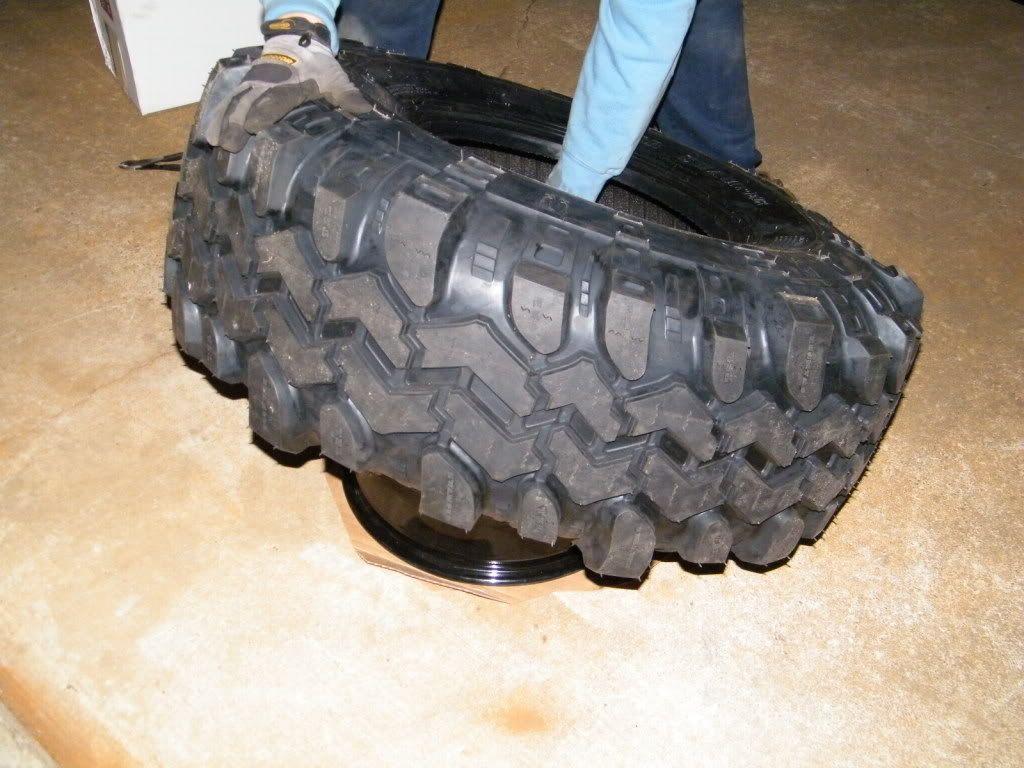

Now the fun part... lay the tire down over the rim(note: lubing the inner bead w/ soapy water works wonders, I did this one dry as it had a bit of goo left from the tire forming process):

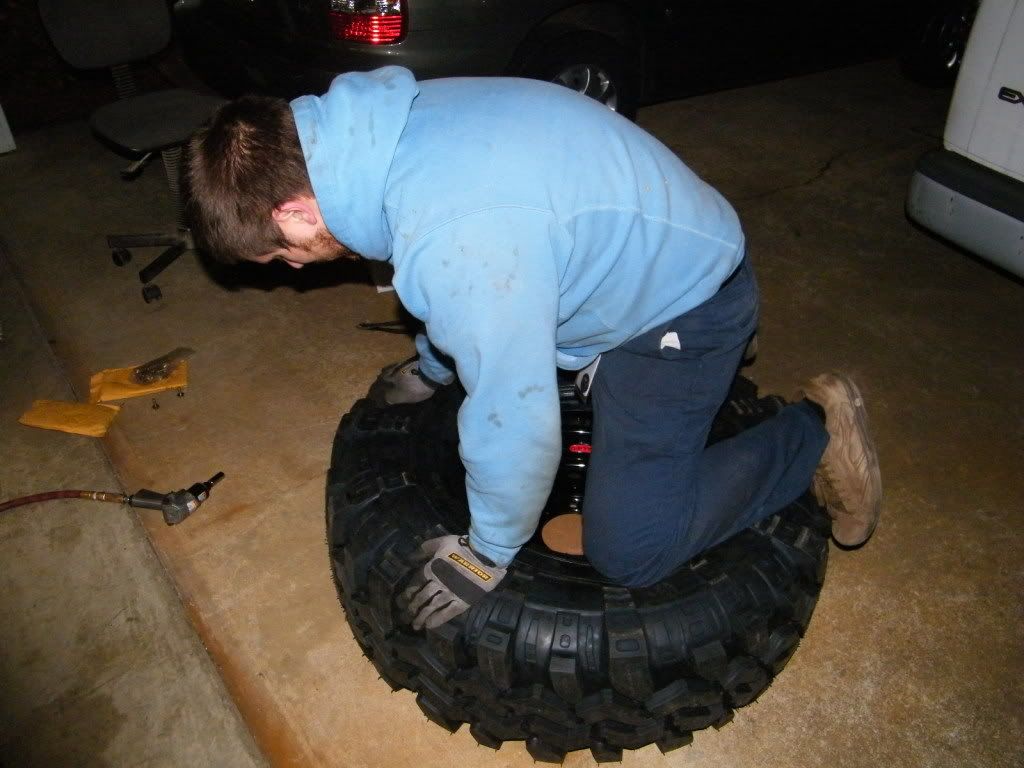

Now hump it into place:

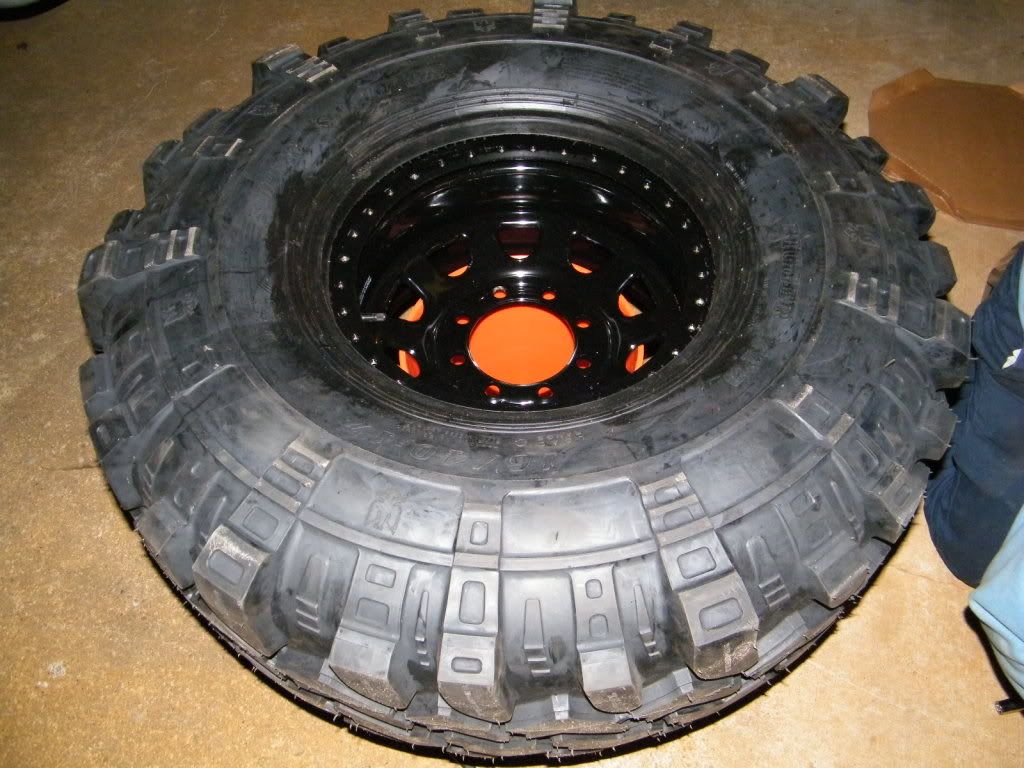

Until you achieve victory:

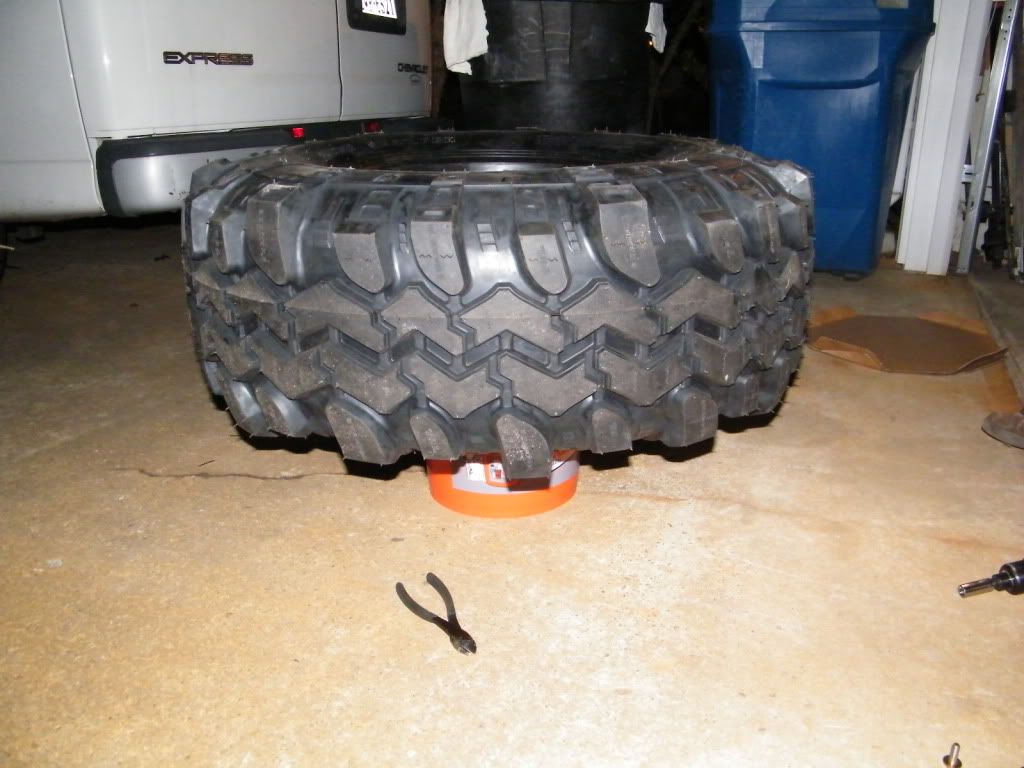

Then I moved everything over a bucket to make everything easier for bolting the beadlock ring on:

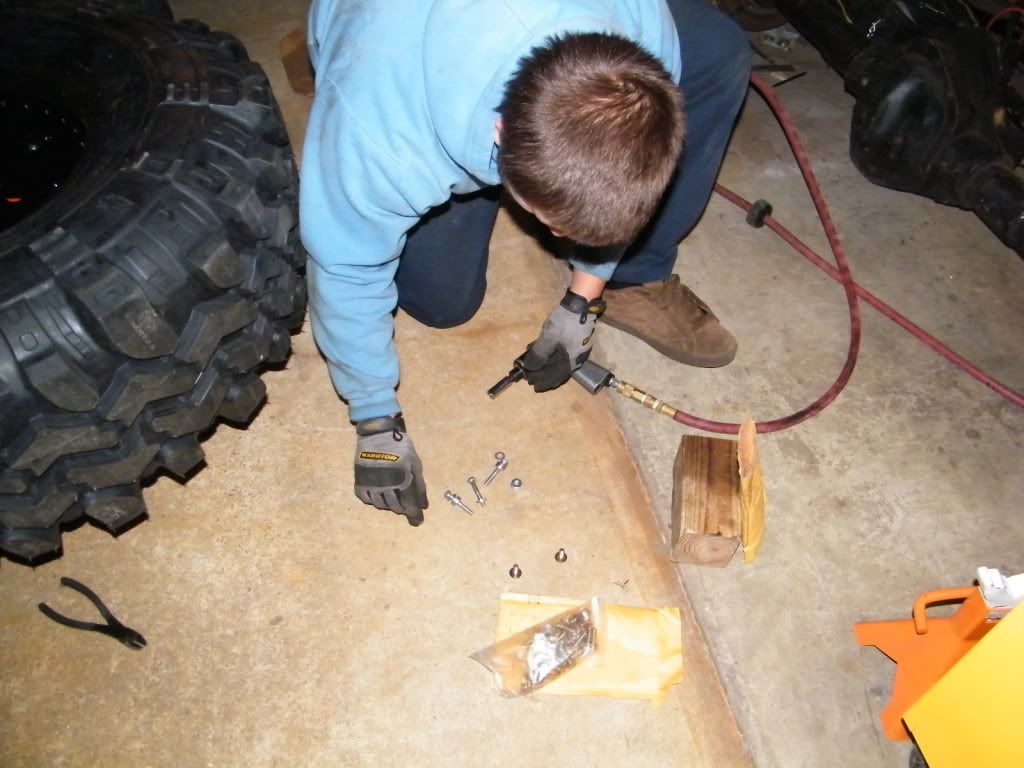

Start gathering bolts. Chances are you'll need 2-4 longer bolts to get everything started. I had some longer bolts but they were a bit too long, I just put washers under them to make them usable.


SOLDThe lumbering steel-laden pig - 2003 TJ - 40" LTBs - D60/D70HD - 5.86s - Detroit lockers - 110" wheelbase
Build thread here.

Quote:
Originally Posted by 2006 Sport
Being able to make vroom vroom noises in Tonys Jeep was the highlight of my life.
Currently Jeepless.
flatlander757 is offline
post #3 of 10 Old 04-13-2009, 09:25 PM Thread Starter
flatlander757
Registered User
2003 TJ Wrangler

Join Date: Nov 2006
Location: Dayton
Posts: 5,417
My "starter" bolts compared to 2 of the supplied beadlock bolts:



Before that if you're putting any balancing beads in, now is the time to do so. I measured out 14oz of steel BBs for each.



Started:


Keep in mind to ensure the tire is nice and centered in the ring.









Note I used an impact to get them all started and to speed things up(not recommended by manufacturer). I learned from the first wheel about how far down the bolts need to go so I wouldn't go past. I DID do everything by hand on the first wheel. Always do the final torquing w/ a torque wrench in the manufacturer's recommended pattern. I did mine to 15 ft-lbs(spec is 12-15 ft-lbs).



I still need to do the final torquing about 2 more times as my back called it quits for tonight, but you basically do that 3-4 times total. Then check it again of course. This is because you are compressing rubber. Tighten one bolt, and it loosens about 4 more. Eventually you'll get to the point where everything is in the 12-15 ft-lb spec and you can call it good.

Air up the tire and check for leaks. I'll recommend airing it up while standing because sometimes the inner bead seating can be violent. On some car wheels it has enough force to shoot the entire wheel/tire off the ground.
