Unread 11-04-2011, 06:55 AM   #31
Mike
oooh you almost had it

Mike's Avatar

Join Date: Oct 2006
Location: va beach, va
Posts: 1,116
Gambler

Factory Availability: TJ, XJ, ?YJ? Not sure about the YJ. Anyone know?
Bolt Pattern: 5x4.5
Notes: Commonly called "bullet hole" wheels by Jeepers who do not know the official name. There are two varieties, ten holes and five holes. The five hole variety came on wranglers and the ten hole came on Cherokees.

TJ/Wrangler (Five Hole)-



YJ Renegades came with these as well.

Mike is offline   Reply With Quote Quick reply to this message
Unread 04-13-2012, 05:05 PM   #32
buytick
Registered User
1997 XJ Cherokee

Join Date: Apr 2012
Location: Morristown, NJ
Posts: 4
Will this wheel fit my 97 Cherokee?

I don't see this pic listed on this wonderful thread. This wheel is from a 93 Wrangler 235-75-15. It looks like aluminum or alloy. Want to buy these off Craiglist and want to make sure they fit. Not sure how to post pic, so below is the link.

http://www.screencast.com/t/ylhQ0teyXLL

Last edited by buytick; 04-13-2012 at 06:07 PM..
buytick is offline   Reply With Quote Quick reply to this message
Unread 04-13-2012, 05:18 PM   #33
VietVet67
Registered User
2004 LJ Wrangler

Join Date: Feb 2012
Location: Enterprise, Oregon
Posts: 768
How bout the green wheels on the Willy's edition in 04 and 05 ?? They were steel i believe?? Just a thought and thanks!!
__________________
Silver Jeep club member #76 Semper -Fi my brothers
VietVet67 is offline   Reply With Quote Quick reply to this message
Unread 04-15-2012, 10:08 AM   #34
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
Quote:
Originally Posted by Mike View Post
Gambler

Factory Availability: TJ, XJ, ?YJ? Not sure about the YJ. Anyone know?
Bolt Pattern: 5x4.5
Notes: Commonly called "bullet hole" wheels by Jeepers who do not know the official name. There are two varieties, ten holes and five holes. The five hole variety came on wranglers and the ten hole came on Cherokees.

TJ/Wrangler (Five Hole)-



YJ Renegades came with these as well.
Good call. I remember that.
__________________
-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline   Reply With Quote Quick reply to this message
Unread 04-15-2012, 10:11 AM   #35
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
Quote:
Originally Posted by buytick View Post
I don't see this pic listed on this wonderful thread. This wheel is from a 93 Wrangler 235-75-15. It looks like aluminum or alloy. Want to buy these off Craiglist and want to make sure they fit. Not sure how to post pic, so below is the link.

http://www.screencast.com/t/ylhQ0teyXLL
I am quite certain that those rims were used on the first generation (93-95) Grand Cherokee.

The wheels in question-

First Gen Grand Cherokee-


The bolt pattern should be 5"x4.5". They should fit YJ, TJ, XJ, ZJ, LJ, KJ, KK and Ford Rangers/Explorers with no problem. Hopefully that answers your question.
__________________
-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline   Reply With Quote Quick reply to this message
Unread 04-15-2012, 10:17 AM   #36
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
Quote:
Originally Posted by VietVet67 View Post
How bout the green wheels on the Willy's edition in 04 and 05 ?? They were steel i believe?? Just a thought and thanks!!

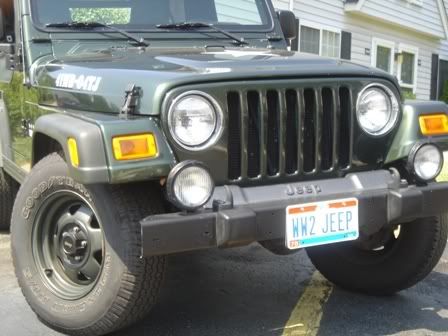

Of course. I am quite sure that these were a standard Jeep steel wheel painted to match the body.

Standard Jeep Steel Wheel-


Willy's Edition TJ-


__________________
-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline   Reply With Quote Quick reply to this message
Unread 04-16-2012, 07:20 AM   #37
buytick
Registered User
1997 XJ Cherokee

Join Date: Apr 2012
Location: Morristown, NJ
Posts: 4
Cherokee 97

Thanks for the quick response. I am looking for replacement for my rusted steel wheels and I am a bit confused. I find plenty of wheels that are 5x4.5 but I'm not sure if they fit the Cherokee. I am worried that the backspacing or offset will not match. Should I not worry about that? Just buy any wheel that is 15x7 with a 5 bolt 4.5 pattern????

Please help a newbie!
buytick is offline   Reply With Quote Quick reply to this message
Unread 04-16-2012, 08:18 PM   #38
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
No problem. These should be a direct fit, but I don't want to put my foot in my mouth. I have never owned an XJ (I want one ), but I did own a ZJ. I would imagine that the backspacing should be OK unless you get wider tires. My factory Grand Cherokee wheels needed 1.5" spacers when I got wider tires. I didn't know it until they got cut up... Someone on here who has owned more Jeeps may know better than me, but I am pretty sure that those wheels will not cause any issues for you.
__________________
-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline   Reply With Quote Quick reply to this message
Unread 06-05-2012, 05:57 PM   #39
dagr8tim
Moderator

dagr8tim's Avatar
1997 XJ Cherokee

Join Date: May 2008
Location: Galloway, Oh
Posts: 3,021
Has anyone ever seen a Gambler in gunmetal rather than polished? My 98 parts XJ came with a set of them and I never really thought about it until I get another set of gamblers and realized the new ones were polished.

Could the gunmetal ones be American Racing?
__________________
Jeeping - The art of getting dirty & going broke while slowly heading nowhere, and taking all day to do it.

97 XJ SE - DD/Light Trail Rig - The War Wagon
75 CJ5 with a badly chopped CJ7 Tub - Pandora
96 Land Rover Discovery - Black Dog; possible trail toy
dagr8tim is offline   Reply With Quote Quick reply to this message
Unread 09-29-2012, 01:55 PM   #40
tehshoemaker
Registered User
1996 XJ Cherokee

Join Date: Feb 2009
Location: fairfax, va
Posts: 35
anyone know what these outcast 16" JK rims are called?
tehshoemaker is offline   Reply With Quote Quick reply to this message
Unread 02-13-2013, 02:29 PM   #41
renegade_to_TJ
Registered User
2001 TJ Wrangler

Join Date: Feb 2013
Location: Hickory, NC
Posts: 1
The Gambler 5 holes, definitely came on the YJ. I had them on my 91 Renegade. Might have just been a special edition thing though. This is a great thread. Thanks
renegade_to_TJ is offline   Reply With Quote Quick reply to this message
Unread 02-16-2013, 08:15 PM   #42
kachink
Registered User
1998 ZJ

Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 522
Quote:
Originally Posted by 88beaterYJ View Post

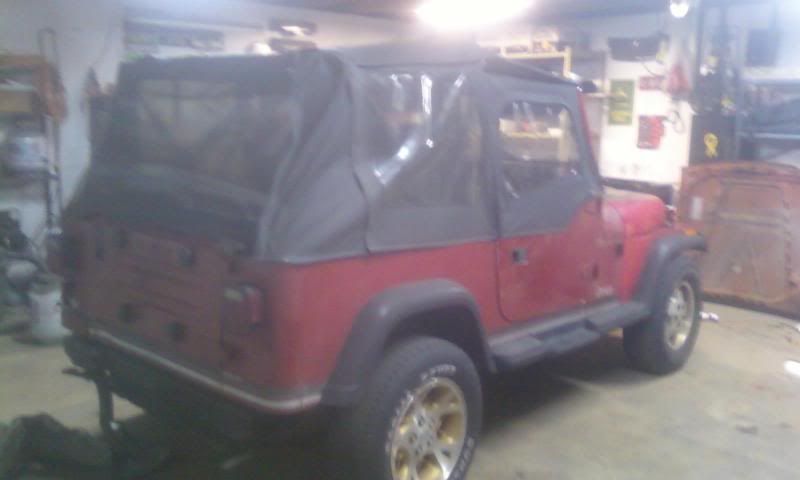

Best pic I have, The rear wheel, any idea what it is?

Edit: Better pic.
I've never heard the name of these, but they came on 96-98 ZJ Limiteds. They were either gold or silver, depending on the body color. I've been looking for a silver one for over a year.
kachink is offline   Reply With Quote Quick reply to this message
Unread 02-17-2013, 06:44 AM   #43
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,294
They are called Timberlines. They came in gold, silver & green. I have never seen a green set myself.
__________________
"Taking care of our veterans is a cost of war. If you can spend six trillion dollars sending people to war, you can spend a few billion dollars taking care of them when they come home"
Sen. Bernie Sanders (I-Vt.)

If what doesn't kill you, makes you stronger, I should be able to bench press a Grand Cherokee by now!
laybackman is offline   Reply With Quote Quick reply to this message
Unread 02-17-2013, 11:12 AM   #44
kachink
Registered User
1998 ZJ

Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 522
There was timberline wheel on the WJ's that looked similar to this except it didn't have the smaller Y webs. Were they both called Timberline?
kachink is offline   Reply With Quote Quick reply to this message
Unread 02-17-2013, 11:28 AM   #45
laybackman
Bikini Bridge Inspector

laybackman's Avatar
1995 YJ Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,294
Quote:
Originally Posted by kachink View Post
There was timberline wheel on the WJ's that looked similar to this except it didn't have the smaller Y webs. Were they both called Timberline?
There was a rim with the same name?????? But it is different design....

http://www.wjjeeps.com/wheels.htm#WHEELSPH
__________________
"Taking care of our veterans is a cost of war. If you can spend six trillion dollars sending people to war, you can spend a few billion dollars taking care of them when they come home"
Sen. Bernie Sanders (I-Vt.)

If what doesn't kill you, makes you stronger, I should be able to bench press a Grand Cherokee by now!
laybackman is offline   Reply With Quote Quick reply to this message
