post #1 of 69 Old 01-10-2011, 01:14 AM Thread Starter
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
All Jeep Factory Wheels- Names And Pictures

WORK IN PROGRESS

I am hoping to make a sticky out of this eventually. I can't believe that noone has done this yet. Jeep has some of the coolest factory wheels I've ever seen and most of them have nifty names. I want to compile as much information as I can on each type in one thread as the ultimate guide to OEM Jeep Wheels. This is a living document and I encourage everyone to post and PM me suggestions. Posting is preferred as I am not a paid member and my inbox is limited. I could use all the help I can get because I am no expert. So far I have just the basic groundwork and I plan to work on this a lot more very soon.

---------------------------------------------------------------------------------------------------------------------------------------------

Grizzly

Factory Availability: TJ Sahara, XJ
Colors: Silver, Dark Slate Grey
Bolt Pattern: 5x4.5

Silver-


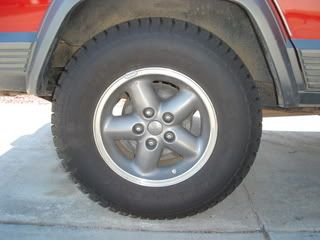

Dark Slate Grey-


---------------------------------------------------------------------------------------------------------------------------------------------

Canyon

Factory Availability: TJ, TJ Sahara, ZJ
Bolt Pattern: 5x4.5
Notes: ZJ canyons did not say "Jeep" on the center cap. TJ canyons read "Jeep" on the center cap and include wider spokes and a deeper inside measurement on the front. In the image the top wheels are ZJ canyons and the bottom wheels are TJ canyons.



---------------------------------------------------------------------------------------------------------------------------------------------

Ravine

Factory Availabilty: LJ (officially called a TJ Unlimited), TJ (Golden Eagle Models Only)
Colors: Silver (LJ), Gold (TJ Golden Eagle)
Bolt Pattern: 5x4.5

Silver (LJ)-


Gold (TJ Golden Eagle)-



---------------------------------------------------------------------------------------------------------------------------------------------

Gambler

Factory Availability: TJ, XJ, ?YJ? Not sure about the YJ. Anyone know?
Bolt Pattern: 5x4.5
Notes: Commonly called "bullet hole" wheels by Jeepers who do not know the official name. There are two varieties, ten holes and five holes. The five hole variety came on wranglers and the ten hole came on Cherokees.

TJ/Wrangler (Five Hole)-


XJ/Cherokee (Ten Hole)


---------------------------------------------------------------------------------------------------------------------------------------------

Ecco

Factory Availability: TJ, XJ
Colors: Silver, Dark Grey
Bolt Pattern: 5x4.5

Silver-


Dark Grey-


---------------------------------------------------------------------------------------------------------------------------------------------

5-Star

Factory Availabilty: YJ, XJ
Bolt Pattern: 5x4.5
Notes: Famous for being the wheels on the "Jurassic Park" fleet of YJ Wranglers. They were painted red in the movie. They are commonly referred to as "old school" or "classic" Jeep wheels.

Grey-


Red (Jurassic Park)-


---------------------------------------------------------------------------------------------------------------------------------------------

Tsi

Factory Availability: ZJ Tsi Edition
Size: 16"x7"
Bolt Pattern: 5x4.5



---------------------------------------------------------------------------------------------------------------------------------------------

Moab

Factory Availability: TJ (Rubicon Models Only), JK
Size: TJ Rubicon- 16"x8" JK- 17"
Colors: Silver, Dark Slate Grey (Mountain Edition and COD Black Ops Edition JK)
Bolt Pattern: TJ Rubicon- 5x4.5 JK- 5x5
Notes: The TJ Rubicon Moab has a more inset face and the JK Moab is flatter.

Silver (TJ Rubicon)-


Silver (JK)-


Dark Slate Grey (JK Mountain and COD Black Ops)-


---------------------------------------------------------------------------------------------------------------------------------------------

Moab Sahara

Factory Availability: JK (Sahara Models Only)
Bolt Pattern: 5x5
Colors: Silver, Dark Slate Grey
Notes: Categorized by having a "snap in connection" type line etched into the wheel at the end of the spoke.

Silver-


Dark Slate Grey-


---------------------------------------------------------------------------------------------------------------------------------------------


Jeep Standard Steel Wheel (No Official Name Given)

Factory Availability: TJ, YJ, XJ
Bolt Pattern:5x4.5
Notes: The TJ version of these had more holes and the holes were a different shape.

YJ/XJ Version-


TJ Version-


---------------------------------------------------------------------------------------------------------------------------------------------
Like I said this is a W.I.P.

-Kev


-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline
Sponsored Links
Advertisement

post #2 of 69 Old 01-10-2011, 06:22 AM
CJ7-Tim
Real Jeeps have dents

CJ7-Tim's Avatar
2000 XJ Cherokee

Join Date: Apr 2002
Location: out in the garage - Minneapolis
Posts: 25,118
XJ, TJ, KJ, and ZJ rims interchange and have very similar specifications.

http://www.jeepforum.com/forum/f11/j...opedia-320730/

.

A recent Gallup public opinion poll shows the NRA, at 58% approval, has a higher approval rating than either Hillary Clinton or Barack Obama.

Progressive Liberalism: Bringing you new Healthcare ideas so wonderful, they have to include mandatory participation ...

Originally Posted by Ronald W. Reagan: Government is not the solution to our problems; Government is the problem.
CJ7-Tim is offline
post #3 of 69 Old 01-10-2011, 06:53 AM Thread Starter
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
I've got that guide and I am trying to put all 5x4.5 rims on here so people will know what fits. I've got a bolt pattern chart by model I am working on too. Thanks

-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline
post #4 of 69 Old 01-10-2011, 07:23 AM
schaef89
Registered User
1989 YJ Wrangler

Join Date: Mar 2010
Location: Pittsburgh, PA
Posts: 846
There are Alcoa rims that came on a special edition TJ (rocky mountain i think).. just helping out

edit: and i didnt see any factory steelies up there..
schaef89 is offline
post #5 of 69 Old 01-10-2011, 07:32 AM
EugeneTheTJ
Tar Heel

EugeneTheTJ's Avatar
2003 TJ Wrangler

Join Date: Dec 2008
Location: North Carolina
Posts: 7,336
http://www.jeepforum.com/forum/f9/st...1/#post4121478

http://www.jeepforum.com/forum/f9/st...1/#post4131908

Founder, Offroad NC
Follow our journey:

  • To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

  • To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

EugeneTheTJ is offline
post #6 of 69 Old 01-10-2011, 09:16 AM Thread Starter
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
Quote:
Originally Posted by schaef89 View Post
There are Alcoa rims that came on a special edition TJ (rocky mountain i think).. just helping out

edit: and i didnt see any factory steelies up there..
Yeah dude this is far from done at this point. I appreciate the suggestion. Forgot about those. I'll get them up there.

-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline
post #7 of 69 Old 01-10-2011, 09:17 AM Thread Starter
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
Sweet man. These will help out. Thanks

-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline
post #8 of 69 Old 01-10-2011, 01:16 PM
jeffjeep1
Registered User

jeffjeep1's Avatar
2005 LJ Wrangler

Join Date: Jan 2005
Posts: 464
IIRC, the TJ Canyons are 15 X 8, and the other Cherokee Canyons are 15 X 7

Jean - Wonderful wife
2003 Toyota Sequoia
2005 FA64 (aka LJ) Khaki
Heidi - Golden Retriever/Jeep Dog
jeffjeep1 is offline
post #9 of 69 Old 01-10-2011, 01:16 PM Thread Starter
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
linkdump:
http://www.wjjeeps.com/wheels.htm
http://www.jeepforum.com/forum/f11/j...opedia-320730/
http://www.jeepforum.com/forum/f9/st...1/#post4131908
http://jeepin.com/forum/showthread.php?t=55441


Continued

---------------------------------------------------------------------------------------------------------------------------------------------

Jeep Standard Steel Wheels (No Official Name Given)

Stock Availability: TJ, XJ, KJ
Bolt Pattern: 5x4.5
Colors: Silver, Chrome
Notes: Some of these had black center caps some didn't. Not really sure what the reason is.

Silver-


Chrome-


---------------------------------------------------------------------------------------------------------------------------------------------

Hammerhead

Factory Availability: WJ Overland
Bolt Pattern: 5x5
Colors: Silver

Silver-


---------------------------------------------------------------------------------------------------------------------------------------------

Timberline

Factory Availability: WJ
Bolt Pattern: 5x5
Colors: Silver

Silver-


---------------------------------------------------------------------------------------------------------------------------------------------

Silverblade

Factory Availability: WJ
Bolt Pattern: 5x5
Colors: Silver, Silver with Gold Accents (Limited)

Silver-


Silver and Gold (Limited)-


---------------------------------------------------------------------------------------------------------------------------------------------


More to come....

-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline
post #10 of 69 Old 01-10-2011, 01:26 PM
jeepn012
Registered User
2005 LJ Wrangler

Join Date: Jan 2008
Location: Houston
Posts: 470
I don't have any pics, but there are two different versions of TJ Moabs, not just the color. The 2003-2004 are "round" between the spokes. 2005-2006 models had a "step" between the spokes. The year range may have fluctuated, but there are two different versions.

Here you can see these are slightly different than the ones you have pictured. http://www.jeepforum.com/forum/f22/j...bicon-1133590/

1990 YJ - 96 to 03 My first. She will be missed.
2004 TJ - 03 to 11. Old Faithful. I will have another TJ one day.
2007 JKU - SOLD
2005 LJ - In the mail, hope I like it. Everybody's doin it, here is the build:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by jeepn012; 01-10-2011 at 01:29 PM. Reason: Found a link.
jeepn012 is offline
post #11 of 69 Old 01-10-2011, 01:29 PM
DoctorTim
Registered User
1996 XJ Cherokee

Join Date: Sep 2010
Location: Huntington Beach
Posts: 2,457
subscribed!

can you also list the backspacing please?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
96 XJ, geared, 8.8, 5", 33s, dash
DoctorTim is offline
post #12 of 69 Old 01-12-2011, 09:44 AM Thread Starter
KevLaredo
Registered User
1997 XJ Cherokee

Join Date: Dec 2009
Location: Rocky Hill, Tennessee
Posts: 386
Quote:
Originally Posted by Tim_XJ View Post
subscribed!

can you also list the backspacing please?
I will try my best but I would like to gather the basics of as many wheels as possible first. The original intention of this thread is to make a nice catalog of images to help you find the name of your wheels.

-97 XJ Cherokee Sport. Bone Stock. Inline 6, selec-trac and factory tow package with Chrysler 8.25 Rear. ▀ lllllll ▀
-98 White ZJ Grand Cherokee Laredo. 3.5" Rough Country Lift, Manik Brush guard, Hella 500 Fogs, 31x10.50x15 Cepek Crushers, K&N cold air intake, 4.0L I6, Cobra CB. SOLD
KevLaredo is offline
post #13 of 69 Old 02-17-2011, 09:56 PM
dvirgil
Registered User
2000 WJ

Join Date: Feb 2008
Posts: 150
i have a moab sahara i beleive, but they are different than the saharas you have pictured, the etching at the end of the spoke goes around the snap in lips also, if that makes sense. I was told my jeep was made for canada if that makes a difference. i havent seen them on any other jeep but mine, have been searching forever to try to determine what they are. .

edit. turns out i found that these are from 05-07 WK..RoninII
Attached Thumbnails

'00WJ,Peiced 4.5" lift,(6)Ironman4x4fab adj ca's,JKS adj TB,JKS BPE's
265/70/17 Grizzly's,Wk Ronin II,Zone ext links,
Tenneco SS,CAI,Magnaflow,exh,Adj A-Arm and more on the way..
dvirgil is offline
post #14 of 69 Old 02-20-2011, 06:41 PM
bell22
Registered User
2007 WK

Join Date: Oct 2009
Location: Pittsburgh
Posts: 47
Awesome thread!! Make this a sticky!!
bell22 is offline
post #15 of 69 Old 02-22-2011, 08:17 PM
laybackman
Bikini Bridge Inspector

laybackman's Avatar
2010 JK Wrangler

Join Date: Dec 2002
Location: Massachusetts
Posts: 6,977
Quote:
Originally Posted by bell23 View Post
Awesome thread!! Make this a sticky!!
That would be great!

Do you know what was good about the good old days? I wasn't good, And I wasn't old!

Senators and Congressman should wear uniforms like NASCAR drivers so we could identify their corporate sponsors....
laybackman is offline
