2" receiver tire carrier

Have you fellas ever seen anybody use a 2" reciever spare tire carrier? I know a drawback of this would be not having access to the tailgate but thats no a big deal. Would it look hideous if I were to take a a 2" hitch and put a peace of 2" tube going straight up on it and fab a mounting plate for the wheel? Workin in a machine shop it shouldnt be hard to come up with something. That away I wouldnt have to worry about a whole new carrier and could still have access to my hitch if need be. Ofcourse departure angle wont be great..but for a pavement pounder who cares? But then again it might just be a stupid idea...

Runnerboy is offline   Reply With Quote Quick reply to this message
Unread 12-22-2005, 04:56 PM   #2
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,339
not a terrible idea really, but it has plenty of downsides, most of which you mentioned. i think the main key here would be to keep it mounted as close to the body as possible. they do sell these and yes i have seen them on a wide range of vehicles. if you went offroad, you would pretty much need to take it off because it would cause more trouble than it's worth; however, when you do that, you loose your spare tire which is obviously a no-no, so really it comes down to you.
TXST8tj is offline   Reply With Quote Quick reply to this message
Unread 12-22-2005, 05:38 PM   #3
Runnerboy
Registered User

Join Date: Aug 2005
Posts: 352
But say if I where doing 4-wheeling..the rear seat will be out anyhow, couldnt I just take it off and set it inside? Its not like Im going to be rolling over or anything so it wouldnt be any danger in a loose tire laying inside.

I have seen them sold at autozone for around $85, thats just for the carrier, it doesnt have a place for a ball on it. Does modifying a reciever sound like a good idea? I might go as far as making some sort of quick discount system for it so I could just pull 1 pin and lift the tire off and have quick access to the tailgate. I guess the biggest problem will be how much its going to wobble around. 2" hitches usually have some play in them..
Runnerboy is offline   Reply With Quote Quick reply to this message
Unread 12-30-2005, 04:59 PM   #4
jmanimal
Registered User

Join Date: Apr 2004
Location: Ponte Vedra FL, Florida
Posts: 300
I have a bike rack for a 2" receiver that is really close to what you are describing. It has a hinge where the vertical meets the horizontal (into the receiver) and a removable clevis pin. It hinges straight down so you can open the gate. Hard to describe, but where the vertical meets the horizontal, there are triangular plates on each side. The plates are only welded to either the vert or horiz. and use the pin to attach to the other. Couldn't be that hard to make. Ill try to find a pic..
__________________
Now:2011 JKU
Gone:2001 TJ;1998 5.9 ZJ;1995 5.2 ZJ
www.thefidusgroup.com; matanzasjeepclub.com
jmanimal is offline   Reply With Quote Quick reply to this message
Unread 12-30-2005, 05:05 PM   #5
Runnerboy
Registered User

Join Date: Aug 2005
Posts: 352
jmanimal I would really appreciate a picture when you get a chance. I think I understand what your saying but it would still be nice to be able to get some design ideas
Runnerboy is offline   Reply With Quote Quick reply to this message
Unread 12-30-2005, 10:14 PM   #6
smokeybear
Registered User
2002 TJ Wrangler

Join Date: Nov 2002
Location: Missoula, Montana
Posts: 414
The wobble/rattle problem is easy to fix. Drill and tap a hole in the bottom of the reciever on the opposite end of the pin from the tire carrier (or trailer ball or whatever). Run a bolt - maybe half inch or so - up there solid against the stinger. It will prevent rattling.
__________________
02 TJ Sahara 4.0 5 spd, 3.73, Dana 44 rear, 2" Rubicon Express BB w/ Bilstein mono shocks, Warn M8000, 33x12.50 General Grabber AT2.
formerly 92 YJ 4.0 5spd, 3.5" Black Diamond lift, 1 inch Daystar body lift. 1 inch motor mount lift, Warn M8000, 33x12.50 BFG ATs, Ford 8.8, 4.10
smokeybear is offline   Reply With Quote Quick reply to this message
Unread 01-01-2006, 02:55 PM   #7
jmanimal
Registered User

Join Date: Apr 2004
Location: Ponte Vedra FL, Florida
Posts: 300

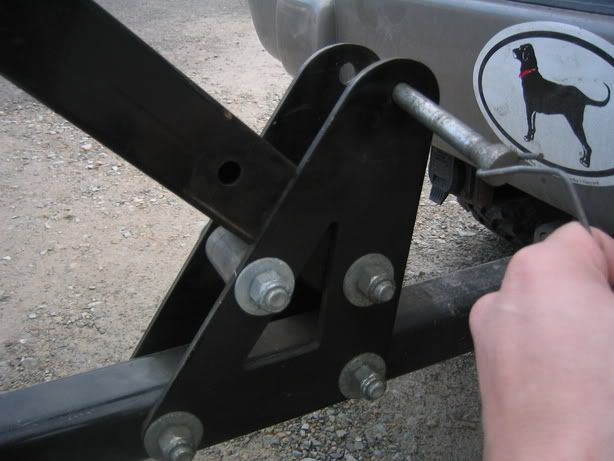

Here you go. The longish extended part on the bottom rear is meant to hold a baby receiver (class 2?) If I were to use something like this offroad, I would not include that length.
