wingless' Factory Transfer Case Skid Plate Well Nut Replacement

My vehicle was special-ordered w/ the Up Country Suspension Group.

That includes the skid plates, for the front suspension, the gas tank and for the transfer case.

My transfer case skid plate has remained in my garage for years because the rivet nuts used to retain the bolts into the blind holes on the transmission crossmember and on the "frame" tube had deteriorated and failed.

My attempts to replace these rivet nuts had been unsuccessful. The factory documentation shows usage of a special tool. Without that tool, I tried using the bolt and a wrench to bulge the nut, no good.

Now the Mopar M10-1.5 rivet nut parts are almost made from unobtaineum. I found one vendor. They have only ten of the Mopar 6502 662 well nuts remaining in-stock. I have not found anyone else w/ this part.

There are other vendors with an M10-1.5 rivet nut in their catalogs, in steel, stainless steel or aluminum, but I don't know the availability or the Minimum Order Quantity. The steel Mopar 6502 662 dimensions are: OD - 12.45mm; Body Length - 16.80mm; Head Diameter - 13.63mm; Head Height 0.82mm and thread size M10-1.5 ISO. Here is a vendor listing a compatible part.

A special rivet nut tool was designed and fabricated to install this M10-1.5 rivet nut. It is very similar to this tool except mine works w/ this M10-1.5 fastener.

The tool worked exceptionally well! The blind fasteners all seated properly into their blind holes.

Now I will be able to replace my transfer case skid plate.


M10-1.5 Rivet Nut and Transmission Cross Member Blind Hole


Custom Rivet Nut Tool


Tool at Start Position


Tool at Finished / Bulged Position


Bulged Rivet Nut


Transmission Cross Member w/ Two New M10-1.5 Rivet Nuts


*GIF image credit to RivitNutTool.com

wingless is offline   Quick reply to this message
Unread 09-27-2015, 10:11 PM   #2
wingless
Senior Member

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: , Florida
Posts: 677
Quote:
Originally Posted by wingless View Post
My vehicle was special-ordered w/ the Up Country Suspension Group.
The 6502 662 rivet nut is used on my 1994 ZJ Grand Cherokee to attach the factory transfer case skid plate.

This is a three-point attachment, w/ two fasteners in the transmission cross bar and the third in the driver's side "frame" tube.
wingless is offline   Quick reply to this message
Unread 10-19-2015, 11:14 AM   #3
wingless
Senior Member

wingless's Avatar
1994 ZJ

Join Date: Sep 2007
Location: , Florida
Posts: 677

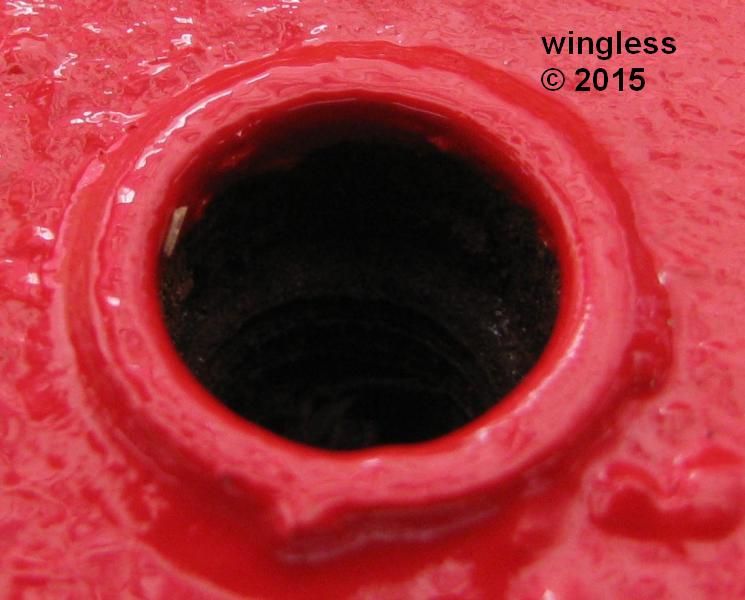

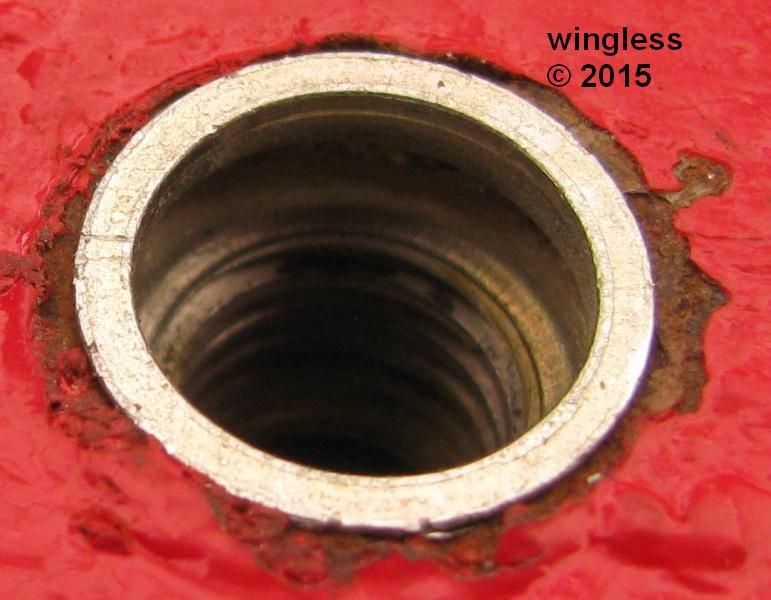

When I examined the factory-installed rivet nuts, then compared them to those I installed, I found that the factory barely bulged the rivet nut and I bulged the nuts to a much greater amount.

This is determined by examining the distance from the surface to the threads on the factory-installed rivet nut and on the rivet nuts that I installed.

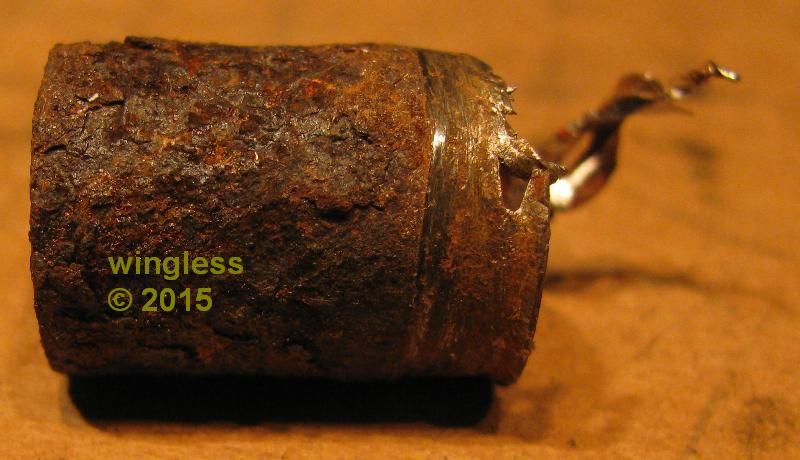

Also, this factory-installed rivet nut that I removed shows very little bulge. This rivet nut worked okay until I drilled it out for removal, then it spun w/ the drill bit.

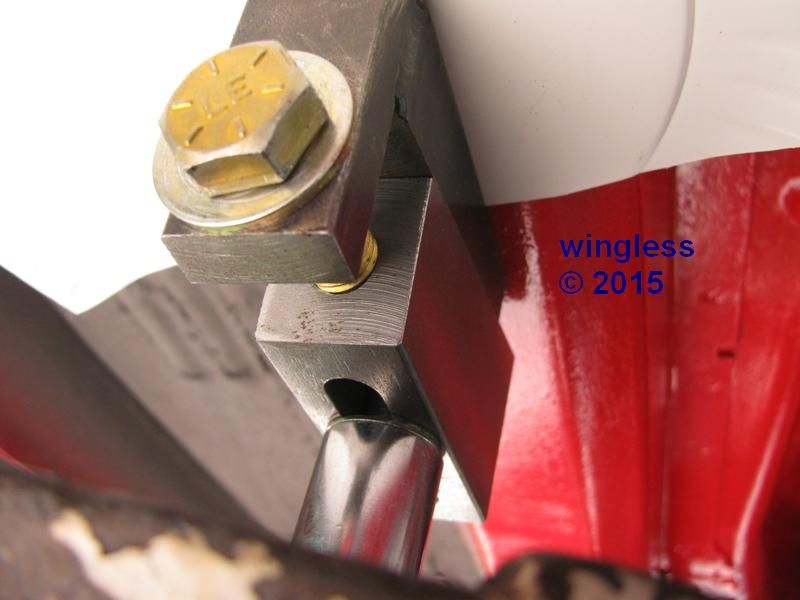

My latest experience w/ my tool revealed that it is MUCH easier to bulge the rivet nut while under the vehicle and the blind hole overhead. I used my floor jack and a socket to push the tool hard up against the vehicle, then rotated the bolt pulling the wedge to bulge the nut.

That worked GREAT!

The nut was rotated until the torque increased, by feel, then I stopped attempting the bulge the nut.

All three rivet nuts were inspected and all appeared identical for the distance from the threads to the surface and the interior appearance of the bulge.
