Unread 11-14-2011, 04:37 PM   #16
radsavage2000tj
Registered User
2000 TJ Wrangler

Join Date: Nov 2011
Location: Shamrock, Texas
Posts: 47
Has anyone had any problems of warpage of the hardtop from it hanging for extended periods of time?

radsavage2000tj is offline   Reply With Quote Quick reply to this message
Unread 11-15-2011, 05:31 PM   #17
TJWilley
Registered User
2006 TJ Wrangler

Join Date: Mar 2009
Location: Idaho
Posts: 411
It's fiberglass. It isn't going to warp, but it would not survive a fall very well. If you entend to leave it hanging, be sure your hooks are not going to slip off.
TJWilley is offline   Reply With Quote Quick reply to this message
Unread 11-15-2011, 09:09 PM   #18
04WJny
Registered User
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 615
Quote:
Originally Posted by Smokey007 View Post
Great idea, I'm going to try the boat winch.
Great idea with a boat winch! i think i will do the same thing as well. My only concern is lowering it down because once you release the winch the crank will want to pull out of your hands. Just a thought but i think i might be over thinking it
__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
[CENTER][URL="http://www.jeepforum.com/forum/f22/sloooooow-blue-yj-build-1234350"]My YJ Build[/URL][/CENTER]
04WJny is offline   Reply With Quote Quick reply to this message
Unread 11-18-2011, 07:52 PM   #19
radsavage2000tj
Registered User
2000 TJ Wrangler

Join Date: Nov 2011
Location: Shamrock, Texas
Posts: 47
The boat winch I have has a ratio of 4.1:1. The handle should not slip out of your hand, you have a pretty good amount of torque with that ratio. Correct me if I am wrong.
radsavage2000tj is offline   Reply With Quote Quick reply to this message
Unread 11-22-2011, 09:06 AM   #20
TJWilley
Registered User
2006 TJ Wrangler

Join Date: Mar 2009
Location: Idaho
Posts: 411
Quote:
Originally Posted by radsavage2000tj View Post
The boat winch I have has a ratio of 4.1:1. The handle should not slip out of your hand, you have a pretty good amount of torque with that ratio. Correct me if I am wrong.
It has never been a problem for me. I have used mine several times now, and you use the ratchet when you are removing the top, so no danger of it slipping there. If it were to be an issue, it would occure when you are putting the top back on and you have the lever flipped so you can lower the top into place.

Again, I have done this many times and it has never been a problem. The top isn't as heavy as a boat. That winch was built for bigger loads.
TJWilley is offline   Reply With Quote Quick reply to this message
Unread 03-06-2012, 09:32 AM   #21
outlawsix
Registered User
1999 TJ Wrangler

Join Date: Mar 2011
Location: Carriere, Mississippi
Posts: 210
What is the distance from the rear of the hoist frame to where it balances out at on ya'll lift systems for TJ's?
outlawsix is offline   Reply With Quote Quick reply to this message
Unread 03-25-2012, 07:10 PM   #22
Jhkinin
Registered User
2012 JK Wrangler

Join Date: Jun 2009
Location: Roseville, CA
Posts: 92
A big "Thank You" to the author of this thread.
I bought a hand crank winch (1,000 lb rating), 4 new tie downs, 10' unistrut (for T-bar), foam padding, and some miscellaneous hardware. A total of $60 and few hours labor and its done. Currently its hanging free but I plan on adding some lag bolts, chain and 2 x 4's so I can take the weight off the winch/t-bar.
__________________
2012 Wrangler Rubicon Unlimited (Wifes)
2005 TJ Sport 4.0/Auto (Daughters)
1998 TJ Sahara 4.0/5 Speed (Mine)
Jhkinin is offline   Reply With Quote Quick reply to this message
Unread 07-26-2012, 02:48 PM   #23
JaredL
Registered User

Join Date: Jul 2012
Location: Thornhill, ON
Posts: 38
Do I need the t bar? I have no idea where to get something like that made up.. Has anyone tried just using a rope "x" or anything? I don't want to store the hard top hanging. I just want to be able to get it back on in the fall.
JaredL is offline   Reply With Quote Quick reply to this message
Unread 07-27-2012, 05:30 PM   #24
1320quick
Registered User
2003 TJ Wrangler

Join Date: Apr 2012
Location: Thornton, Colorado
Posts: 162
Quote:
Originally Posted by JaredL View Post
Do I need the t bar? I have no idea where to get something like that made up.. Has anyone tried just using a rope "x" or anything? I don't want to store the hard top hanging. I just want to be able to get it back on in the fall.
I've built 2 lifts in the past 4 months using ideas from this thread. For the lift I built for my TJ, I welded up a "T" using 1 1/4" square tubing. When I just built one a few weeks ago for my dad's LJ, we made an "I" using Uni-strut and just bolted it together one both ends using 1/2" grade 5 bolts. I think it was like 4' on each end and 5' in the middle. So I guess to answer your question, I guess there is more than one way to do this and it's all about what you want. If you don't have a welder or know someone who does, you can always use uni-strut and bolt it together to form the "T".
1320quick is offline   Reply With Quote Quick reply to this message
Unread 08-10-2012, 02:10 PM   #25
castorriver
Registered User
1995 YJ Wrangler

Join Date: Aug 2009
Location: South of St. Louis, Misery
Posts: 756
Quote:
Originally Posted by Jhkinin
A big "Thank You" to the author of this thread.
I bought a hand crank winch (1,000 lb rating), 4 new tie downs, 10' unistrut (for T-bar), foam padding, and some miscellaneous hardware. A total of $60 and few hours labor and its done. Currently its hanging free but I plan on adding some lag bolts, chain and 2 x 4's so I can take the weight off the winch/t-bar.
Nice job. I need to do this!!!
__________________
Registered Nurse Jeep Club Member #1 (I think...)

Verse 36: And He said to them, "But now, whoever has a money belt is to take it along, likewise also a bag, and whoever has no sword is to sell his coat and buy one.
castorriver is offline   Reply With Quote Quick reply to this message
Unread 09-05-2013, 08:13 PM   #26
ExtremeLED
ExtremeLEDLightBars.com

ExtremeLED's Avatar
1999 TJ Wrangler

Join Date: Jul 2013
Location: Denver, CO
Posts: 88
A real cheap version is to use just a rope hoist like this one $6 and 2 ratchet straps (these are $17 for 4, but you can split it with a friend...so $9). Then a rope cleat ($4) to tie off the rope when it is up and finally an eye lag bolt (or 2 if you want to spread the weight, but I just use one for a TJ top).

Total Cost: $20
(most people seem to have extra ratchet straps laying around...so you could really end up costing you only like $10.)

Take one ratchet strap and run it front to back and tighten it just to be snug. The run the other from the middle of the side window over to the middle of the other side window...just lift the top a little and place the hooks under the edge.

Hang your hoist using the eye lag bolt(s), mount your rope cleat on the wall. Lower the hoist hook and hook it under the ratchet straps where they intersect on the top so that both straps are in the hook. Hoist away.

Besides being cheap... you can hang it close to the back wall as with the straps, you can close the rear window...something you can't do with metal hooks.
ExtremeLED is offline   Reply With Quote Quick reply to this message
Unread 10-23-2013, 01:23 PM   #27
JohnCrabtree
Registered User
1994 ZJ

Join Date: Mar 2013
Location: Sonora, California
Posts: 314
I did this with my titan's camper shell. The pictures and final product are towards the end.

http://www.titantalk.com/forums/tita...l-storing.html
JohnCrabtree is offline   Reply With Quote Quick reply to this message
Unread 11-13-2013, 03:45 PM   #28
MudDigger2
Registered User
2000 TJ Wrangler

Join Date: Nov 2013
Location: bristol, CT
Posts: 3
test

just testing
MudDigger2 is offline   Reply With Quote Quick reply to this message
Unread 03-22-2014, 09:15 AM   #29
xxxxxxxxxxxxhilde
Guest
2003 TJ Wrangler

Join Date: Oct 2012
Location: edwardsville, il
Posts: 26
Here's my take - straps and eye-bolts into rafters. A Jeep-produced video (linked somewhere on this forum) mentioned the weight of the hardtop was around 140 lbs.

xxxxxxxxxxxxhilde is offline   Reply With Quote Quick reply to this message
Unread 04-05-2014, 07:03 AM   #30
xxxxxxxxxxxxhilde
Guest
2003 TJ Wrangler

Join Date: Oct 2012
Location: edwardsville, il
Posts: 26

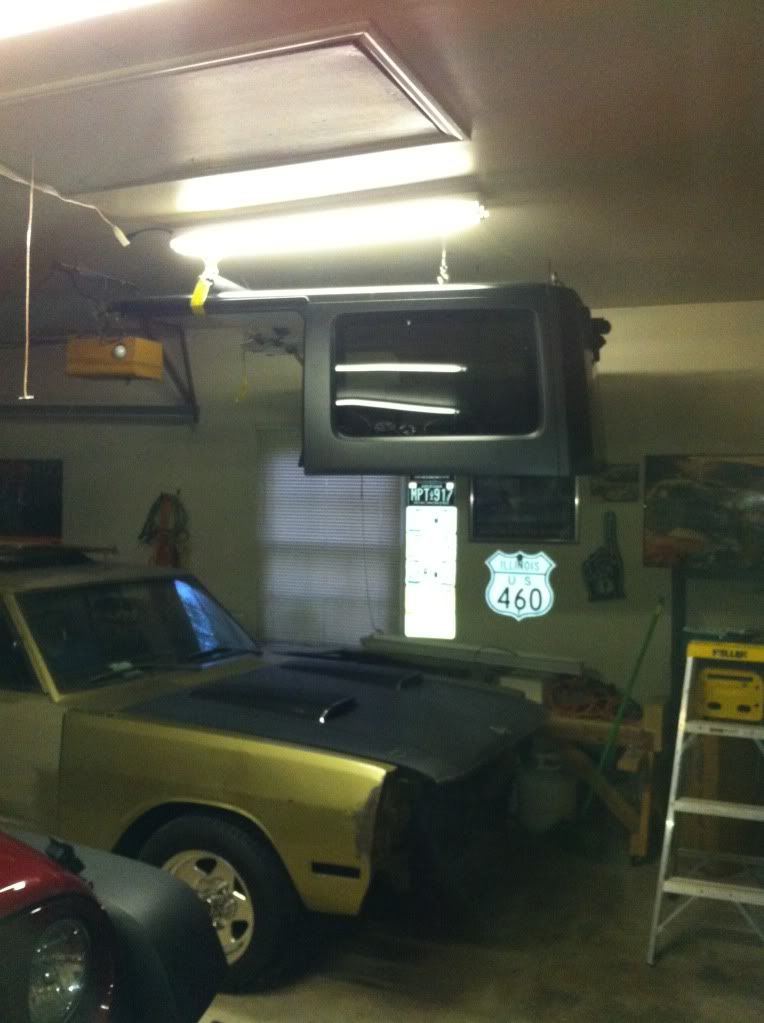

The hard-top hoists range from simple to complex. Here's my stab at one - eye-bolts and straps.
