Unread 12-20-2008, 02:29 PM   #31
SpeedyCat3
Survivor

SpeedyCat3's Avatar
1997 ZJ

Join Date: Dec 2002
Location: Planet Earth
Posts: 2,657
This one cost a bit more, but is sturdy and has all the necessary hardware to install the spare on it.
I don't have mine in it though since I have the matching rear bumper with tire carrier.

bumpers-4-lights-left.jpg   bumper-4-lights-right.jpg
__________________
_o o o o_
|_Jeep_|
(OlllllllO)
[] ---o-[]

My 97 ZJ Build
SpeedyCat3 is offline   Reply With Quote Quick reply to this message
Unread 01-31-2011, 06:32 AM   #32
seanom
Registered User
1997 ZJ

Join Date: Jan 2011
Location: ottawa, ontario
Posts: 70
Quote:
Originally Posted by Bannonjr View Post
I took 2 extra roof rack bars off a scrapped ZJ, put em on, used the front for a light bar, the 2 rear to mount my spare tire and the rear for my back up lights...cost me nothing but time...

how did you tie the tire securely? I was thinking of making something out of steel and then using a wing nut and bolt... did you just tie it?

I need to get the damn tire out of my trunk
seanom is offline   Reply With Quote Quick reply to this message
Unread 01-31-2011, 07:39 AM   #33
treycox
Registered User
1996 ZJ

Join Date: Feb 2009
Location: charlotte
Posts: 11

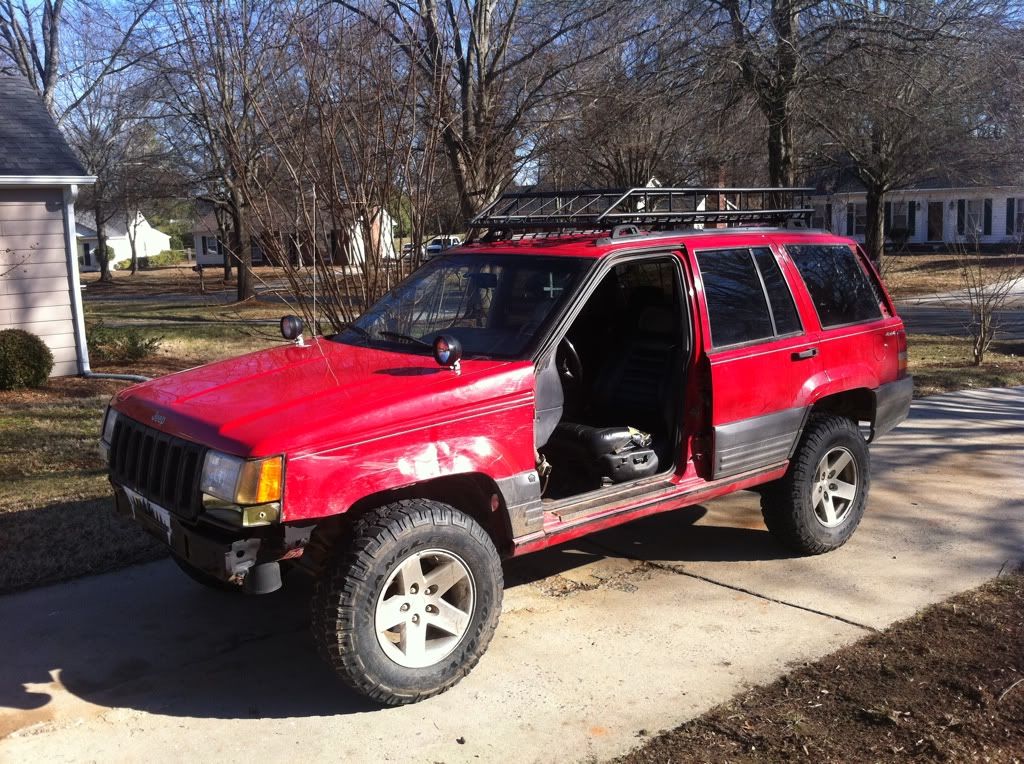

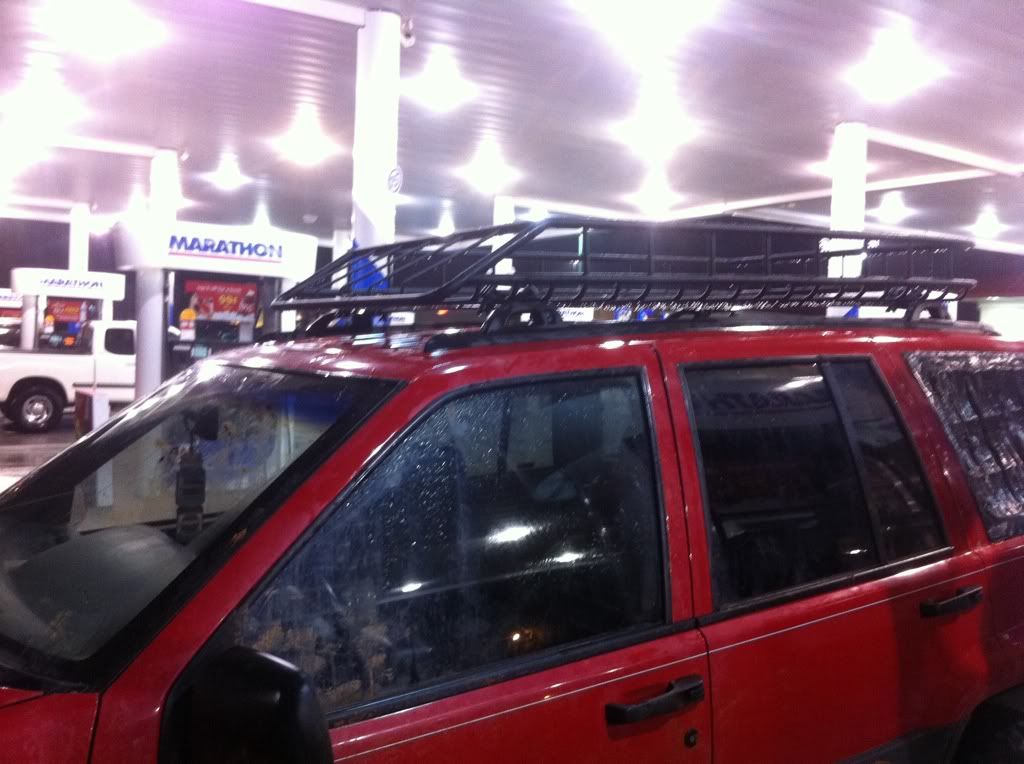

Here's mine. Don't really know much about it due to it being a gift. Its a smittybuilt and it sat in my father inlaws garage for a few years. Apparently he got it for like $50 through some promotion they ran years ago.
__________________
96 ZJ
treycox is offline   Reply With Quote Quick reply to this message
Unread 01-31-2011, 08:57 AM   #34
smokeyeager
Registered User
1993 ZJ

Join Date: Aug 2010
Location: Wilmington, North Carolina
Posts: 214
Quote:
Originally Posted by -cAcHe- View Post
these are the best pics i have on my photobucket right now...i have some closer ones at home. took the design from KOR!! and cost me less than half to make.
I'm working on designing a rack using google sketch up with about the same design. I was thinking of mounting a light rack up front and 1 light off the back, running all the wire through the tubing to a modified trailer wiring harness to a quick disconnect over the interior dome light. It's still in the planning phase but it should be pretty slick when it's done.
smokeyeager is offline   Reply With Quote Quick reply to this message
Unread 06-14-2013, 10:45 AM   #35
PhoenixZJ
Registered User
1995 ZJ

Join Date: Jun 2013
Location: Fountain Hills, AZ
Posts: 24
Quote:
Originally Posted by Jones View Post
Here's mine.


I wouldn't recommend putting the spare tire on the roof. A rear tire carrier would be a much better approach.

Why you shouldn't:
More difficult to get to if you need to use it.
Lowers mpg by a few miles.
Creates an even more top heavy center of gravity.
Where did you get your roof rack form? Did you get it locally in Phoenix?
PhoenixZJ is offline   Reply With Quote Quick reply to this message
Unread 06-14-2013, 07:43 PM   #36
SCZJ
Member

SCZJ's Avatar
1994 ZJ

Join Date: Jan 2013
Location: Gainesville, Georgia
Posts: 146
I'd like to know, too. That's a great looking rough rack.
__________________
'94 ZJ, 4.0, D30/D44A, 4 1/2" lift, 32" tires, 3.73 gears, etc...
www.twitter.com/ProjectZJ
SCZJ is offline   Reply With Quote Quick reply to this message
Unread 06-15-2013, 03:42 AM   #37
ErikTheRad
Registered User
1993 ZJ

Join Date: May 2010
Location: Marysville
Posts: 420
I'm currently building my own roof rack, should be done with it in the next couple of days. I made it from 1" square steel tube that I got free from work. Its 4" deep, 54" long, 34" wide, got an X-braced rear area for the spare which uses a length of all-thread welded to the center of the X for the spare tire hold-down (will fit up to a 35" tire) and an 18"x34" area up front for cargo. All I need to do is figure out a good mounting technique and then paint it and whaa-laa, its done. Total cost = several feet of .030 MIG welding wire, a bit of argon/co2 gas, and a can of Rustoleum Professional flat black. :-) Figure it would cost well over $200 for one like it, this sucker is a serious rack--- not flimsey thin-walled Chinese crap. It weighs about 35 lbs but the strength is worth it.
ErikTheRad is offline   Reply With Quote Quick reply to this message
Unread 06-15-2013, 11:25 AM   #38
ROFLwaffles
Registered User
1998 ZJ

Join Date: Mar 2013
Location: University Place, wa
Posts: 157
Holy 5 year old thread resurrection Batman.... lol
ROFLwaffles is offline   Reply With Quote Quick reply to this message
Unread 06-19-2013, 12:51 PM   #39
Zakimations
Registered User
1996 ZJ

Join Date: Nov 2012
Location: Kaysville, UT
Posts: 131
I bought a custom made roof rack from someone nearby. It wasn't made for a ZJ.

This rack has a flat bottom, and the ZJ has a curved roof.

Solution: Removed stock rail system, went to local hardware store and found some perfect cone shaped rubber spacers in a small and large size. Drilled holes down through the center of them, bought longer bolts of the same size/thread as the ones that came out of the stock rails. Before I knew it I had a flat roof rack perfectly shimmed onto a curved roof. Its solid as a rock too.

Zakimations is offline   Reply With Quote Quick reply to this message
Unread 06-19-2013, 02:14 PM   #40
PhoenixZJ
Registered User
1995 ZJ

Join Date: Jun 2013
Location: Fountain Hills, AZ
Posts: 24
Quote:
Originally Posted by Zakimations
I bought a custom made roof rack from someone nearby. It wasn't made for a ZJ.

This rack has a flat bottom, and the ZJ has a curved roof.

Solution: Removed stock rail system, went to local hardware store and found some perfect cone shaped rubber spacers in a small and large size. Drilled holes down through the center of them, bought longer bolts of the same size/thread as the ones that came out of the stock rails. Before I knew it I had a flat roof rack perfectly shimmed onto a curved roof. Its solid as a rock too.
Very nice! That gives me a good idea on what to do with mine
PhoenixZJ is offline   Reply With Quote Quick reply to this message
Unread 06-19-2013, 08:00 PM   #41
Cherokee95kid
Registered User
1995 ZJ

Join Date: Aug 2011
Location: Reading, Pa
Posts: 600
Here's a link to my conduit roof rack with awning. And I'm gona look into what zakimations did to mount his cause that's really smart.
http://www.jeepforum.com/forum/f13/m...wning-1533661/
Cherokee95kid is offline   Reply With Quote Quick reply to this message
Unread 06-19-2013, 10:59 PM   #42
Zakimations
Registered User
1996 ZJ

Join Date: Nov 2012
Location: Kaysville, UT
Posts: 131
Quote:
Originally Posted by Cherokee95kid
Here's a link to my conduit roof rack with awning. And I'm gona look into what zakimations did to mount his cause that's really smart.
http://www.jeepforum.com/forum/f13/m...wning-1533661/
I think mimicking my approach will work great. The floor of my rack is a chain-link style steel so I could run the long bolts through it with large washers to add holding strength. That's all there was to it.

If you need any measurements / bolt sizes let me know.

If you haven't already found out, the threads holding the stock rails on are actually plastic inserts. I was skeptical to whether or not they offered any real structural support but they have proven to be tough and reliable. I've been wheeling hard with a spare 32" tire on top for 2 years and they still don't have any play in them.

Whatever spacers you use, treat them like bushings. They are susceptible to dry rotting in the sun. Do what you can to make them last more than a couple years.

Cheers.
Zakimations is offline   Reply With Quote Quick reply to this message
Unread 06-20-2013, 03:53 AM   #43
zjfamilyman
Registered User
1997 ZJ

Join Date: Mar 2012
Location: Clay Springs, AZ
Posts: 15
1) Sleeping in the back of a ZJ is awesome, I'm six foot and my feet don't get past the bumper. 2) Roof top carriers are great for guys with smaller lifts and tires, lifting a Jeep more than 3 inches will do much more to its COG than putting a tire on the roof.
I just finished mine. I found an old lift basket and hacked it up. I may ad some more structural supports later but right now it's strong and light enough for my needs, it didn't cost me more than the paint and looks pretty good imo.
__________________
Every mountain is unclimbable until it is climbed, every ship unsinkable until it is sunk.
zjfamilyman is offline   Reply With Quote Quick reply to this message
Unread 07-03-2013, 06:52 PM   #44
Jramos43
Registered User
1996 ZJ

Join Date: Feb 2013
Location: El Paso, Texas
Posts: 79
Quote:
Originally Posted by Jones View Post
Here's mine.


I wouldn't recommend putting the spare tire on the roof. A rear tire carrier would be a much better approach.

Why you shouldn't:
More difficult to get to if you need to use it.
Lowers mpg by a few miles.
Creates an even more top heavy center of gravity.

Im in love with your truck man. Whats in it? From the tire size to rim style, roof rack and lights. and where can i get some, cuz damn bro thats a sick looking Jeep.
__________________
96 ZJ
Jramos43 is offline   Reply With Quote Quick reply to this message
Unread 07-03-2013, 07:42 PM   #45
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Heres mine. just finished it.

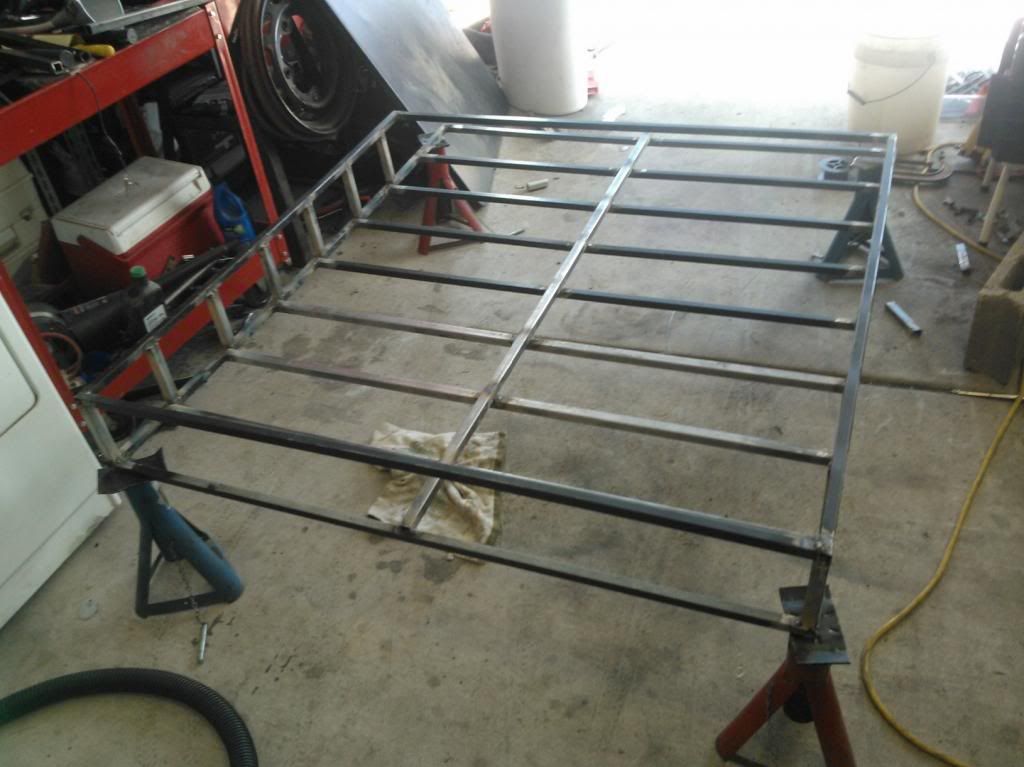

its made from 3/4" 16 gauge square tube. bottom frame is 53"x44" (i have a sunroof and didnt want the rack to go over it. less wind noise that way). top frame is 44" square, and its 5 inches tall. i made the top part smaller than the bottom so i could make the front slanted to deflect trees and such while wheeling. the whole thing is very strong and i can stand on it and jump and theres hardly any flex at all (i weigh around 260lbs).
anyway heres some pictures:

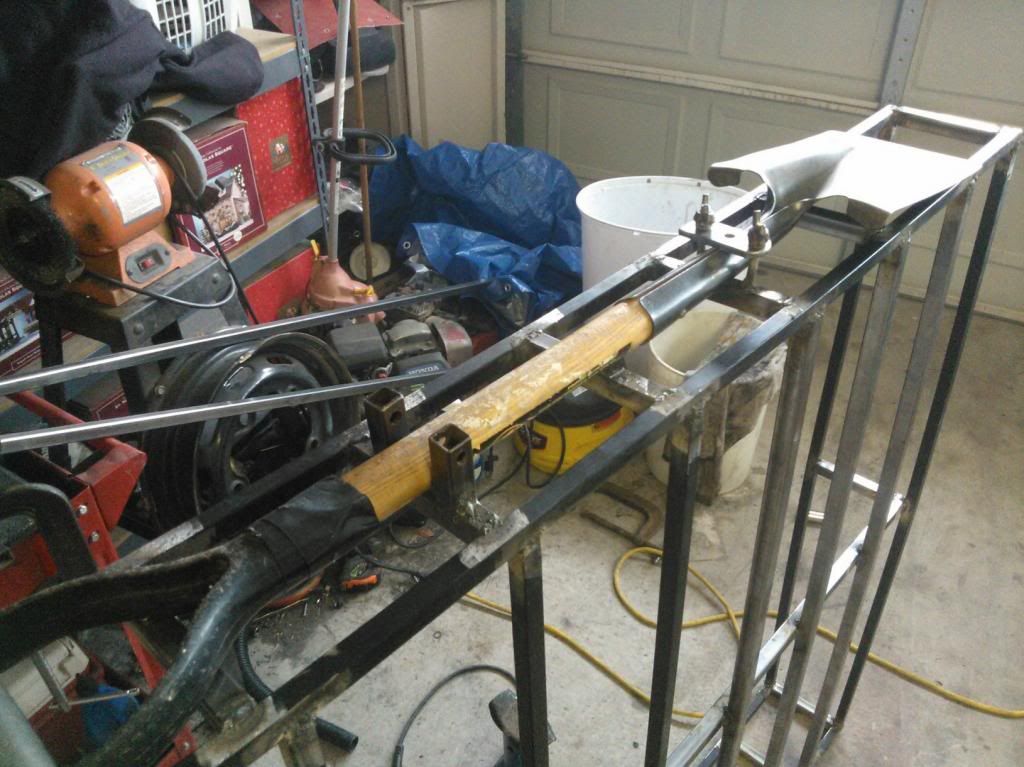

made a shovel mount on it too. just some extra square tube with some holes drilled (so i can put a lock thru it) and 2 wing nuts and a little plate i made.

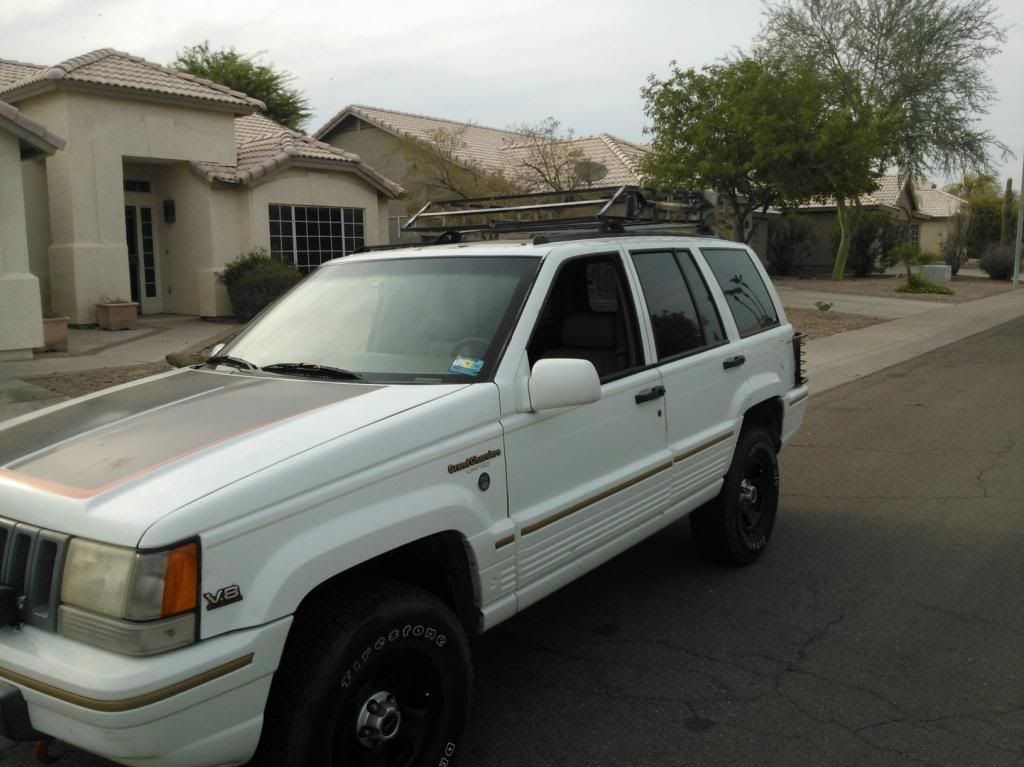

not mounted yet, just sitting there:


still need to paint it, it will be flat black. i will post more pictures when its all painted and mounted.
