The ZJ Parking Brake Post...

I just moved to Texas from Ohio and found out that I have to have an inspection here to get Texas plates. Well my Jeep failed inspection for lack of a parking brake. To be honest I dont CARE but the state of Texas does.

So I got on here and searched some threads and found a lot of helpful information and decided to organize it and pass it on to some of you.

So here it is. For those of you like me that have a winter car you will most likely encounter this problem. The reason is, Jeep designed the parking brake system pretty crappily causing two parts to become one.

Some of you on here managed to free up the two parts and get them moving alone again but I COULD NOT.

Tools you need:

3/4" ratchet (or lug wrench) to remove tires.
13mm socket to remove brake caliper.

Here is a pic of the tools and the parts I purchased:



Now the parts I bought were:

Left and Right side metal hook,
Left and right side metal sway
(2) adjusting screws
(2) adjusting nuts
(2) adjusting shafts

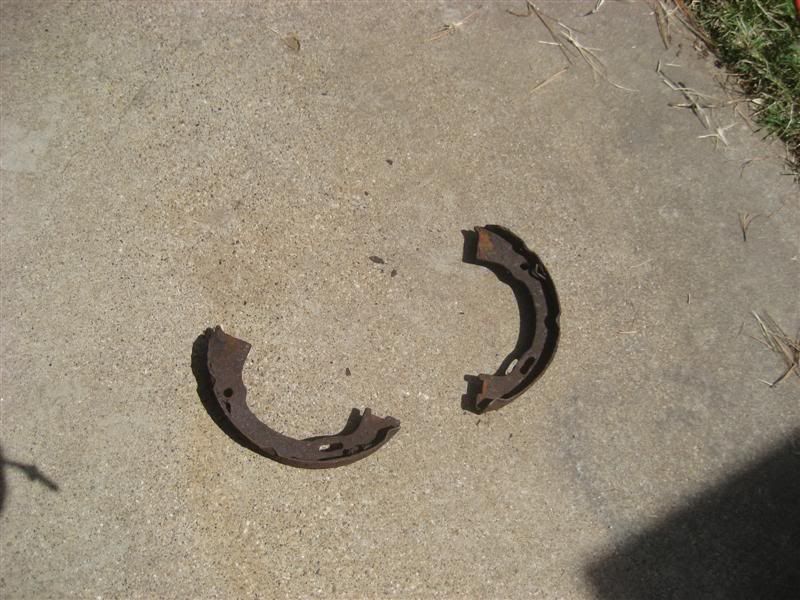

I also bought all new brake shoes as you will see why when you see mine.









Step 1: Loosen lugs while car is on the ground



Step 2: Remove tire to expose brake disc and caliper (mine are brand new as I literally just replaced them)

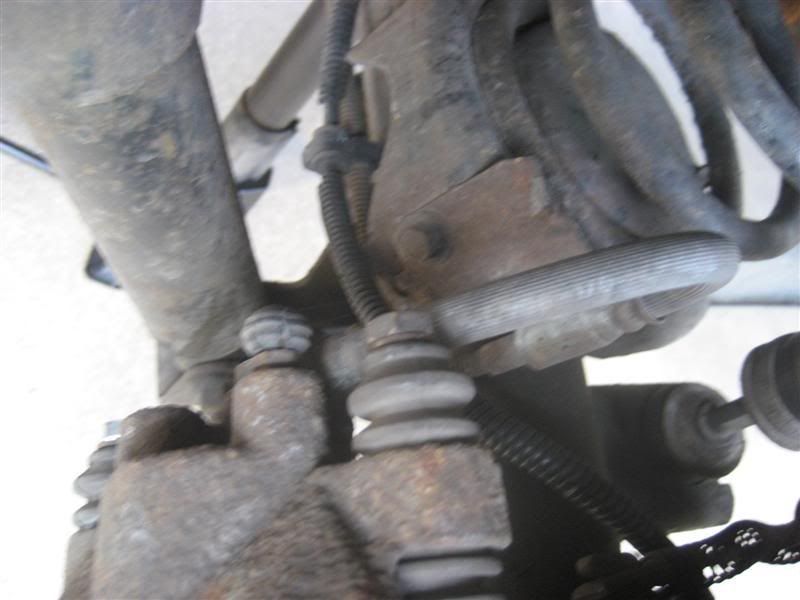

Now you can get a good look of the hook part that is attached to the cable that actually moves your parking brake. Have a friend pull on it and make sure the cable still moves. If it does you dont need to replace the cableing (I did not have to)





BrokenLimits is offline
Sponsored Links
Advertisement

post #2 of 33 Old 08-26-2007, 04:12 PM Thread Starter
BrokenLimits
Registered User
1998 ZJ

Join Date: Oct 2004
Location: Lubbock, TX
Posts: 252
Step 3: Remove the upper and lower caliper bolts and make sure you dont hang the caliper by the brake hose (if you have ever changed brake pads you know how to do this obviously)

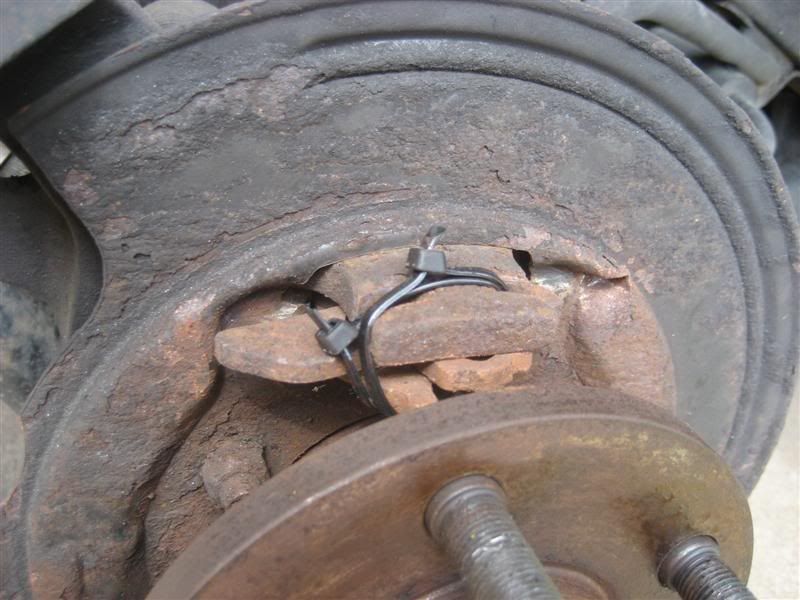

Now you can see the rusty parts that are supposed to actuate the parking brake. I had already removed the shoes because I was trying to fix this problem earlier and didnt want to put my rusty shoes back on so I zip tied it for now so I could drive it.





Now the parts I have zip tied are actually TWO PARTS that are supposed to move independently. This is where the design flaw is. They FUSE together.

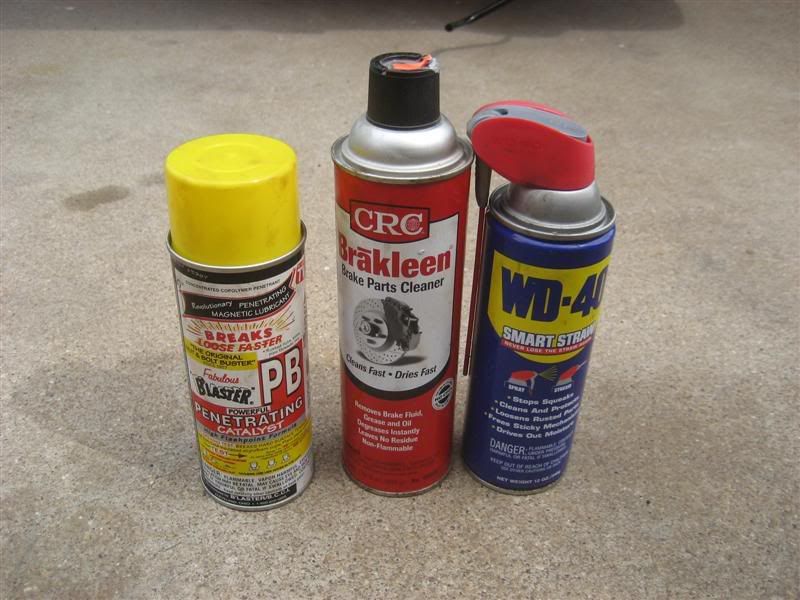

I used:



and absolutely COULD NOT free them up.

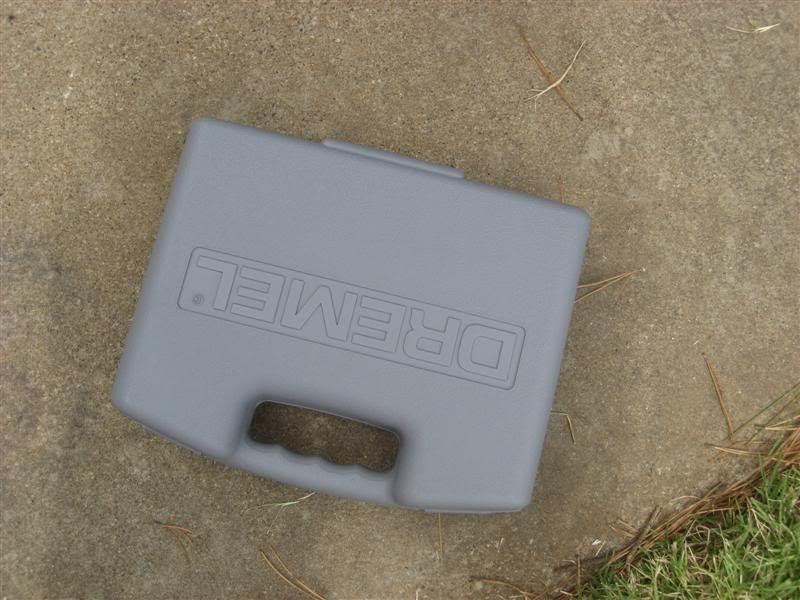

So I needed:

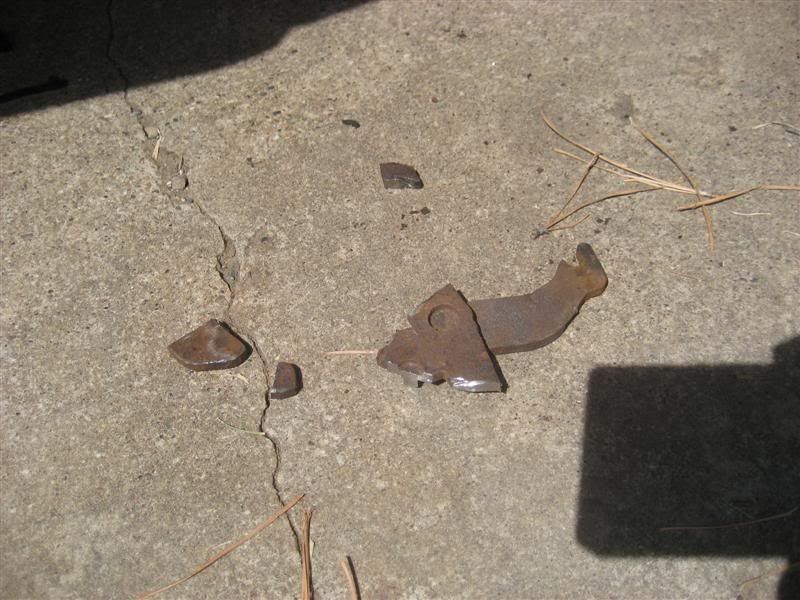

It made short work of them:



So I was able to remove them to replace them.
BrokenLimits is offline
post #3 of 33 Old 08-26-2007, 04:15 PM Thread Starter
BrokenLimits
Registered User
1998 ZJ

Join Date: Oct 2004
Location: Lubbock, TX
Posts: 252

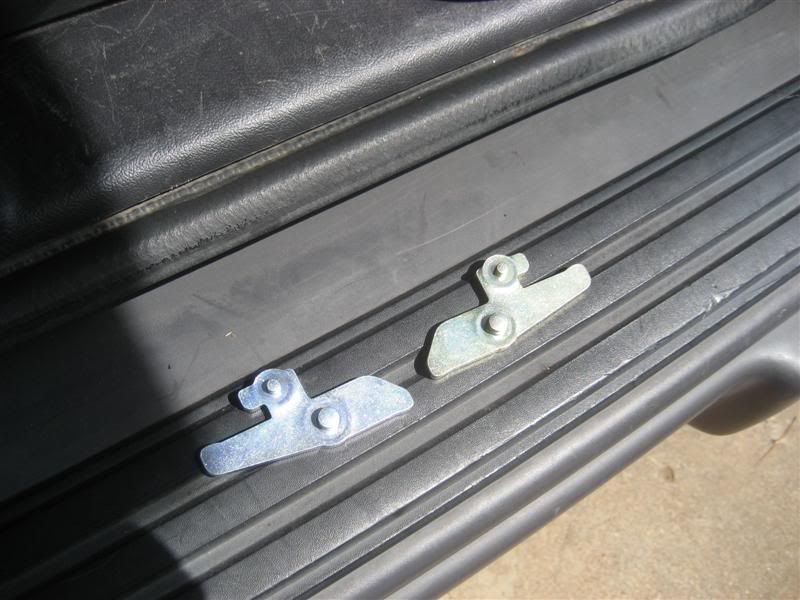

Now here is a funny side story. Here are the parts for both sides. What is different about them?



They are just the opposite right? Well for some reason one of them is in the Jeep parts database for $19.99 and the other is $55!!!!

I made a big stink about this and they made them both $19.99 for me. I dont know if its just in the system wrong or what but if you are going to order all these replacement parts beware.

Old Rusty Compared to new:

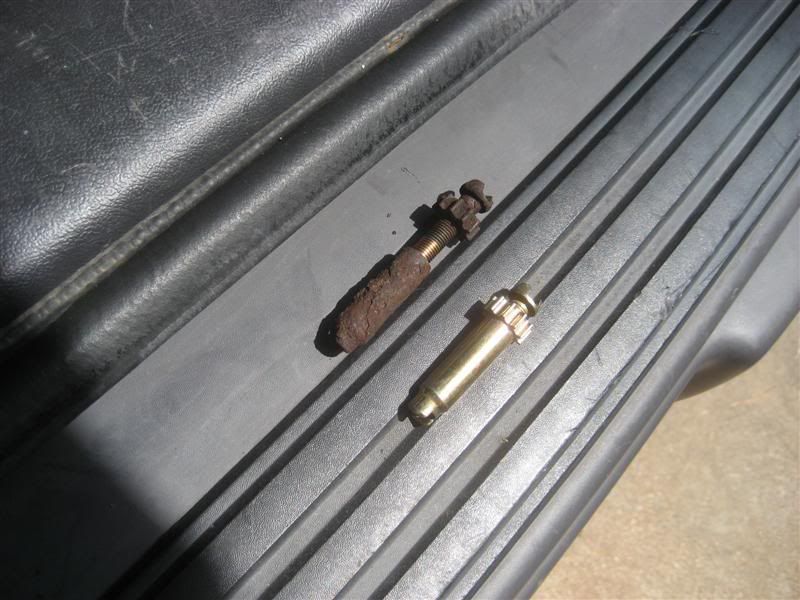

Here is the adjuster bolt, slide, and nut I replaced as well:



Put it all back together, make some adjustments with the adjuster screw you just replaced and then make some adjustments at the cabling and you should have a working parking brake

Hope this helps with some detailed pictures and whatnot...
BrokenLimits is offline
post #4 of 33 Old 08-26-2007, 04:22 PM
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
good write up! and thank you!
iv been needing to fix mine too but just never got around to it/never knew what to do..
now i do

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #5 of 33 Old 08-26-2007, 04:24 PM Thread Starter
BrokenLimits
Registered User
1998 ZJ

Join Date: Oct 2004
Location: Lubbock, TX
Posts: 252
I wanted to go more in to detail but it was hot out hahaha.
BrokenLimits is offline
post #6 of 33 Old 08-26-2007, 04:24 PM
KJsharpNH
Registered User

KJsharpNH's Avatar
2005 KJ Liberty

Join Date: May 2007
Location: New Hampshire
Posts: 15
Awesome write-up... I've been needing to fix that for awhile. Thanks!
KJsharpNH is offline
post #7 of 33 Old 09-05-2007, 08:25 PM
NoreasterPlus2
Registered User
1998 ZJ

Join Date: Mar 2007
Location: Woodside, NY
Posts: 51
BrokenLimits..you rock

Okay, so in the Parking Brakes for Dummies category.
Where did you get your parts, and did you just tell them..give me the stuff for my GC parking brake?

I think I may need to do some work on mine.
NoreasterPlus2 is offline
post #8 of 33 Old 09-05-2007, 08:36 PM
Yardman Harry
O

Yardman Harry's Avatar
1996 ZJ

Join Date: Aug 2005
Location: New York
Posts: 1,727
Nice write up dude! Maybe ill do this one day...

1996 Jeep Grand Cherokee. V8 - 5.2 litre 242 SelecTrac. SURCO Safari Roof Rack
Hunter Green


1997 Jeep Wrangler Sahara Ed. I6 - 4.0 litre, 4" SL, D44 rear, 4:56 Gears, AA SYE with double cardon custom rear Drive Shaft, IRO Adj CAs, Kevins Rear Adj TB with JOHNNY JOINT end

1999 Mazda Miata MX5 - Jet Black

1990 Jeep Cherokee Sport I6 - 4.0 litre
White
~Junked~
Yardman Harry is offline
post #9 of 33 Old 09-05-2007, 08:45 PM
TJeeper
Registered User

TJeeper's Avatar

Join Date: Aug 2001
Location: Lindon
Posts: 900
Great write up, went through this a couple years ago. It makes it a whole lot easier to show the pictures than explain it.

Patrick
'99 TJ
TJeeper is offline
post #10 of 33 Old 09-05-2007, 09:48 PM
QuadraTokn
Registered User

QuadraTokn's Avatar
1930 WJ

Join Date: Dec 2006
Location: Chicago, IL
Posts: 4,955
if its similar to the WJ ill have to try it.

LIKE US ON FACEBOOK: Valhalla Fabrication

NEW Dana 44a Axle Truss and Skid !
WJ Grand Cherokee Tube Doors For Sale !
ZJ Grand Cherokee Tube Doors For Sale !
PARTS FOR SALE from 10 WJ Grand Cherokees ! !
QuadraTokn is offline
post #11 of 33 Old 09-06-2007, 03:41 AM
Mooman
Registered User

Mooman's Avatar
1998 ZJ

Join Date: Apr 2007
Location: Massachusetts
Posts: 141
Thats funny, I am doing that same job on my mothers 5.2 this weekend. All the parts from napa cost me $54. Not a big deal at all unless they are froze up like yours were. Great write-up though.

Mud is Good!
Mooman is offline
post #12 of 33 Old 09-06-2007, 07:02 AM
Omahastro
Registered User
1996 ZJ

Join Date: Feb 2007
Location: Omaha, Nebraska
Posts: 65
Coat the areas where both parts touch each other and the shaft with high temp antiseez. This will help keep the rusting down in the future.
