ZJ Headlight aiming

I know this has been discussed numerous times already, but I've searched and searched the forum for an answer with no luck. Can someone show me (ideally with a photo or two) where the headlight adjustment screws are on a ZJ? Thanks.

ajbadger3 is offline   Reply With Quote Quick reply to this message
Unread 01-19-2010, 01:59 PM   #2
revlis240
Registered User
1994 ZJ

Join Date: Jan 2010
Location: So Cal
Posts: 91
open the hood, look at the back and side the headlight housing. There are 2 things to turn, one for vertical and one for horizontal. Both use a 6mm allen head. Its the only thing there that uses an allen.

HTH
Abe
__________________
1994 ZJ 4.0 4x4 almost stock | 1994 ZJ 5.2 4x4 totally stock
revlis240 is offline   Reply With Quote Quick reply to this message
Unread 01-19-2010, 03:10 PM   #3
torchd
Registered User
1998 ZJ

Join Date: Jan 2010
Location: Chicago
Posts: 2,418
that reminds me, I need to adjust mine..

Like he said above they are right there on top of the headlights. The top of the screw looks like a star..
torchd is offline   Reply With Quote Quick reply to this message
Unread 01-19-2010, 03:24 PM   #4
ajbadger3
Registered User
1994 ZJ

Join Date: Jan 2010
Location: Chicago
Posts: 4
Thanks guys! I appreciate the help.
ajbadger3 is offline   Reply With Quote Quick reply to this message
Unread 01-19-2010, 03:36 PM   #5
HighLonesome
Belief In All Things Jeep

HighLonesome's Avatar
1995 ZJ

Join Date: Feb 2005
Location: New Mexico
Posts: 5,842
Spray WD40 in the adjuster holes and work the adjuster back and forth to loosen it up. The plastic gears can strip out easy.
HighLonesome is offline   Reply With Quote Quick reply to this message
Unread 01-19-2010, 04:16 PM   #6
torchd
Registered User
1998 ZJ

Join Date: Jan 2010
Location: Chicago
Posts: 2,418
how high should the beam pattern be? I am not sure if my lights are to low or to high....
torchd is offline   Reply With Quote Quick reply to this message
Unread 01-19-2010, 04:41 PM   #7
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794
Quote:
Originally Posted by revlis240 View Post
open the hood, look at the back and side the headlight housing. There are 2 things to turn, one for vertical and one for horizontal. Both use a 6mm allen head. Its the only thing there that uses an allen.

HTH
Abe
they're torx, not allen. t-30 iirc.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 01-19-2010, 04:46 PM   #8
LordHobbit
Registered User
1993 ZJ

Join Date: Aug 2009
Location: Oregon
Posts: 1,939
Allen on my '93
__________________
93 red ZJ 190k 4.0. Spent more money than I should have ...

Isn't red the only color a vehicle should be?
If at first you don't succeed, use more speed.
LordHobbit is offline   Reply With Quote Quick reply to this message
Unread 01-20-2010, 08:35 AM   #9
ajbadger3
Registered User
1994 ZJ

Join Date: Jan 2010
Location: Chicago
Posts: 4
Quote:
Originally Posted by LordHobbit View Post
Allen on my '93
6mm allen on my '94 as well.
ajbadger3 is offline   Reply With Quote Quick reply to this message
Unread 01-20-2010, 12:04 PM   #10
JesseOR
Registered User
1993 ZJ

Join Date: Oct 2009
Location: Eugene, Oregon
Posts: 1,621
Even Haynes says allen for ALL ZJ's.

Outer screw-verticle

Inner screw-horizontal

They are set below the sheet metal over the headlights. Look down and you'll see them.


I think the proper aiming is at 25ft the beam should be at the horizontal center line(floor to center of headlight) and verticle center line(center of jeep to center of headlight) of each head light.

This should be done on a flat/level surface and a wall and Haynes says a 1/2 full gas tank(that I don't think matters too much).
__________________
-Jesse-
GO DUCKS!

www.facebook.com/jesse.whitehargrove

Last edited by JesseOR; 01-20-2010 at 12:32 PM..
JesseOR is offline   Reply With Quote Quick reply to this message
Unread 01-20-2010, 06:45 PM   #11
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794
Quote:
Originally Posted by JesseOR View Post
Even Haynes says allen for ALL ZJ's.
haynes sucks. to put it simply. great for changing your oil, sometimes.


will a hex bit fit into a torx head? yes. is it right? no.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 01-20-2010, 07:05 PM   #12
JesseOR
Registered User
1993 ZJ

Join Date: Oct 2009
Location: Eugene, Oregon
Posts: 1,621
Can you fit a torx in a hex? Yes.

You can look and see whether they are hex or torx. Its a big difference. Mine are definitely hex.

And I love haynes. Its great for the "back yard" mechanic. Granted they don't go as deep as some but they work.
To each his own. They don't work for you.


And by the way, haynes has correct info.
__________________
-Jesse-
GO DUCKS!

www.facebook.com/jesse.whitehargrove
JesseOR is offline   Reply With Quote Quick reply to this message
Unread 01-20-2010, 07:40 PM   #13
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794

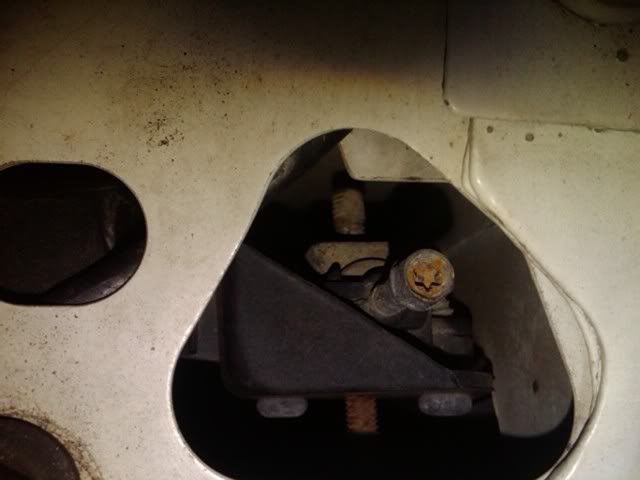

haynes is what?

__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 01-20-2010, 07:46 PM   #14
JesseOR
Registered User
1993 ZJ

Join Date: Oct 2009
Location: Eugene, Oregon
Posts: 1,621
Hmmmm...

That looks nothing like ours. Yours is a different body style. That doesn't even look factory. Is that looking down from above?

Ours have a large plastic disc ontop that is clearly a hex.
__________________
-Jesse-
GO DUCKS!

www.facebook.com/jesse.whitehargrove
JesseOR is offline   Reply With Quote Quick reply to this message
Unread 01-20-2010, 07:49 PM   #15
JesseOR
Registered User
1993 ZJ

Join Date: Oct 2009
Location: Eugene, Oregon
Posts: 1,621
I don't know if you realized that mr '97.

His is a '94, which is same body style as my '93
__________________
-Jesse-
GO DUCKS!

www.facebook.com/jesse.whitehargrove
JesseOR is offline   Reply With Quote Quick reply to this message
