ZJ flat-iron custom bumper

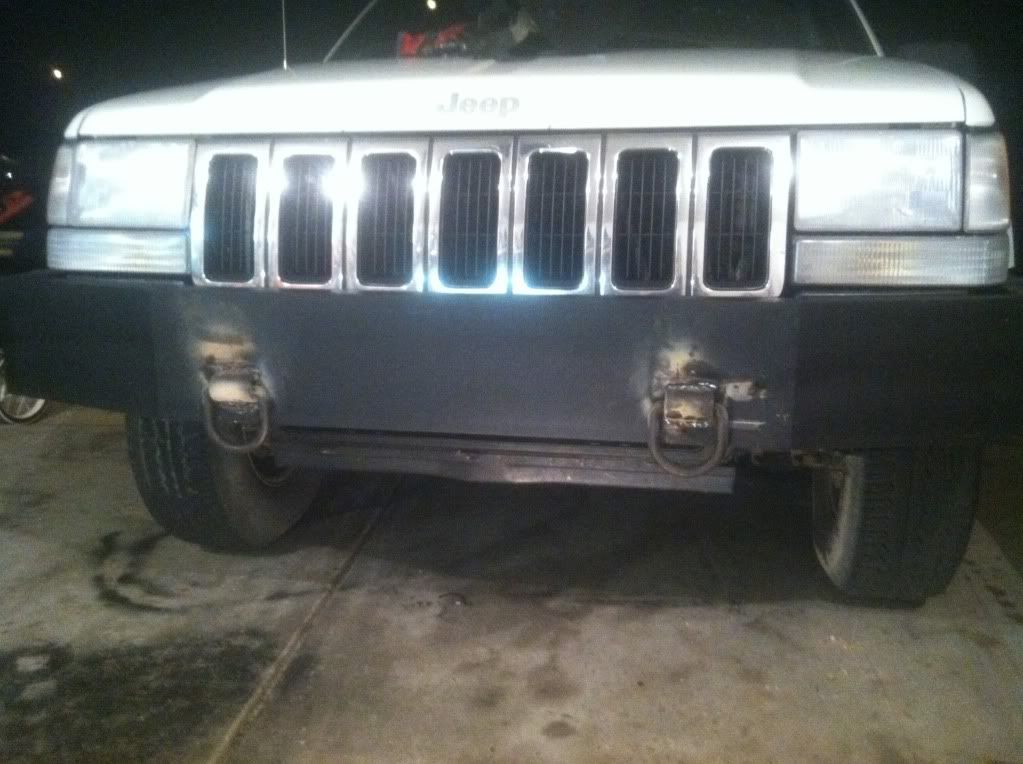

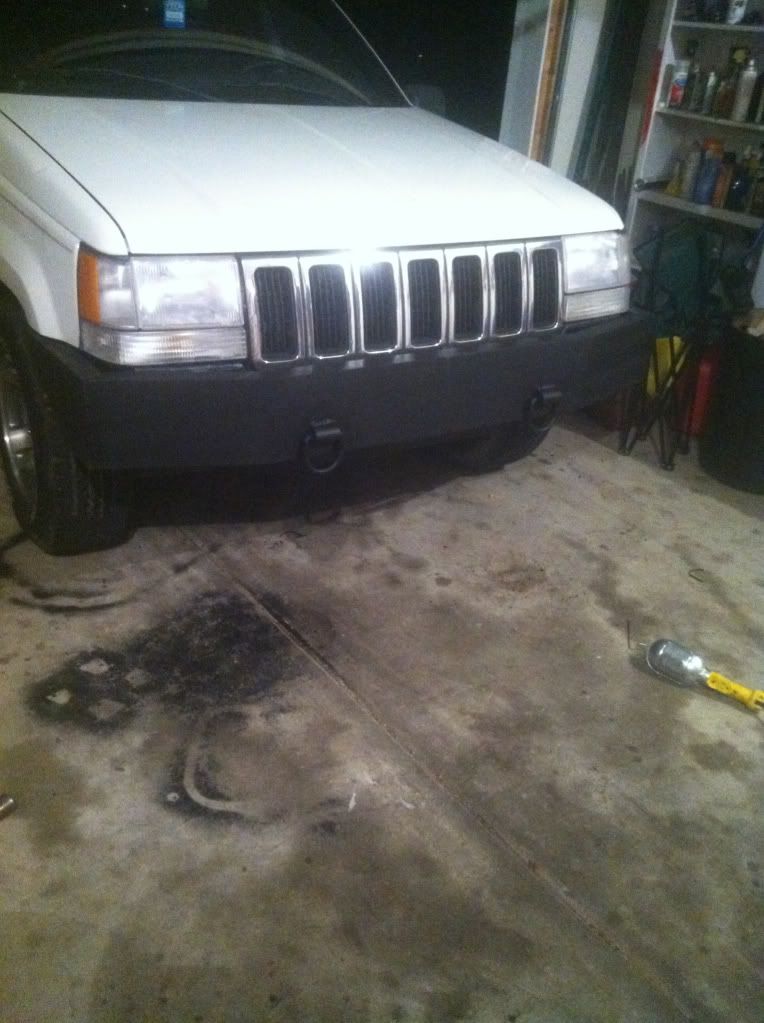

just built this bumper from 5/16 channel iron altogether cost under $100. welded to frame, took about 6 hours of labor(not really focusing too hard) to finish. Im pleased with it for now might run some sheet metal under to hide the radiator and give it more of a fuller look later. here are some pics from start to finish, sorry didn't include all steps and I ended up welding the mounts with more surface area touching the frame, unlike in the picture. finished it off with bedliner.










zjaholic is offline   Reply With Quote Quick reply to this message
Unread 06-02-2011, 11:53 PM   #2
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794
Don't use those rings for recovery. You may kill someone.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 06-02-2011, 11:57 PM   #3
freakinheep89
Registered User
1995 ZJ

Join Date: Jan 2010
Location: Mobile, Alabama
Posts: 3,252
Aside from the rings it looks pretty good for a home built.
__________________
TJ-
[SIZE="1"][B]95 ZJ 5.2[/B]- D30/XJ shafts/D35 Yukon alloys,249, 2"BB, 30x9.5"Wildcat EXT,lots of motor mods, rancho shocks & stabilizer.[/SIZE]

[QUOTE=slayercr23;12630497]How would i go about Stroking it?[/QUOTE]
freakinheep89 is offline   Reply With Quote Quick reply to this message
Unread 06-03-2011, 12:12 AM   #4
NapsterZJ
Registered User
1995 ZJ

Join Date: Oct 2010
Location: Katy,TX
Posts: 241
It might just be the angle, but I think it hangs a little low.

Looks good though
__________________
1995 ZJ Laredo 4.0 - 5 Speed swap and 4x4 conversion, JKS KOR conversion and durometer bushings, Bilstein 5100s, fixed LCAs

DD - Stock 99 WJ 4.7 QD with flo 40
NapsterZJ is offline   Reply With Quote Quick reply to this message
Unread 06-03-2011, 12:30 AM   #5
mike_breaker_5
Web Wheeler

mike_breaker_5's Avatar
1994 YJ Wrangler

Join Date: Oct 2009
Location: emporium,, pennsylvania
Posts: 2,967
i would agree with heep and monkey, those rings may not be strong enough for recovery points. if they were brought through from the back, welded and bolted they may fare.
__________________
Ratmonkey donation page. all proceeds will go to his family.
http://www.youcaring.com/memorial-fu..._source=widget


it's not much to look at... but it's mine.
5.2lswap, metalcloaks, bedliner, tucked belly, d60's, soon to be nv4500 and d300.
http://www.jeepforum.com/forum/f22/m...r-junk-990191/
mike_breaker_5 is offline   Reply With Quote Quick reply to this message
Unread 06-03-2011, 09:23 AM   #6
Midnightluckey
Registered User
1995 ZJ

Join Date: May 2009
Location: Houston, TX, Tx
Posts: 1,299
I can't really see, but did you run a flat area under the grille to mount a winch?
__________________
95 Limited Chargold ZJ 5.2L -5.5" lift (IRO, Ironman, and RC parts), 33" BFG M/T's, 15x8 procomp crawlers, 242 swap, 2 12" subs, 1000w amp, cherry bomb, full skid package, Kevins rear stealth bumper clone w 3/4" D rings, Rlcwelding front bumper w 3/8" D rings, XRC-8, front tow hooks, 2 daylighter fairlead lights, 2 daylighter windsheild lights, 2 55w driving lights, OBA, Cobra 18 CB, dual 4' whips, RC disconnects, smittybuilt jack, optima yellowtop.
Built not bought #512
Midnightluckey is offline   Reply With Quote Quick reply to this message
Unread 06-03-2011, 09:33 AM   #7
speedbucket
Registered User
1993 ZJ

Join Date: Jan 2011
Location: chesapeake, VA
Posts: 3,562
i like it, i think on a lifted zj it would be more proportional
i wouldnt use those as recovery points
that bumper would be the perfect application for a forward hitch to be installed,
then you could
-have a reliable and safe recovery point
-hitch mounted winch that could be used front or rear
-very very easy way to park a boat or trailor
- and could put a little propeller on the front for a little added stability
__________________
http://www.jeepforum.com/forum/f22/speedbuckets-zj-build-1361322/
V8 zj at 6" . Double tri rear and true 3 link front. Stretched to 108"
speedbucket is offline   Reply With Quote Quick reply to this message
Unread 06-03-2011, 01:01 PM   #8
zachk94
Registered User

Join Date: Oct 2010
Location: green cove springs, FL
Posts: 118
That looks good!!
zachk94 is offline   Reply With Quote Quick reply to this message
Unread 06-03-2011, 01:34 PM   #9
Midnightluckey
Registered User
1995 ZJ

Join Date: May 2009
Location: Houston, TX, Tx
Posts: 1,299
Quote:
Originally Posted by speedbucket
i like it, i think on a lifted zj it would be more proportional
X2!! Get some bigger tires and springs under that beast and the bumper would look way more at home.
__________________
95 Limited Chargold ZJ 5.2L -5.5" lift (IRO, Ironman, and RC parts), 33" BFG M/T's, 15x8 procomp crawlers, 242 swap, 2 12" subs, 1000w amp, cherry bomb, full skid package, Kevins rear stealth bumper clone w 3/4" D rings, Rlcwelding front bumper w 3/8" D rings, XRC-8, front tow hooks, 2 daylighter fairlead lights, 2 daylighter windsheild lights, 2 55w driving lights, OBA, Cobra 18 CB, dual 4' whips, RC disconnects, smittybuilt jack, optima yellowtop.
Built not bought #512
Midnightluckey is offline   Reply With Quote Quick reply to this message
Unread 06-03-2011, 02:20 PM   #10
gothchick
Registered User
1998 ZJ

Join Date: Jul 2010
Posts: 702
Very nice indeed. Are you planning to add a winch bracket?
gothchick is offline   Reply With Quote Quick reply to this message
Unread 06-06-2011, 10:00 PM   #11
phbrown
Registered User
1994 ZJ

Join Date: Nov 2010
Location: kansas city, kansas
Posts: 148
Quote:
Originally Posted by ratmonkey View Post
Don't use those rings for recovery. You may kill someone.
RM,

why do you say not to use those rings?

Is it because of the type of weld?

I know nothing about welding so if you have the time please explain it in simple terms.
__________________
1994 Jeep Grand Cherokee Laredo| stock| 231 transfer case| 4.0L
phbrown is offline   Reply With Quote Quick reply to this message
Unread 06-06-2011, 10:00 PM   #12
phbrown
Registered User
1994 ZJ

Join Date: Nov 2010
Location: kansas city, kansas
Posts: 148
forgot to ask one more question

if someone wanted to do something like this where you weld the rings to the bumper what would be the best way to do it?
__________________
1994 Jeep Grand Cherokee Laredo| stock| 231 transfer case| 4.0L
phbrown is offline   Reply With Quote Quick reply to this message
Unread 06-06-2011, 10:07 PM   #13
TallyZJ
Registered User
1996 ZJ

Join Date: Nov 2008
Location: Tallahassee, Florida
Posts: 1,140
Quote:
Originally Posted by phbrown View Post
forgot to ask one more question

if someone wanted to do something like this where you weld the rings to the bumper what would be the best way to do it?

You need at least 3/4" thick steel tabs coming through the bumper that are properly welded to the brackets that are very securely anchored to the frame rail. These tabs go way back and have a lot of weld bead on them to keep them from pulling off.

Or you could get something like THESE and mount them from the inside of the bumper through a small cutout.

Then you need actual RECOVERY SHACKLES, not those silly door knockers you have there.

Welding those cheap thin metal d-rings to the face of the bumper steel is not enough for recovery. They will break off or pull the sheet steel with it and create a missile of death.
__________________
1996 Jeep Grand Cherokee Laredo 4x4 - 4.0L
Capital City Jeepers
Build Thread Here
TallyZJ is offline   Reply With Quote Quick reply to this message
Unread 06-06-2011, 10:19 PM   #14
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794
Quote:
Originally Posted by phbrown View Post
RM,

why do you say not to use those rings?

Is it because of the type of weld?

I know nothing about welding so if you have the time please explain it in simple terms.
Not often I agree with tally, this is one of those times. He pretty much nailed it.

It should be a piece of 3/4 or 1" stock run through the bumper and incorporated into the mount system so the load goes directly to the frame instead of the bumper. It would be welded front and rear to the plate. If you used box it would go all the way through. And should be welded 4-6" deep along the bumper mount tabs.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 06-06-2011, 10:40 PM   #15
speedbucket
Registered User
1993 ZJ

Join Date: Jan 2011
Location: chesapeake, VA
Posts: 3,562
2 times i have seen recovery points fail in a bad way
one shackle went through a trucks window and out the winshield with strap in tow
another one happened 2 summers ago clearing trails at a hunt club, d ring took that hat and some scalp off of a 15 year old kid's head. inch lower and he would probably be dead.
they both happened with snatch snaps
ive also seen a chain break and imbed itself in a trucks tailgate
IMO bumpers should always be built around the recovery point, not build the bumper and then add the tow points.
