Unread 03-04-2010, 05:51 PM   #1
BigRed4x4
Registered User
1993 ZJ

Join Date: Dec 2009
Location: Gray, TN
Posts: 451
ZJ Ball Joint Write Up

Well I'm gonna finally give back to the forum after all this time of using everyone else's write ups. The ZJ's ball joints are definitely not the easiest, especially after 15 years of rust, but after you learn to do the first side the second is a breeze. This is for a D30.

First off I DO recommend doing one side at a time to use the other as a good reference. Also, go with quality ball joints, I have always used Moog chassis parts and have been very pleased.

Chock the rear tires and jack up the front end. Place jackstands under the axle far enough away from the ends of the axle so as they don't get in the way. Remove the front tires, and you should have this (minus the black dog)...



Next, you will need to remove the brake calipers and tie them up. They are removed by unbolting the two 13mm bolts on the backside of the caliper. One on the top end and one on the bottom. Here you see the one on the top end looking down...

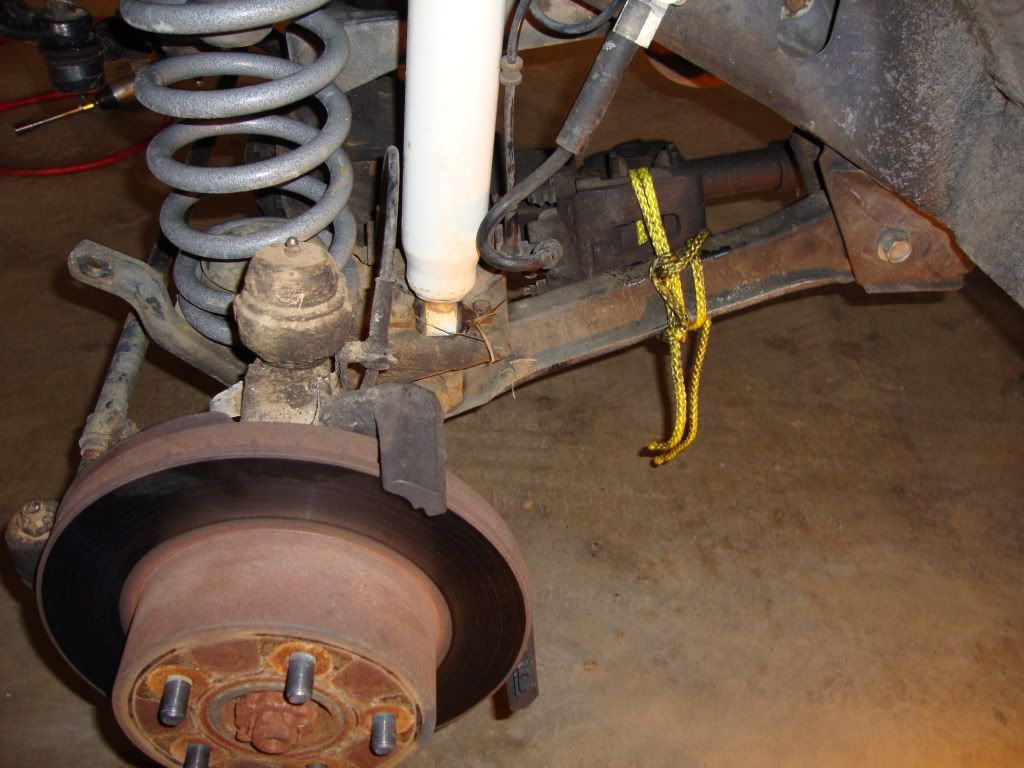

I opted to tie the caliper up on the lower control arm to keep it out of the way...

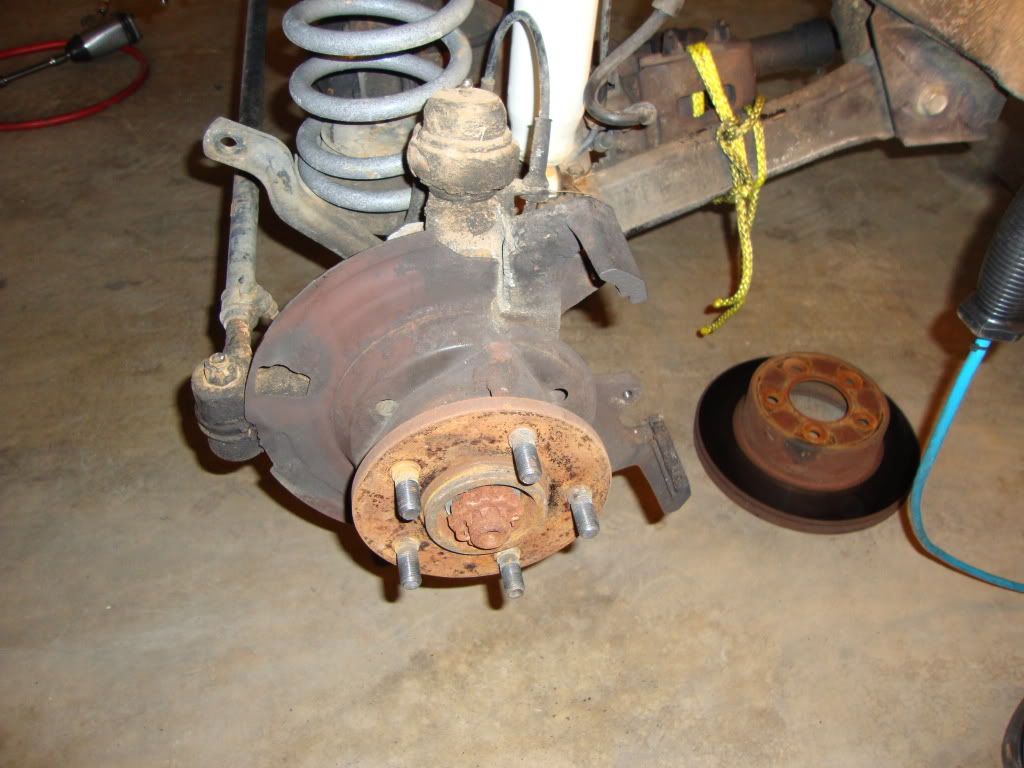

Now the rotor will just slide right off...most of the time.



Next, I opted to remove the whole hub assembly with the axle shaft still connected. There are three 13mm, 12 point bolts on the backside of the assembly, arrayed around the axle shaft connection. These will be rusted unless your hubs have been remove recently. I had to use a 3/8" ratchet and pipe because I had misplaced my 1/2" drive 13mm. Also use a bunch of PB blaster taking these out and reinstalling them to make it easier on you.

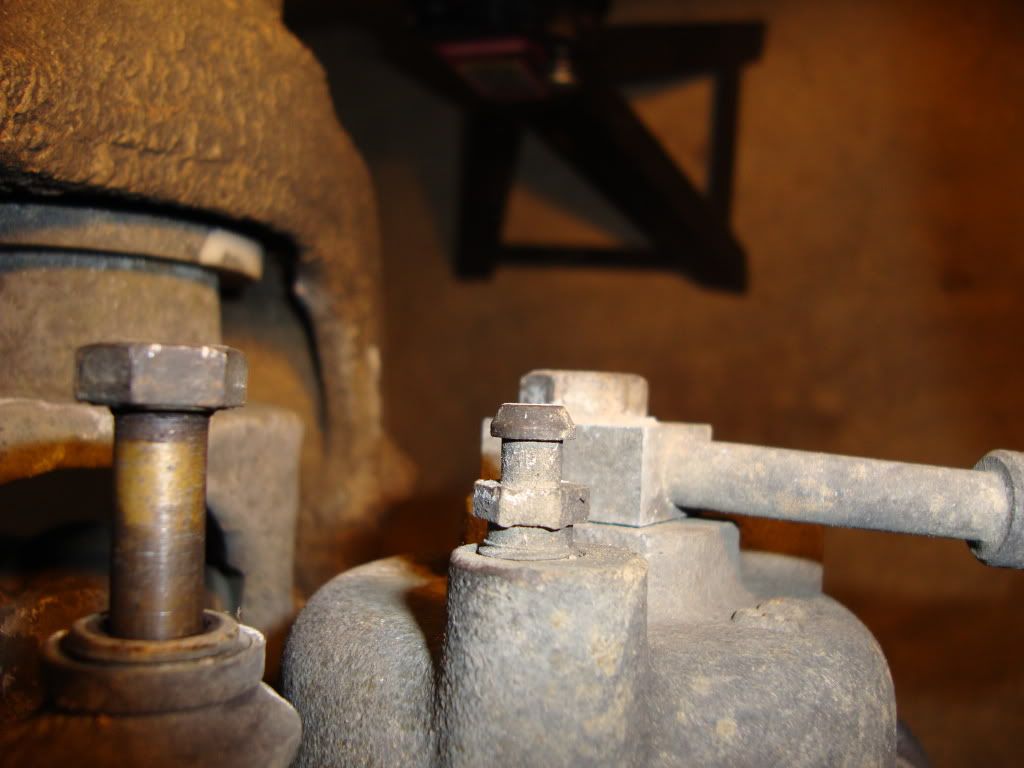

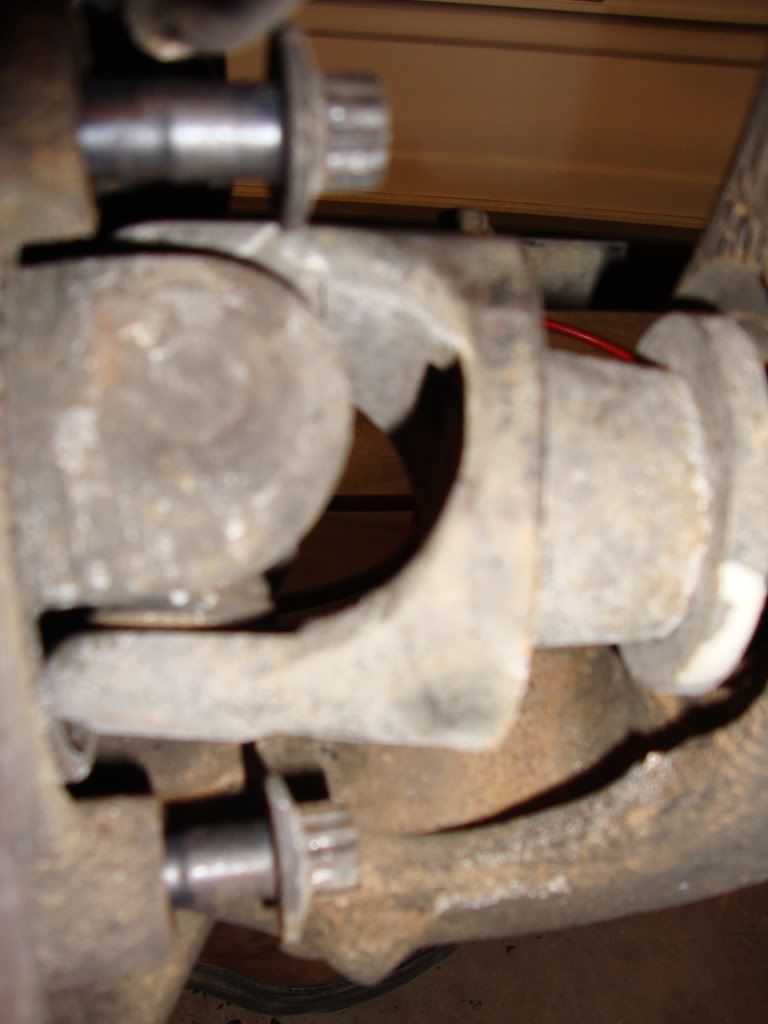

Here are the top two bolts on the backside of the hub with the third one on the below the axle shaft connection...

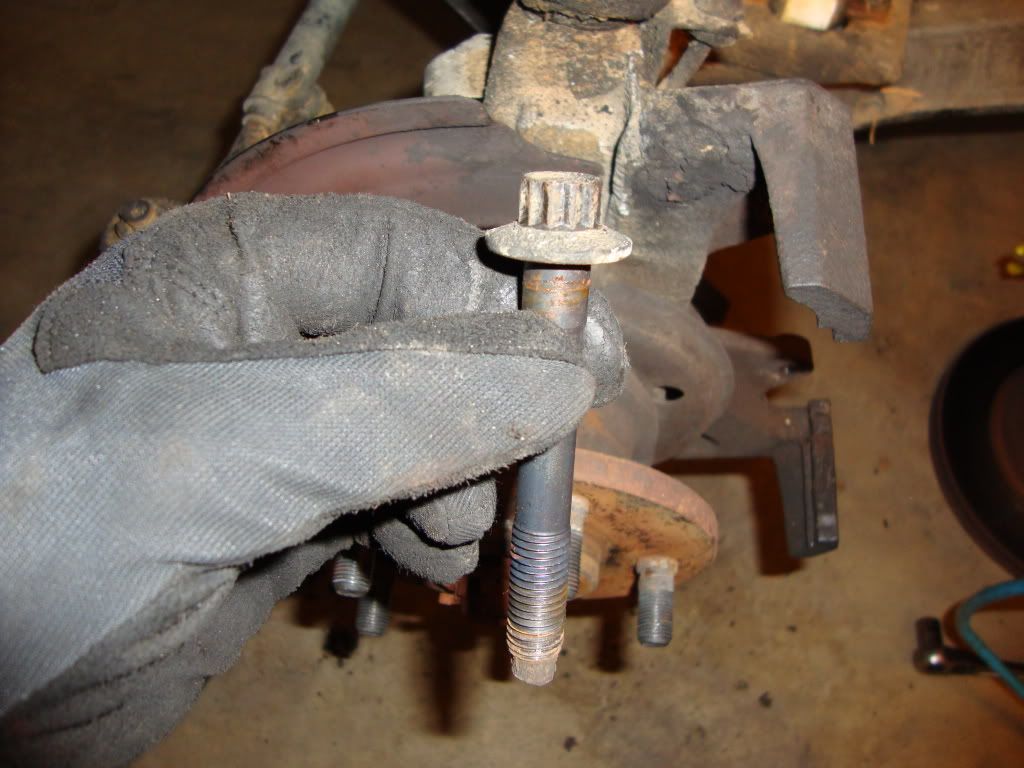

This is what the bolt looks like that you're pulling out...

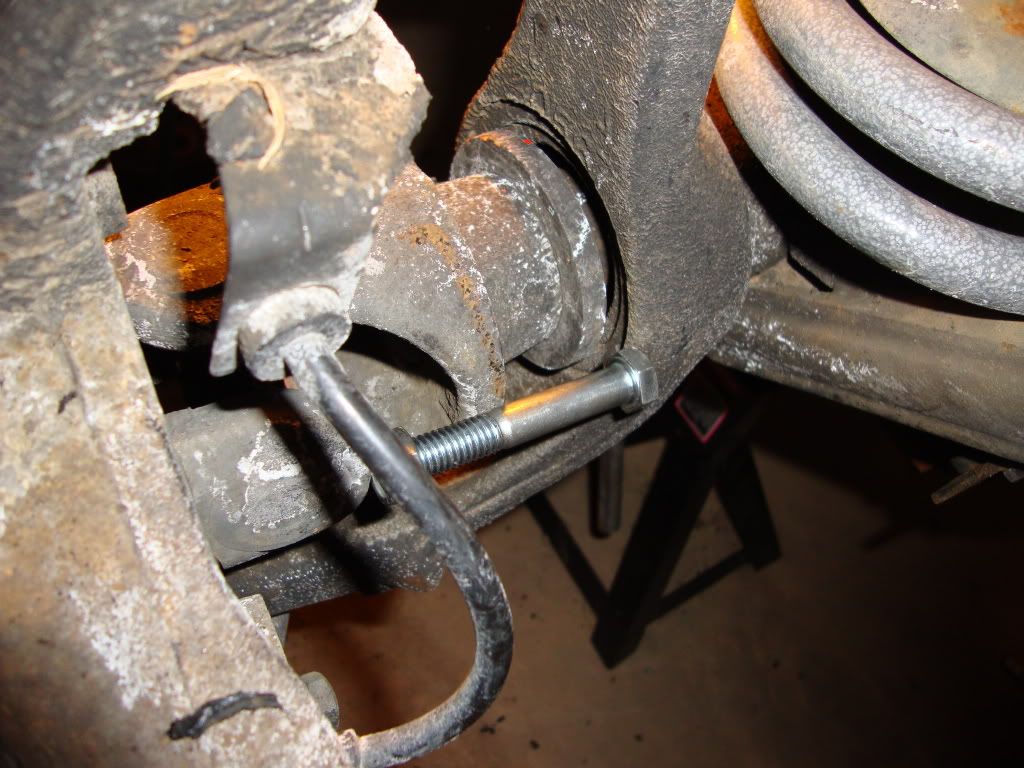

Now here is a really neat trick I learned from mrblaine on stu-offroad. To remove the assembly get a 3/8" bolt 2 1/2" long with a matching nut (grade 8 preferably). This will be placed between the outer axle shaft ear and the axle housing. Now with the vehicle turned on but not started, have someone else turn the steering wheel toward the outside of the hub assembly. There will be pressure while turning the wheel but keep turning until the assembly pops right out. Here is the setup...



You will know when the hub pops out because you will be able to pull straight out on it and the whole assembly should come right out (including the axle shaft). More than likely it won't pop, just give way and smoothly come out of the axle housing. Also, in pulling the hub, the rotor dust shield is released. You should be left will something like this...

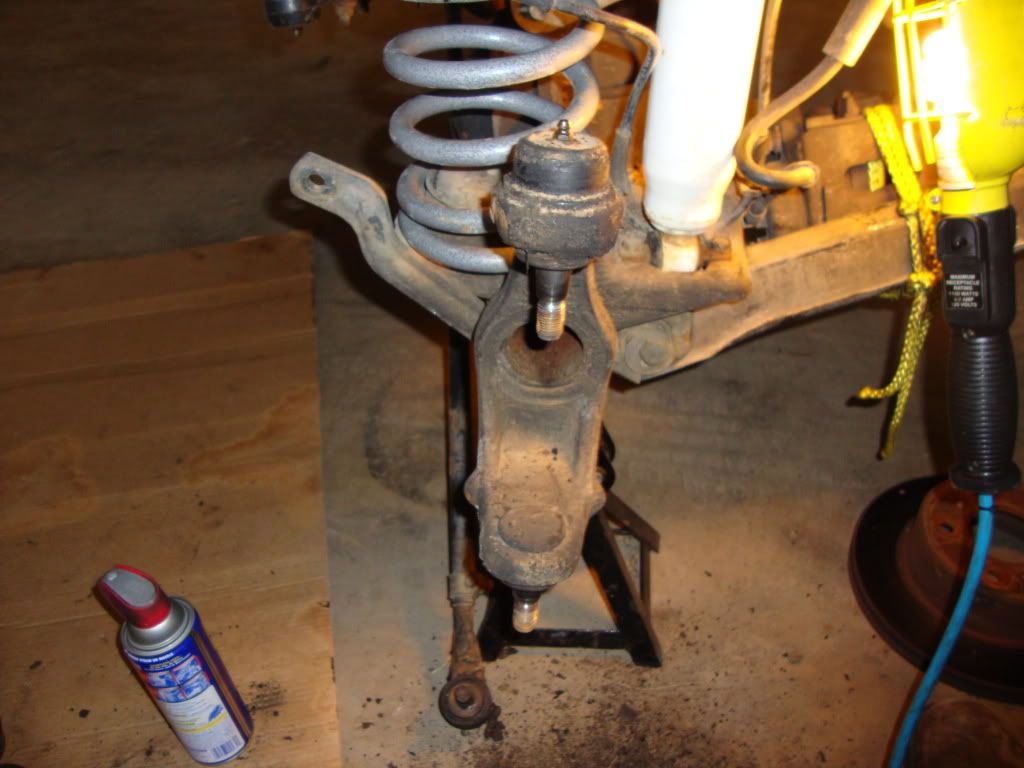

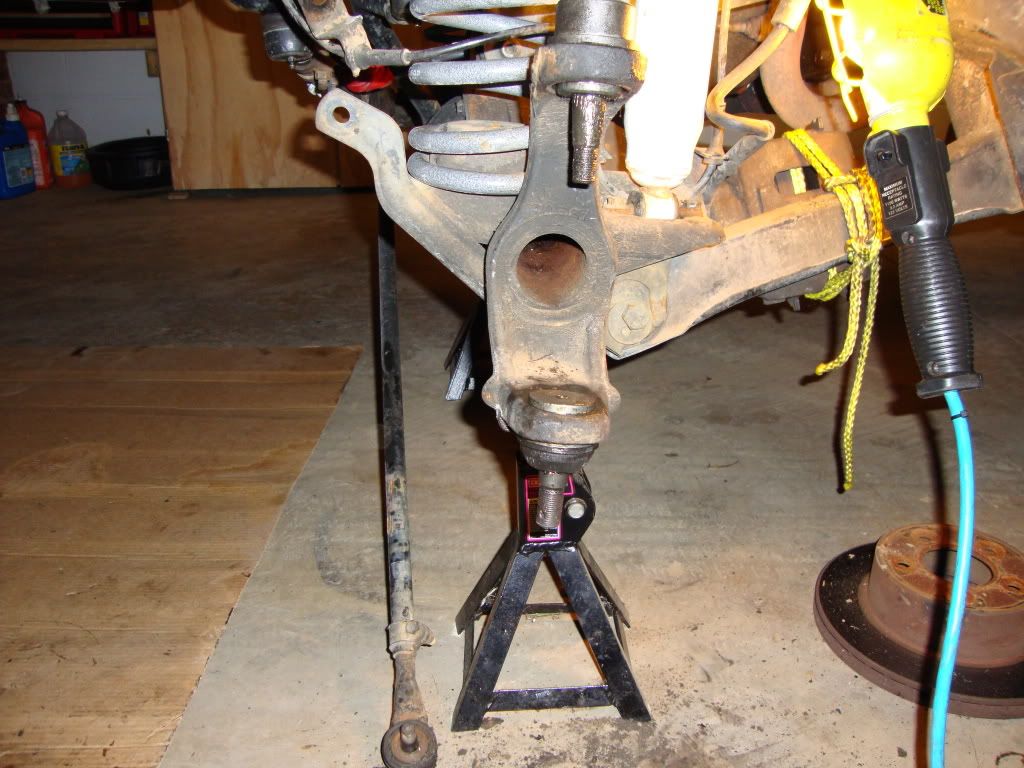

Now you will need to remove the knuckle. First you need to remove the TRE attached to the steering arm. Remove the castle nut on top almost all the way but leave a few threads on. Now hit the side of the knuckle where the TRE joint goes through. After a while it will give up and fall out. You can either tie it up or let it set on the ground. It's a good idea to antiseize the taper of the joint before reinstalling to avoid headaches in the future.

Next remove the two castle nuts on the ball joints. The top is a 7/8" and the bottom is a 1-5/16". Leave the nuts on the ball joint studs a couple threads to catch the knuckle when it releases. The ABS sensor is held in with one 8mm bolt on the inside of the knuckle, you need to remove this before the knuckle. To release the knuckle it usually takes a few good whacks, straight down on the knuckle. Once it releases, remove the nuts and the knuckle completely. Now you have this...

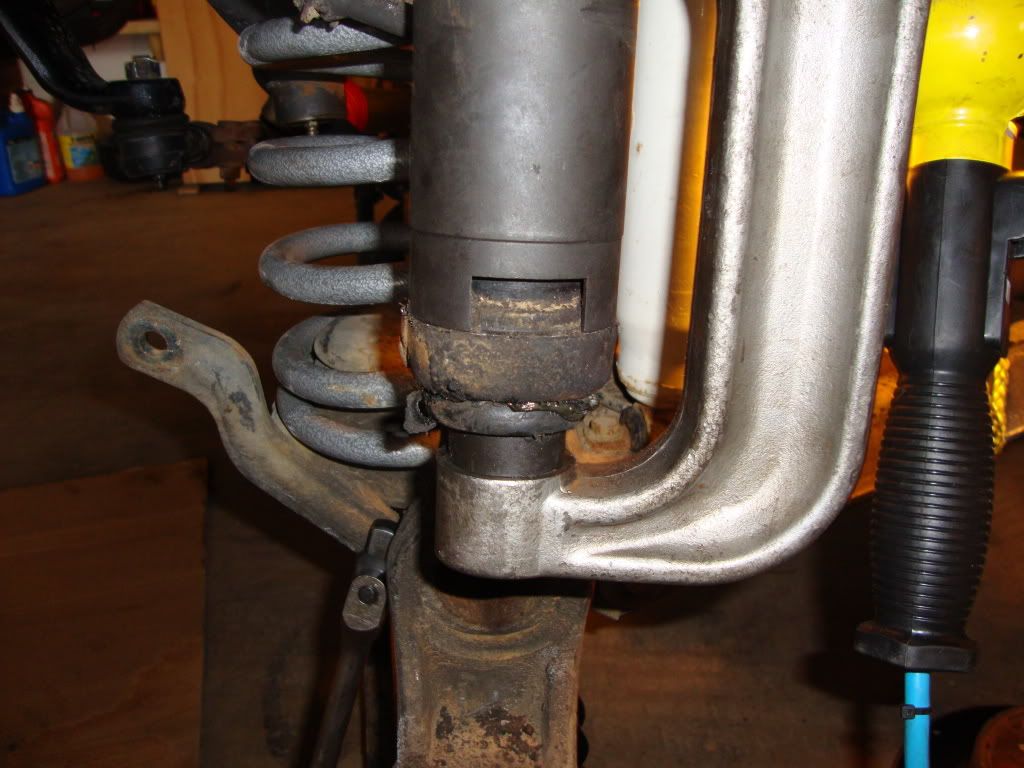

It's time to press the existing ball joints out. I recommend a good sturdy press because of the forces being put on it and a breaker bar. Which ever way you go (rent or buy) it should come with instructions on how to use the adapters, but it is pretty straight forward. The removal adapter has a notch cut in the side so you can see what's going on and it will completely surround the bj and sit flush on the A-arm. The installation adapter won't have a notch because it will sit on the new ball joint's lip around the edge when it is pressed in. Here is the setup for the removal of the upper ball joint...



Once you have the press setup and snug, it is time to break out the breaker bar (or impact). It will take some force and the bj will probably not pop on it's own, get the press tight and then hit the top of it with the sledge or deadblow, the bj should give a little bit, then crank and hit as needed (it's not going anywhere). Keep cranking the press until it is completely out. This is what it'll look like once it begins to come out...



Now it is time for the removal of the lower ball joint. You might have to jack the axle up some more so you can get the press upside down and have room to crank it. Use the same procedure to remove the lower as you did the upper. This is the setup...



Next, the new ball joints need to go in. It never hurts to put press-in parts like bushings, ball joints, etc. in the freezer for a couple hours prior to installation. This way they will contract a bit and go in easier. Don't put the grease zerks in the ball joints until it is pressed in, so they won't get in the way of the installation adapter. Make sure to spray some WD-40, PB Blaster or use grease to lubricate the hole where the new ball joint will go.

You will need the adapter made with a bottom angle to account for the angle the ball joints are at (this will keep them going in straight), and the large press fitting that will fit right over the top of the bj and sit on the lip. If the bj looks to be going in crooked, STOP and fix the adapter so that widest part is facing outward. This is true for the top and bottom ball joints.

The bottom bj is pressed in with the same press orientation that was used for removal, with the adapter on top and the press fitting on the bottom (sorry no pic). The top is also pressed in with the same orientation that was used for removal, with the adapter on the bottom and the press fitting on the top. Like this...



You will need the breaker bar for cranking the press in the installation process. Crank it until the lip on the ball joint is flush with the A-arm surface, then simply remove the press. You should end up with two new, perfectly pressed, ball joints. Like this...



Now you need to install the grease zerks on the ball joints along with the rubber boots. Make sure to grease very well.

Now you need to install everything back in the same order it came apart, using the other side as a reference. Like the TRE, it is a good idea to antiseize the taper of the ball joint shaft to prevent the spindle from seizing in the future.

Torque the bottom castle nut to 75ft. lbs, the top castle nut to 70ft. lbs, the TRE to 35ft. lbs, the three 13mm bolts on the backside of the hub to 75ft. lbs., and the two caliper bolts to 11ft. lbs.

- Don't forget the cotter pins in the castle nuts
- Don't forget the ABS sensor on the inside of the knuckle
- When tightening the 3 12-point hub nuts down, do them evenly
- Check grease zerk to axle shaft clearance when reassembling

I recommend blowing everything off with an air compressor before you put the wheel back on, in order to remove any debris. Also, you will probably need an alignment to set your toe if there was substantial play in the old joints. I got really lucky here, I didn't have to use any heat. However, chassis parts are infamous for needing a bit of "persuasion".

And that's all there is to it. I hope this helps everyone out, and feel free to comment on anything you think I left out.

Good Luck,
Seth

__________________
'93 ZJ, 4.0L, D30 & D35, NP231, 4" Lift, 31" BFG's, Soft 8's, Painted Cladding, Glasspack, JVC Deck, CB, Lightbars, JKS Discos & TB, Tow Hooks Everywhere...more crap.

Last edited by BigRed4x4; 07-25-2010 at 07:41 AM..
BigRed4x4 is offline   Reply With Quote
Unread 03-04-2010, 07:18 PM   #2
SlimGoaty
Registered User
1997 XJ Cherokee

Join Date: Jan 2005
Location: Centralia, Washington
Posts: 1,134
looks like a PITA...CAN'T WAIT! lol
__________________

My buildup on CherokeeForum

97 XJ 4.0, AW4, 231, RE 5.5, Tom Woods DS, AA SYE, 35x12.50 KM2,
Upgraded Harness, PIAA bulbs, Rustys Tie-Rod, L&L Fab bumper,
Quadratec 9500i Winch, Aussie locker, 4.88's
SlimGoaty is offline   Reply With Quote
Unread 03-04-2010, 08:49 PM   #3
ZeeJay1997
Registered User
1997 ZJ

Join Date: Dec 2008
Location: Sweet Home, Alabama
Posts: 6,221
I don't have the necessary equipment. My dog is brown.

Thanks for the writeup, mine are about due.
ZeeJay1997 is offline   Reply With Quote
Unread 03-04-2010, 09:21 PM   #4
2tone93zj
Registered User
1993 ZJ

Join Date: Dec 2004
Posts: 587
nice write up its almost time for me
__________________
1993 Jeep Grand Cherokee Laredo
I-6, 42re, 249-->242 selec-trac swap, D30/D35
31x10.5, 3.5" IRO F>R, skids and tow hooks

Wanted: 93-95 Keyless entry fob

BUILT NOT BOUGHT #204
2tone93zj is offline   Reply With Quote
Unread 03-04-2010, 09:53 PM   #5
Spike300
Registered User
1993 ZJ

Join Date: Feb 2010
Location: Marion, Wis
Posts: 1,353
good right up, but when i did mine i had to torch the bolt that hold the hub on, since they were rust welded, now that was a PITA!!
__________________
[url]http://www.jeepforum.com/forum/f197/camo-beast-975063/[/url]

5.2-242 tcase-44a-30x9.50x15 MT/R-American Racing Burst Rims -[COLOR="Red"]Optima[/COLOR] -E3 plugs-[COLOR="DarkGreen"]Cu[/COLOR]st[COLOR="DarkGreen"]om[/COLOR] Pa[COLOR="DarkGreen"]in[/COLOR]t-Amsoil-Addco Front and Rear-polyurethane bushings

[B]To be installed[/B]: RE gen2 discos, military battery terminals
[B]To be rebuilt:[/B] HP30
[B]To be received:[/B]
[B]To be paid for:[/B]

[B]Next on the list:[/B] complete redo of brakes and
lines
[B]Needed:[/B] fittings, coil of brake tubing, Russel speed bleeders

Zombie Outbreak Response Unit #75
Spike300 is offline   Reply With Quote
Unread 03-04-2010, 10:38 PM   #6
ZJJay
Senior Member

ZJJay's Avatar
1996 ZJ

Join Date: Nov 2009
Location: Mission Viejo, CA
Posts: 635
Great write-up. I will be doing mine soon and have already bought the press.

Thanks a bunch.

Jay
__________________
'96 ZJ, 4.0L, 42RE, NP242, stock D30 and D35-LS w/ 3.73, 4-1/2" lift, 32" BFG ATs, Magnaflow, JKS track bars and disconnects, spare tire carrier, Optima red top, ROLA roof rack, KC SlimLite driving lights, CB and Yaesu ham radios, GPS
ZJJay is offline   Reply With Quote
Unread 03-04-2010, 11:14 PM   #7
ZJ5point2GCL
Registered User
1998 ZJ

Join Date: Oct 2009
Location: Calgary
Posts: 3,392
good write up, i went into mine blindly, first side took 2 hours second half hour. but there was so much grease an **** on mine, on the first side i tried pressing the bottom off the wrong what, so i basically jammed it in further, and broke a breaker bar in the process.
__________________
98 Deep Slate Niner- 6''s on 35's ---11 F150 Platinum Pearl White- Modded Tiny V6 with Two Turbos. ---93 Black 5.2 limited- Slowly dying in my Parents Driveway
ZJ5point2GCL is offline   Reply With Quote
Unread 03-04-2010, 11:22 PM   #8
JrMechanic
Registered User
1993 ZJ

Join Date: Oct 2008
Location: Lima, Ohio
Posts: 3,368
Great write up. One thing I want to add though is that you should never exert enough force on that press for the BJ to pop out on it's own. Get it on there tight, then take a dead blow hammer on the puller. Couple good whacks and it should pop out.
__________________
Want to swap an NP242 or NP231 into your ZJ? Here's how:
http://www.jeepforum.com/forum/f13/n...pdated-685644/
JrMechanic is offline   Reply With Quote
Unread 03-06-2010, 08:34 AM   #9
BigRed4x4
Registered User
1993 ZJ

Join Date: Dec 2009
Location: Gray, TN
Posts: 451
Quote:
Originally Posted by JrMechanic View Post
Great write up. One thing I want to add though is that you should never exert enough force on that press for the BJ to pop out on it's own. Get it on there tight, then take a dead blow hammer on the puller. Couple good whacks and it should pop out.
Ya, I forgot to add that too makes it alot easier.

Crank till it's tight then hit the top of the press and it should give a little bit, then crank again and hit again. Repeat as needed.
__________________
'93 ZJ, 4.0L, D30 & D35, NP231, 4" Lift, 31" BFG's, Soft 8's, Painted Cladding, Glasspack, JVC Deck, CB, Lightbars, JKS Discos & TB, Tow Hooks Everywhere...more crap.
BigRed4x4 is offline   Reply With Quote
Unread 03-06-2010, 07:32 PM   #10
ZJJay
Senior Member

ZJJay's Avatar
1996 ZJ

Join Date: Nov 2009
Location: Mission Viejo, CA
Posts: 635
OK, I have a stupid question. I presume that when you hit the top of the press, you are striking downward on the end with the hex, or on the opposite end, depending on which way the joint will be coming out, right?

Jay
__________________
'96 ZJ, 4.0L, 42RE, NP242, stock D30 and D35-LS w/ 3.73, 4-1/2" lift, 32" BFG ATs, Magnaflow, JKS track bars and disconnects, spare tire carrier, Optima red top, ROLA roof rack, KC SlimLite driving lights, CB and Yaesu ham radios, GPS
ZJJay is offline   Reply With Quote
Unread 03-07-2010, 09:32 AM   #11
BigRed4x4
Registered User
1993 ZJ

Join Date: Dec 2009
Location: Gray, TN
Posts: 451
Quote:
Originally Posted by ZJJay View Post
OK, I have a stupid question. I presume that when you hit the top of the press, you are striking downward on the end with the hex, or on the opposite end, depending on which way the joint will be coming out, right?

Jay
You're hitting the top of the press (the side without the screw). The side that actually pushes the ball joint out.
__________________
'93 ZJ, 4.0L, D30 & D35, NP231, 4" Lift, 31" BFG's, Soft 8's, Painted Cladding, Glasspack, JVC Deck, CB, Lightbars, JKS Discos & TB, Tow Hooks Everywhere...more crap.
BigRed4x4 is offline   Reply With Quote
Unread 10-25-2010, 08:55 PM   #12
Upside
Registered User
2002 WJ

Join Date: Dec 2004
Location: Irvine, CA
Posts: 805
Did you notice an improvement in the steering looseness after replacing the ball joints? I'm going to do this job on my '93 ZJ next week and it has the original ball joints with 211K on them. Everything but the axle housing up front has been replaced already.
Upside is offline   Reply With Quote
Unread 10-25-2010, 09:42 PM   #13
cata123
Registered User

Join Date: Aug 2009
Location: USA
Posts: 383
does a 2wd have ball joints?
cata123 is offline   Reply With Quote
Unread 10-25-2010, 10:11 PM   #14
sskilla
Senior Member

sskilla's Avatar
1995 ZJ

Join Date: Jul 2010
Location: sacramento, CA
Posts: 791
nice write up, should make it cake when the time comes.
__________________
'95 ZJ: 5.2 v8 / 249 > 242 > 231 Tcase swap / 46RH / 3.5" IRO + 1.5" pucks / IRO Adj Front Lower CA's / IRO Double Shear Adj Track Bar / 33" BFG KM2's / JKS Quicker Disco's / IRO rear end links / Kegger Mod / Super 44 Flowmaster / Novak Cable Shifter / Kevins Radiator Support / JKS Bar pin eliminators / Yukon Chromoly Rear Axles / IRO SS Brake Lines / Stillen cross-drilled rotors / Flowcooler water pump

It's got guts. Jeep guts. Jeep, the toughest four letter word on wheels. F@#% Yeah.

R.I.P. 2000 TJ
R.I.P. '95 YJ

sskilla is offline   Reply With Quote
Unread 10-25-2010, 10:18 PM   #15
93ZJ_5.2_ca
Registered User
2002 TJ Wrangler

Join Date: Feb 2008
Location: Santa Ana-CA
Posts: 115
Local parts shops usualy loan these pullers.
