WJ Front Axle Shaft Compatibility? - JeepForum.com
Search
Sign Up   Today's Posts
User: Pass: Remember?
Advertise Here
Jeep Home Jeep Forum Jeep Classifieds Jeep Registry JeepSpace Jeep Reviews Jeep Gallery Jeep Clubs Jeep Groups Jeep Videos Jeep Events Jeep Articles
Go Back JeepForum.com > Models > Jeep Grand Cherokee & Commander Forums > ZJ Grand Cherokee Forum > WJ Front Axle Shaft Compatibility?

THE NEW! VANCO DUAL MODE 15/16″ Big Brake Kit w/BlaSavvy Billet LED Tail LightsCurrie

Reply
Unread 12-23-2008, 07:20 AM   #1
CanadianZed-J
Registered User
1999 WJ

Join Date: Sep 2005
Location: Sudbury, ON.
Posts: 688
WJ Front Axle Shaft Compatibility?

After swapping t-cases and still having no 4x4 (yet the front driveshaft turned), I pulled the front diff cover and after some head scratching I spotted the problem.

Can you spot it too?

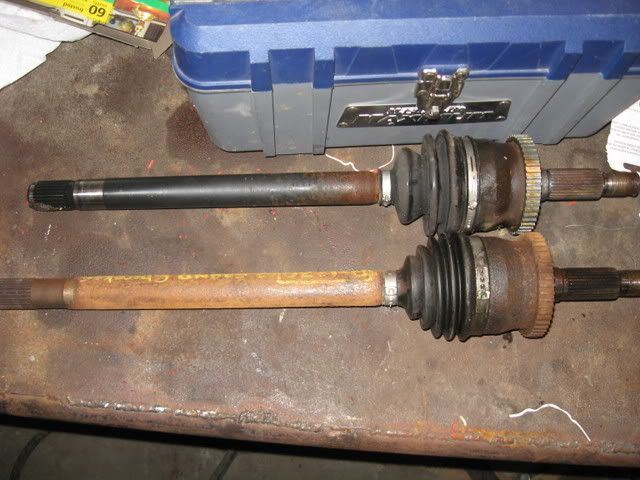

You're right! It's missing an axle shaft! However, both CVs look the same and feel the same when squishing them. This still leads me to believe that the inner was deliberately removed.

My question is:

Will any other Dana 30 axles fit?


I have a TJ with a D30 front (u-joint style, not CV) sitting in my garage for the winter so I could borrow that one if need be. Another option is I have a parts WJ with Quadra-Drive axles that I could pull a shaft from, but lately it's been below -20C here and that Jeep is outside so I don't want to frig with salted (seized more than most of you southerners could ever imagine) bolts and hubs that would need to be pounded off.


Thanks for reading!


Chris.

__________________
So I installed the flux capacitor but the Jeep just won't do 88 mph.

-'99 WJ Limited, 4.7, Patriot Blue, 2" BB, 31" Mall-Terrains, Pavement Princess
-'97 TJ, Stone White, 4" Superlift, 33" SSRs, lunchboxed rear, 12K Titan winch, and 2.5 litres of exhillirating performance.
CanadianZed-J is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 07:31 AM   #2
tsconver
Registered User
2003 WJ

Join Date: Nov 2007
Location: Durham, North Carolina
Posts: 2,943
Do you have quadratrac or quadradrive axles? They are not interchangeable from what I have been told. The D30 axles on the 99-04 Grands (WJ) are also not c clip axles and most of teh other Dana 30 axles are. They are very cheap to replace, probably can get new for under $100 at a parts store.
__________________
Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 07:33 AM   #3
nierace
Registered User
2003 WJ

Join Date: Jun 2005
Location: CT
Posts: 8,242
www.rock-auto.com have the shafts for ~$50...and as mentioned the quadra-drive axle shafts are different length then non quadra-drive.

None of the other heeps axle shafts are interchangeable, can only use WJ ones.
__________________
Nickerdoodle
03 WJ 4.7 242HD Kolak/IRO 5" Clayton LA's
35" BFGoodrich KM2
sira4x4.net North East Offroad Club
www.carolinadriveline.com
www.ironrockoffroad.com
kolak@aol.com
nierace is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 07:42 AM   #4
CanadianZed-J
Registered User
1999 WJ

Join Date: Sep 2005
Location: Sudbury, ON.
Posts: 688
Ok, great! The knowledge on this site rocks.


Yes, my driving Jeep is QuadraTrac and the parts Jeep is QuadraDrive. Was planning on doing a complete axle swap in the spring so was hoping to avoid investing too much into this axle, but if I can get a shaft for $100 or so, that's peanuts compared to the benefits of having 4x4 in the snow.


Thanks for the help.


CZJ.
__________________
So I installed the flux capacitor but the Jeep just won't do 88 mph.

-'99 WJ Limited, 4.7, Patriot Blue, 2" BB, 31" Mall-Terrains, Pavement Princess
-'97 TJ, Stone White, 4" Superlift, 33" SSRs, lunchboxed rear, 12K Titan winch, and 2.5 litres of exhillirating performance.
CanadianZed-J is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 07:49 AM   #5
nierace
Registered User
2003 WJ

Join Date: Jun 2005
Location: CT
Posts: 8,242
To be honest with you, it's easier to swap your axle over than to change the shaft...its really really easy to swap the front axles on the WJ...when I pulled mine it took about 30 minutes :P

Changing the shaft can be a bear because the hub assembly sticks hardcore.
__________________
Nickerdoodle
03 WJ 4.7 242HD Kolak/IRO 5" Clayton LA's
35" BFGoodrich KM2
sira4x4.net North East Offroad Club
www.carolinadriveline.com
www.ironrockoffroad.com
kolak@aol.com
nierace is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 08:44 AM   #6
CanadianZed-J
Registered User
1999 WJ

Join Date: Sep 2005
Location: Sudbury, ON.
Posts: 688
I'm guessing the easiest way is to leave the tires on it, unbolt everything, then roll it out. Weather permitting, I'm going to consider that. To do the swap itself I have a heated garage, but the parts Jeep is at my folks' place in a portable garage on sand so it's kinda chilly right now. Will have to wait for a warm Saturday.


CZJ.
__________________
So I installed the flux capacitor but the Jeep just won't do 88 mph.

-'99 WJ Limited, 4.7, Patriot Blue, 2" BB, 31" Mall-Terrains, Pavement Princess
-'97 TJ, Stone White, 4" Superlift, 33" SSRs, lunchboxed rear, 12K Titan winch, and 2.5 litres of exhillirating performance.
CanadianZed-J is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 09:04 AM   #7
ArloGuthroJeep
Mr. Hyde!

ArloGuthroJeep's Avatar
2004 WJ

Join Date: Mar 2005
Location: Boulder, CO
Posts: 23,082
Quote:
Originally Posted by tsconver View Post
Do you have quadratrac or quadradrive axles? They are not interchangeable from what I have been told. The D30 axles on the 99-04 Grands (WJ) are also not c clip axles and most of teh other Dana 30 axles are. They are very cheap to replace, probably can get new for under $100 at a parts store.
None of the D30's are c-clipped.

The WJ D30 inners are unique to the WJ only. The outers are interchangable. $100 at Napa and be on your way
__________________
'04 WJ, 6" Clayton LA's, 242 SYE, 35" BFG MT KM2's, 4.56 gears, & D44a locked
'14 WK2 Limited w/5.7L, ORAI, & Tow Package
ArloGuthroJeep is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 09:06 AM   #8
tsconver
Registered User
2003 WJ

Join Date: Nov 2007
Location: Durham, North Carolina
Posts: 2,943
Quote:
Originally Posted by ArloGuthroJeep View Post
None of the D30's are c-clipped.

The WJ D30 inners are unique to the WJ only. The outers are interchangable. $100 at Napa and be on your way
my mistake, but I knew they were not interchangeable.
__________________
Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 09:20 AM   #9
ArloGuthroJeep
Mr. Hyde!

ArloGuthroJeep's Avatar
2004 WJ

Join Date: Mar 2005
Location: Boulder, CO
Posts: 23,082
I have some WJ D30 u-joint outers w/WJ ABS if anyone wants to buy em
__________________
'04 WJ, 6" Clayton LA's, 242 SYE, 35" BFG MT KM2's, 4.56 gears, & D44a locked
'14 WK2 Limited w/5.7L, ORAI, & Tow Package
ArloGuthroJeep is offline   Reply With Quote Quick reply to this message
Unread 12-23-2008, 09:54 AM   #10
nierace
Registered User
2003 WJ

Join Date: Jun 2005
Location: CT
Posts: 8,242
Are those the ones you tried to sell to me for $800 ? LOL
__________________
Nickerdoodle
03 WJ 4.7 242HD Kolak/IRO 5" Clayton LA's
35" BFGoodrich KM2
sira4x4.net North East Offroad Club
www.carolinadriveline.com
www.ironrockoffroad.com
kolak@aol.com
nierace is offline   Reply With Quote Quick reply to this message
Unread 12-30-2008, 07:30 AM   #11
CanadianZed-J
Registered User
1999 WJ

Join Date: Sep 2005
Location: Sudbury, ON.
Posts: 688
So last night I bought a new front-left shaft assembly out of 2002 WJ from the wreckers. I pulled the existing shaft out of my Dub and found it was about an inch shorter than the one I just bought. This made perfect sense as to why it appeared missing when looking behind the diff cover. However, I'm still incredibly puzzled as to why it was in there in the first place.


After getting it all back together with the new shaft I test drove it. 4x4 does work now, but when hitting the gas moderately (actually, anything more than lightly), there's a loud snapping sound as if the splines are slipping. I pray it's coming from the diff and not the t-case.



Anyway, I didn't think to compare the spline count between the two shafts and it's difficult to see in the photo. Would they be different? If so, would it be possible for the shaft to fit in the carrier and handle just small loads before slipping if the count was different? Or should it just not fit at all?



Getting 4x4 on this Jeep will be the death of me!



Thanks


Chris
__________________
So I installed the flux capacitor but the Jeep just won't do 88 mph.

-'99 WJ Limited, 4.7, Patriot Blue, 2" BB, 31" Mall-Terrains, Pavement Princess
-'97 TJ, Stone White, 4" Superlift, 33" SSRs, lunchboxed rear, 12K Titan winch, and 2.5 litres of exhillirating performance.
CanadianZed-J is offline   Reply With Quote Quick reply to this message
Unread 12-30-2008, 08:43 AM   #12
tsconver
Registered User
2003 WJ

Join Date: Nov 2007
Location: Durham, North Carolina
Posts: 2,943
I would bet someone that did not have a clue put a quadradrive shaft in it at some point and never realized it was too short.
__________________
Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline   Reply With Quote Quick reply to this message
Unread 12-30-2008, 08:45 AM   #13
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,794

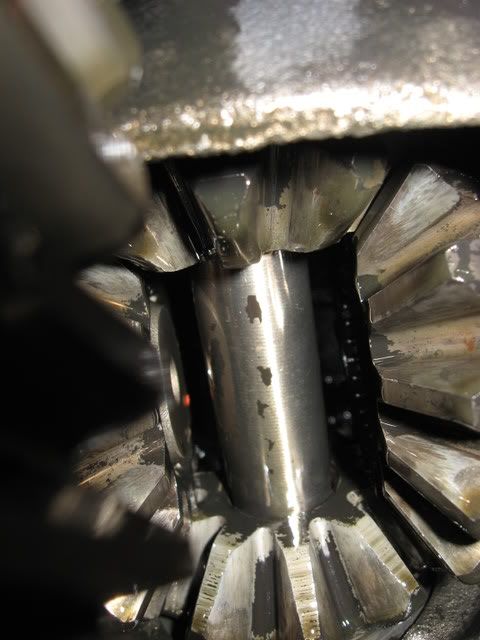

splines are the same, the snapping noise could easily be the spider gears. they don't look too hot in that picture.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote Quick reply to this message
Unread 12-30-2008, 08:59 AM   #14
CanadianZed-J
Registered User
1999 WJ

Join Date: Sep 2005
Location: Sudbury, ON.
Posts: 688
Quote:
Originally Posted by ratmonkey View Post
splines are the same, the snapping noise could easily be the spider gears. they don't look too hot in that picture.

The spiders seemed good in person. No side-to-side play and the edges are all sharp. In fact, all gears in the pumpkin looked great.

And I thought the Quadra-Drive shafts were longer?



CZJ.
__________________
So I installed the flux capacitor but the Jeep just won't do 88 mph.

-'99 WJ Limited, 4.7, Patriot Blue, 2" BB, 31" Mall-Terrains, Pavement Princess
-'97 TJ, Stone White, 4" Superlift, 33" SSRs, lunchboxed rear, 12K Titan winch, and 2.5 litres of exhillirating performance.
CanadianZed-J is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
