is this the wire harness I need?

I am trying to wire up for a trailer and all I have found is a ten pin connecter. it was on the driver side with nothing pluged into it. two rows of 5 with all 5 top pins and 3 on the bottom. Is this for trailer wiring or something else. I didnt have the factory tow pkg. Will I have to splice into the tail light?
Thanks
Greg

__________________
98 zj (The Vixen) 5.2 V8, 4 in f>r, 31's,

Built not Bought member #247

SOLD:( new DD- 04 polaris sportsman
footinmouth47 is offline   Reply With Quote Quick reply to this message
Unread 10-11-2009, 10:16 AM   #2
ArloGuthroJeep
Mr. Hyde!

ArloGuthroJeep's Avatar
2004 WJ

Join Date: Mar 2005
Location: Boulder, CO
Posts: 23,087
Sounds like that is for the OBDII...not the trailer wiring harness.
__________________
'04 WJ, 6" Clayton LA's, 242 SYE, 35" BFG MT KM2's, 4.56 gears, & D44a locked
'14 WK2 Limited w/5.7L, ORAI, & Tow Package
ArloGuthroJeep is offline   Reply With Quote Quick reply to this message
Unread 10-11-2009, 01:32 PM   #3
FPKites
ZJjazzyJim

FPKites's Avatar
1996 ZJ

Join Date: Sep 2004
Location: Denver, Colorado
Posts: 13,497
Correct. You're looking at the OBDII data port.

The only wire that would be in the cab near the driver would be for the brake controller, and it should be blue.

Pop the panel behind your spare and see if there's a connector there. It may not be since you don't have trailer tow/trailer prep though.
__________________
Jim Karlin
"How the heck do you get there?"
"Duh! Big RED Jeep!!!"
Best customer service in the states:

Best mod you'll ever do on ANY vehicle!!!!

FPKites is offline   Reply With Quote Quick reply to this message
Unread 10-11-2009, 05:35 PM   #4
footinmouth47
Registered User
1998 ZJ

Join Date: Sep 2005
Location: Togiak, Alaska
Posts: 882
that connector was behind where the spare tier was. what is it?
Greg
__________________
98 zj (The Vixen) 5.2 V8, 4 in f>r, 31's,

Built not Bought member #247

SOLD:( new DD- 04 polaris sportsman
footinmouth47 is offline   Reply With Quote Quick reply to this message
Unread 10-11-2009, 07:37 PM   #5
FPKites
ZJjazzyJim

FPKites's Avatar
1996 ZJ

Join Date: Sep 2004
Location: Denver, Colorado
Posts: 13,497
The pigtail for trailer lighting.
__________________
Jim Karlin
"How the heck do you get there?"
"Duh! Big RED Jeep!!!"
Best customer service in the states:

Best mod you'll ever do on ANY vehicle!!!!

FPKites is offline   Reply With Quote Quick reply to this message
Unread 10-12-2009, 02:58 PM   #6
footinmouth47
Registered User
1998 ZJ

Join Date: Sep 2005
Location: Togiak, Alaska
Posts: 882
Since I am unable to describe it and cant find a pic via search here is what I am looking at. I also read that you have to bring a power supply back to it but the wires for the harness i bought are labeled right turn, left turn, brake and ground. please tell me there is a write up on this that I just couldnt find.

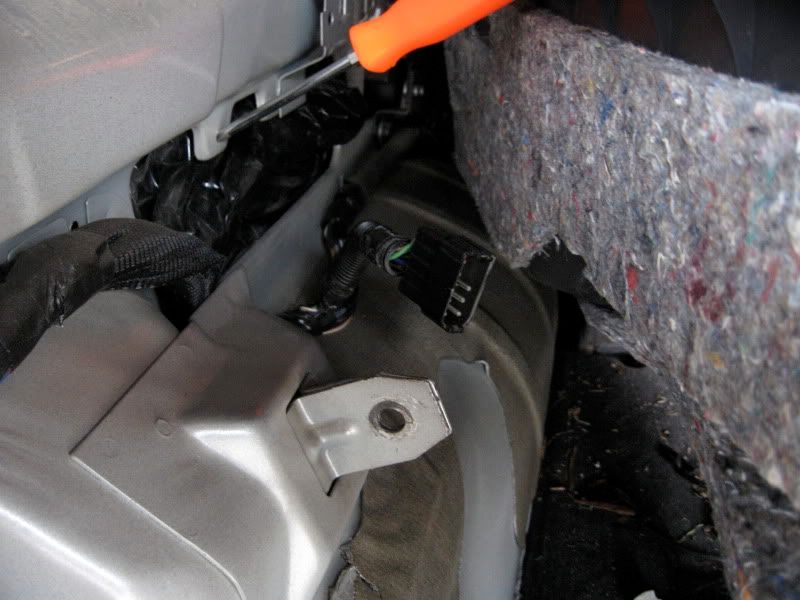

the big one with 8 pins

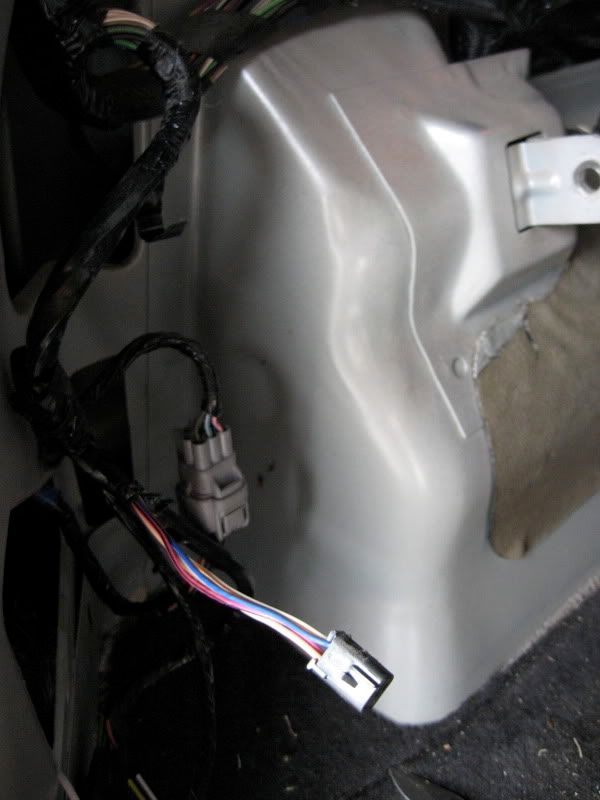

and one with 4 but dont know if they are right
__________________
98 zj (The Vixen) 5.2 V8, 4 in f>r, 31's,

Built not Bought member #247

SOLD:( new DD- 04 polaris sportsman
footinmouth47 is offline   Reply With Quote Quick reply to this message
Unread 10-12-2009, 03:13 PM   #7
ZJPunk98
Registered User
2002 WJ

Join Date: Oct 2005
Location: North Kingstown, Rhode Island
Posts: 2,165
Get a test light, ground it to something, then turn on your running lights, flashers, have someone push on the brake and activate the reverse lights, check to see if these pins are powered.

if so, there may be a plug and play wiring harness available for uhaul for this, or you can purchase the wiring harness you want and hardwire them into the corresponding wiring available.

I worked at uhaul while in college. I installed many wiring harnesses in vehicles without a designated plug in. Our technique would be to find a bundle of wires (as you have in your pic) and select the correct wires out of that bunch for the harness we were installing. At the least you need wires for marker lights, brake lights, turn signals, and a ground wire. Some incorporate reverse lights at well.

these desired wires can be found by testing individual wires with a test light, as mentioned above.
__________________
Erik

98 ZJ 5.2L JGC Limited Sold
02 4.7L HO JGC Overland
