what length should the upper and lower control arms at 4.5 inches of lift

I started my lift today and ran into a problem. my lift from iro doesnt tell how long the control arms should be adjusted to, I mean it gives tells me to find the 18 and 5/16 lower control arm and install. Is this number how far it should be adjusted to center to center or what? it also says install upper control arms, since mine are adjustable what length should i put them at? for the front and rear.

97ZJ_FOORx4 is offline   Reply With Quote
Unread 11-10-2013, 07:38 AM   #2
OverlandZJ
Registered User
1998 ZJ

Join Date: Oct 2012
Location: Bristol, Pa
Posts: 928
The length IRO gave you for the lowers is eye to eye... center of bolt hole to bolt hole.

Coil springs and vehicle weights are not uniform and you need to adjust the uppers for proper pinion angle. You'll need an angle finder for this, Sears Hardware has these for ~$10.

Google image Pinion angle if your unfamiliar, you'll see plenty of diagrams on how to adjust for both a cardan joint (SYE style) or OEM 2 joint driveshafts.
OverlandZJ is offline   Reply With Quote
Unread 11-10-2013, 07:42 AM   #3
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 6,587
The lowers should be the same length as the stock control arms. The uppers should be adjusted to dial in the rear pinion angle and the front caster angle.
Technohead is offline   Reply With Quote
Unread 11-10-2013, 01:33 PM   #4
97ZJ_FOORx4
Registered User
1997 ZJ

Join Date: Sep 2013
Location: Parma, Michigan
Posts: 94
Is there a specific length I need to adjust the uppers and lowers to? I figured you would keep the uppers stock and adjust the lowers according to the lift. But you guys say otherwise. The installation instructions just say to install upper control arms. The length of both upper and lowers are crucial to the drivability of the vehicle and I don't see why Iro would leave that information out.
97ZJ_FOORx4 is offline   Reply With Quote
Unread 11-10-2013, 01:38 PM   #5
WhiteOut
Web Wheeler

WhiteOut's Avatar
1998 ZJ

Join Date: Dec 2007
Posts: 8,135
Because there is no universal control arm length. They need to be adjusted to your Jeep and how it reacts to the lift.
WhiteOut is online now   Reply With Quote
Unread 11-11-2013, 12:56 AM   #6
97ZJ_FOORx4
Registered User
1997 ZJ

Join Date: Sep 2013
Location: Parma, Michigan
Posts: 94
So the adjustable ca's help with the pinion angle, right now I have the lowers extended to 18 and 5/16 from center to center on the rear and the uppers are adjusted to stock length. Should I move them out? It looks like the axle isn't out far enough to clear my tires and it would rub the front of the rear fender wells near the rocker arms.
Is there a chart I can go off from or somebody who runs the adjustys that works and what length are they using? I plan on running 33s.
Or should the axle just be centered in the wheel well?
Or is this something an alignment would take care of?
97ZJ_FOORx4 is offline   Reply With Quote
Unread 11-11-2013, 02:14 AM   #7
Kodiak17
Registered User
1998 TJ Wrangler

Join Date: Sep 2010
Location: Kutztown, PA/ Andover, NJ, Pennsylvania
Posts: 3,709
Pinion angle is most important. Then caster. Then axle placement. Find a happy balance between all 3. To push the axle back, extend both arm lengths equally.
__________________
Maintain, wheel, upgrade, repeat.

My build: http://www.jeepforum.com/forum/f22/thor-dd-weekend-warrior-1348534/
Kodiak17 is offline   Reply With Quote
Unread 11-11-2013, 03:50 AM   #8
Technohead
Old School

Technohead's Avatar
1998 ZJ

Join Date: Dec 2008
Location: Exeter, RI
Posts: 6,587

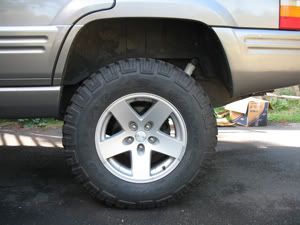

But pushing the axle back on short arms with the factory bracket locations is not recommended. The factory CA lengths will place the axle in the center of the wheel opening at full bump:





Also, I would say pinion angle is most important on the rear. Too little caster is a very common source of death wobble.
Technohead is offline   Reply With Quote
Unread 11-11-2013, 04:46 AM   #9
97ZJ_FOORx4
Registered User
1997 ZJ

Join Date: Sep 2013
Location: Parma, Michigan
Posts: 94
So would factory length ca's work and then I just adjust the upper for the pinion angle correct?
97ZJ_FOORx4 is offline   Reply With Quote
