Anyone know what size nuts are used to secure the TC to the trans?

This site lists the studs as M10x1.5 and the nuts as M8x1 (one, M8x1 is weird... two, they should obviously be the same thread).
http://www.factorychryslerparts.com/...category=20586

Have a better answer?

*edit* Looks like they're M10x1. Weird. Another post on this site mentions 3/8"-24.

mangle is offline   Reply With Quote Quick reply to this message
Unread 11-09-2012, 04:43 AM   #1337
Proph2010
Registered User
1994 ZJ

Join Date: Oct 2011
Location: Martinsburg, WV
Posts: 301
Im pretty sure they were all the same bolts and it was 9/16.
Proph2010 is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 06:06 PM   #1338
zachjf
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Portland, Oregon
Posts: 1,067
Has anyone here managed to take a WJ 242 that has the speedo sensor provision and just cut the hole out to use the ZJ speedo sensor? I was looking at a WJ 242J in the yard and it has the hole in the rear tail shaft housing but its got a small cast in section blocking the actual hole, the small retainer hole is even there just no actual speedo sensor hole.
__________________
Needs parts?
PM Kolak or kolak@kolakperformance.com
zachjf is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 09:57 PM   #1339
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Quote:
Originally Posted by zachjf View Post
Has anyone here managed to take a WJ 242 that has the speedo sensor provision and just cut the hole out to use the ZJ speedo sensor? I was looking at a WJ 242J in the yard and it has the hole in the rear tail shaft housing but its got a small cast in section blocking the actual hole, the small retainer hole is even there just no actual speedo sensor hole.
less work just to find a ZJ or XJ case
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 11-11-2012, 03:30 PM   #1340
zachjf
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Portland, Oregon
Posts: 1,067
Quote:
Originally Posted by dnuccio View Post
less work just to find a ZJ or XJ case
Trust me I'd rather find a case that I can just swap in like an XJ/ZJ case but the thing is around here newer jeeps never hit our U-Pull-It yards, they get cherry picked by the wreckers who extort an enormous amount of money for used Jeep parts. I called around my local wreckers and the best I could find was a 96 ZJ 242 case with 200k on it for $250! To get a nice 97 XJ case w/ 100k they want almost $400. Its either Craigslist, which again has nothing in terms of 96+ vehicles or making something else work.

If all it takes to make the newer 242 a bolt in swap is to remove the tailshaft housing, take a hole saw to the speedo sensor hole and tapping threads for the hold down bolt I'm all over it, it'll save me $300 since I can get the case for $100 and maybe 45 min worth of work

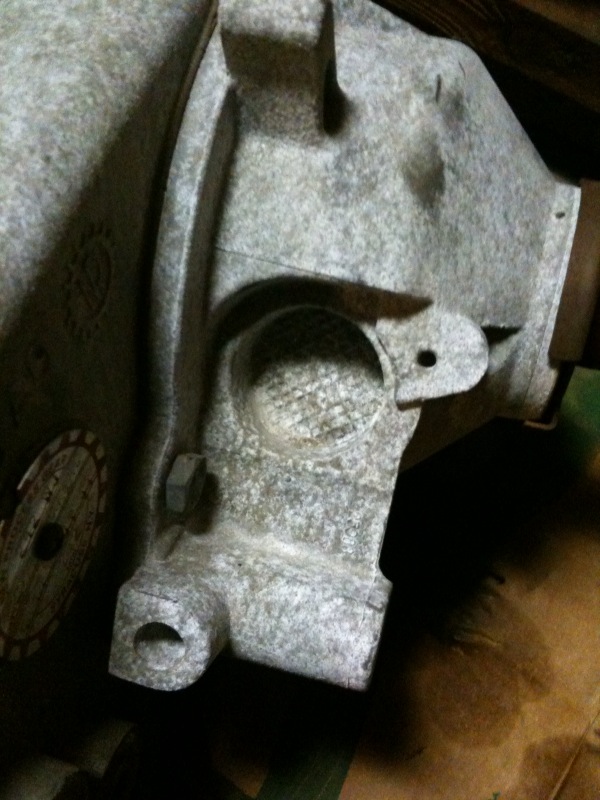

This is the 242 case I'm looking at;
__________________
Needs parts?
PM Kolak or kolak@kolakperformance.com
zachjf is offline   Reply With Quote Quick reply to this message
Unread 11-11-2012, 09:59 PM   #1341
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
I don't think it's that simple. The Speedo gear is driven by a set of "splines" on the mainshaft. If the wj case doesn't have the provision for the sensor, it most likely doesn't have the required splines to turn the sensor. Sure you could swap the mainshaft, but by the time you buy a new shaft, its cheaper and less work to buy a whole zj or xj tcase and be done with it
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 11-11-2012, 10:33 PM   #1342
zachjf
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Portland, Oregon
Posts: 1,067
Quote:
Originally Posted by dnuccio View Post
I don't think it's that simple. The Speedo gear is driven by a set of "splines" on the mainshaft. If the wj case doesn't have the provision for the sensor, it most likely doesn't have the required splines to turn the sensor. Sure you could swap the mainshaft, but by the time you buy a new shaft, its cheaper and less work to buy a whole 242 tcase and be done with it
After looking at exploded diagrams and parts lists it appears that 4.0 WJ 242 cases do in fact have the speedo drive splines on the main shaft whereas 4.7 V8 242's do not, the 242 in the 4.7 uses a completely different mainshaft, tailshaft housing etc. I just sent emails off to a couple NP/NV parts suppliers to double check their listings of the mainshaft part number interchanges so I'll know for sure in a few days.
__________________
Needs parts?
PM Kolak or kolak@kolakperformance.com
zachjf is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 07:50 AM   #1343
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Quote:
Originally Posted by zachjf View Post
After looking at exploded diagrams and parts lists it appears that 4.0 WJ 242 cases do in fact have the speedo drive splines on the main shaft .
huh. I never would've guessed. Interesting
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 07:23 PM   #1344
JakeC132
Registered User
1995 ZJ

Join Date: Nov 2012
Location: Guilford, CT
Posts: 51
I have a 95 zj 5.2 with a late 95 np249. just pulled it out this week to swap in a np231 from a 96 xj. they are apart right now and the gear cut is in fact the same. Do i have to also swap the input bearings or should they be the same?
JakeC132 is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 08:36 PM   #1345
Georelle
Registered User
1993 ZJ

Join Date: Dec 2011
Location: Sioux Falls, South Dakota
Posts: 19
I have been reading through this to get ready to swap out the 249 in my '93 5.2 ZJ. After reading through many many pages I think I have it mostly figured out. I am looking at a 231 out of a 93 XJ not far away that I will swap in then do the input shaft swap.

I must throw my humble opinion out here on the sensor and switch for the VIC indicator. There seems to be a lot of concern and time spent on this. Mine was beeping at me every 5 minutes with a "Service 4wd Switch" warning when I bought the Jeep a year ago. So I basically defeated it. Took about 15 - 20 minutes. I figured that if I need the VIC to tell me where I have the transfer case shifted I am in deep trouble anyway.

So here is a simple option to defeat the TC sensor at the VIC so you don't have to worry about what is going on at the TC sensor. The VIC just shows all four wheels lit up for me now. This diagram is if the VIC is already wired up for your 249. Be sure to tape off the end of the cut wires that will not be reconnected. And the one that is connected to ground can be cut long enough to put a wire lug on the end to screw to the metal behind the VIC, there was already a hole there for a metal screw on mine.

Last edited by Georelle; 11-12-2012 at 09:14 PM..
Georelle is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 09:11 PM   #1346
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Quote:
Originally Posted by Georelle View Post
I have been reading through this to get ready to swap out the 249 in my '93 5.2 ZJ. After reading through many many pages I think I have it mostly figured out. I am looking at a 231 out of a 93 XJ not far away that I will swap in then do the input shaft swap.

I must throw my humble opinion out here on the sensor and switch for the VIC indicator. There seems to be a lot of concern and time spent on this. Mine was beeping at me every 5 minutes with a "Service 4wd Switch" warning when I bought the Jeep a year ago. So I basically defeated it. Took about 15 - 20 minutes. I figured that if I need the VIC to tell me where I have the transfer case shifted I am in deep trouble anyway.

So here is a simple option to defeat the TC sensor at the VIC so you don't have to worry about what is going on at the TC sensor. The VIC just shows all four wheels lit up for me now. This diagram is if the VIC is already wired up for your 249.
easier to just disconnect the plug from the sensor, thats what i did
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 09:12 PM   #1347
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Quote:
Originally Posted by JakeC132 View Post
I have a 95 zj 5.2 with a late 95 np249. just pulled it out this week to swap in a np231 from a 96 xj. they are apart right now and the gear cut is in fact the same. Do i have to also swap the input bearings or should they be the same?
input bearings will be the same
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 09:13 PM   #1348
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 3,484
Quote:
Originally Posted by zachjf View Post
This is the 242 case I'm looking at;
is it just me, or does the tag say 242 WJ? i always thought they just said 242 J for jeep
dnuccio is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 09:41 PM   #1349
zachjf
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Portland, Oregon
Posts: 1,067
Quote:
Originally Posted by dnuccio View Post
is it just me, or does the tag say 242 WJ? i always thought they just said 242 J for jeep
I dont have a picture of the one I'm thinking of buying but here's one just like it.



I honestly dunno what the difference is I because I've seen WJ's that say both 242J and 242WJ, both 6 cylinder Laredo models 1 model year apart, 2001 & 2002.
__________________
Needs parts?
PM Kolak or kolak@kolakperformance.com
zachjf is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 09:55 PM   #1350
Wulff
Registered User

Join Date: Oct 2012
Location: Mesa, az
Posts: 30
Quote:
Originally Posted by zachjf View Post

If all it takes to make the newer 242 a bolt in swap is to remove the tailshaft housing, take a hole saw to the speedo sensor hole and tapping threads for the hold down bolt I'm all over it, it'll save me $300 since I can get the case for $100 and maybe 45 min worth of work

This is the 242 case I'm looking at;
This is not as easy as it seems, I am a Journeyman toolmaker and this casting would need more than a simple hole saw, it would have to be set up in a vertical mill and using a boring head machined out. The tricky part would be trying to find out the exact location so the gears mesh properly. Second the sealing wouldn't be there and it would leak oil like crazy.
Wulff is offline   Reply With Quote Quick reply to this message
