Repairing a Clogged AC Drain

I know this topic has been covered, I actually learned how to do it from this site. One thing I could not find is any actual photos of the process. I took some photos of the job to help others with the same problem.

I had moisture on the passenger side floor pan of my 97 GC 5.2L. It didn't feel or smell like antifreeze so I eliminated the heater core as an issue. I learned from members of Jeepforum that it was possibly a clogged AC drain. Using the recommendations from others I started the job.

Locate the HVAC box drain by pulling the carpet back on the passenger side. Its a round piece that goes into the firewall.

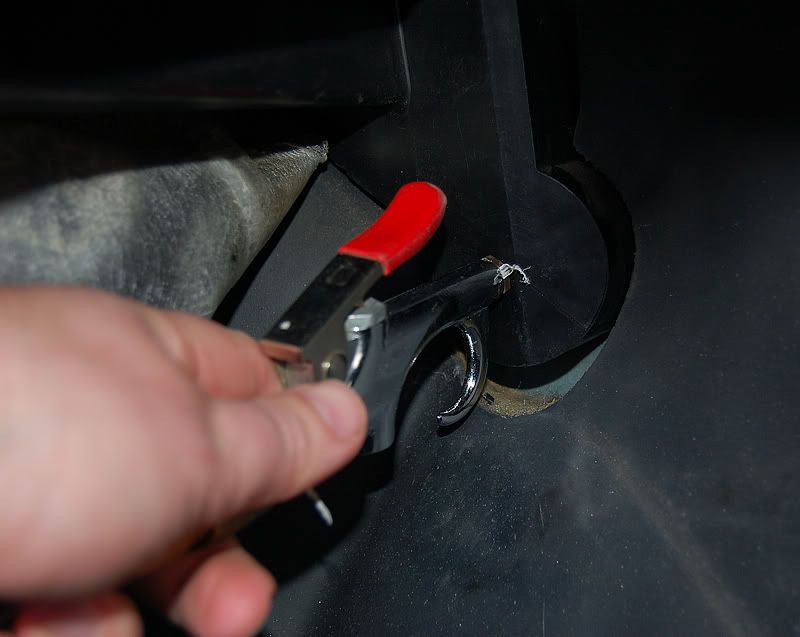

Drill a 1/4 inch hole into drain



Blow out with air


I wasn't able to locate a rubber plug to plug the hole but I did find find a plastic fastener for interior trim. Once I can locate a rubber plug to fit, I plan on changing it out.


Applied a bit of Goop to help seal

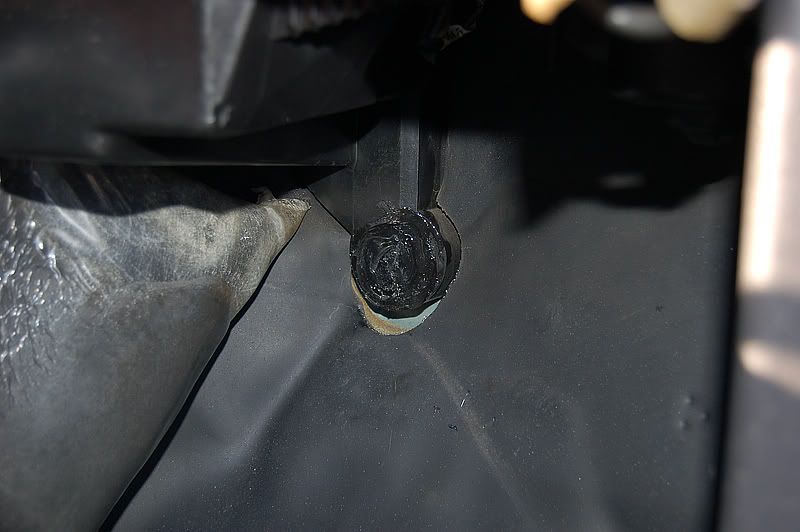

Installed plug then cover surface with more Goop to ensure a good seal


PunisherZJ is offline   Reply With Quote Quick reply to this message
Unread 01-01-2008, 12:27 PM   #2
Dillonzj
Registered User
1998 ZJ

Join Date: Sep 2007
Location: Indiana
Posts: 2,169
Quote:
Originally Posted by PunisherZJ
I know this topic has been covered, I actually learned how to do it from this site. One thing I could not find is any actual photos of the process. I took some photos of the job to help others with the same problem.

I had moisture on the passenger side floor pan of my 97 GC 5.2L. It didn't feel or smell like antifreeze so I eliminated the heater core as an issue. I learned from members of Jeepforum that it was possibly a clogged AC drain. Using the recommendations from others I started the job.

Locate the HVAC box drain by pulling the carpet back on the passenger side. Its a round piece that goes into the firewall.


Drill a 1/4 inch hole into drain



Blow out with air


I wasn't able to locate a rubber plug to plug the hole but I did find find a plastic fastener for interior trim. Once I can locate a rubber plug to fit, I plan on changing it out.


Applied a bit of Goop to help seal


Installed plug then cover surface with more Goop to ensure a good seal
nice pictures
__________________
98' JEEP GRAND CHEROKEE LIMITED 5.9
149k 5.9L v8 White

Crane Cam shaft and Crane, Roller Rockers, bored .030 over, edelbrock performer heads, M1 Intake manifold, Fasstman throttle body, magnacore wires, platinum plugs, K&N FIPK, dough thorley headers,3" high flow cat, 3" magnaflow mandrel bent exhaust, SCT tuned

***future mods -5.5 IRO LA - KOR sliders -KOR roof rack -

SOLD-
95' JEEP GRAND CHEROKEE LIMITED
188k 5.2L v8 White 98 ZJ rims

Quote:
Originally Posted by nashmd454 View Post
...we all know they empty our pockets...yet they fill our hearts...


MY BUILD THREAD
Dillonzj is offline   Reply With Quote Quick reply to this message
Unread 01-01-2008, 12:30 PM   #3
PunisherZJ
Registered User

Join Date: Apr 2007
Location: NC
Posts: 46
Quote:
Originally Posted by Dillonzj
nice pictures
Thanks! How did you get them to open on the thread? I used the img tags but it just showed the link.
PunisherZJ is offline   Reply With Quote Quick reply to this message
Unread 01-01-2008, 12:33 PM   #4
Darthteddy
Registered User
1955 M-38

Join Date: Sep 2007
Location: Louisburg, NC/Camp Pendleton, CA
Posts: 1,661
Must have 50 posts and be here a month to have pictures show up. Great write up. If mine ever clogs, now ill know what to do.
__________________
Dylan-19 and Yearning
93 Rubigrand - Sold... :'(
95 Grand Cherokee Limited - 5.2 Mall Crawler
55 Willy's M38a1 - 231v6, 33" Super Swampers, D44 Full Floater Rear, Locked Front and Rear, 5.38 Gears, Viair OBA, Bilsteen 5100 shocks, Dana 18, Turbo 350, S10 Power Steering, Tilt-wheel, Full Cage, Flat Fenders....
Darthteddy is offline   Reply With Quote Quick reply to this message
Unread 01-01-2008, 12:35 PM   #5
PunisherZJ
Registered User

Join Date: Apr 2007
Location: NC
Posts: 46
Quote:
Originally Posted by Darthteddy
Must have 50 posts and be here a month to have pictures show up. Great write up. If mine ever clogs, now ill know what to do.
Oh okThat makes since. I just went out and changed that plug to a rubber plug. I'll update the thread in a bit.
PunisherZJ is offline   Reply With Quote Quick reply to this message
Unread 01-01-2008, 04:11 PM   #6
PunisherZJ
Registered User

Join Date: Apr 2007
Location: NC
Posts: 46

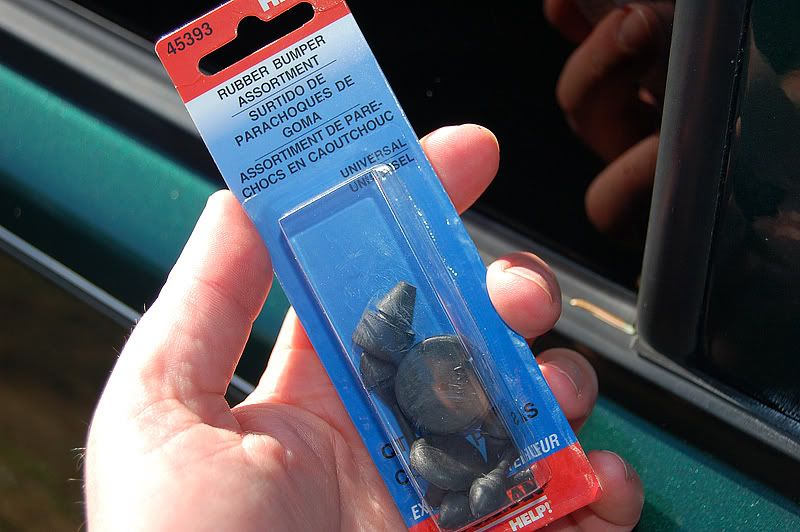

As I mentioned above, I changed my mind about using that plastic trim fastener for a plug. I went to Advanced Auto Parts and grabbed a set of universal plugs:

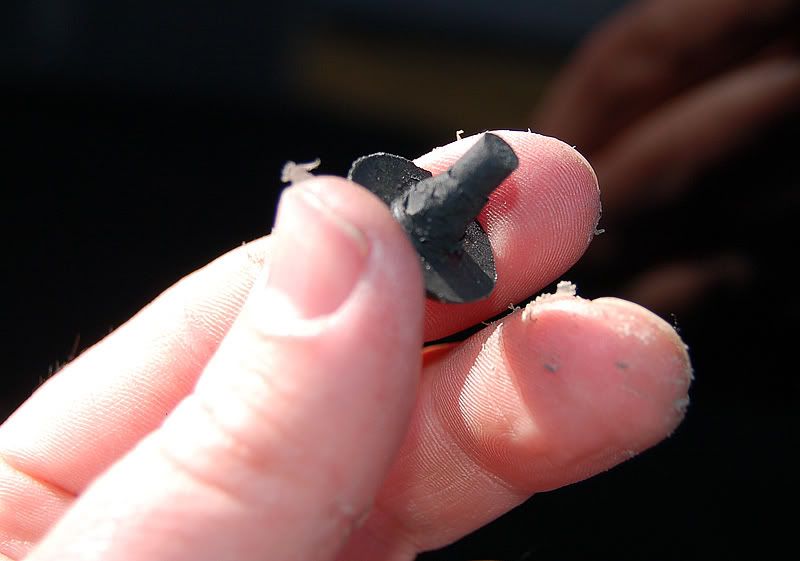

Found one that somewhat fit but had to shave it a bit to make it fit tight and go all the way in the hole:
