NP242 tutorial

should I post pics of a complete reseal I did today on an NP242?
I dont have premium membership so I cant post it in the technical area

baxy is offline
Sponsored Links
Advertisement

post #2 of 85 Old 04-29-2009, 05:28 PM
-cAcHe-
Registered User

-cAcHe-'s Avatar
1996 ZJ

Join Date: Nov 2007
Location: Holtville CA,
Posts: 2,513
pics pics pics..you can post you have over 50 posts.......upload them to photobucket and use [img] tags.

www.desert-hooligans.webs.com


Quote:
Originally Posted by CarolinaWK View Post
I like happy endings :2thumbsup:
RIP Troy Edwards (bigbluezj94)
-cAcHe- is offline
post #3 of 85 Old 04-29-2009, 05:30 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

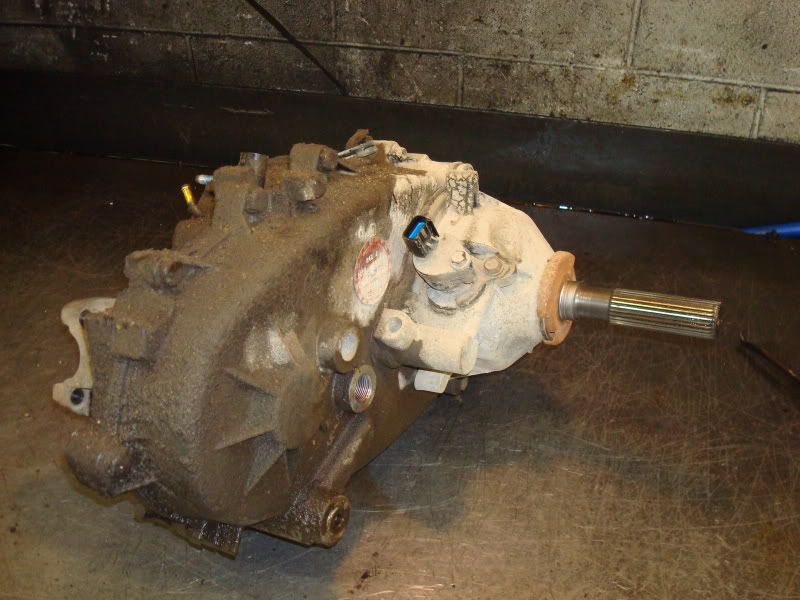

1998 JGC 4.0 typical NP242 tcase
baxy is offline
post #4 of 85 Old 04-29-2009, 05:31 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

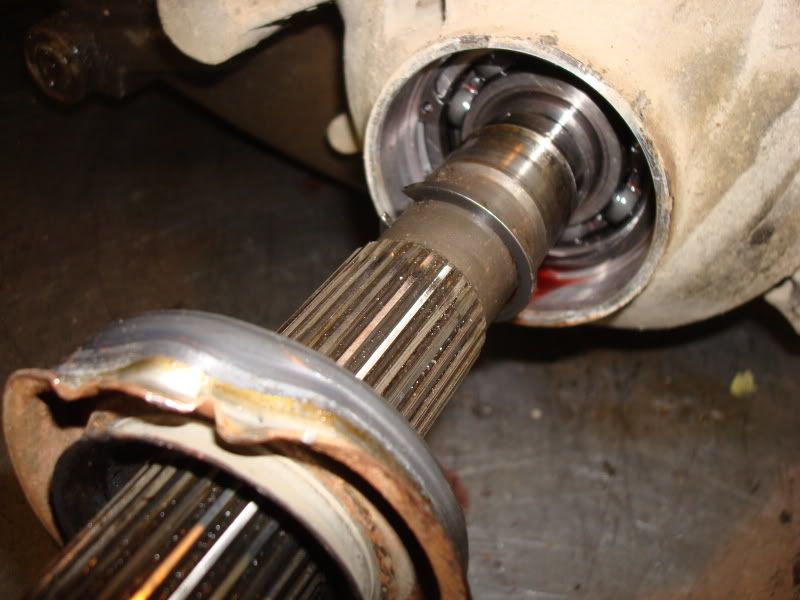

remove speed sensor and tin seal protector from output shaft
remove washer and first snap ring
baxy is offline
post #5 of 85 Old 04-29-2009, 05:33 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

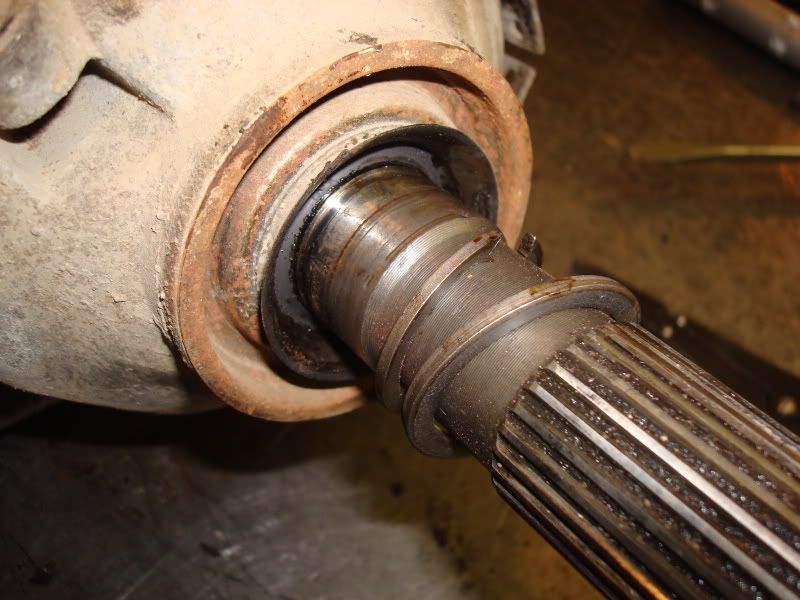

remove seal and second snap ring under seal
remove bolts holding rear extension housing on
baxy is offline
post #6 of 85 Old 04-29-2009, 05:34 PM
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
THOSE F-IN LOCKRINGS HAVE MADE MY LIFE HELL WITH THAT 242
/rant

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #7 of 85 Old 04-29-2009, 05:49 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

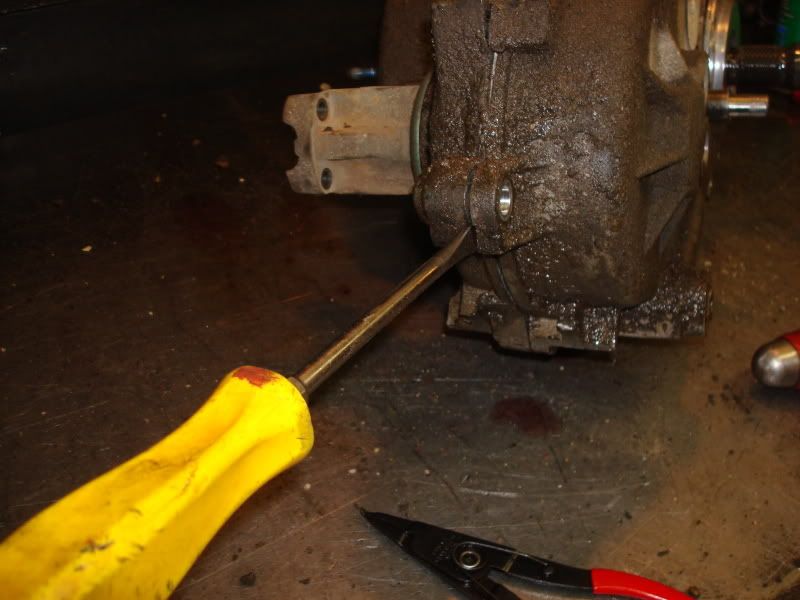

remove extension houseing by tapping on raised pieces carefully it can be tight

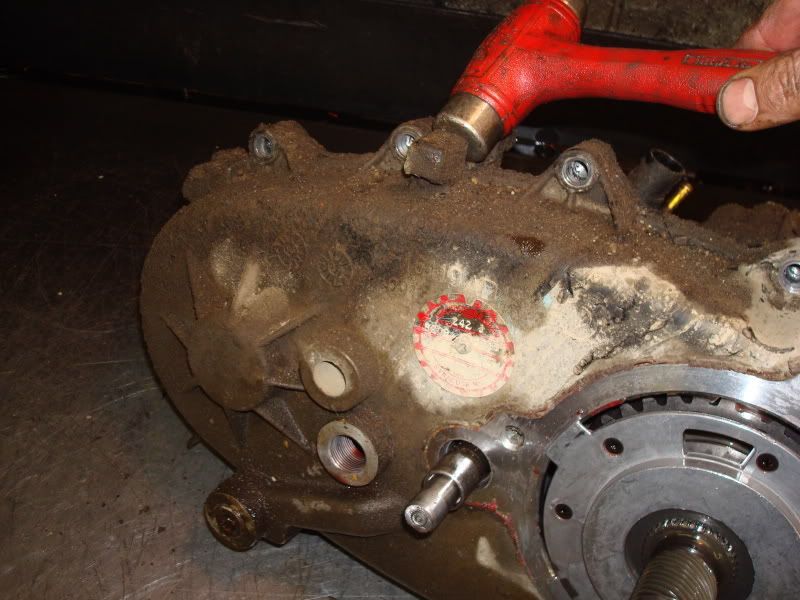

remove bolts holding case halves together , tap apart look around the edges there are slots to wedge a screw driver into
baxy is offline
post #8 of 85 Old 04-29-2009, 05:50 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443
Quote:
Originally Posted by BLACKzj52 View Post
THOSE F-IN LOCKRINGS HAVE MADE MY LIFE HELL WITH THAT 242
/rant

lots of time I find them upside down which makes them really hard to remove
baxy is offline
post #9 of 85 Old 04-29-2009, 05:52 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

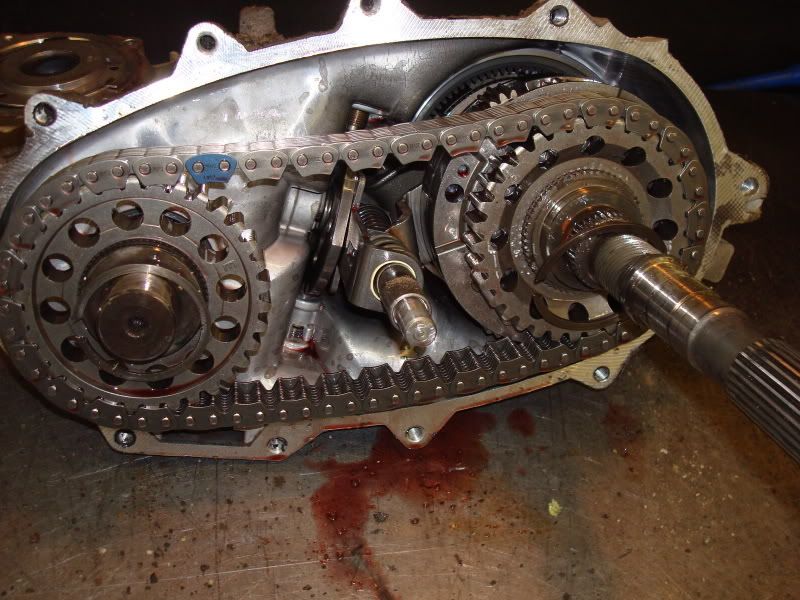

remove snap rings holding sprockets to shafts.... note the sprockets are different and only go up one way

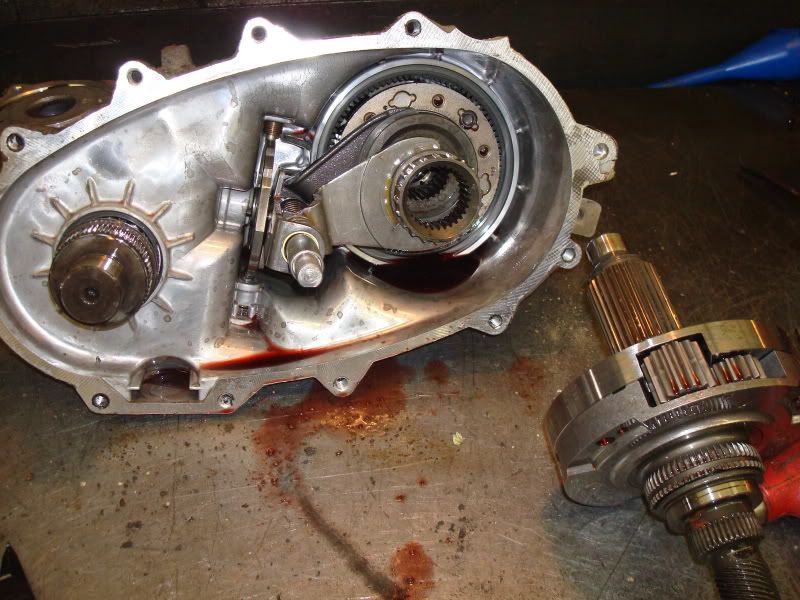

chain and sprockets removed main shaft removed just pull straight up

ok pry indetween shift fork and rooster comb to get the first shift fork out sorry I didnt get a pic
it will take alot of pressure but it will come
I know the proper way is to remove the roll pin but I end up fiddling around forever and sometimes cant get it out

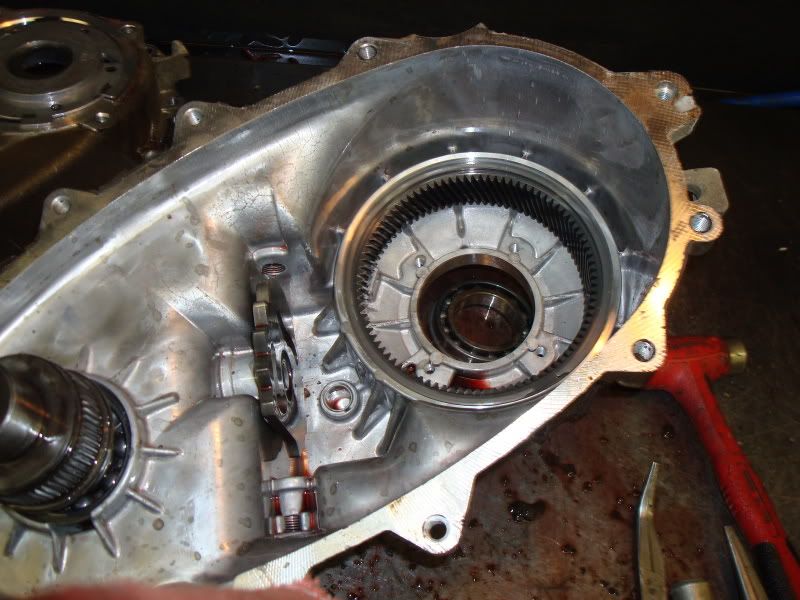

after you get the first one out you can just rotate the rooster comb up and wiggle out the inner shift fork
then remove the roll pin and we will assemble it according to the manual
baxy is offline
post #10 of 85 Old 04-29-2009, 05:56 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

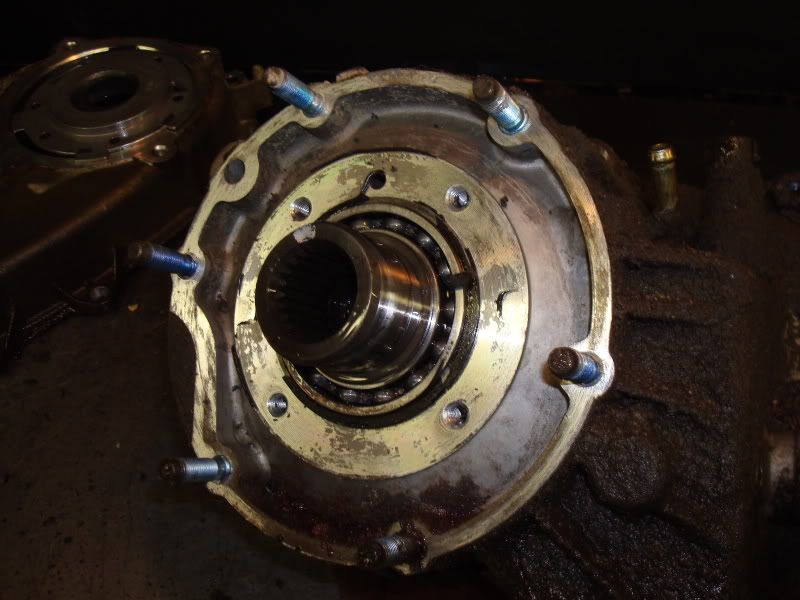

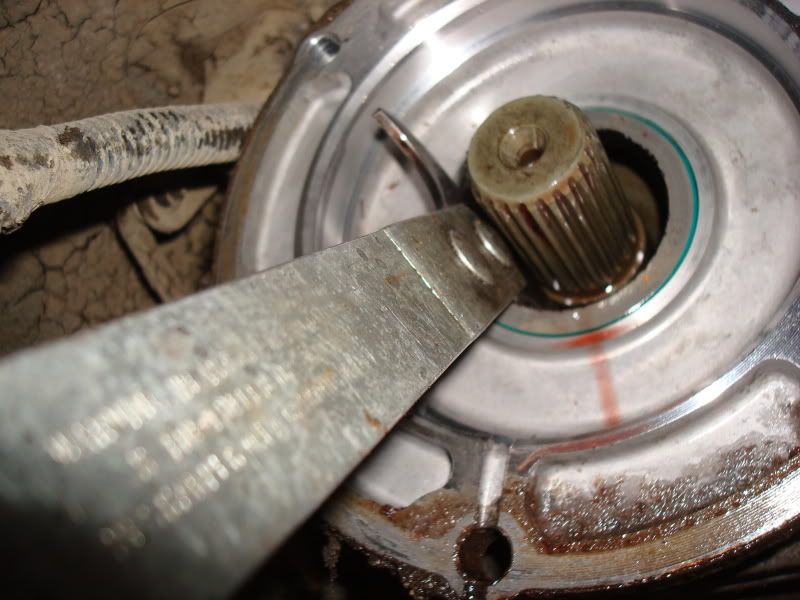

remove input seal retainer and inner snap ring on input shaft
baxy is offline
post #11 of 85 Old 04-29-2009, 05:58 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

remove input shaft and tap out input bearing
baxy is offline
post #12 of 85 Old 04-29-2009, 06:01 PM
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
Quote:
Originally Posted by baxy View Post
lots of time I find them upside down which makes them really hard to remove
i can deal with that, but mine warped and got weak, so when they were in the little grooves they slip into, they spun around. this let my tailshaft move forward and backward and at highway speeds this blows ur seal.
believe me, iv been through 5 of those dam seals already. i got some new rings from the dealer tho so this friday im gonna tackle is and see if it holds.
if not im putting a hammer through the sob

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #13 of 85 Old 04-29-2009, 06:02 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443

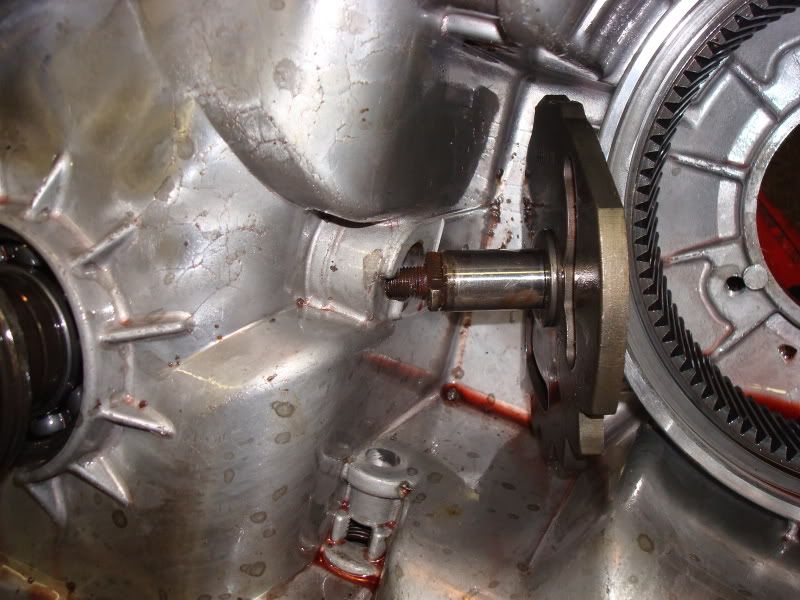

remove the shifter detent and the range switch

wiggle out rooster comb it only will come out one way
save the oring and plastic ring that comes out the other side
baxy is offline
post #14 of 85 Old 04-29-2009, 06:04 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443
Quote:
Originally Posted by BLACKzj52 View Post
i can deal with that, but mine warped and got weak, so when they were in the little grooves they slip into, they spun around. this let my tailshaft move forward and backward and at highway speeds this blows ur seal.
believe me, iv been through 5 of those dam seals already. i got some new rings from the dealer tho so this friday im gonna tackle is and see if it holds.
if not im putting a hammer through the sob

take your stock snap ring to a bearing supplier and match it up with the snap rings that have the two eyelets they are a far superior ring we change them up all the time it is actually the fix for the NP241 output shaft snap ring failure
baxy is offline
post #15 of 85 Old 04-29-2009, 06:06 PM Thread Starter
baxy
Registered User

Join Date: Mar 2009
Location: cranbrook
Posts: 1,443
ok before we start re assembly lets change the trans output seal


remove the seal
baxy is offline
