My Engine Swap "build thread" 4.0 - 5.2 - Page 2 - JeepForum.com
Search
Sign Up   Today's Posts
User: Pass: Remember?
Advertise Here
Jeep Home Jeep Forum Jeep Classifieds Jeep Registry JeepSpace Jeep Reviews Jeep Gallery Jeep Clubs Jeep Groups Jeep Videos Jeep Events Jeep Articles
Go Back JeepForum.com > Models > Jeep Grand Cherokee & Commander Forums > ZJ Grand Cherokee Forum > My Engine Swap "build thread" 4.0 - 5.2

Brand New! Quadratec LED Headlights!FS: Wrangler RGB Multicolor Fog Light LEDs: Awesome EffectFS: 2007-2013 Jeep Wrangler "HALO" Angel Eye Kit

Reply
Unread 11-14-2009, 01:52 PM   #16
BlackbeastZJ
Registered User
1995 ZJ

Join Date: Sep 2009
Location: Fairborn, OH
Posts: 526
I'm anxious to see how this one turns out, I'm considering doing it to mine in a couple years...

__________________
[CENTER]Sam-20: I love camo duct tape!

[SIZE="1"][B]1995 Jeep Grand Cherokee Limited, blacked out
4.0 I6, NP249, D30-D35 with 3.73 gears
LED Interior and gauge lights, Silverstar Ultra's
Tinted tails, Baja fogs, Bedlined bumpers, removed cladding
Iron Rock Offroad 3.5" lift, 15x8 Cragar D Windows, 32" BFG A/T's
Curt trailer hitch, Cobra CB with 4ft RS antenna[/B][/SIZE]

[URL="http://www.jeepforum.com/forum/f197/black-beast-95-zj-build-922921/"][B][SIZE="3"][B]My build Thread[/B][/SIZE][/B][/URL]

[SIZE="2"]Black Jeep Society
Christian Jeep Owners #37[/SIZE][/CENTER]
BlackbeastZJ is offline   Reply With Quote
Unread 11-14-2009, 08:11 PM   #17
redhatman
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Quote:
Originally Posted by BlackBeast95 View Post
I'm anxious to see how this one turns out, I'm considering doing it to mine in a couple years...

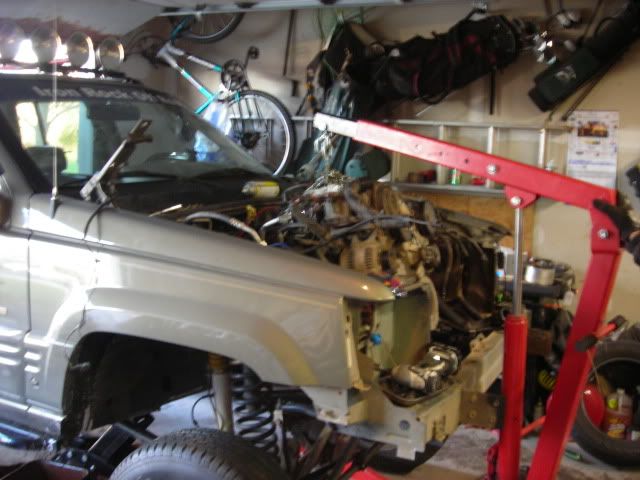

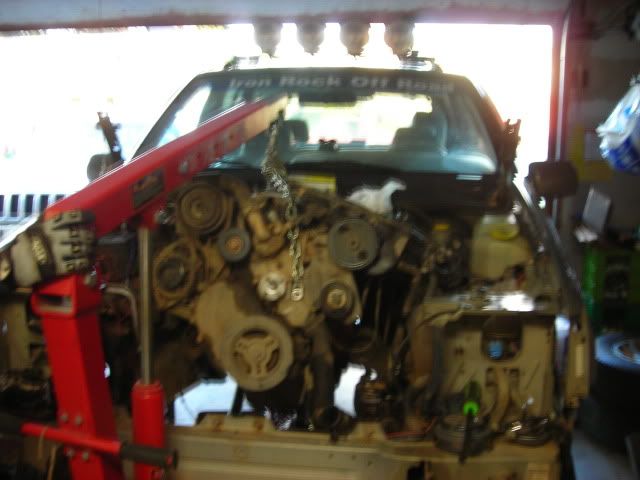

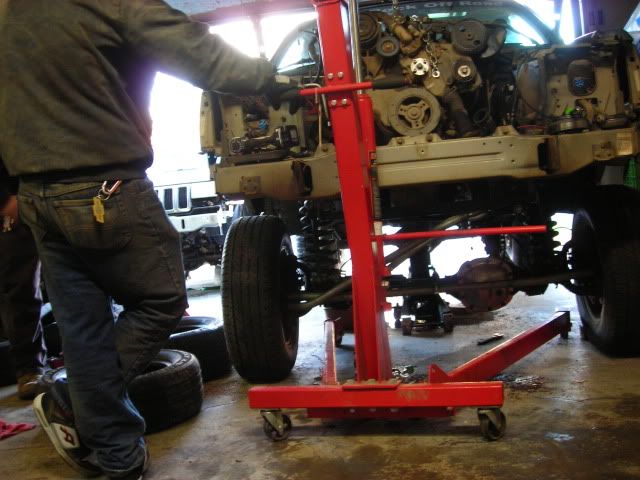

Me too :/ No turning back now. The longer it takes me to do this the colder its getting outside. It was pretty warm today, but still did not get above like 38 degrees and there was a wind. I had to have the garage door open for what I did today.

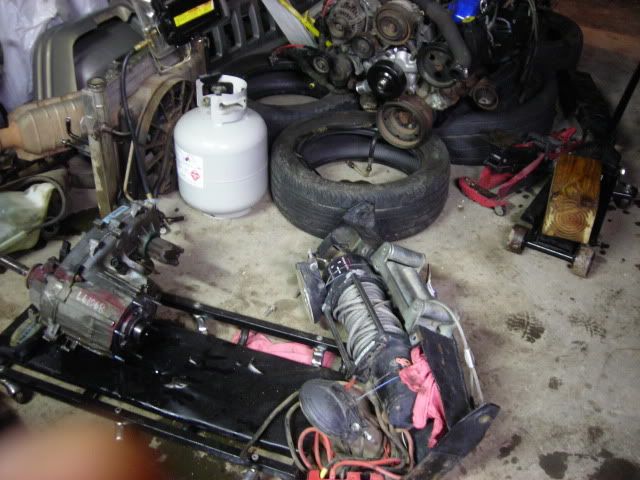

I had to put the stock tires back on to lower the Jeep enough to get the engine out. Also had to take off my winch and fog lights on the front. After I got the engine and trans out, I powerwashed the engine bay of the ZJ due to a big amount of random mud and dirt shoved in weird places. Plus for the v8 engine mounts there are holes that have not been used for 175,000 miles so I needed to clean out the threads of those. I am done working on it for tonight, but hopefully I can get the 5.2 in on sunday so at least its in place.

You will notice some pictures it looks like I aimed the camera wrong... well I had to set it on shelving to take the pictures otherwise they were blurry.

















__________________
-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline   Reply With Quote
Unread 11-14-2009, 08:14 PM   #18
redhatman
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Check out my Jeep info phahhahaha
__________________
-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline   Reply With Quote
Unread 11-16-2009, 12:33 AM   #19
redhatman
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388

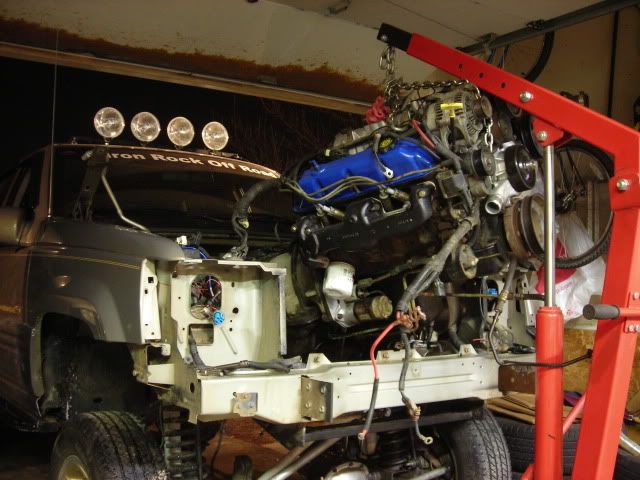

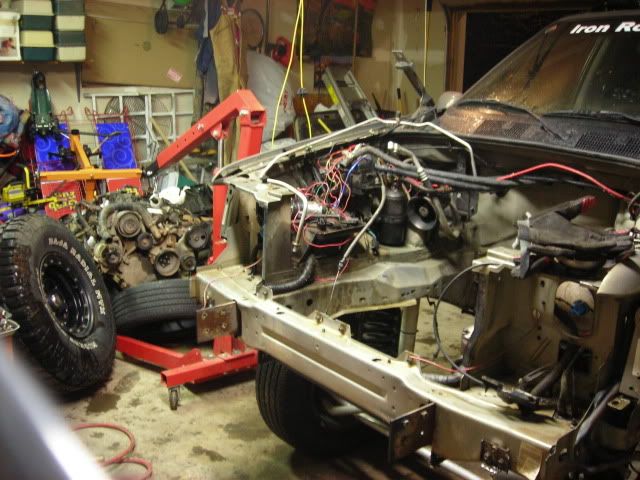

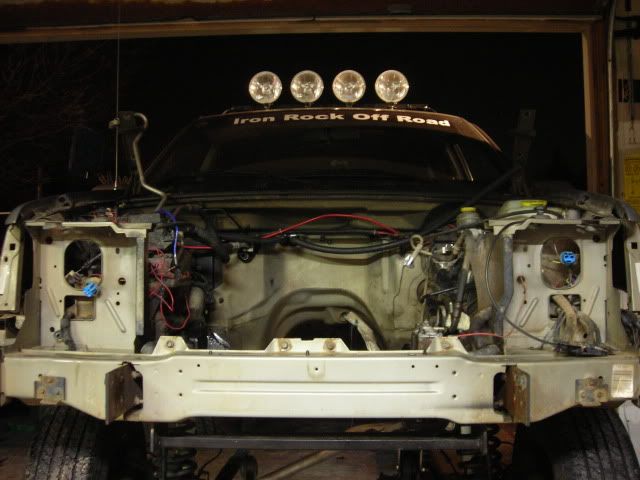

K dudes I made some good progress today. Got the engine mounts painted and in, fuel line switched over, Some A/C lines on, Heater hoses on, tand oh yeah. The engine and tranny in place. It sure was a tight and 15 minute struggle getting the 5.2 and trans in place but Its all in now, along with the transfer case being bolted up.

note, v8 fuel lines are different, as well as the 5.2 harness for the t-case was different at the t-case spedo gear plugs. Weird, but I just took the piece I needed off the 249 and put it on my 242. No pictures of the final progress tonight, But I have some of right before. I will snap some more tomorrow. Tomorrow I should be able to get all of the tranny mounts and the IRO Crossmember back in with the linkage all good. I am hoping I have this running by wednesday. But mon-friday I can only work on it starting at 9pm until like 12-1 a.m. due to me waking up for school at 5:45.

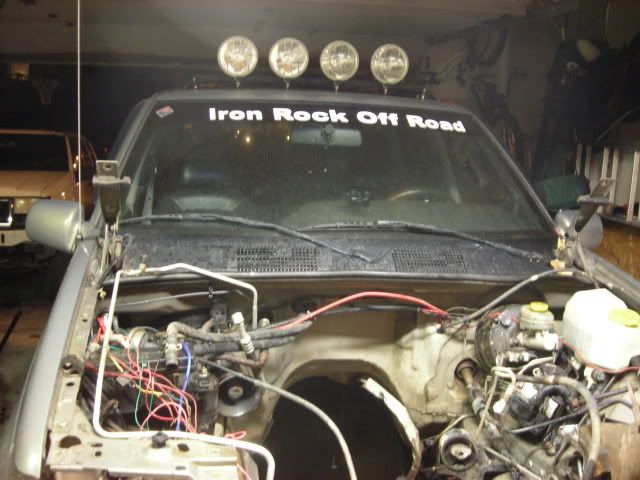

Anyway, onto a few pictures.

Has anyone heard of any problems due to lack of heatshields on a 5.2 exhaust manifold?








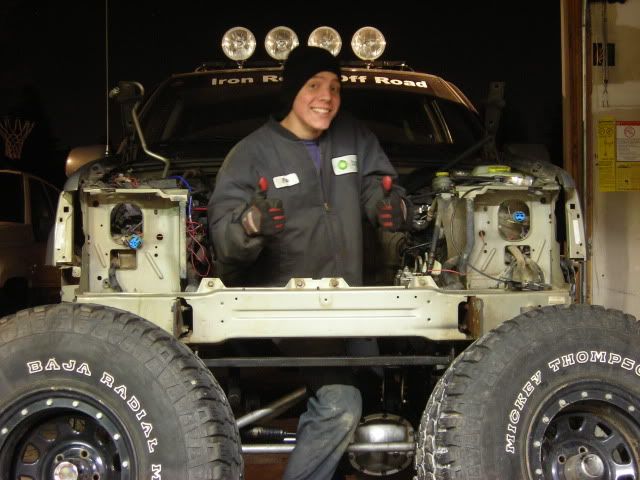

And I figured...how often do you get to take a picture like this.





__________________
-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline   Reply With Quote
Unread 11-16-2009, 12:40 AM   #20
Greengc4x4
Registered User
1998 ZJ

Join Date: Jun 2008
Location: Ohio
Posts: 4,001
Pretty sweet dude. How hard is it to pull the engine? Im wanting to pull the engine from my parts 5.9 but Im worried about all the plugs and stuff.
Greengc4x4 is offline   Reply With Quote
Unread 11-16-2009, 12:43 AM   #21
CLNinja
Registered User
1993 ZJ

Join Date: Apr 2007
Location: Denver, CO
Posts: 6,975
nice Pat !

now hurry and finish it and get it over to IRO so you can test fit my skid plate lol


oh and it looks funny with those tiny tires on it lol
__________________
[color="#003300"]Matt[/COLOR]
[color="white"][CENTER][size="1"]
[url="http://www.jeepforum.com/forum/showthread.php?t=434081"][color="white"]Click Here For My Build Thread[/COLOR][/url]
[/COLOR][/SIZE][B]**September 2009 Grand Cherokee Of The Month**[/B]
[SIZE="2"][url="http://www.jeepforum.com/forum/forumdisplay.php?f=123"][color="white"]Colorado Jeep Club Member #88[/COLOR][/url][/SIZE][/CENTER]
CLNinja is offline   Reply With Quote
Unread 11-16-2009, 08:47 AM   #22
2tone93zj
Registered User
1993 ZJ

Join Date: Dec 2004
Posts: 587
nice, that motor looks sick.
__________________
1993 Jeep Grand Cherokee Laredo
I-6, 42re, 249-->242 selec-trac swap, D30/D35
31x10.5, 3.5" IRO F>R, skids and tow hooks

Wanted: 93-95 Keyless entry fob

BUILT NOT BOUGHT #204
2tone93zj is offline   Reply With Quote
Unread 11-17-2009, 06:44 PM   #23
redhatman
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Greengc4x4, I would say the 4.0 was easier to pull, but that could have just been from my mounting points. the 4.0 coming out was kinda a PITA because it tilted like mad. The V8 block and trans lifted very evenly, and I mounted both engines the same. Obviously the I6 is a different shape though.

The 5.2 was a PITA to put in though, but guys remember I am also putting the transmission in at the same time. It took probably 15 minutes to get the engine and trans all in place (engine mount bolts in). So I would say dependant on your mechanical ability, its really not that hard. I mean you have 2 engine mount bolts, like 6 bell housing bolts, take off the starter, like 4 plugs on the trans, 2 on the t-case, and some o2 sensor wires. Then two computer plugs, one by the accumulator, and some going into the fusebox.

Really, not that many plugs. If I can name them off the top of my head its not that bad hahah

Matt, shut up! hahah Just kidding man. I am trying to finish this thing asap. Believe me, I am having withdrawls from driving around my altima and not the Jeep. hahha. But yeah for sure, the skid should work out, and then hopefully we can get yours all shipped out!

Guys I have not updated this thread yet.

Engine and trans are in, IRO Long arm crossmember is back in, transfercase is in, linkage hooked up, throttle body on, fuel line connected, I started connecting wires. I had to swap the 249 spedo gear plug from the donor to my 242, they were different.

Tonight hopefully the under Jeep work will be done. Driveshafts will go back in, and hopefully fit :/ I have to swap the connectors on the A/C accumulators and fix some throttle linkage.

I am going to pick up 5 qts of oil, a filter, coolant for the entire system, 13 quarts of ATF +4 (11 for 44re, 2 for NP242), and power steering fluid. I am hoping this Jeep will be ready in a couple of days.
__________________
-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline   Reply With Quote
Unread 11-17-2009, 08:11 PM   #24
biggoofy
Registered User
1996 ZJ

Join Date: Nov 2009
Location: Troy, NC Uwharrie
Posts: 4,183
lookin good man cant wait to see it finished
__________________
[CENTER]Zack

96 ZJ HP44 / 9"
90 XJ on 33s
RIP Troy aka BigBlueZJ94

FroBot Fab FTW

[URL="http://www.mallcrawlin.com/forum/showthread.php?22776-Biggoofy-s-96-ZJ-build!-**Building-axles**"]My Build[/URL]


Need quality parts call Andy at Ironman4x4fab!!!!!
[url]http://ironman4x4fab.com/index.html[/url]
[/CENTER]
biggoofy is offline   Reply With Quote
Unread 11-17-2009, 11:48 PM   #25
redhatman
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Not too much got done today.... I got the transfercase linkage all setup, and I went to the parts store and picked up some fluids. A Little over $75 was spent on just the trans fluid. :O

Tomorrow I just have to get some vacuum lines, and I will also buy a new auto tensioner since it looks like a pita to replace if need be. I hear they go out pretty commonly.

And the bad news. So I started getting the driveshafts in, and the rear is too short and the front is too long. The worst part is I just bought that front shaft less than 6 months ago, brand new, custom length, $249.99. So looks like I will procede to finish, and get it shortened when its all driveable.

As for the rear shaft, the donor Jeep obviously had a longer shaft so I am going to take that one, clean it up, paint it, and put two new u-joints in it.

I have to look at some wiring going into the fusebox, and also finish redoing the accumulator connection.

Other than that, pretty much just have to put on the Y pipe, fill it with fluid and try to see if it will start.
__________________
-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline   Reply With Quote
Unread 11-20-2009, 02:40 AM   #26
aircruiser
Registered User
1996 XJ Cherokee

Join Date: Jun 2006
Location: minnesota
Posts: 9,693
She Runs
__________________
1996 XJ on 36" TSLs, 4", locked F/R, stretched
aircruiser is offline   Reply With Quote
Unread 11-20-2009, 08:37 AM   #27
JFox21
Registered User
1996 ZJ

Join Date: Aug 2007
Location: Lafayette, California
Posts: 1,527
Video proof or it didn't happen..

__________________
Jamie


Sophomore at Santa Clara University
JFox21 is offline   Reply With Quote
Unread 11-20-2009, 05:50 PM   #28
redhatman
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
I have been going to bed way to early in the morning with minimal sleep so sorry for the lack of updates.

I ended up trying to turn it over two nights ago, I had no power with ignition on. No dash lights, no headlights, no nothing. Figures right, by the time you swap over all the harnesses it only figures that that would happen. So I looked into it, probed some connections and determined that I was not getting any power to the fuse box under the hood. All connections were good, all grounds were connected. So I ran a whole new power wire from the Battery + to the post on the power distribution box.

I tried starting it again, last night. And I hear a bunch of starter shuttering noise, and a lot of relays tweaking out. Checked all connections and the battery ground was loose.

Seeing as its a V8, and I only have the headers on right now being it started up not even a second after I started cranking, I killed it right away. 1:30 in the morning was a bit too early for that.

-----Now---- Jeep sits still with only headers. I busted out my good ol' Ignersoll Rand Air Hammer and torch, and got the exhaust off the donor Jeep. I also picked up some bolts, washers, and nuts. I just returned from Napa where I got some flex pipe and clamps. That way, tonight when I get the exhaust on I can actually let it run where its not excessively loud. And as long as she runs and sounds fine with no problems I should be able to get it back together and on the road saturday after I get off of work.
__________________
-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline   Reply With Quote
Unread 11-20-2009, 06:31 PM   #29
BlackbeastZJ
Registered User
1995 ZJ

Join Date: Sep 2009
Location: Fairborn, OH
Posts: 526
Hope you get it goin man, this build has been awesome, I love how you painted it blue and all to!
__________________
[CENTER]Sam-20: I love camo duct tape!

[SIZE="1"][B]1995 Jeep Grand Cherokee Limited, blacked out
4.0 I6, NP249, D30-D35 with 3.73 gears
LED Interior and gauge lights, Silverstar Ultra's
Tinted tails, Baja fogs, Bedlined bumpers, removed cladding
Iron Rock Offroad 3.5" lift, 15x8 Cragar D Windows, 32" BFG A/T's
Curt trailer hitch, Cobra CB with 4ft RS antenna[/B][/SIZE]

[URL="http://www.jeepforum.com/forum/f197/black-beast-95-zj-build-922921/"][B][SIZE="3"][B]My build Thread[/B][/SIZE][/B][/URL]

[SIZE="2"]Black Jeep Society
Christian Jeep Owners #37[/SIZE][/CENTER]
BlackbeastZJ is offline   Reply With Quote
Unread 11-20-2009, 06:40 PM   #30
chevyman840
Registered User
1994 ZJ

Join Date: Mar 2009
Location: locust grove, va
Posts: 26
Sounds like i will be doing this soon too. Great build !
chevyman840 is offline   Reply With Quote
Reply
Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
