Looking for ZJ bumper blueprints.

I'm looking to fab up a bumper for my 93 ZJ, and am looking for any blueprints or templates that I can work with. Does anybody know where I can find one? I've looked online, but have only found pictures with no measurements. Thanks.

djdalfaro is offline   Reply With Quote
Unread 03-29-2011, 02:01 PM   #2
Dodgeram1989
Registered User
1976 FSJ Cherokee

Join Date: Jan 2011
Location: Des Moines, Iowa
Posts: 347
I am in the same boat. Would love to find a bumper for my ZJ. Anyone on here from the midwest know anyone that makes them? Or how hard would they be to make a bumper? Have a welder just never used it before and don't really know where to start.


Also what kind of bumper are you looking for? I know ive seen some blueprints for a homemade bumper that looks like the KOR stealth bumper. Could proly find them again if that is what you are looking for.



Or google

http://sketchup.google.com/3dwarehou...e3f0a9ef98e48d
__________________
[CENTER][FONT="Comic Sans MS"]97 ZJ - Stock again
1976 Chief AMC 360 6 in lift, 35 inch tires[/FONT]
[/CENTER]
Dodgeram1989 is offline   Reply With Quote
Unread 03-29-2011, 02:25 PM   #3
charlesshoults
Registered User
1995 ZJ

Join Date: Mar 2007
Location: Sidney, NE
Posts: 172
I've seen some nice winch bumpers, but unfortunately with some not-so-nice price tags attached to them, so I'm itching to build my own. I like both the KOR Stealth bumper and the Prerunner bumper, so decisions, decisions.

I think the biggest issue is the two plates that slide into the frame rails, to which the bumper is attached. Remove the plastic bumper cover, look at lots of pictures, then buy a sheet or two of 1/8" or 3/16" hardboard. Start measuring, then cut pieces of hardboard and duct tape them in place, trim as necessary. Use either cardboard or PVC tube for fog light holes and stinger bars. When you have it looking the way you want it, untape everything and use the individual pieces of hardboard as templates for plate steel.
charlesshoults is offline   Reply With Quote
Unread 03-29-2011, 03:58 PM   #4
charlesshoults
Registered User
1995 ZJ

Join Date: Mar 2007
Location: Sidney, NE
Posts: 172
Also, I don't know if you have something like this near you, but there is a shop about an hour from me, that if I take them measurements for the pieces I want, they will laser cut the pieces. The only issue is that they charge for a 4x8 sheet of whatever thickness of steel specified, so I have to make sure I have enough to make good use of that size.
charlesshoults is offline   Reply With Quote
Unread 03-30-2011, 12:22 AM   #5
W2001J
Registered User
1993 ZJ

Join Date: Jul 2008
Location: Grass Valley
Posts: 292
I have the templates for the google bumper. let me know if i could help.
__________________
93 ZJ Under Construction

Build Thread
W2001J is offline   Reply With Quote
Unread 03-30-2011, 01:24 AM   #6
shocklee17
Registered User
1998 ZJ

Join Date: Sep 2009
Location: St. Louis
Posts: 118
Dimensions on this may not be exact, but got bored one day and decided to design a ARB bumper on sketch up. Havent finished it yet, still want to put a place for a winch on. You can have a copy if you want. Pretty easy to get all of the dimensions, just use the tape measure or dimension tool in sketch up.
shocklee17 is offline   Reply With Quote
Unread 03-30-2011, 11:48 AM   #7
coonash
Senior Member

coonash's Avatar
1969 FSJ Wagoneer

Join Date: Aug 2005
Location: Lake Charles, LA
Posts: 655
Quote:
Originally Posted by W2001J View Post
I have the templates for the google bumper. let me know if i could help.
I'd like to know about your templates.

If I could get the files in autocad my company could burn them for me on our plasma/torch table.
__________________
Quote:
Originally Posted by 5-90
This is an online forum, and the written word is the primary method of communication. If you make an effort to communicate clearly, people will be willing to communicate in return. If you don't make an effort, I don't see why I should - write like an idiot, and I'm going to think you're an idiot, that's just how things work.
USN Jeep Club Number 41
coonash is offline   Reply With Quote
Unread 03-30-2011, 12:27 PM   #8
djdalfaro
Registered User
1993 ZJ

Join Date: Mar 2011
Location: Alamogordo, NM
Posts: 8
Thanks for all the advice, I'm installing SketchUp right now to take a look at that bumper. Shocklee17, I wouldn't mind getting a copy of the file when you finish it up. I actually just toured a machine shop as part of a college class, and they have laser cutters there, so I think I'm gonna try to price this thing out, and see what they say.
djdalfaro is offline   Reply With Quote
Unread 03-30-2011, 06:24 PM   #9
brady1604
Registered User
1996 ZJ

Join Date: Oct 2010
Location: pell city, alabama
Posts: 57

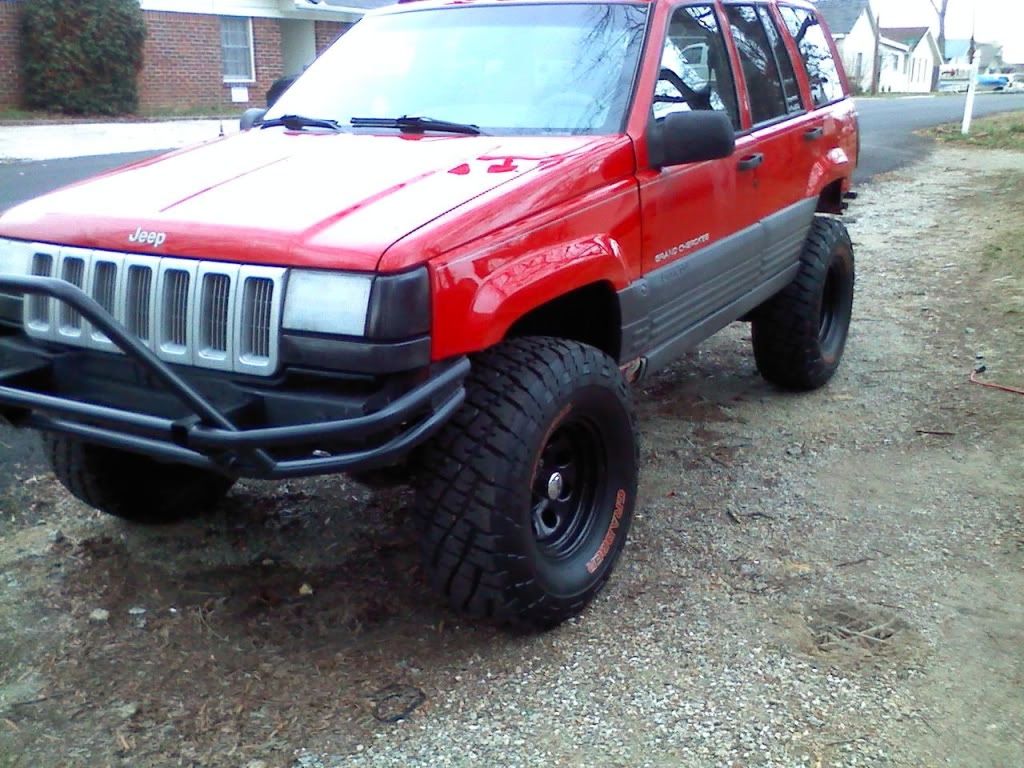

i fabbed this one. i dont have blue prints but i can tell you how much tubing i used and what thickness it is if that will help you
brady1604 is offline   Reply With Quote
Unread 03-30-2011, 06:29 PM   #10
brady1604
Registered User
1996 ZJ

Join Date: Oct 2010
Location: pell city, alabama
Posts: 57

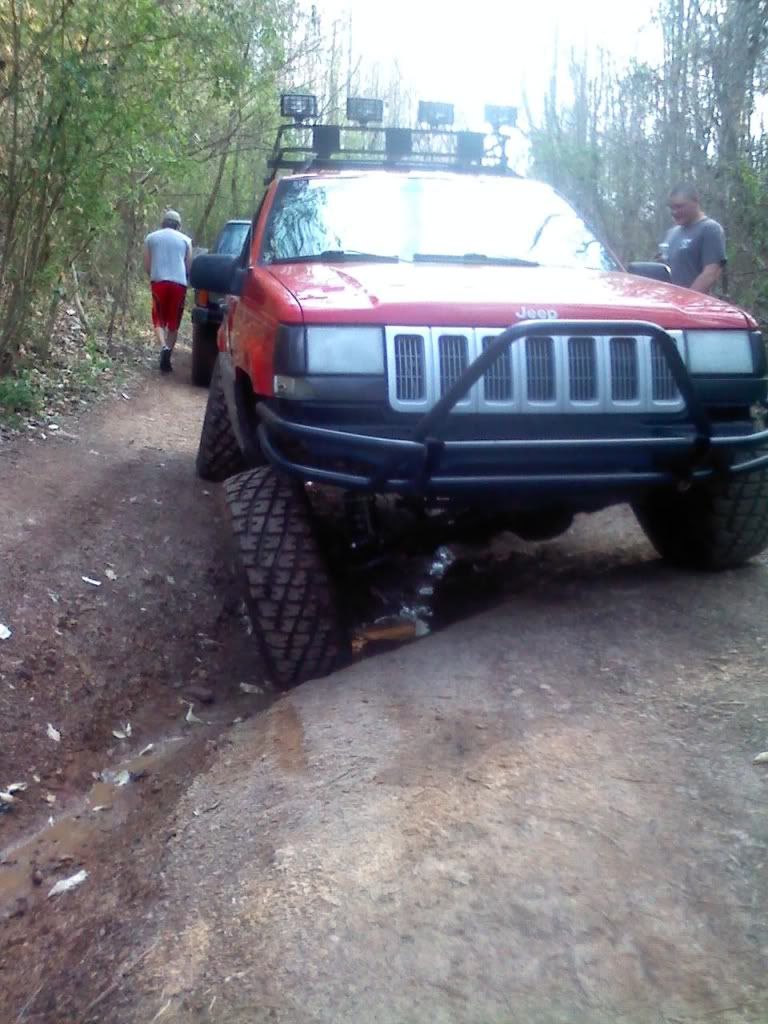

here's a pic from the front


brady1604 is offline   Reply With Quote
Unread 03-30-2011, 06:29 PM   #11
brady1604
Registered User
1996 ZJ

Join Date: Oct 2010
Location: pell city, alabama
Posts: 57
here's a pic from the front


brady1604 is offline   Reply With Quote
Unread 03-30-2011, 08:20 PM   #12
Jeepfordan
Registered User
1998 XJ Cherokee

Join Date: Mar 2009
Location: Bowling Green, Kentucky
Posts: 329
Quote:
Originally Posted by brady1604
here's a pic from the front
Can you send me the info on your bumper?
__________________
1978 CJ-7-SOLD
1995 ZJ-SOLD
1996 ZJ-SOLD
1998 XJ- 4.0/AX-15/231- DD until grad school is over. Then back to the trails
Jeepfordan is offline   Reply With Quote
Unread 03-31-2011, 07:45 AM   #13
djdalfaro
Registered User
1993 ZJ

Join Date: Mar 2011
Location: Alamogordo, NM
Posts: 8
I'd also like the info on that tube bumper. Does anyone know of somebody that can comment on the fitment of the sketchup bumper? I'm seriously considering that design, with maybe the addition of some steel tubing. Also I didn't see the design for the recovery points in that plan. Is that just an additional aftermarket part or should I edit the design to include those pieces?
djdalfaro is offline   Reply With Quote
Unread 03-31-2011, 11:46 AM   #14
W2001J
Registered User
1993 ZJ

Join Date: Jul 2008
Location: Grass Valley
Posts: 292
I have been talking to a member about the bumper and he says it fits well, but like with anything you will need to make a few changes. Also you can just add recovery points. No big deal.
__________________
93 ZJ Under Construction

Build Thread
W2001J is offline   Reply With Quote
Unread 04-03-2011, 03:21 PM   #15
RaccoonJoe
Registered User
1995 ZJ

Join Date: Sep 2007
Location: NE IN
Posts: 276
I fabbed one up with my buddy's help. No winch, but it would easily accept on. 1/2 d-rings welded to the front plate, right in front of the frame inserts.

I built mine from some scrap 2x5 box steel (3/16 thick). It's just under 100 pounds, with safari bar and KCs.

I will try to find some photos tonight, get them posted up. Maybe I can even find my paper sketches and measurements....
__________________
Eagle Scout Jeep Club Member #4

Quote:
Originally Posted by 4.0H.O.XJ
..................
Ill have an XJ please, with a side order of 4.0, hold the catalyctic converter and the 02 sensors, thank you.
RaccoonJoe is offline   Reply With Quote
