post #1 of 12 Old 04-14-2009, 02:45 PM Thread Starter
aaron7
Registered User

Join Date: Nov 2007
Posts: 942
Installed roof lights and made a switch panel for my lights

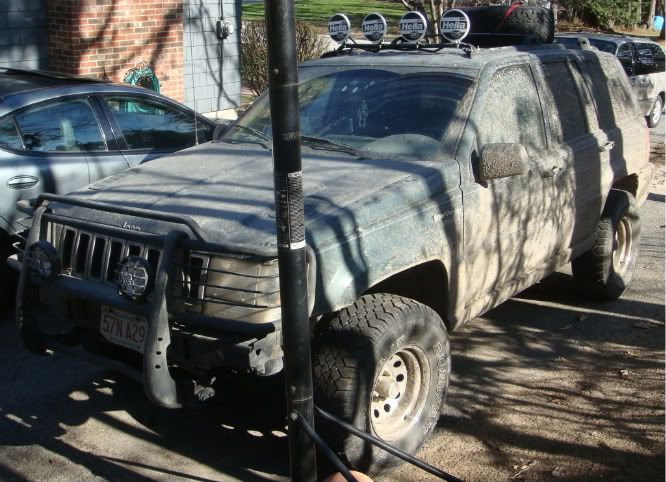

Got rid of the crappy lights that I bought with my roof bar (no offence to the place I got them from... but they rusted, fogged over, and nearly fell apart after 5 months) and bought some Hellas. Also found a set of KC's for the front grille.

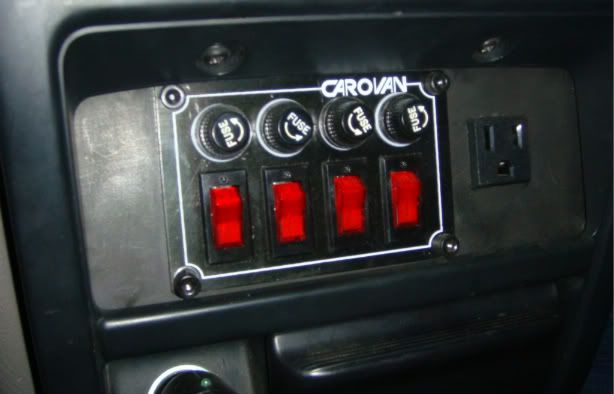

Bought the panel off ebay for $20. Came with the lighted switches and the 30a fuses. Think it was for an RV or something. Ok, I only made SOME of the switch panel

Gutted the useless panel that was where this one is (the one that says 4lo and 4hi) and installed this in the remains.

Also gutted a small power inverter (the kind that plugs into the cigarette lighter) and found an outlet to mount to it.

Ran 8 gauge wire to the panel from the battery (with a 40a fuse near the battery) and wired the roof lights to one switch and the grill lights to another. Both are wired through relays as I was melting the 30a fuse for the roof lights without it!

Pics:





89 MR2 MK1.5
74 CB360
83 Firebird
79 Dodge Shasta 22' RV
aaron7 is offline
Sponsored Links
Advertisement

post #2 of 12 Old 04-14-2009, 03:07 PM
camboman5
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Denton, Tx
Posts: 96
Quote:
Originally Posted by aaron7 View Post

Pics:


Nicely done! This is what my ZJ needs to look like.
camboman5 is offline
post #3 of 12 Old 04-14-2009, 03:35 PM
subliminal
Registered User
1997 XJ Cherokee

Join Date: Feb 2008
Location: Kenosha, WI
Posts: 584
The switch cluster looks great. Im not feeling the round lights on top, I think it would look alot better with rectangle lights on top but thats just my opinion.

1997 Jeep Cherokee 4.0 Automatic NP231
subliminal is offline
post #4 of 12 Old 04-14-2009, 03:45 PM
Mickey_D
Registered User
1997 ZJ

Join Date: Aug 2008
Location: 40 3'42.36"N 112 2'16.73"W
Posts: 6,867
I REALLY like the idea of the built-in inverter!!

*runs off to rip VIC out of my Jeep...*

1997 ZJ 5.2 Orvis, Baby!
1953 Willys M100 trailer Tagalong
________________
[_][][][][][][][][_]


Mickey_D is offline
post #5 of 12 Old 04-14-2009, 11:48 PM
NEVADAGARY
Registered User
1998 ZJ

Join Date: Feb 2009
Location: Fernley, NV
Posts: 322
Nice looking switches! Here's my "switch panel" for my roof lighting.


Gary D.
Old but having fun
Real Americans drive Real American!
NEVADAGARY is offline
post #6 of 12 Old 04-15-2009, 12:14 AM
sandman
Registered User
1993 ZJ

Join Date: Apr 2007
Location: Wilsonville, Oregon
Posts: 5,354
love the switch/plug panel. i just dont have the heart to remove my VIC

1993 Jeep ZJ. 4.0
sandman is offline
post #7 of 12 Old 04-15-2009, 01:00 AM
BLACKzj52
Registered User
1996 ZJ

Join Date: Mar 2007
Location: ohio
Posts: 5,678
Quote:
Originally Posted by NEVADAGARY View Post
Nice looking switches! Here's my "switch panel" for my roof lighting.

is that just a security system with aux functions or what?

- John - 23 and learning <-- ORIGINAL
- 1996 Black ZJ Limited: 5.9 swap, LA's, axles, absolutely built to hell
- 1998 Platinum 5.9 Limited: DD with some lighter modifications
My Build Thead
Facebook
Senior at The Ohio State University
BLACKzj52 is offline
post #8 of 12 Old 04-15-2009, 02:24 AM
SoCalDevyn
Registered User
1998 ZJ

Join Date: May 2008
Location: Valencia, CA
Posts: 448
Quote:
Originally Posted by BLACKzj52 View Post
is that just a security system with aux functions or what?
u can get it at pep boys, u can hook 4 AUX up to it

98 ZJ Limited 5.2, Blacked Out, 6.5" IRO Long Arm, 15x8 Pro Comp 97's, 35" MTZ's, Custom Front Bumper, Rusty's Disco's, KOR Light Bar, 8000K HID's, Magnaflow, CB, 5% Tint, System, TJ Gas Bezel, JKS Rear Trac Bar, Rusty's Front Trac Bar, KOR Stabilizer, Cold Air Intake, E-Fan, RCX Diff Guard, Clayton Brake Lines, MSD Ignition, Gen Right Louvers, Custom Sliders, IRO Belly Skid, Rigid Lights
SoCalDevyn is offline
post #9 of 12 Old 04-15-2009, 02:26 AM
jeepheller98
Registered User
1998 ZJ

Join Date: Mar 2008
Location: park ridge
Posts: 1,089
Quote:
Originally Posted by sandman View Post
love the switch/plug panel. i just dont have the heart to remove my VIC
i could, mine doesnt tell me jack lol

98 ZJ 3" lift homemade snorkel. JKS quicker disco 5.2L 150,000, 31x10.5 pro comp muds
jeepheller98 is offline
post #10 of 12 Old 04-15-2009, 09:17 AM
camboman5
Registered User
1998 ZJ

Join Date: Jul 2007
Location: Denton, Tx
Posts: 96
Quote:
Originally Posted by subliminal View Post
Im not feeling the round lights on top, I think it would look alot better with rectangle lights on top but thats just my opinion.
I think it looks great!

Quote:
love the switch/plug panel. i just dont have the heart to remove my VIC
X2 I would probably look for another place to put it in. I am halfway tempted to dabble into fiberglass construction and fab something up.
camboman5 is offline
post #11 of 12 Old 04-15-2009, 11:31 AM
NEVADAGARY
Registered User
1998 ZJ

Join Date: Feb 2009
Location: Fernley, NV
Posts: 322
Quote:
Originally Posted by BLACKzj52 View Post
is that just a security system with aux functions or what?

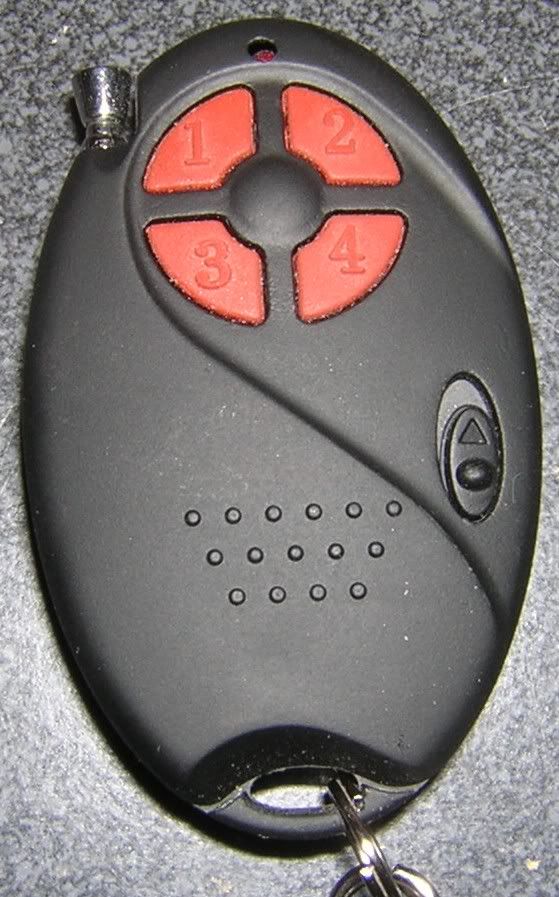

It's strictly a remote control unit I got at Pep Boys and hooked up my 4 roof lights to it. Button #1 is the two outside lights and button #2 is the two inside lights. Button #3 may be my KC lights on the bumper hoop but right now it's a mmentary contact for some kind of aux flasher or horn or something more sinister ...haven't decided yet. What's really cool is I can operate the lights from 30+ feet away.

The control box

Gary D.
Old but having fun
Real Americans drive Real American!
NEVADAGARY is offline
post #12 of 12 Old 04-15-2009, 11:32 AM
NEVADAGARY
Registered User
1998 ZJ

Join Date: Feb 2009
Location: Fernley, NV
Posts: 322
Sorry didn't mean to hi jack this thread. I'll delete it if you want.

Gary D.
Old but having fun
Real Americans drive Real American!
NEVADAGARY is offline
