I think im missing the wiring to my Crankshaft Position (CKP) Sensor!

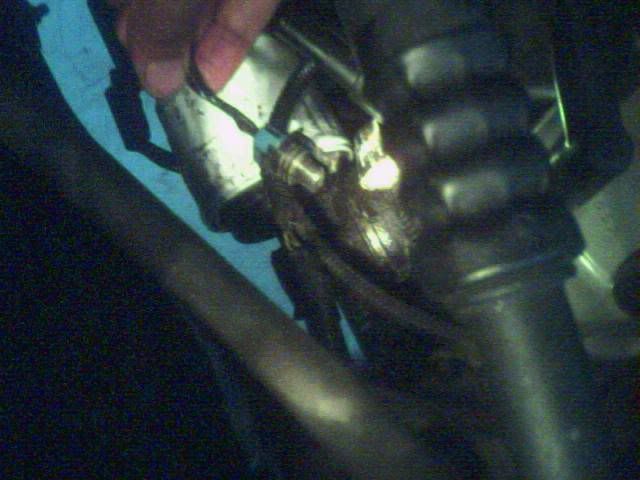

I have been wondering exactly what this clip connects to that sits directly behind the oil filter. I have found out that it connects to the Crankshaft Position (CKP) Sensor but i can't find the wiring coming from it. I have searched just about everywhere for it and haven't found it yet. My question to you is will my Jeep even drive minus the CKP??? It drives great, no sputtering at all. Im baffled



littlefdl is offline   Reply With Quote
Unread 09-14-2009, 01:24 PM   #2
rugermack
Registered User
1995 ZJ

Join Date: Feb 2009
Location: Sonoita, Arizona
Posts: 2,093
If the wiring/plug for the CPS in not plugged in, it won't run at all.
__________________
95' Jeep Grand Cherokee Laredo, 148k, 5.2, NP242, 46RH, 4" RC lift, all new adjustable ca's(2 IRO front uppers and the rest RC adjustables), nitro shocks, JKS TB's, Jet Chip, Dynamax cat back, Magnaflow cat, GTP hood vents. 31" Pro Comps with Rock Krawler "D"s. Westin brush/grill guard with Hella 500s, 411's, Solid diff covers, detroit locker rear, power lock in front, SYE and Tom Wood's front/rear shafts, RE discos, BPE's, d-rings front and back, factory tc and rad skid, hitch, Sliders next.
03' Jeep Grand Cherokee Laredo, (wifes Jeep) 99k, 4.7 5 speed auto, K&N, KYB shocks, drilled-slotted rotors, All the toys.
2000' Ford Superduty, F250, 7.3, 198K, 37's, too much to list.

Built Not Bought #257

Parts for sale d30 and d35 parts http://www.jeepforum.com/forum/f126/...-parts-1004499
rugermack is offline   Reply With Quote
Unread 09-14-2009, 01:29 PM   #3
littlefdl
Registered User
1994 ZJ

Join Date: Mar 2009
Location: High Point, NC
Posts: 160
I heard some GC's were equipped with a Oil Level Sensor??? Is the wiring for this by the pan somewhere?
littlefdl is offline   Reply With Quote
Unread 09-14-2009, 01:45 PM   #4
WiCkeDuDe
Web Wheeler

WiCkeDuDe's Avatar
2002 WJ

Join Date: Dec 2007
Location: Utah
Posts: 3,062
I have no idea what you are trying to say. The CKP is back near the bell housing and its plugged in or your Jeep would not start. Are you saying the connection you have in your hand is for the CKP? You cant find what wiring?

Ive read your post 5 times and I cant figure out what you are saying.
WiCkeDuDe is offline   Reply With Quote
Unread 09-14-2009, 01:48 PM   #5
littlefdl
Registered User
1994 ZJ

Join Date: Mar 2009
Location: High Point, NC
Posts: 160
Quote:
Originally Posted by WiCkeDuDe View Post
I have no idea what you are trying to say. The CKP is back near the bell housing and its plugged in or your Jeep would not start. Are you saying the connection you have in your hand is for the CKP? You cant find what wiring?

Ive read your post 5 times and I cant figure out what you are saying.
Im trying to to figure out what this connector goes to. If the Jeep won't run without the CKP being plugged in, thats out of the picture. Maybe it goes to the Oil Level Sensor, Im askin where it's located
littlefdl is offline   Reply With Quote
Unread 09-14-2009, 01:58 PM   #6
WiCkeDuDe
Web Wheeler

WiCkeDuDe's Avatar
2002 WJ

Join Date: Dec 2007
Location: Utah
Posts: 3,062
Do all your gauges work??

The only thing I know in that area are the oil pressure sender and the coolant temp sensor.
WiCkeDuDe is offline   Reply With Quote
Unread 09-14-2009, 02:44 PM   #7
StellaTheZJ
Registered User
1996 ZJ

Join Date: Jan 2009
Location: BC
Posts: 627
This is definitely the plug for the oil LEVEL sensor, which were not installed on very many Jeeps, or at least I've never seen one! But the wiring is there on the 93-95 ZJs.
StellaTheZJ is offline   Reply With Quote
Unread 09-14-2009, 06:49 PM   #8
impuresoul2k3
Registered User
1993 ZJ

Join Date: Mar 2007
Location: Nebraska
Posts: 566
My 93 ZJ has the oil level sensor
__________________
1993 Grand Cherokee Limited, 5.2L
Modified/Slightly Ported Kegger
Air hat spacer
Modified Throttle body
Flowmaster muffler
impuresoul2k3 is offline   Reply With Quote
Unread 09-14-2009, 08:06 PM   #9
rooster51
Registered User
1997 ZJ

Join Date: Dec 2008
Location: Virginia Beach
Posts: 1,634
Quote:
Originally Posted by rugermack View Post
If the wiring/plug for the CPS in not plugged in, it won't run at all.
3rd confirmation, just so your clear.
__________________
Terry
rooster51 is offline   Reply With Quote
Unread 09-15-2009, 04:05 PM   #10
StellaTheZJ
Registered User
1996 ZJ

Join Date: Jan 2009
Location: BC
Posts: 627
impuresoul2k3, I love the idea of the Oil Level Sensor. For me, having a GC is all about those extra little touches. My 96 has no provision for one, or I'd be checking the wrecker for them (along with all the other planned upgrades).

Does it work OK? Does it "warn you" if you're on a serious angle?
StellaTheZJ is offline   Reply With Quote
Unread 09-15-2009, 09:20 PM   #11
impuresoul2k3
Registered User
1993 ZJ

Join Date: Mar 2007
Location: Nebraska
Posts: 566
It usually only throws a false reading on an incline if the oil level starts getting a little low. If its full I never have a problem with it.
__________________
1993 Grand Cherokee Limited, 5.2L
Modified/Slightly Ported Kegger
Air hat spacer
Modified Throttle body
Flowmaster muffler
impuresoul2k3 is offline   Reply With Quote
Unread 09-16-2009, 03:50 AM   #12
BigE3
Registered User
1993 ZJ

Join Date: Sep 2009
Location: Tombstone,Az
Posts: 1,014
oil level is the side of the pan and the wiring in loomed into the starter wires. that looks like the oil pressure sender near the distributor
__________________
I like my Jeep, just like my women. 'Loose and Flexible'
BigE3 is offline   Reply With Quote
